30 Pack Normally Open Momentary Switch with Round Red Button, 2-Pin Solder Lug Termination

17MOMNOPK30
Regular price
$26.99
Sale price
$26.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

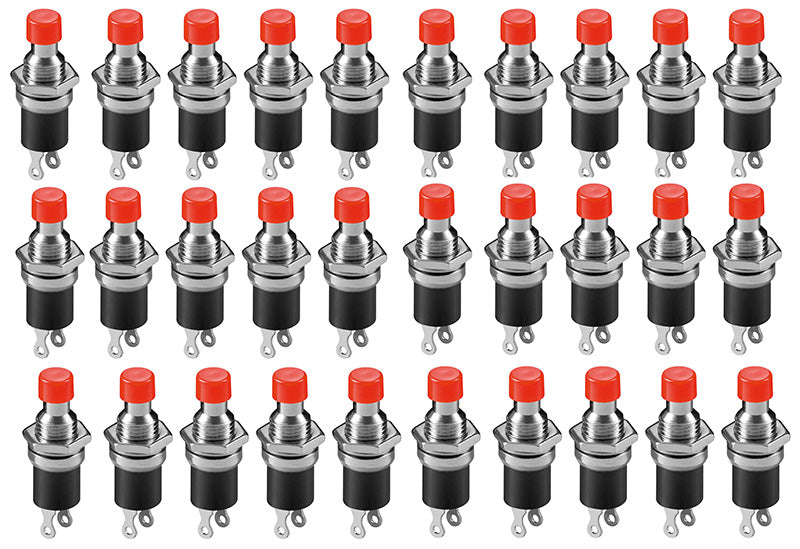

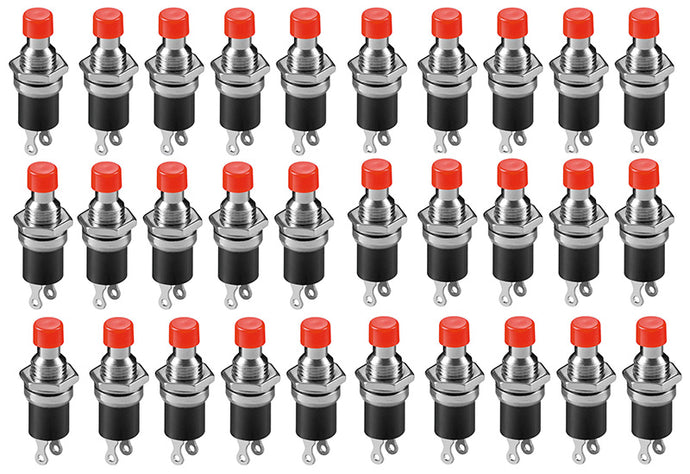

  • 30 Pack Momentary Switch with Round Red Button

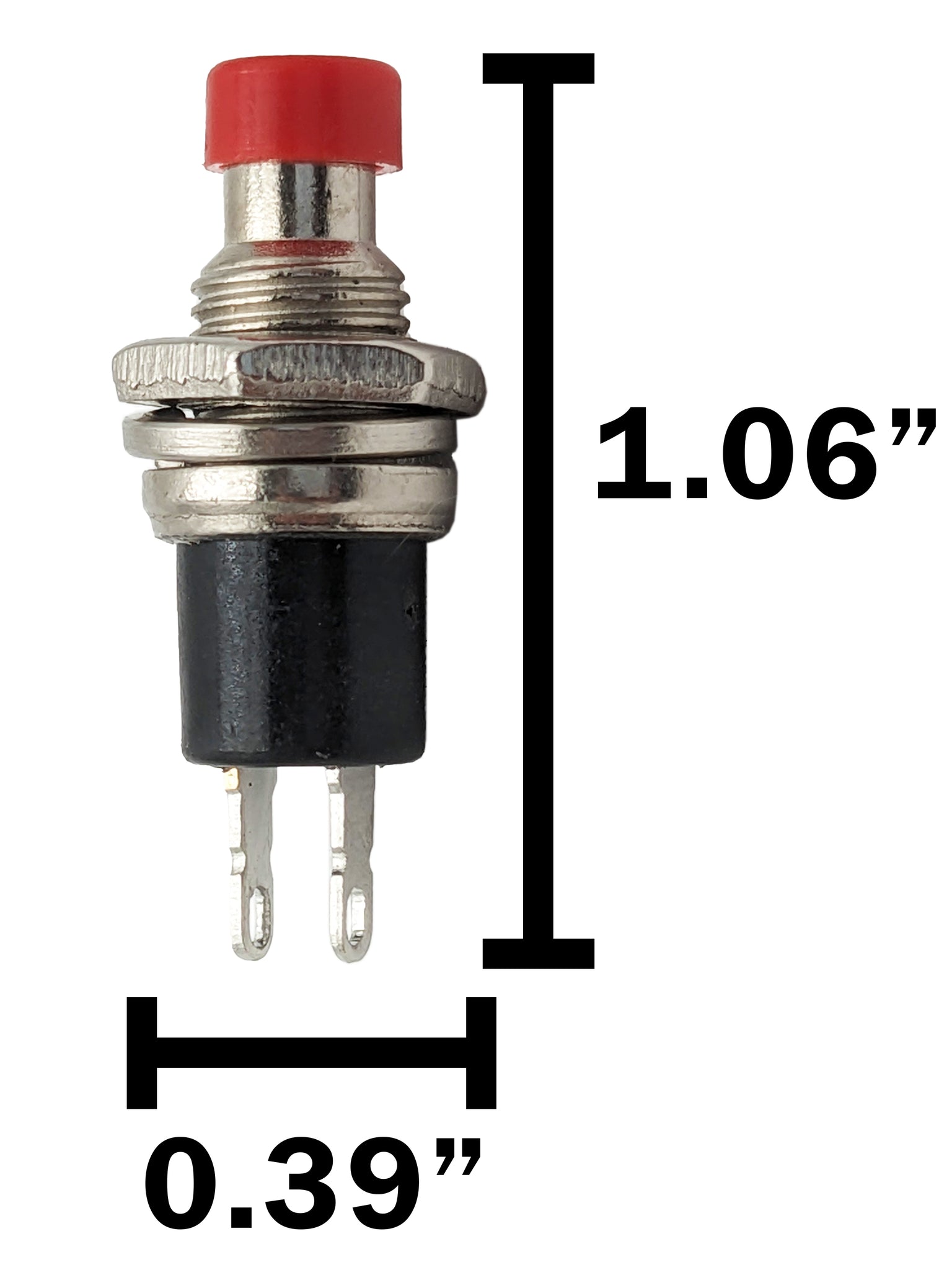

  • Overall size: 0.39" wide, 1.06" tall, Button diameter: 0.24"

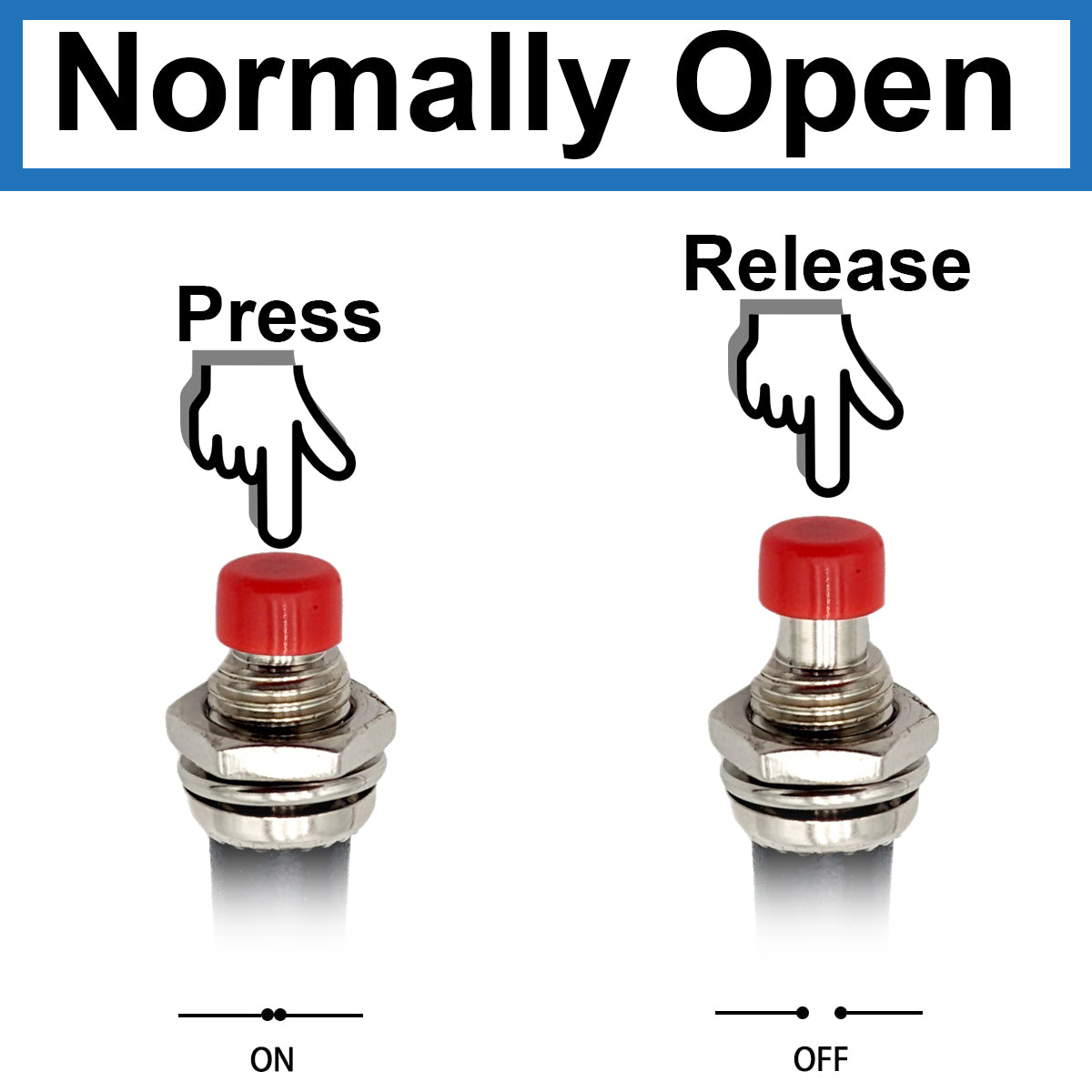

  • Normally Open
  • Number of pins: 2
  • Mounting: Panel Mount, fits 0.26" cutout
  • Termination: Solderable Lug

Specifications:

  • Rating: 1A 125VAC
  • Contact Resistance: 30mΩ max.
  • Insulation Resistance: DC 500V 100 MΩ min.
  • Dielectric Strength: AC 1000V 1 minute
  • Electrical Life: 30,000 cycles min
  • Mechanical Life: 50,000 cycles min
  • Terminal Material: Copper alloy, silver or gold plated
