Intermediate Digital I/O Module Kit

3200DIGASSMB
Regular price
$49.99
Sale price
$49.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • This pre-assembled trainer provides all necessary features for experimentation and prototyping of digital circuits
  • Features 8-SPDT toggle DIP switches, 8-LED indicators, clock conditioning circuit, two pulse switches, and 26 screwless terminal blocks for easy circuit connection
  • Can be powered using terminal block Vcc and GND or using tie blocks Vcc and GND

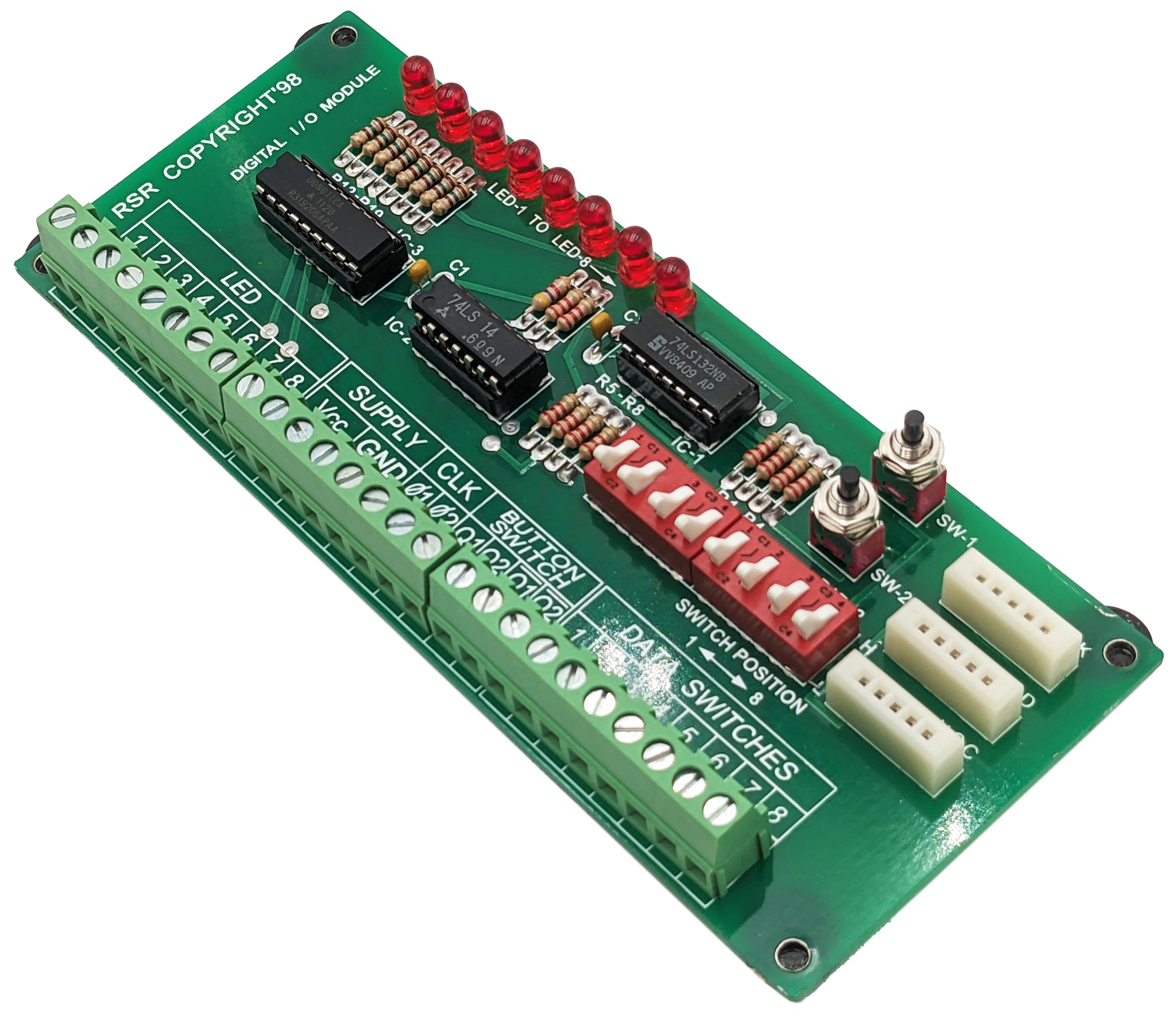

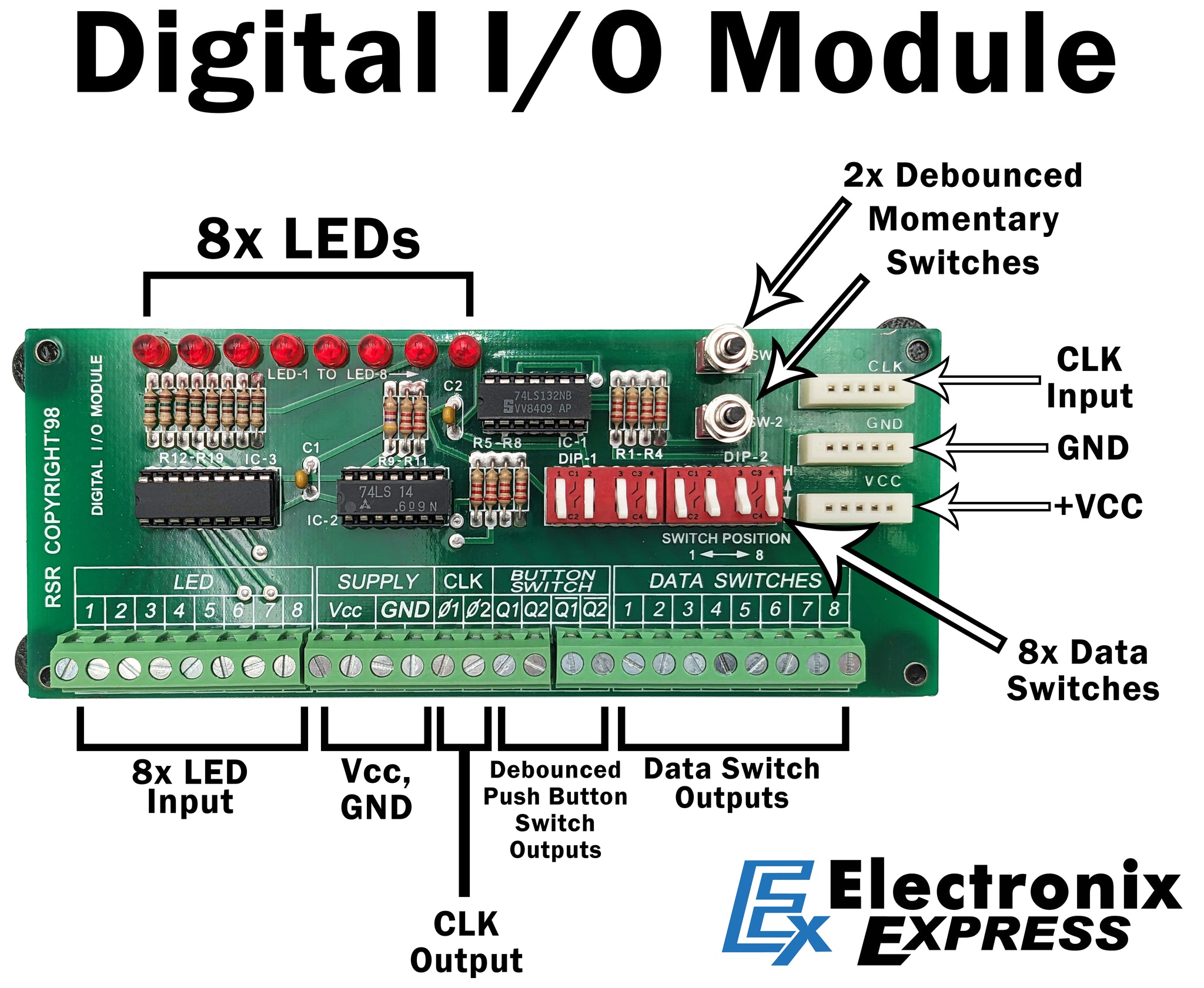

This trainer provides all necessary features for experimentation and prototyping of digital circuits. It includes 8-SPDT toggle DIP switches, 8-LED indicators, clock conditioning circuit, two pulse switches, and 26 screwless terminal blocks for easy circuit connection.

Power supply - The board can be powered two ways:
A. Using terminal block Vcc and GND
B. Using tie blocks Vcc and GND

LEDs 1-8: Detects digital signal 1 or 0

Clock: Provides TTL compatible clock signal from external signal source

8 SPDT toggle DIP data switches:
Generate digital signals, H is 1 and L is 0

Debounced push button switch outputs: Provides TTL compatible pulse
2 x Debounced momentary pulse switches

26 Screwless terminal blocks for easy circuit connection

Product Weight: 40.000625 LB
