Magician Chassis with Motors and Wheel Encoder Kit for Arduino, Micro:bit, Raspberry Pi (4.33" x 6.89" x 3.15")

3200MAGCENCODER
Regular price
$24.99
Sale price
$24.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Universal chassis for use with Arduino, micro:bit, and Raspberry Pi

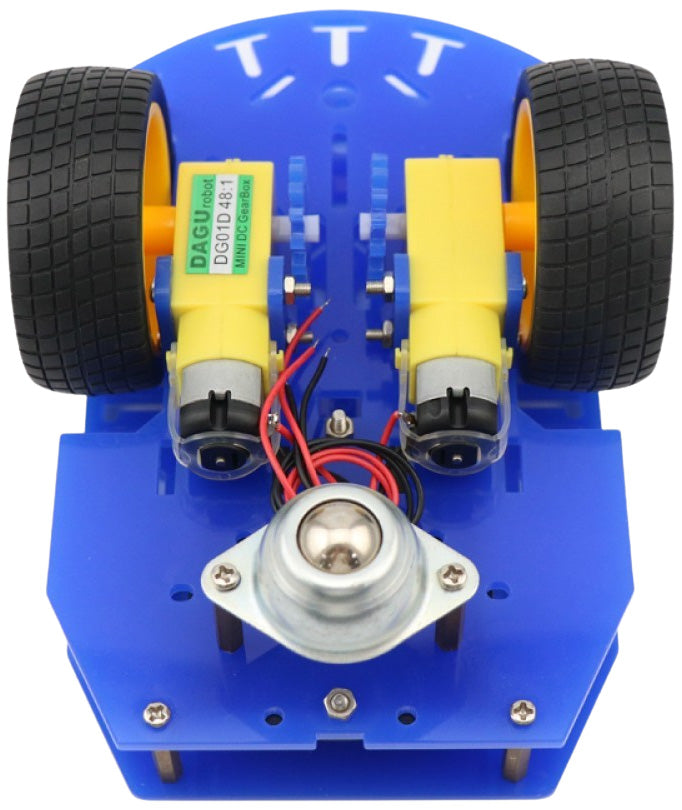

  • Features two gear motors with 65mm wheels and a rear caster
  • Wide variety of mounting holes for microcontrollers, sensors, batteries, etc
  • Kit includes all of the parts needed to assemble the chassis, a wheel encoder kit, as well as a 4xAA battery holder with wire leads (Batteries are not included)
  • NOTE: The chassis requires assembly — an illustrated assembly manual is included

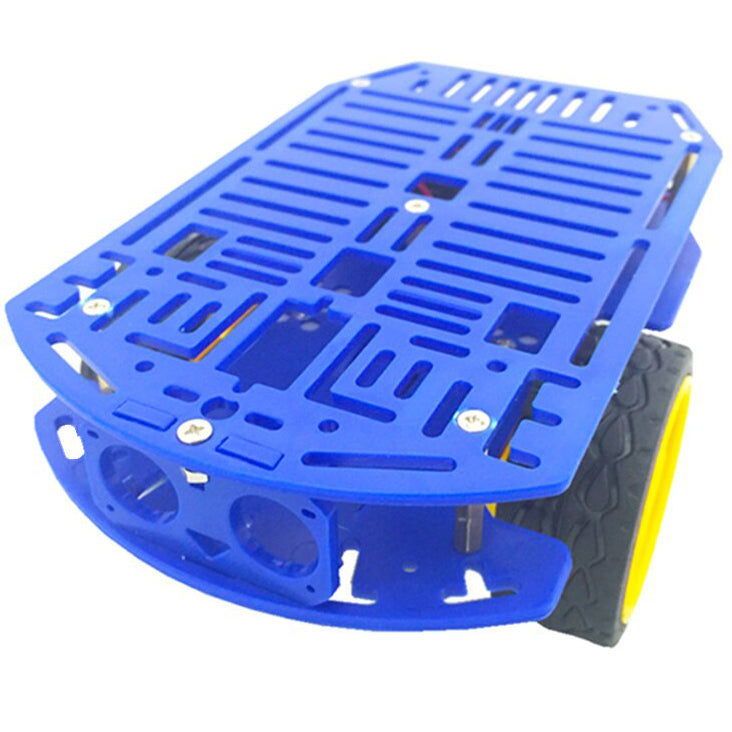

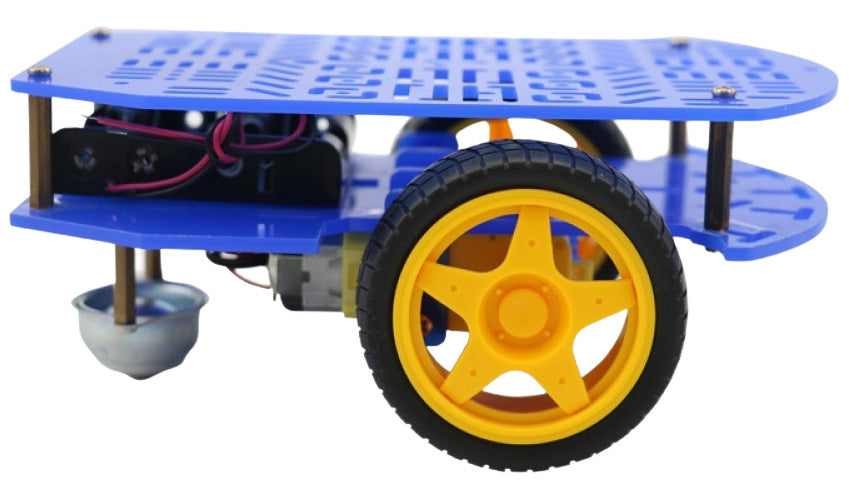

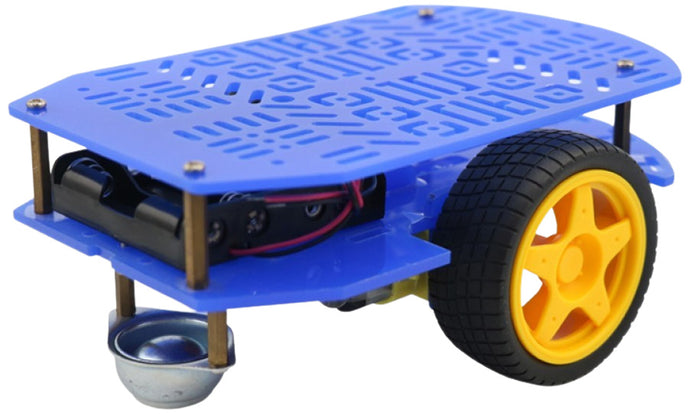

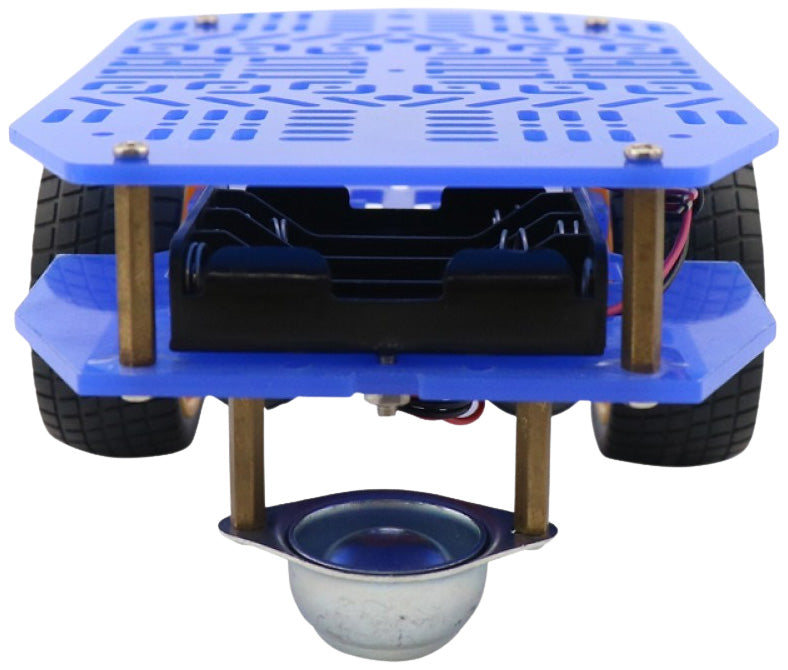

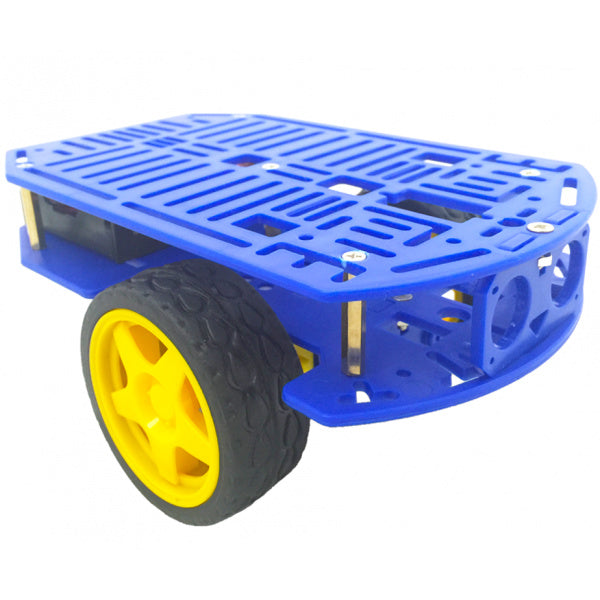

This chassis features two gear motors with 65mm wheels and a rear caster — works great with Arduino, micro:bit, and Raspberry Pi. The chassis plates are made from plastic with a wide variety of mounting holes for microcontrollers, sensors, batteries, etc. Simply screw the two pre-cut platforms together, attach the motors and caster and add your robotics controller and sensors. This kit includes all parts needed to assemble the chassis, a wheel encoder kit, as well as a 4xAA battery holder with wire leads. Batteries are not included.

NOTE: The chassis requires assembly — an illustrated assembly manual is included

Specifications:

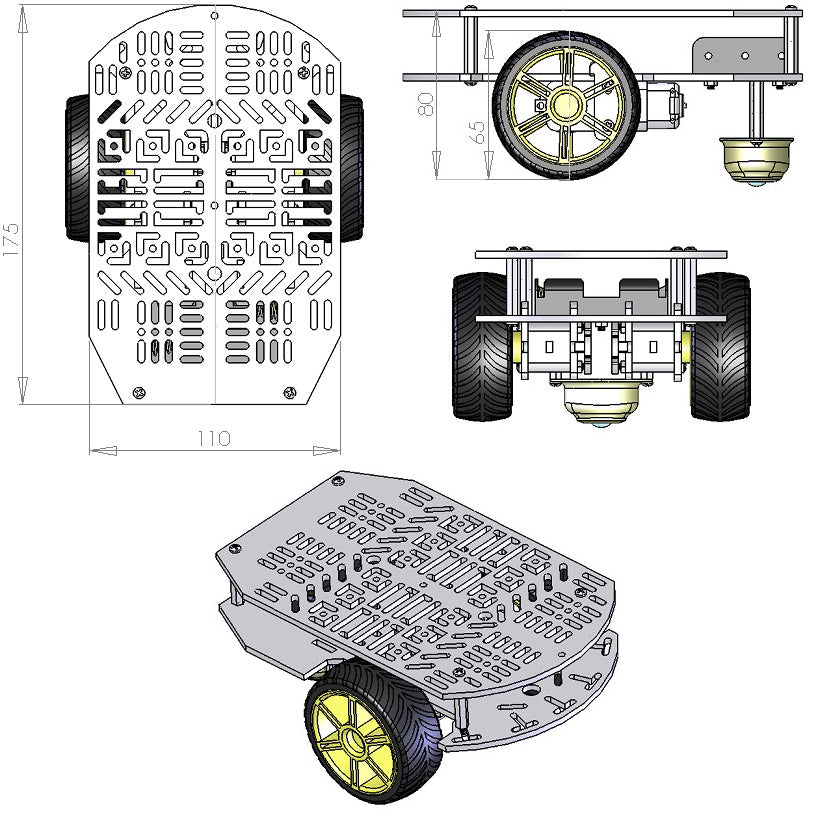

Overall size: 4.33" x 6.89" x 3.15" (110 x 175mm x 80mm)
Weight: 9.88 ounces (280G)
Max Motor Voltage: 6VDC
No Load Speed: 90±10rpm
No Load Current: 190mA(max.250mA)
Torque: 800gf.cm
Stall Current: ~1A

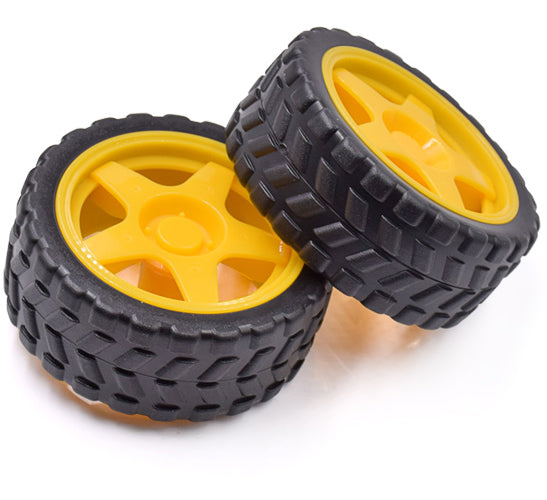

Wheel Dimensions: 67mm Diameter, 26mm Wide
Plastic Rims with Solid Rubber Tires

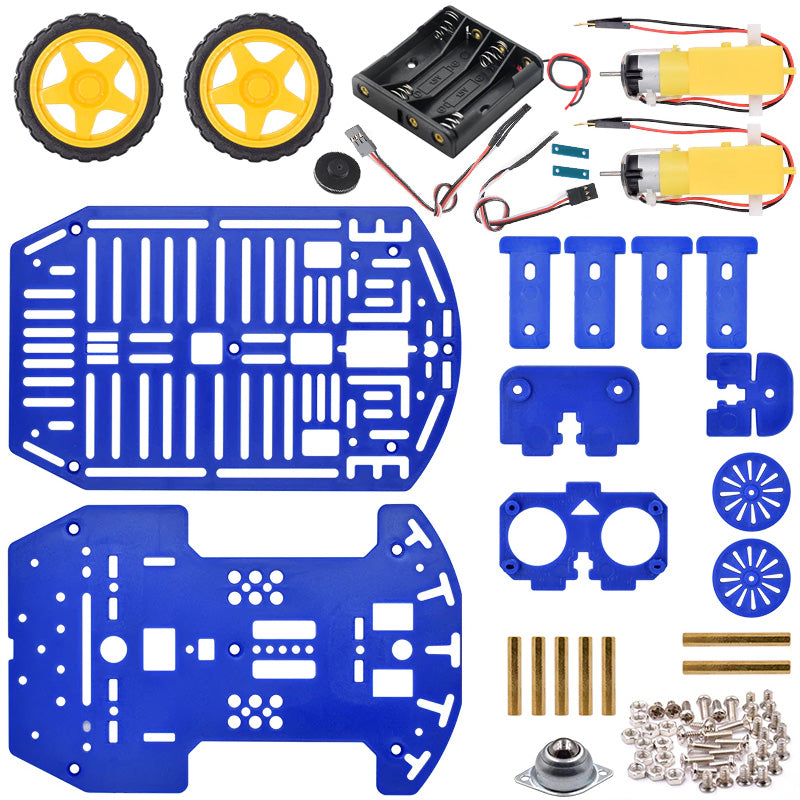

Parts list:
1x Chassis (top piece)
1x Chassis (bottom piece)
1x IR sensor holder
2x Encoder holder
1x Encoder kit
1x Ultrasonic module holder
2x Speed board holder
1x Battery Holder for 4x AA batteries
2x Motor holder

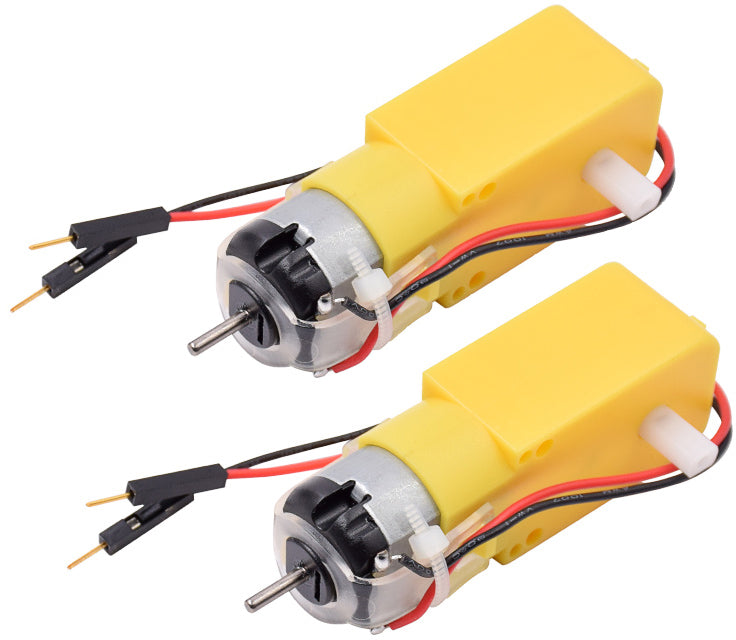

2x 1:48 Gear Motor
1x Omni wheel
2x Wheel
2x L30 spacer
5x L25 spacer
6x M3*10 flathead screw
4x M3*8 screw
2x M2.3*8 self-tapping screw with flange
2x M3*6 screw
10x M3 nut
16x M3*6 flathead screw
