- This is a do-it-yourself kit. Assembly with a soldering iron is required (a soldering iron is not included). Product photo shows item after assembly.
- 56 page Training Course is divided into 9 lessons: Audio Amp, AM Detector, AM IF, AM Amp, AM Mixer & Oscillator, FM Detector, 2 x FM IF, FM RF Stages
- "Superheterodyne" designed to receive standard AM and FM broadcast frequencies

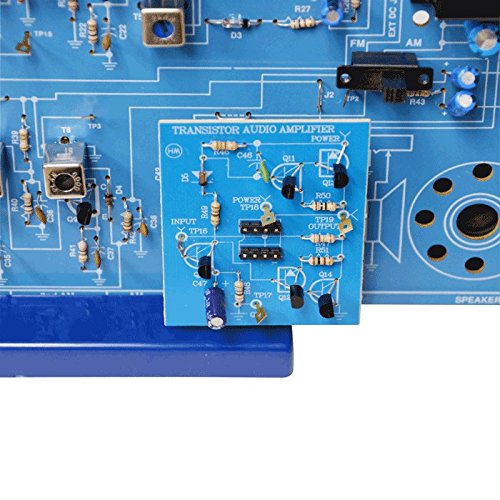

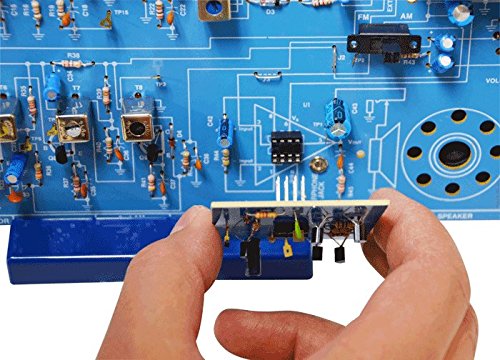

- New transistor module allows you to switch between the modern integrated circuit (IC) technology and the original transistor technology
- Electronics training course appropriate for High School and University level curriculum

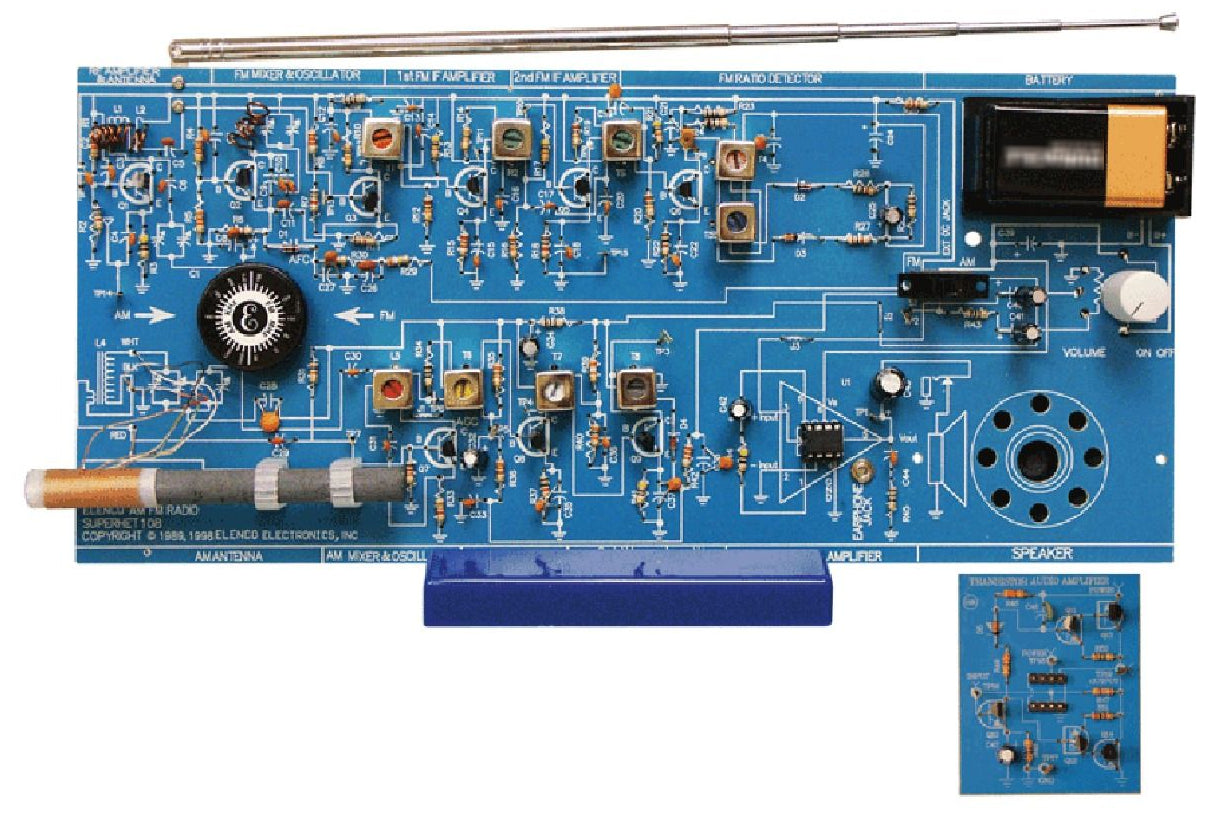

Learn about AM and FM radio technology and the the functional components used in creating AM-FM receivers and amplifiers. 56 page training course is divided into 9 lessons; Audio Amplifier, AM Detector, AM IF, AM Amplifier, AM Mixer & Oscillator, FM Detector, 1st FM IF, 2nd FM IF, FM RF Stages. “Superheterodyne” designed to receive standard AM and FM broadcast frequencies. New transistor module allows you to switch between the modern integrated circuit (IC) technology and the original transistor technology. Includes radio mounting stand.

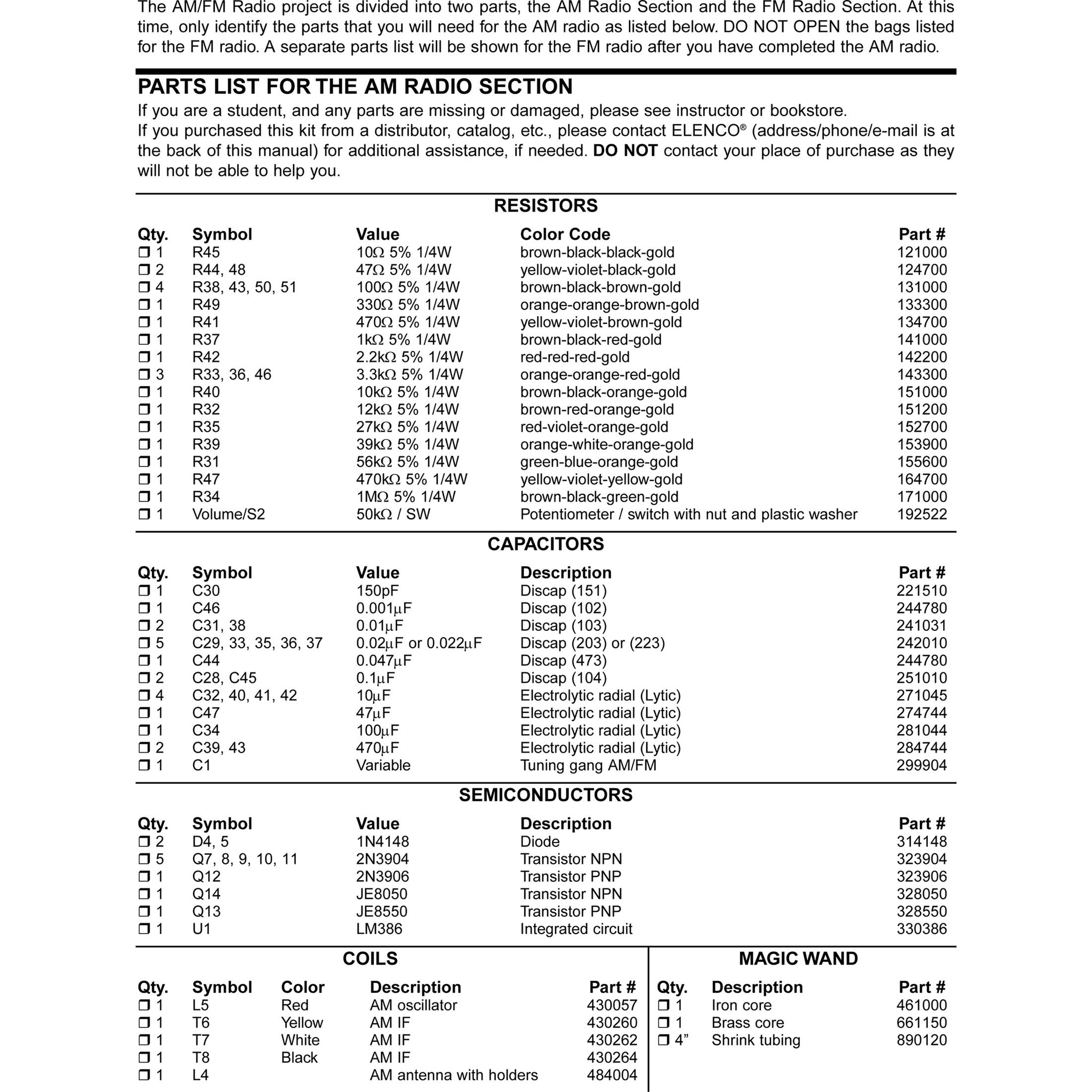

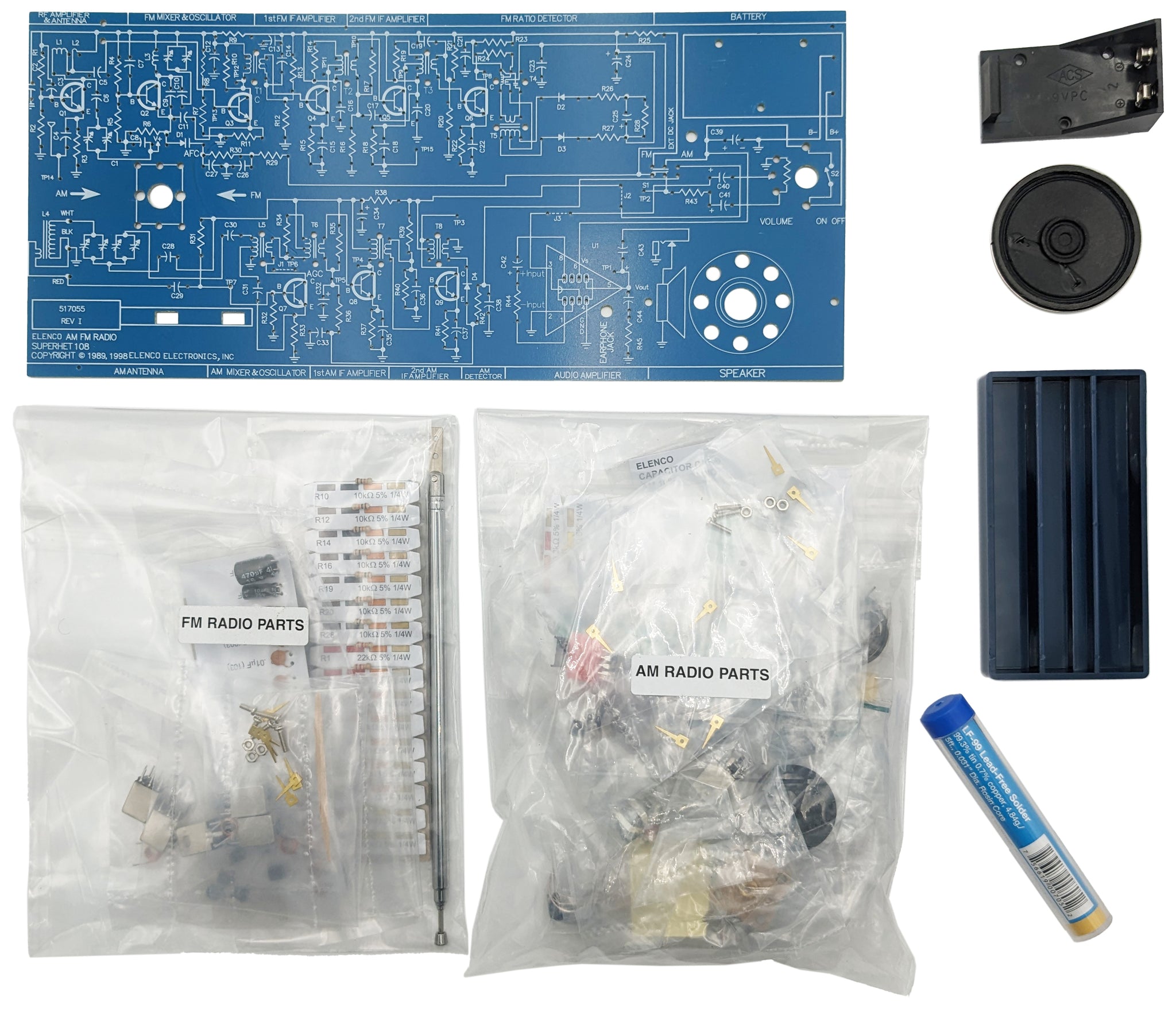

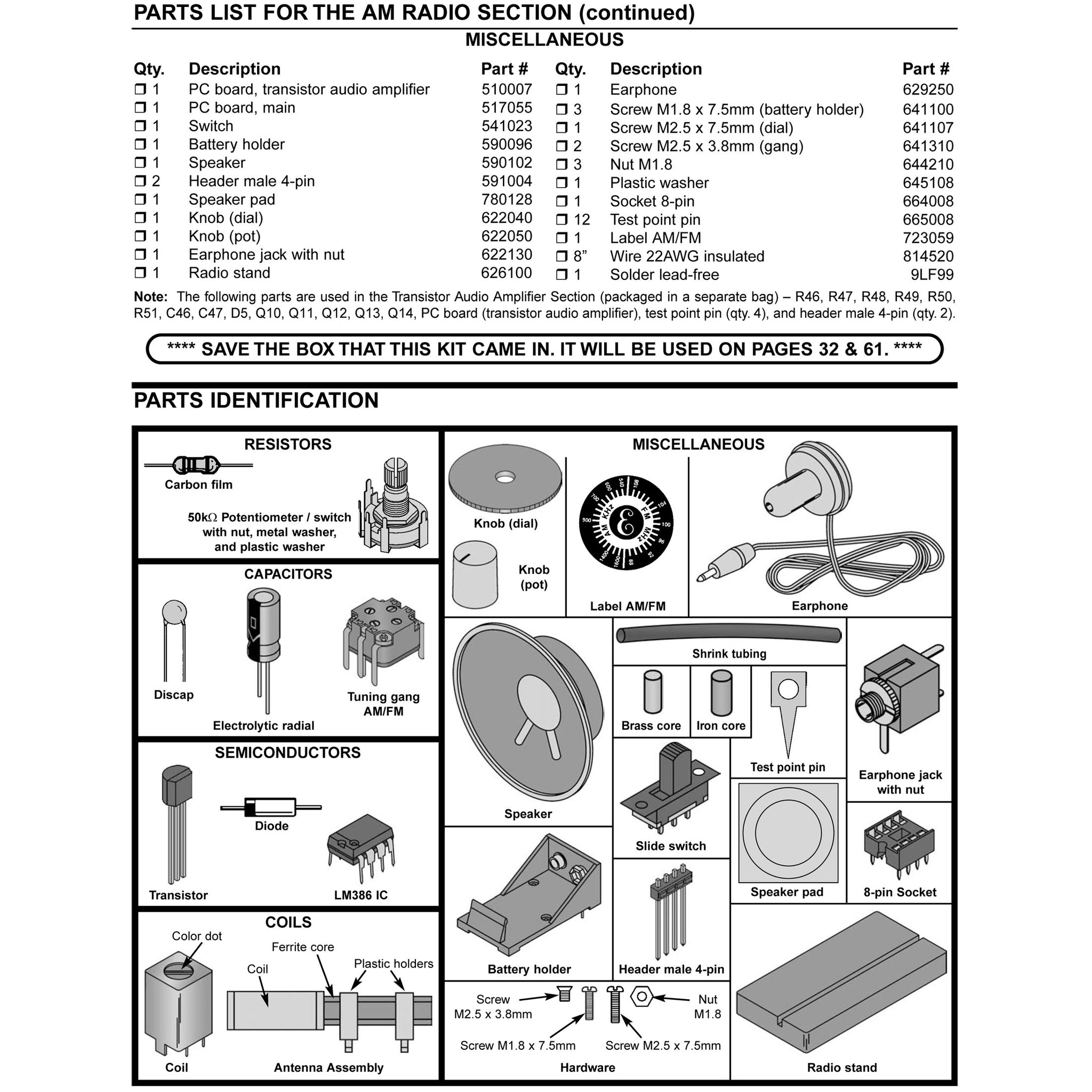

PLEASE NOTE: The AM/FM Radio project is divided into two parts, the AM Radio Section and the FM Radio Section. Initially, only identify the parts that you will need for the AM radio as listed in the manual. DO NOT OPEN the bags listed for the FM radio. A separate parts list will be shown for the FM radio after you have completed the AM radio. 9 volt battery needed but not included.
