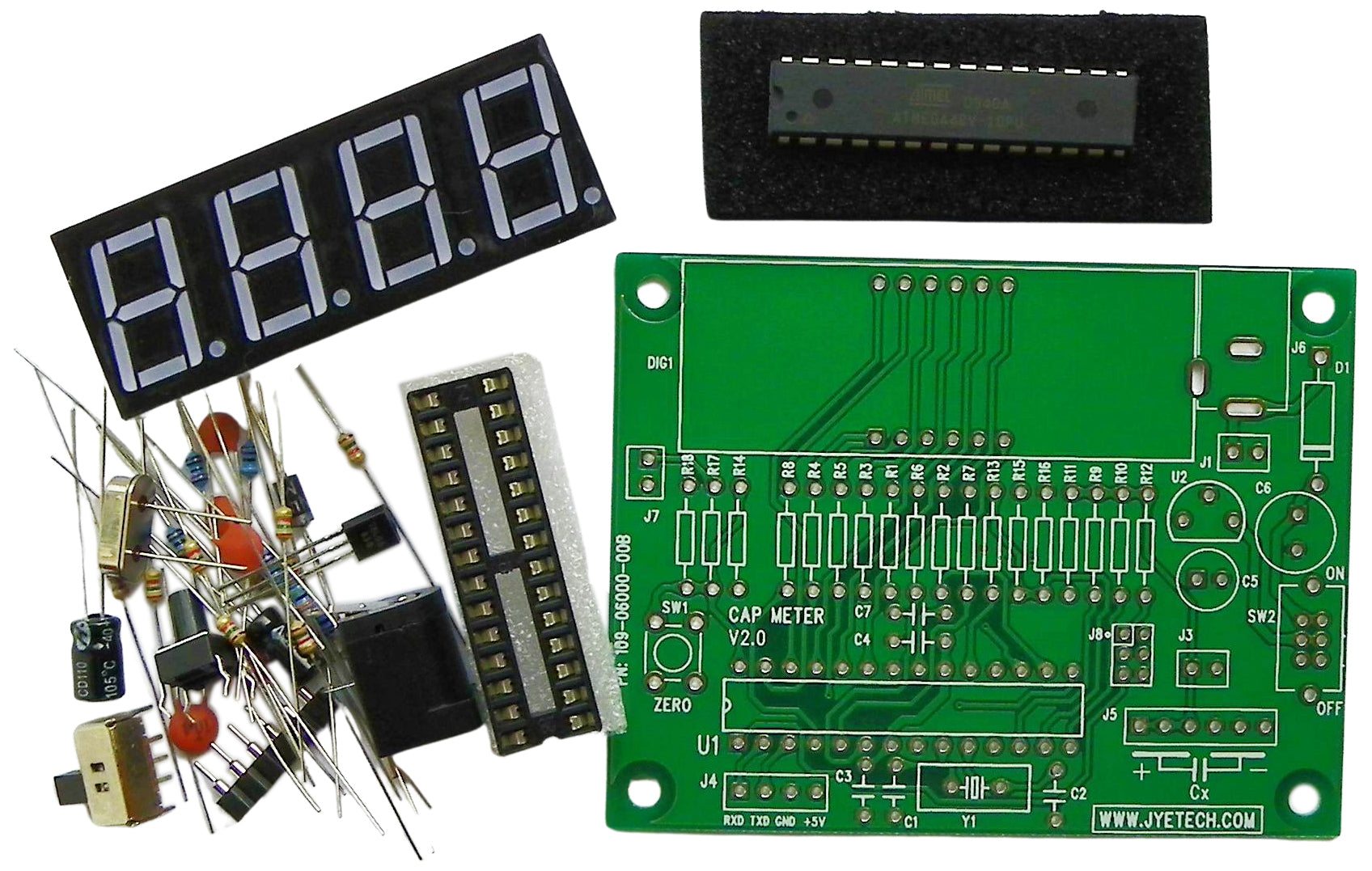

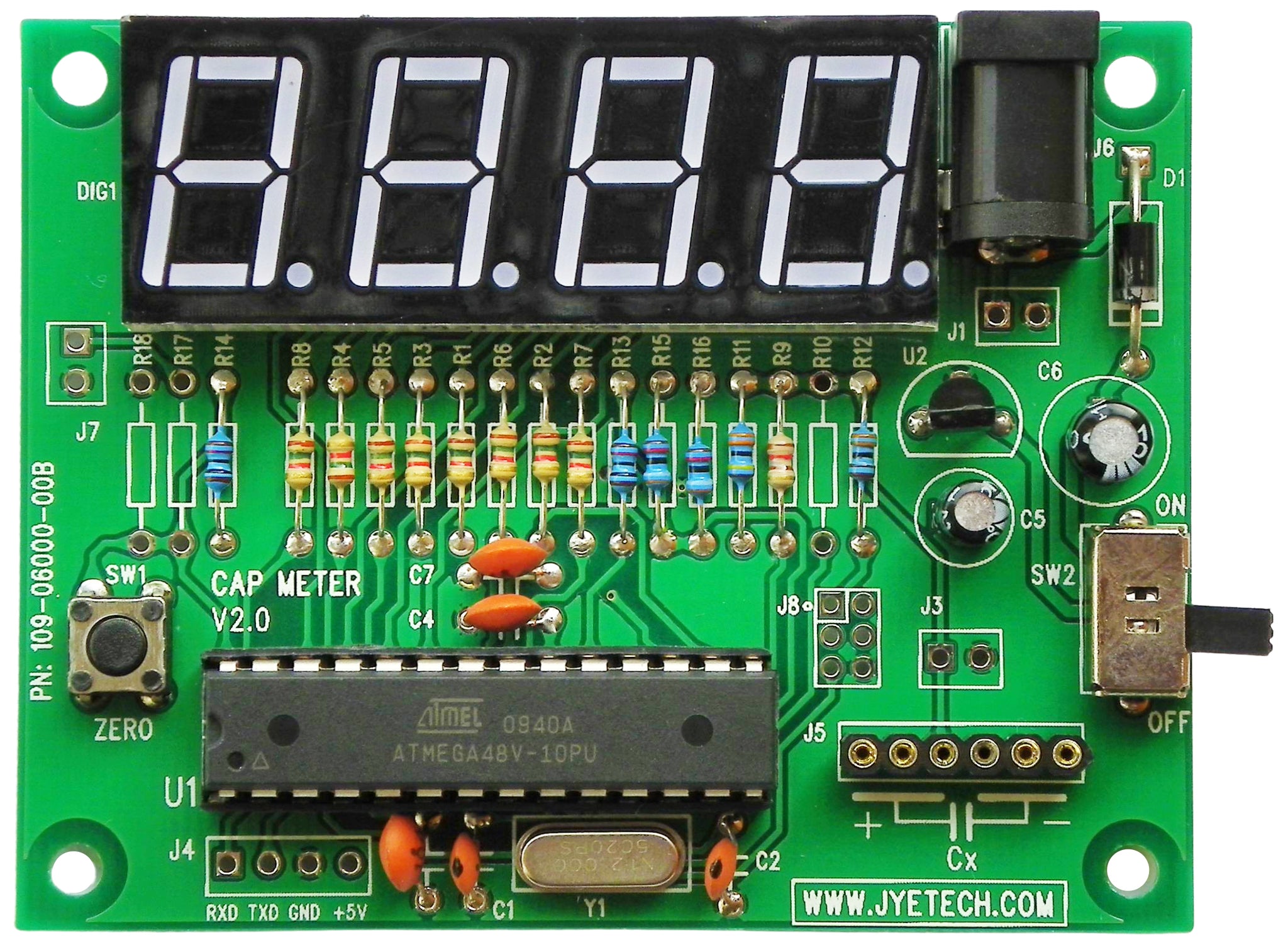

You will have your own capacitance meter after successful completion of this project. NOTE: 8 to 16V DC power supply required (but not included)
• Range: 1pf - 500uF
• About 1% accuracy
• Automatic range switch
• Zeroing available
• Real time serial output of measurement read-outs with time stamp
• Low cost and easy to build
• 8 to 16V DC power supply required (but not included)
Size: 3" x 2.3" x 0.6"
Weight: 1.5 oz.
