1000-T Portable Lab Station PAD 234 - Assembled

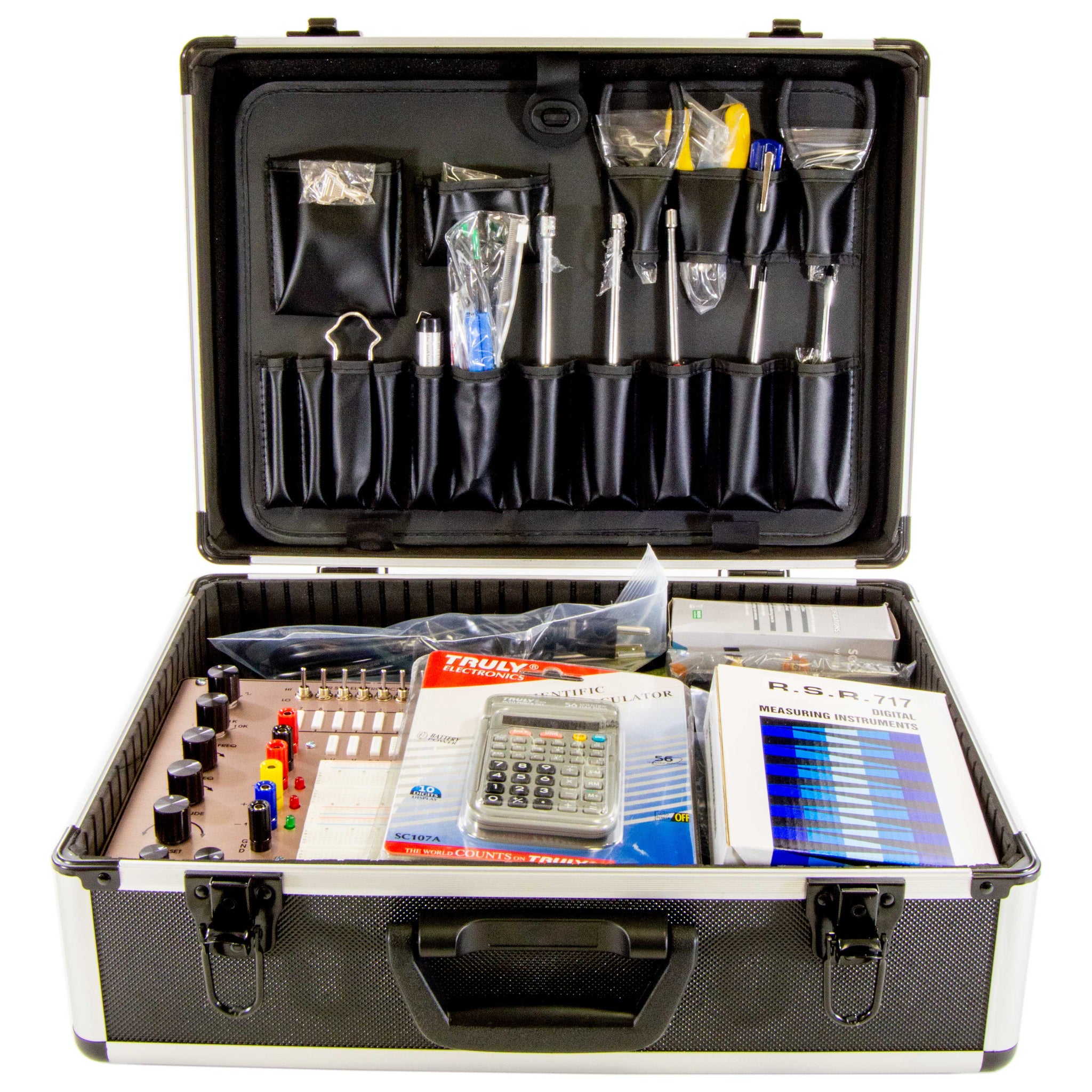

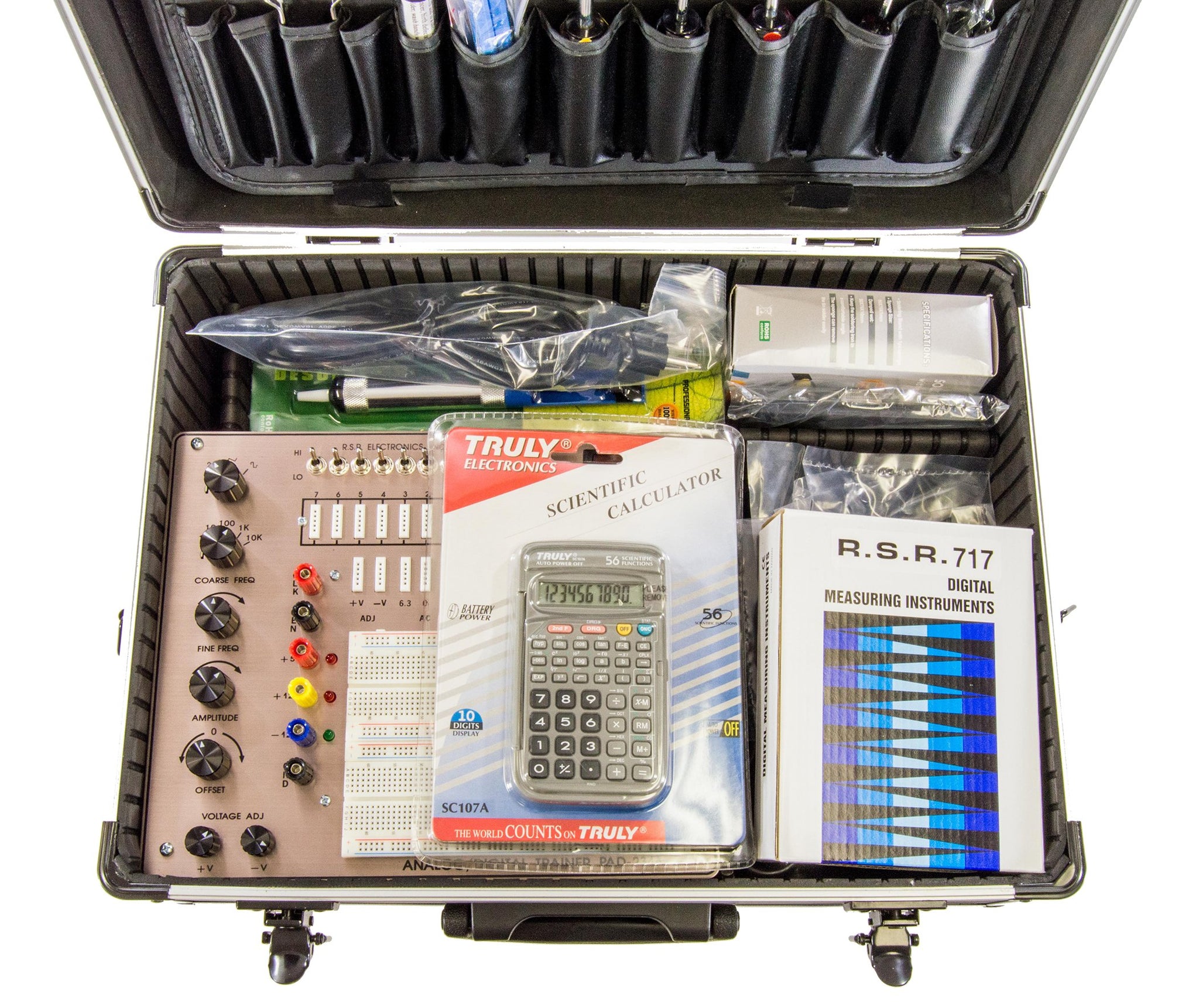

• Completely self-contained portable lab set-up featuring the most commonly used test equipment and tools - ASSEMBLED
• Includes PAD-234 - Analog/Digital Trainer, Field Technician's Case, DM717 - Multimeter, 610-B - Logic Probe, Scientific Calculator, many other tools and accessories (See description for full list)
• Modular design of Analog/Digital Trainer permits ease of assembly and diagnostics. Printed circuit boards are interconnected by compact connector assemblies. Troubleshooting is simplified by conveniently accessible test point jacks
• +/- Variable Power Supply - 1 amp output current, short circuit and thermally protected
• + 5 Volt Power Supply - 1 amp output current, short circuit and thermally protected

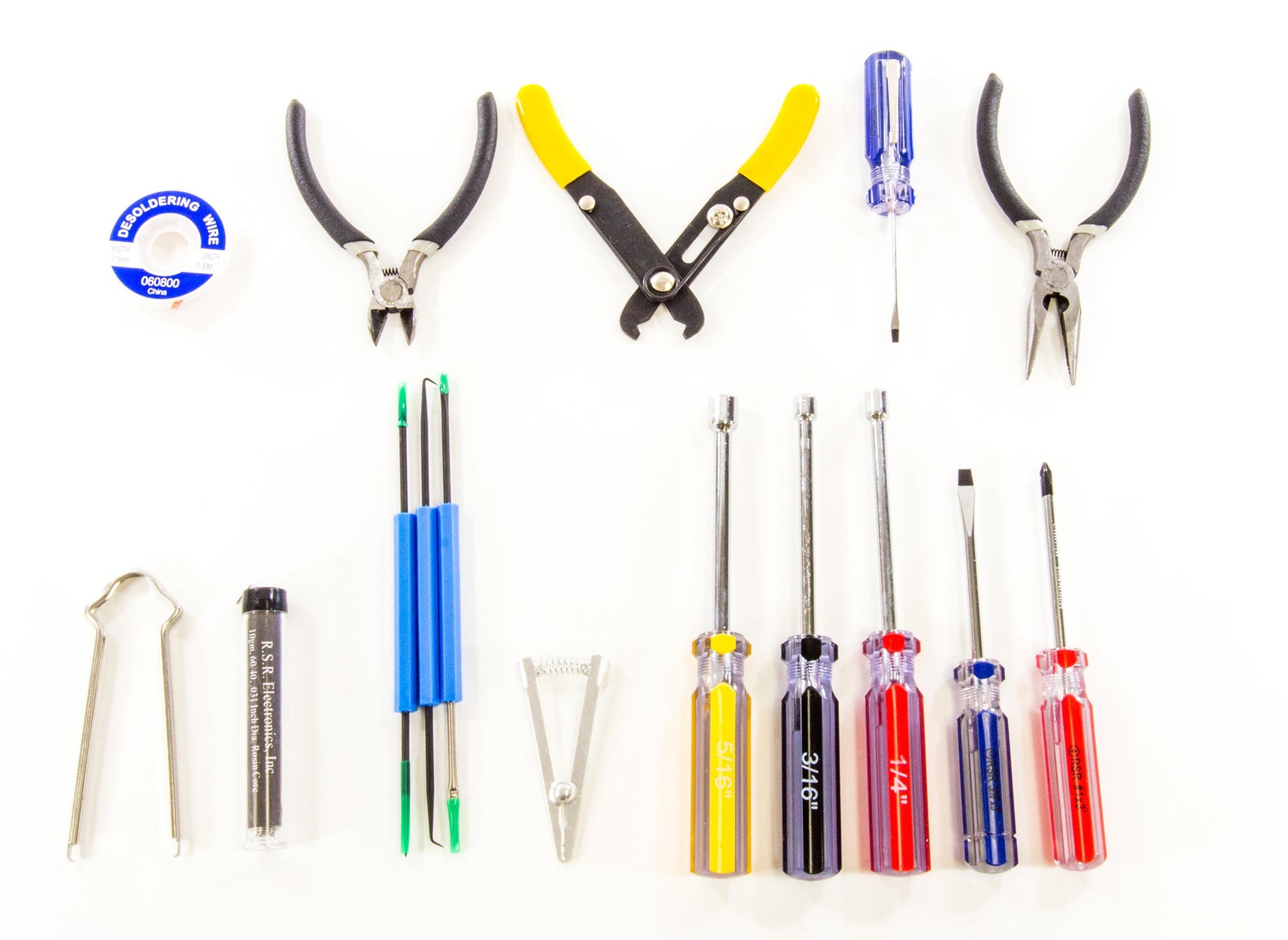

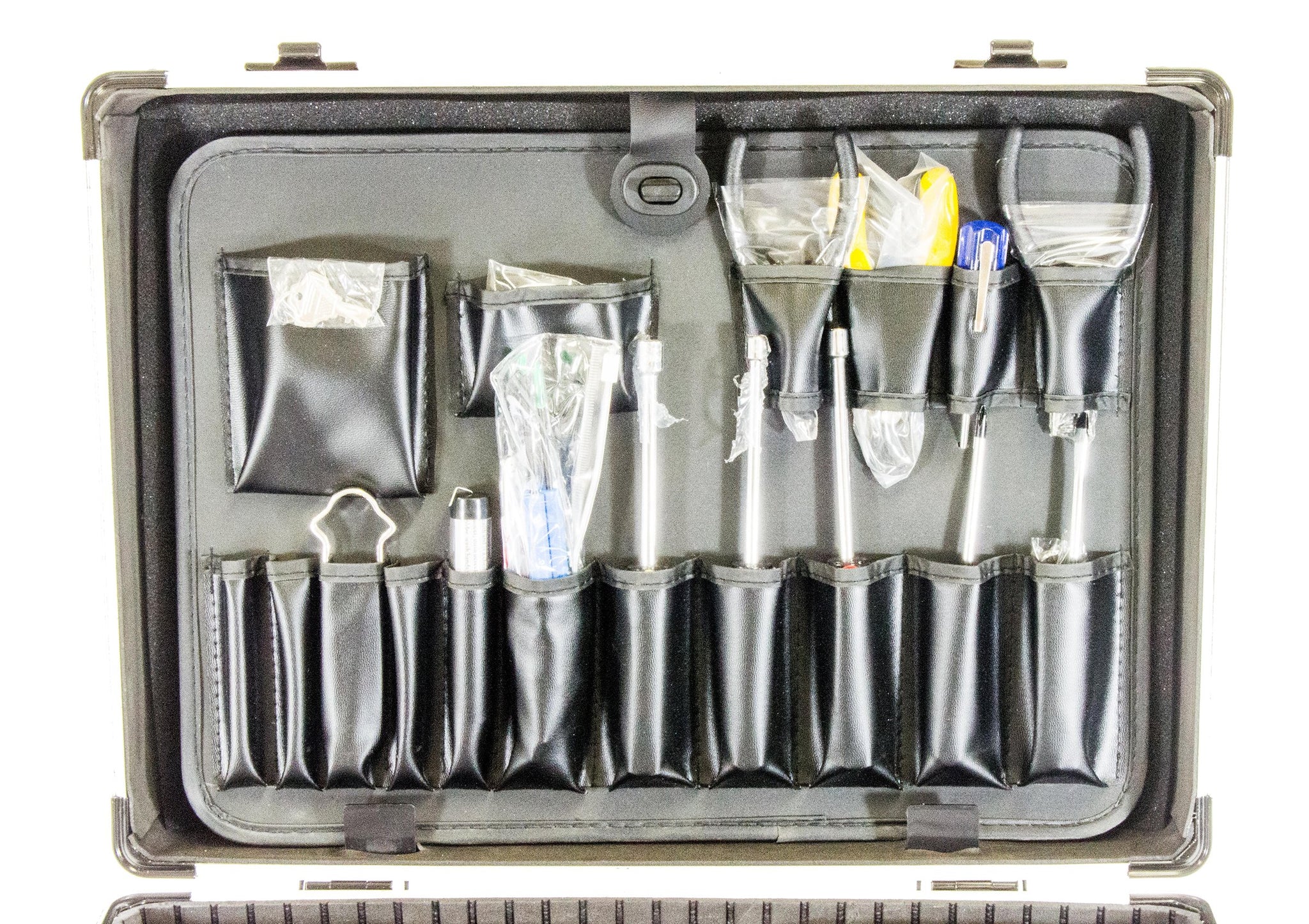

PAD-234 - Analog/Digital Trainer Analog/Digital Trainer with onboard power supplies to facilitate the breadboarding of both analog and digital circuits. Modular design permits ease of assembly and diagnostics. Printed circuit boards are interconnected by compact connector assemblies. Troubleshooting is simplified by conveniently accessible test point jacks. FTB - Field Technician's Case Anodized aluminum texture finish Removable tool pallet with 17 pockets 18" long x 13" wide x 7" high DM717 - Multimeter Full featured DMM Hfe and capacitance checker Audible continuity checker 610-B - Logic Probe TTL/CMOS compatible 20 - MHz logic tester, Hi/Lo and pulse memory Scientific Calculator Standard scientific functions Binary, octal, hexadecimal calculations Statistical functions TOOLS AND ACCESSORIES: Long Nose Pliers Diagonal Cutter Wire Stripper Soldering Iron Heavy Duty Soldering Iron Stand Desolder Vacuum Pump 3 pc. Screwdriver Set 3 pc. Nut Driver Set 4 pc. Precision Screwdriver Set 4 pc. Solder Aid Set IC Extractor 10 - gm Solder Pack Desolder Wick Oscilloscope Probe (IC Clip) Oscilloscope Probe (Alligator) 10 pc. Alligator-to-Alligator Lead Set 2 pc. Banana-to-Alligator Lead Set 2 pc. Banana-toBanana Lead Set SPECIFICATIONS +/- Variable Power Supply 1 amp output current, short circuit and thermally protected. + 5 Volt Power Supply 1 amp output current, short circuit and thermally protected. 12.6 VCT AC Supply Voltage: Function Generator: Sine, square, triangular buffered outputs, amplitude variable (10Vp-p maximum), frequency adjustable in 5 ranges from 1 to 100 Khz. Clock Output: Rise and fall times exceed 400 nanoseconds. Breadboards: 2 breadboards, each with 840 plug-in tie points. Indicators: 8 LED indicators, buffered and TTL compatible. Logic switches: 8 binary miniature SPDT toggle switches to switch either 0-V or +5V. Power Consumption: 117 VAC @ 0.5 amp.

Product Dimensions (L x W x H): x 5.3 x inches

Product Weight: 0.15 LB
