Signal frequency: 1Khz (fixed) | Output level: adjustable From0 to 100 mvrms (controlled by a potentiometer) | Power supply: 9V battery (not included) | Dimensions: 56 x 40mm / 2.2 x 1.6" | NOTE: This kit requires assembly with a soldering iron. Soldering iron and solder not included.

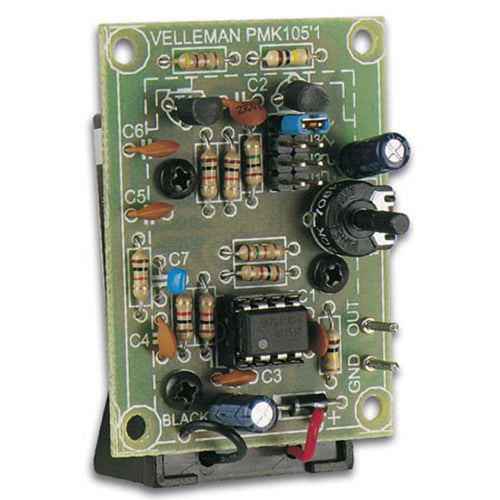

Velleman Signal Generator Kit, 1kHz Fixed Frequency Soldering Practice Kit (MK105)

32VKMK105
$20.99
$20.99
Sold out
Shipping calculated at checkout.
  • Signal frequency: 1Khz (fixed)
  • Output level: adjustable From0 to 100 mvrms (controlled by a potentiometer)
  • Power supply: 9V battery (not included)
  • Dimensions: 56 x 40mm / 2.2 x 1.6"
  • NOTE: This kit requires assembly with a soldering iron. Soldering iron and solder not included.

This kit outputs: sine WAVE, triangle, square WAVE and integrator (selectable through jumper). Signal frequency: about 1kHz (fixed). Output level: adjustable from 0 to 100mVrms (LEVEL potentiometer). Power supply: 9V battery (not included). Dimensions: 56 x 40mm / 2.2 x 1.6".

NOTE: This kit requires assembly with a soldering iron. Soldering iron and solder not included.
