- General purpose rubber splicing tape, 3/4" wide x 22 feet long
- Rubber resin provides excellent adherence
- Self-fusing rubber backing offers durability and resists tears as well as abrasion
- Withstands temperatures up to 176 °F (80 °C)
- UL Listed and RoHS 2011/65/EU Compliant

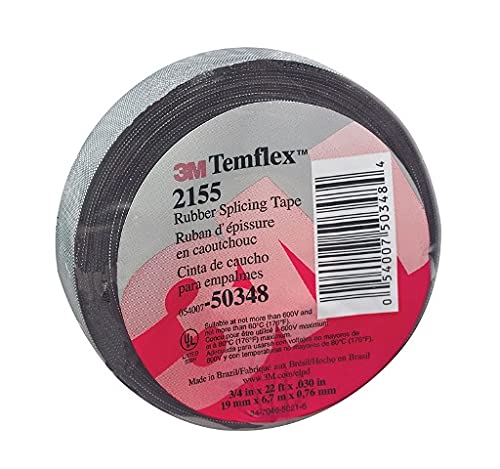

3M™ Temflex™ Tape 2155 is a 30 mil, general purpose, highly conformable, electrically insulating, low voltage rubber splicing tape. The self fusing tape is designed to offer guaranteed performance when used with solid dielectric cable insulations and has a liner, which will not stick to the tape upon unwind. It withstands a wide temperature range of 176 °F (80 °C).
3M™ Temflex™ Splicing Tape 2155 with self fusing rubber backing, has rubber resin adhesive that offers optimized adherence. This tape is designed for low voltage electrical insulating and moisture sealing applications. It maintains the flexibility over a wide range of temperatures. Electrical insulating tape finds application in bolted connections, service drops, lightning connections, ground rod connections and motor leads. UL Listed and RoHS 2011/65/EU Compliant.
|
Adhesive Type
|
Non-adhesive
|
|
Application
|
Electrical Maintenance, Insulation
|
|
Backing (Carrier) Material
|
Rubber
|
|
Backing (Carrier) Thickness (Metric)
|
0.76 mm
|
|
Brand
|
Temflex™
|
|
Case Quantity
|
12 Rolls
|
|
Color Family
|
Black
|
|
Dielectric Strength
|
600 V/mil
|
|
Elongation at Break
|
700 %
|
|
Features
|
Self-sticking, Vulcanizing
|
|
Maximum Operating Temperature (Celsius)
|
80 Degree Celsius
|
|
Maximum Operating Temperature (Fahrenheit)
|
176 Degree Fahrenheit
|
|
Minimum Operating Temperature (Celsius)
|
0 Degree Celsius
|
|
Overall Length (Imperial)
|
22 ft
|
|
Overall Length (Metric)
|
6 m, 6.7 m
|
|
Overall Width (Imperial)
|
0.75 in, 1.5 in
|
|
Overall Width (Metric)
|
19 mm, 38.1 mm
|
|
Shelf Life
|
3 Year
|
|
Size (Imperial)
|
0.75 in x 22 ft, 1.5 in x 22 ft
|
|
Size (Metric)
|
19 mm x 6.7 m, 38.1 mm x 6 m
|
|
Specifications Met
|
RoHS 2011/65/EU, UL Listed
|
|
Tape Grade
|
General Use
|
|
TDS Required
|
Yes
|
|
Tensile Strength (Imperial)
|
300 lb/in
|
|
Tensile Strength (Metric)
|
2068.4 kPa
|
|
Total Tape Thickness without Liner (Imperial)
|
30 mil
|
|
Total Tape Thickness without Liner (Metric)
|
0.76 mm
|
|
Units per Case
|
100
|
|
Voltage Rating
|
600 V
|
