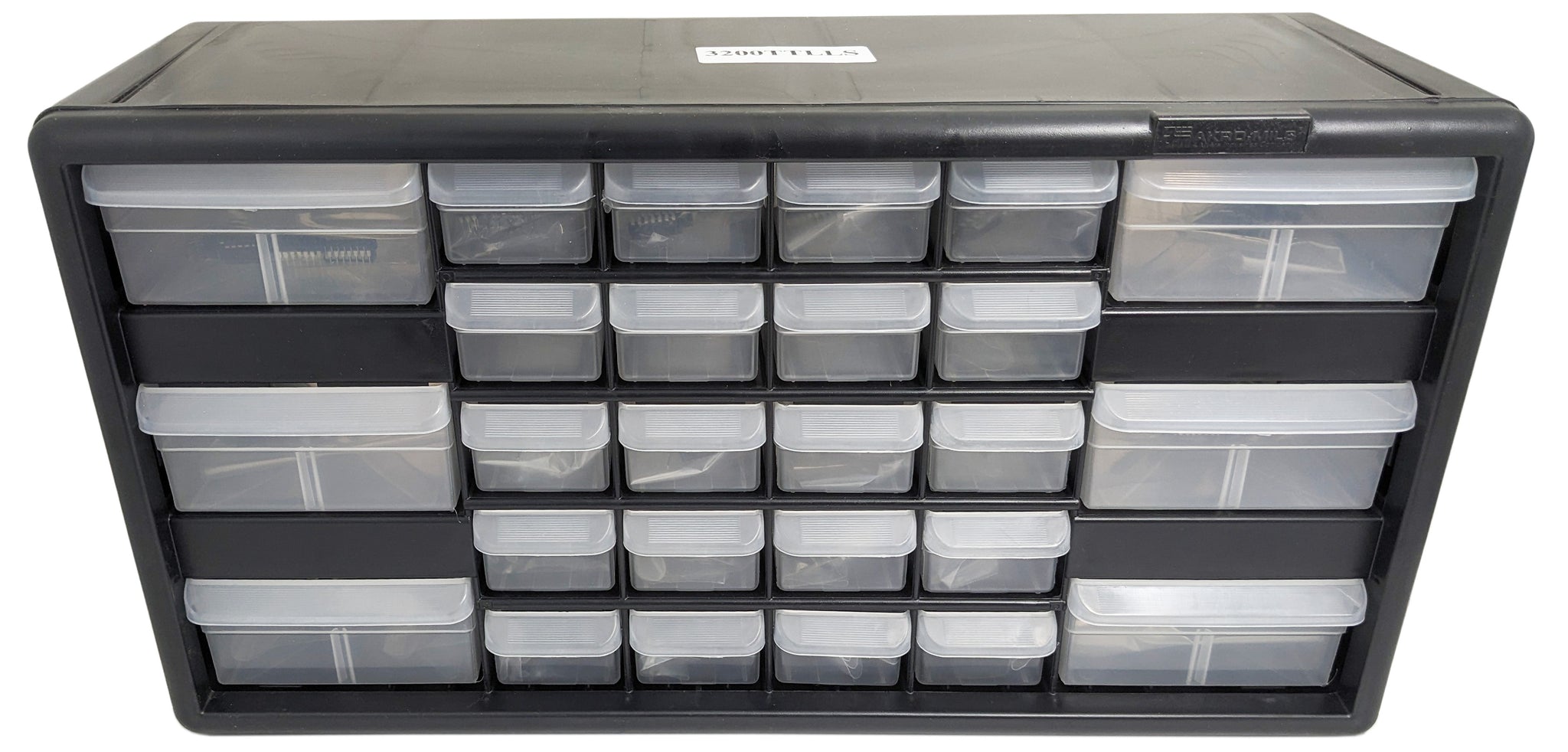

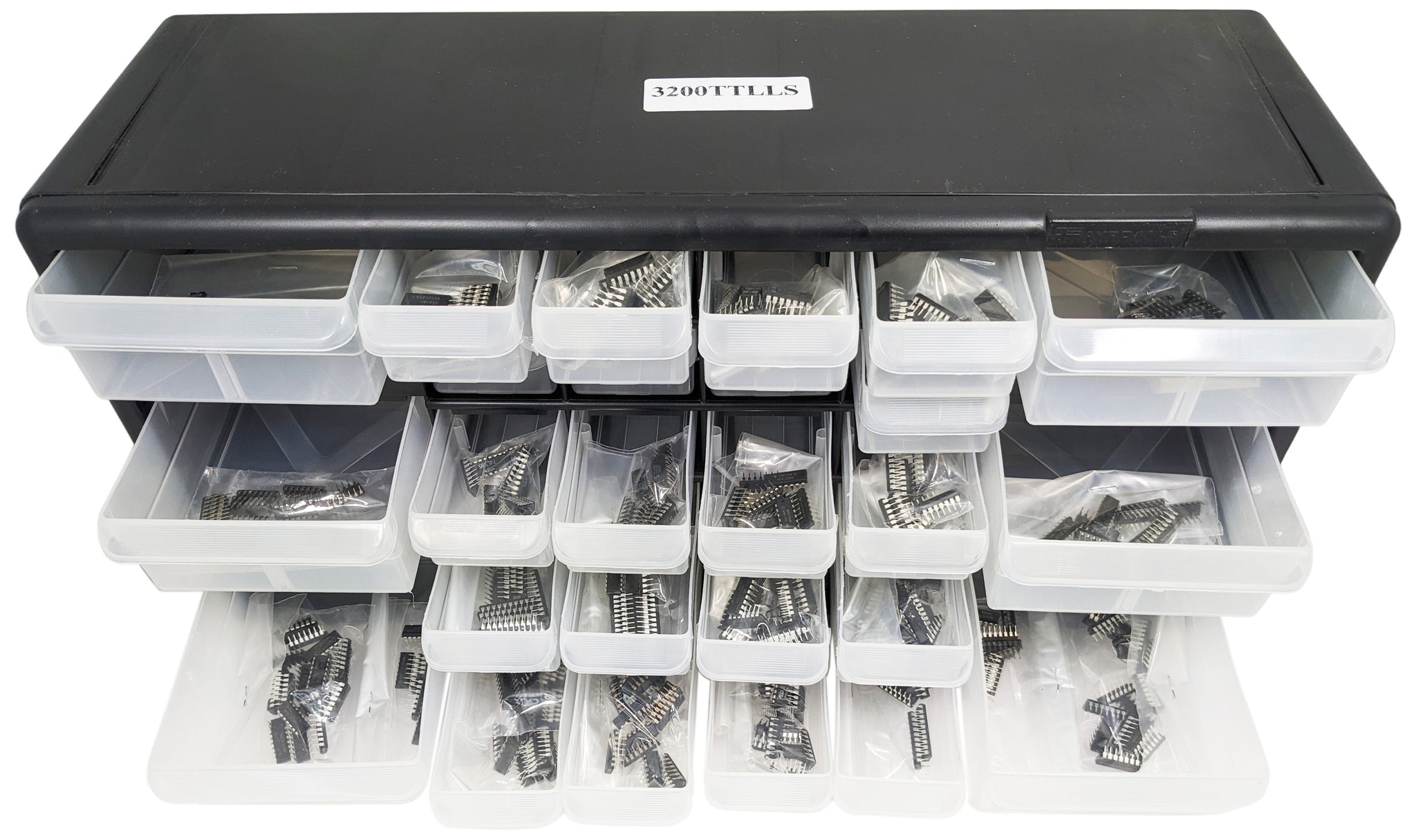

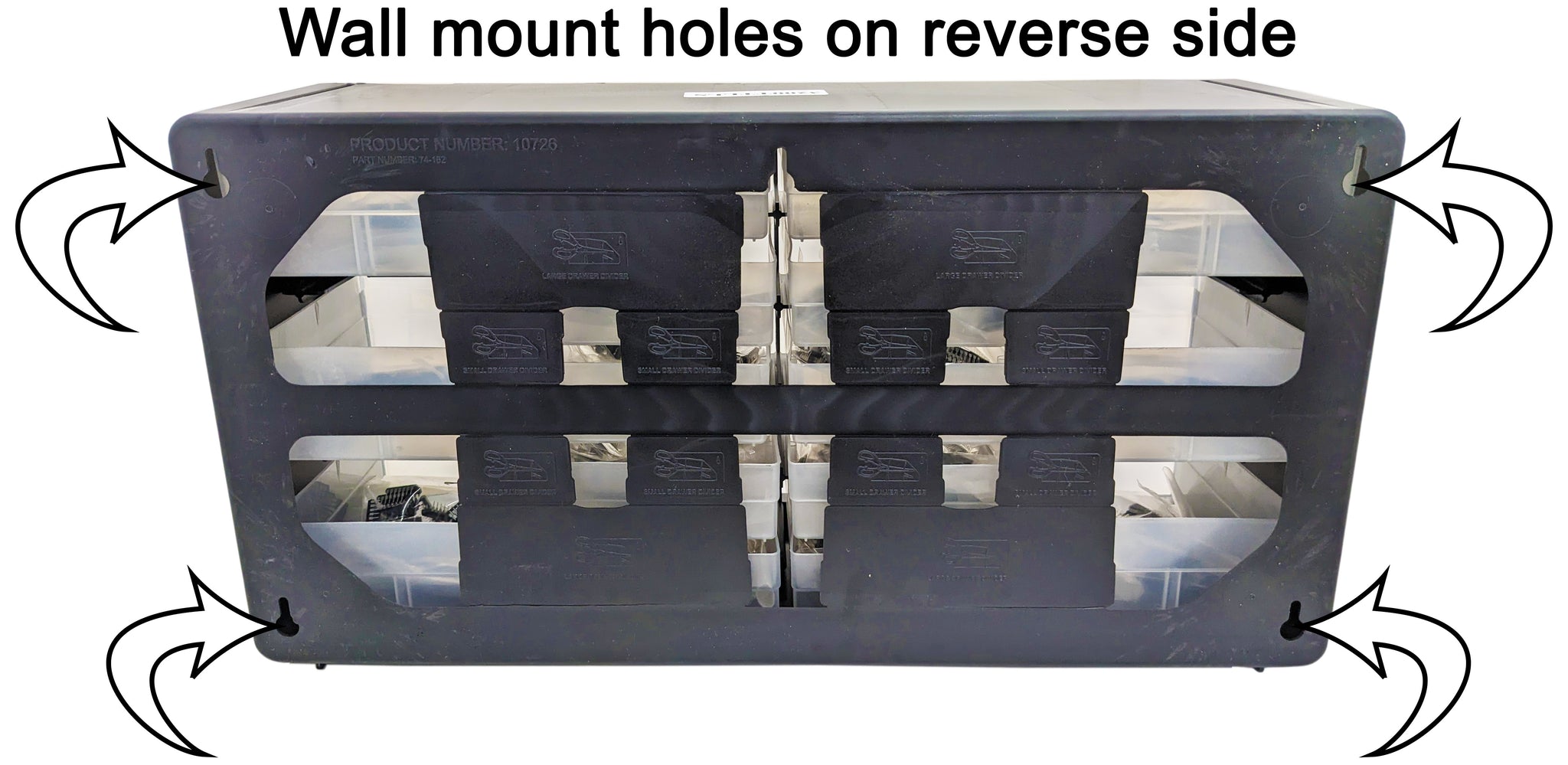

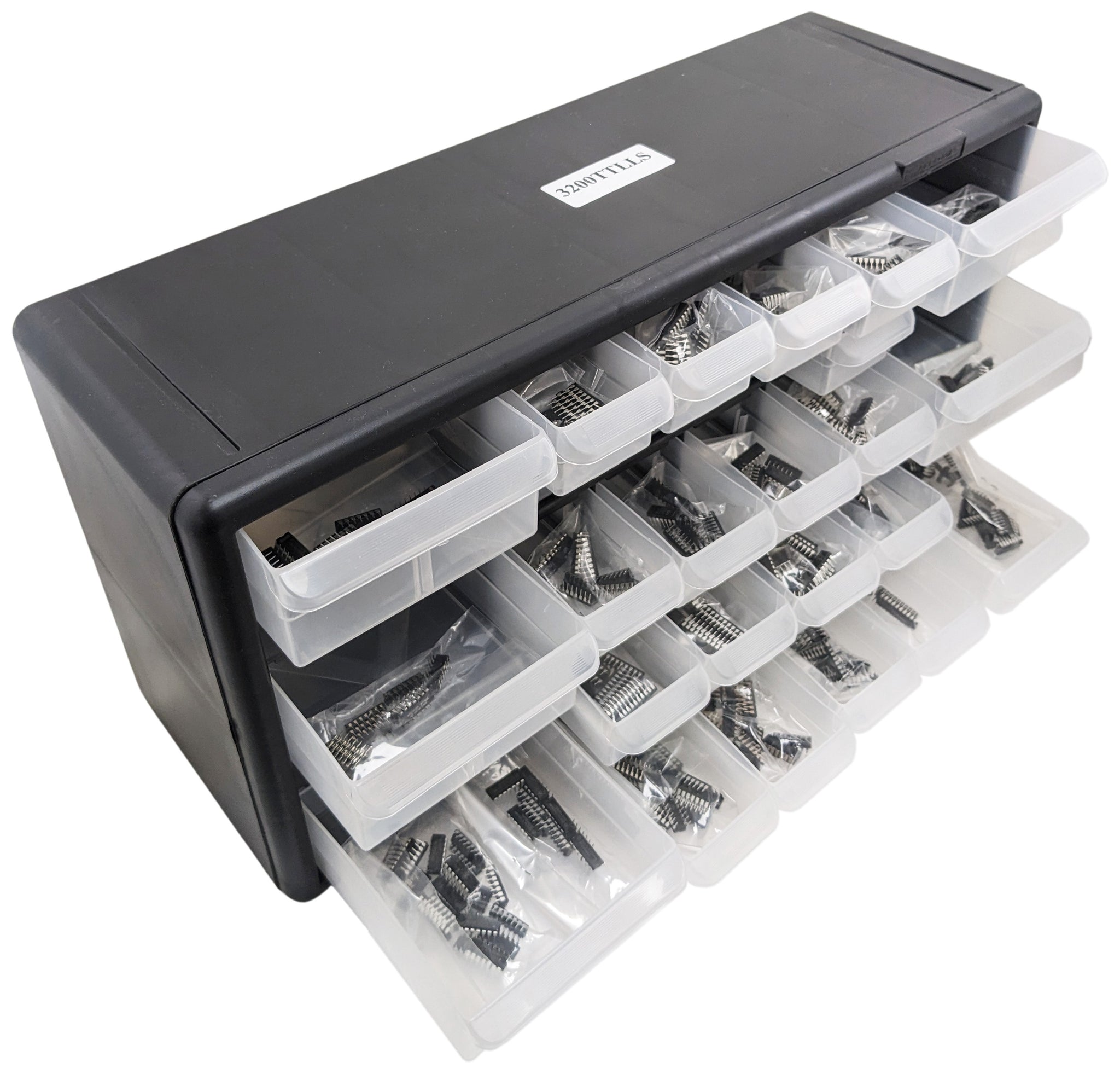

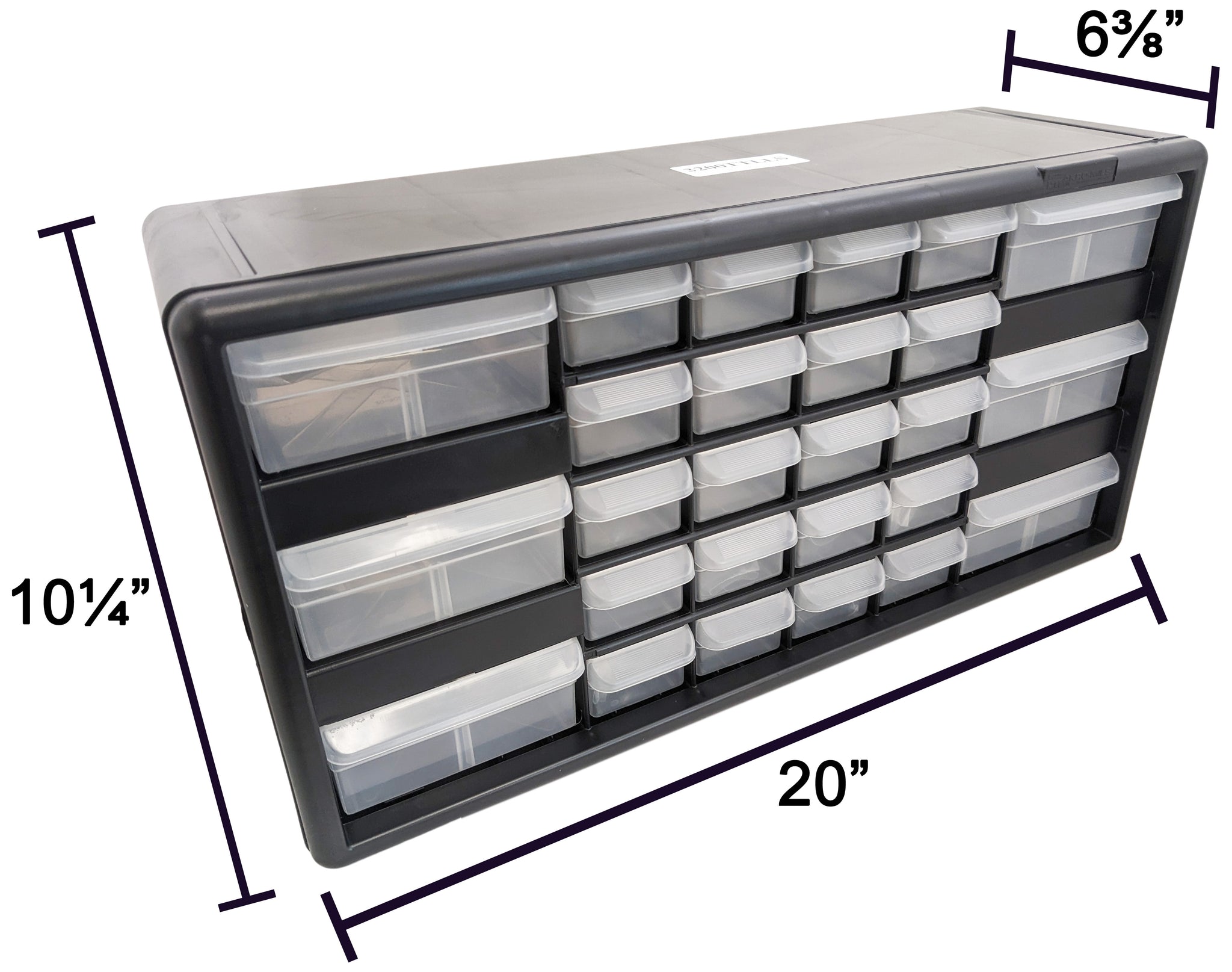

Kit comes with 35 different types of the most popular 74LS TTL ICs separated in a convenient component storage cabinet. Cabinet has 26 pull-out drawers total; 24 Small and 6 Large. Measures 20" x 6⅜" x 10¼" and weighs 5.84 pounds. Features four wall mounting slots on the back.

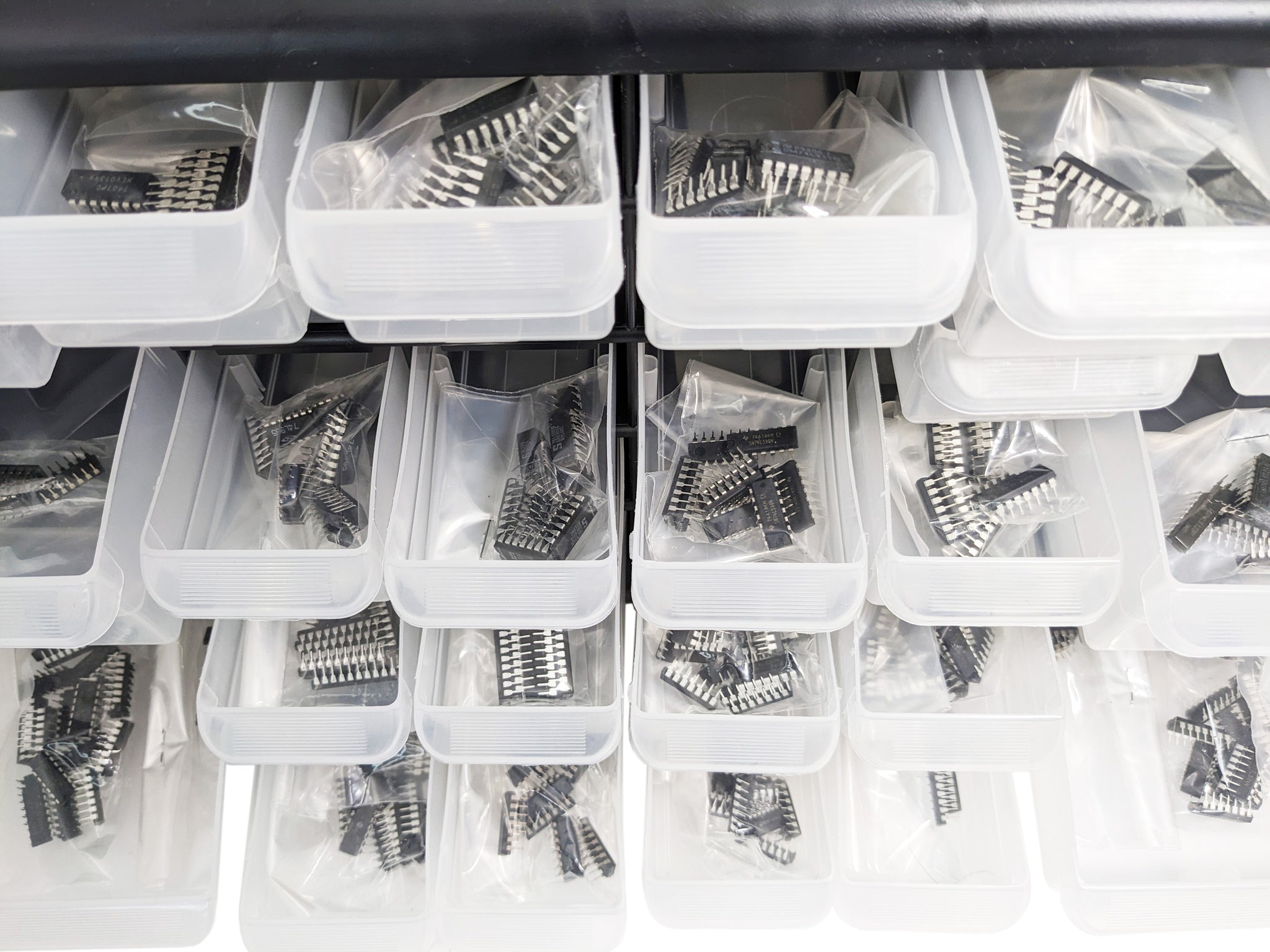

Comes with 35 different types of Low-power Schottky TTL ICs, 420 total pieces:
Comes with 35 different types of Low-power Schottky TTL ICs, 420 total pieces:
Includes 10 of each of the following ICs:
- 74LS05 - Hex Inverter (O.C.)
- 74LS07 - Hex Buffer Driver (O.C.)
- 74LS10 - Triple 3-Input NAND Gate
- 74LS11 - Triple 3-Input AND Gate
- 74LS14 - Hex Inverter Schmitt Trigger
- 74LS20 - Dual 4-Input Pos. NAND Gate
- 74LS30 - 8-Input Pos. NAND Gate
- 74LS47 - BCD-To-7 Seg. Decoder Driver (15v Out)
- 74LS73 - Dual JK Flip-Flop With Clear
- 74LS75 - 4-Bit Bistable Latch
- 74LS85 - 4-Bit Magnitude Comparator
- 74LS86 - Quad 2-Input XOR Gate
- 74LS90 - Decade Counter
- 74LS93 - 4-Bit Binary Counter
- 74LS112 - Dual JK Edge-Trig.
- 74LS114 - Dual JK Neg. Edge
- 74LS123 - Dual Retrig. MS Multivibrator
- 74LS125 - Quad 3-State Bus Buffer
- 74LS139 - Dual 2-To-4 Decoder Demux
- 74LS151 - 8-Channel Dig. Multiplexer
- 74LS157 - Quad 2-To-1 Data Selector Mux
- 74LS174 - Hex D Flip-Flop With Clear
- 74LS191 - 4-Bit Binary Up Down
- 74LS195 - 4-Bit Par-Access Shift Register
- 74LS244 - Octal Buffer 3-St.
- 74LS245 - Octal Bus Transceiver 3-St.
- 74LS273 - Octal D Flip-Flop With Clear
- 74LS373 - Octal Transparent Latch
Includes 20 of each of the following ICs:
- 74LS00 - Quad 2-Input NAND Gate
- 74LS02 - Quad 2-Input NOR Gate
- 74LS04 - Hex Inverter
- 74LS08 - Quad 2-Input AND Gate
- 74LS32 - Quad 2-Input Pos. OR Gate
- 74LS74 - Dual D-Type Flip-Flop W Preset and Clr.
- 74LS138 - 3-To-8 Line Decoder Demux
