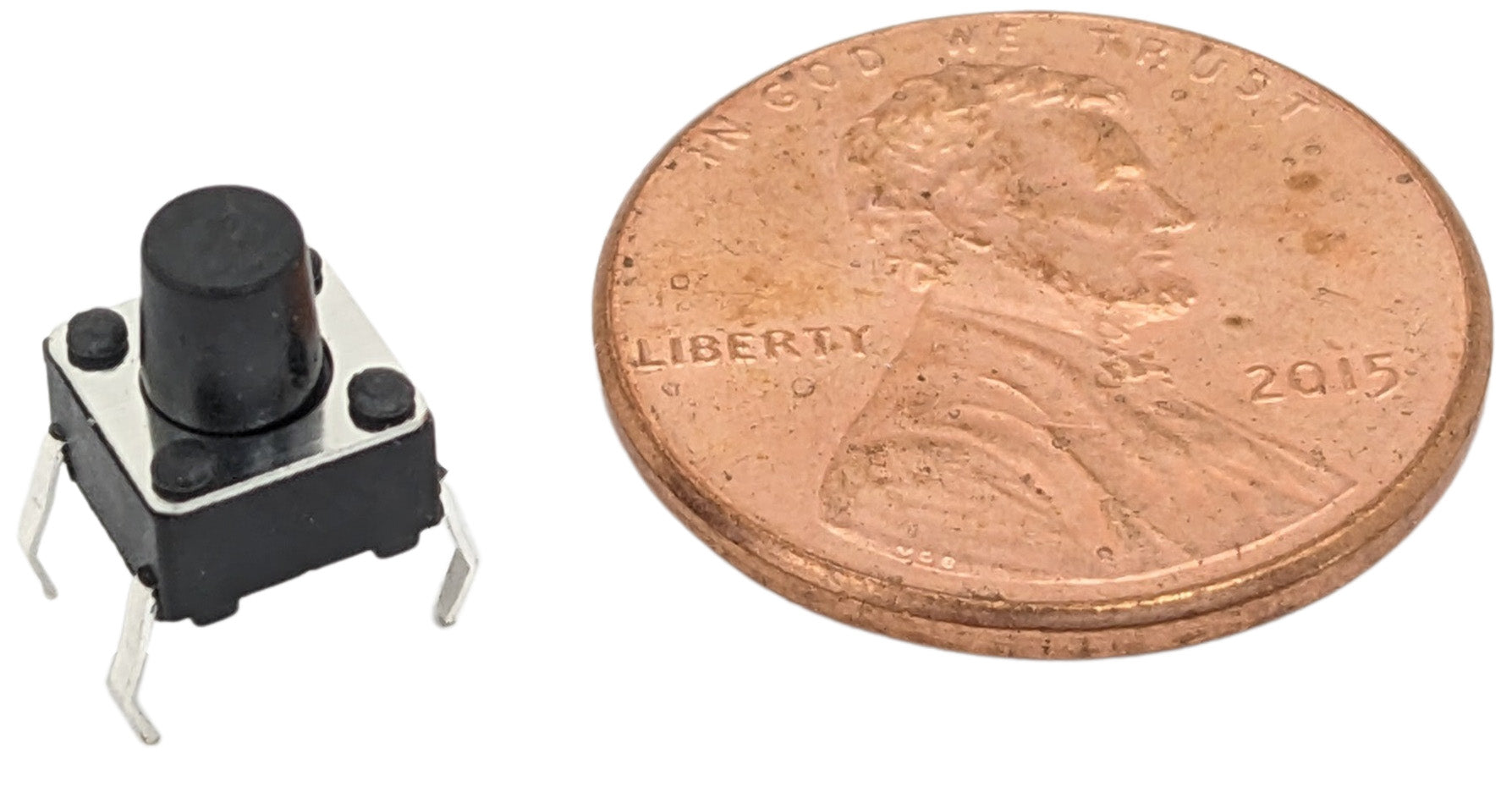

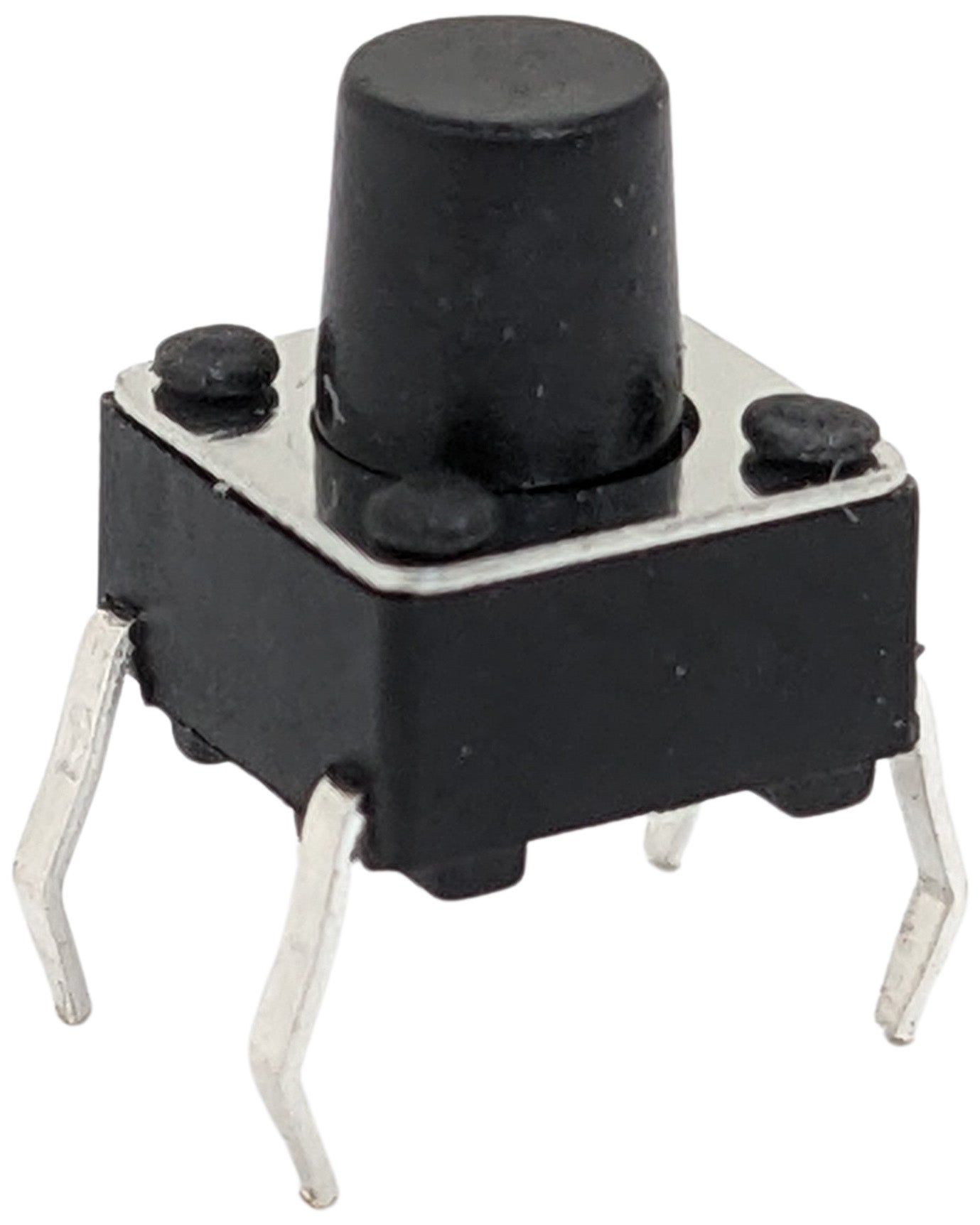

- 6mm square momentary switch with round button
- Body height: 4mm
- Button height: 3.5mm, Button diameter: 3.5mm
- Black color button
- Good tactile feel
- Breadboard friendly
Specifications:
Rating: 50mA, 12VDC
Electrical Life:
100,000 cycles (ELTS)
1,000,000 cycles (EHTS)
Contact Resistance: 100mΩ max
Insulation Resistance: 100MΩ min. 500VDC
Dielectric Strength: 250VAC/1 min
Operation Force: 100gf, 160gf, 260gf, 320gf, 520gf
Storage Temperature: -30°C to 80°C
Contact Arrangement: 1 pole 1 throw
Materials:
COVER: Stainless steel or SPCC
CASE: UL94V-0 Nylon Thermoplastic(Black)
STEM: UL94V-0 Nylon Thermoplastic
CONTACT DISC: Phosphor bronze or stainless steel with silver cladding
TERMINAL: Brass with silver cladding
CAP: Thermoplastic ABS
