100 Pack 6mm Square Tact Momentary Switch with Round Black Button, 3.5mm Button Height, Breadboard Friendly

17DTS63K100PK
$39.99
$39.99
Sold out
Shipping calculated at checkout.
  • 100 Pack 6mm Square Momentary Switches with Round Buttons
  • Body height: 3.5mm
  • Button height: 3.5mm
  • Button color: Black
  • Good tactile feel

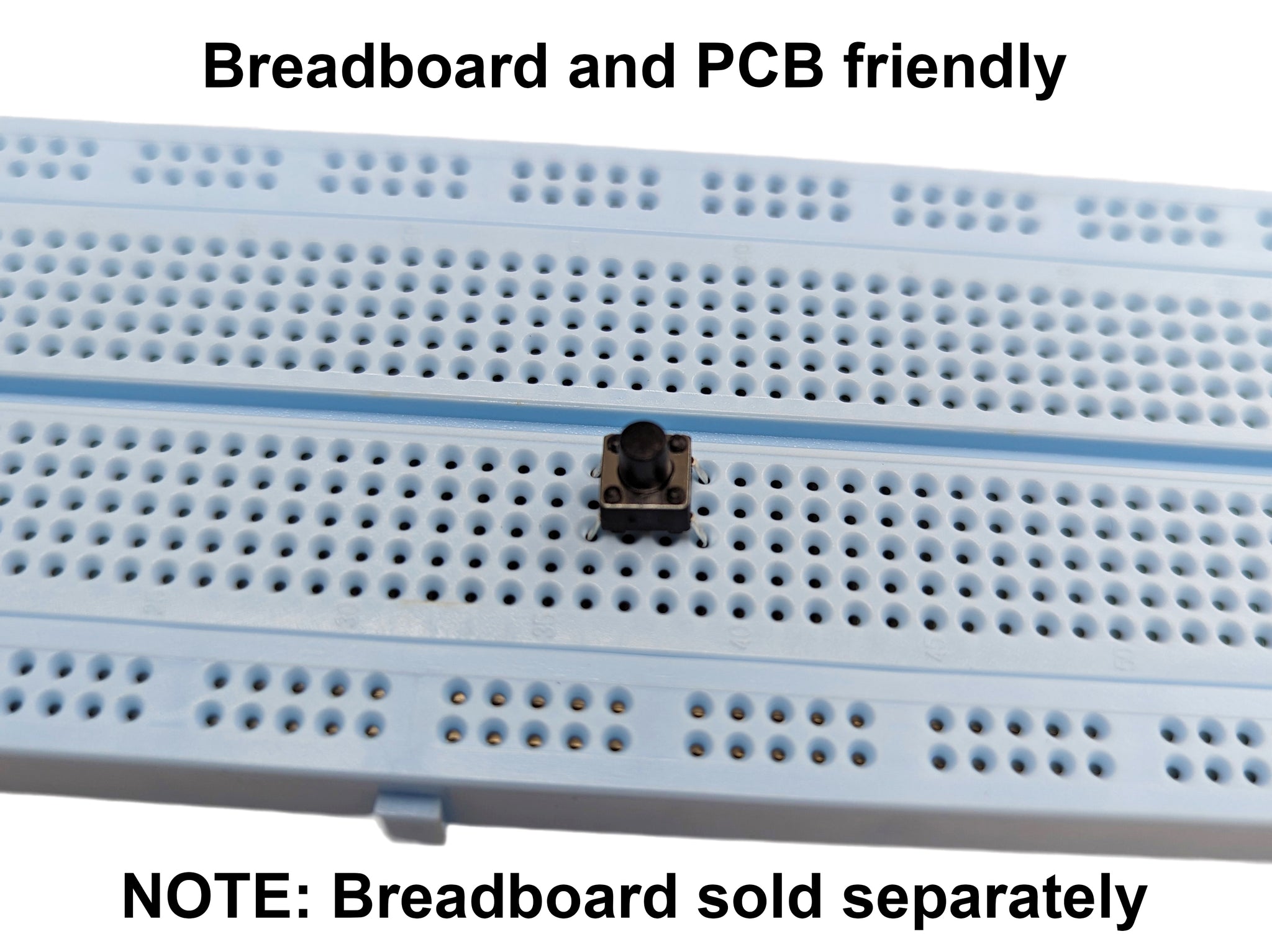

  • Breadboard friendly

Specifications:

  • Rating: 50mA, 12VDC
  • Electrical Life:
  • 100,000 cycles (ELTS)
  • 1,000,000 cycles (EHTS)
  • Contact Resistance: 100mΩ max
  • Insulation Resistance: 100MΩ min. 500VDC
  • Dielectric Strength: 250VAC/1 min
  • Operation Force: 100gf, 160gf, 260gf, 320gf, 520gf
  • Storage Temperature: -30°C to 80°C
  • Contact Arrangement: 1 pole 1 throw

Materials:

  • COVER: Stainless steel or SPCC
  • CASE: UL94V-0 Nylon Thermoplastic(Black)
  • STEM: UL94V-0 Nylon Thermoplastic
  • CONTACT DISC: Phosphor bronze or stainless steel with silver cladding
  • TERMINAL: Brass with silver cladding
  • CAP: Thermoplastic ABS
