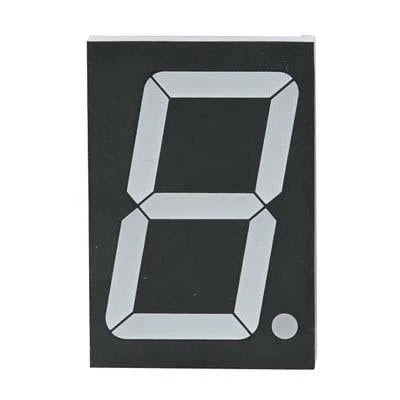

This is a single-digit green 7-segment LED display with a 0.5" digit height and a common cathode connection. Seven LED segments form the numerals 0-9, and in a common cathode display all segment cathodes share one pin, which goes to ground while each segment is driven high.
Key Features
- Single digit, 7 segments
- 0.5" digit height
- Green LED segments
- Common cathode configuration
Specifications
| Digits | 1 |
|---|---|
| Digit height | 0.5" |
| Color | Green |
| Common pin | Common cathode |
| SKU | 08FNDGRCC |
What's Included
- 1 × green 0.5" common cathode 7-segment display
Ideal For
Hobbyists and students building a counter, timer or meter that needs one green digit.
Frequently Asked Questions
What does common cathode mean?
All segment cathodes (negative sides) are joined to a shared pin connected to ground; you light a segment by applying positive voltage through a resistor to its pin.
Do I need resistors?
Yes, normally one current-limiting resistor per segment, or a driver IC designed for 7-segment displays.
