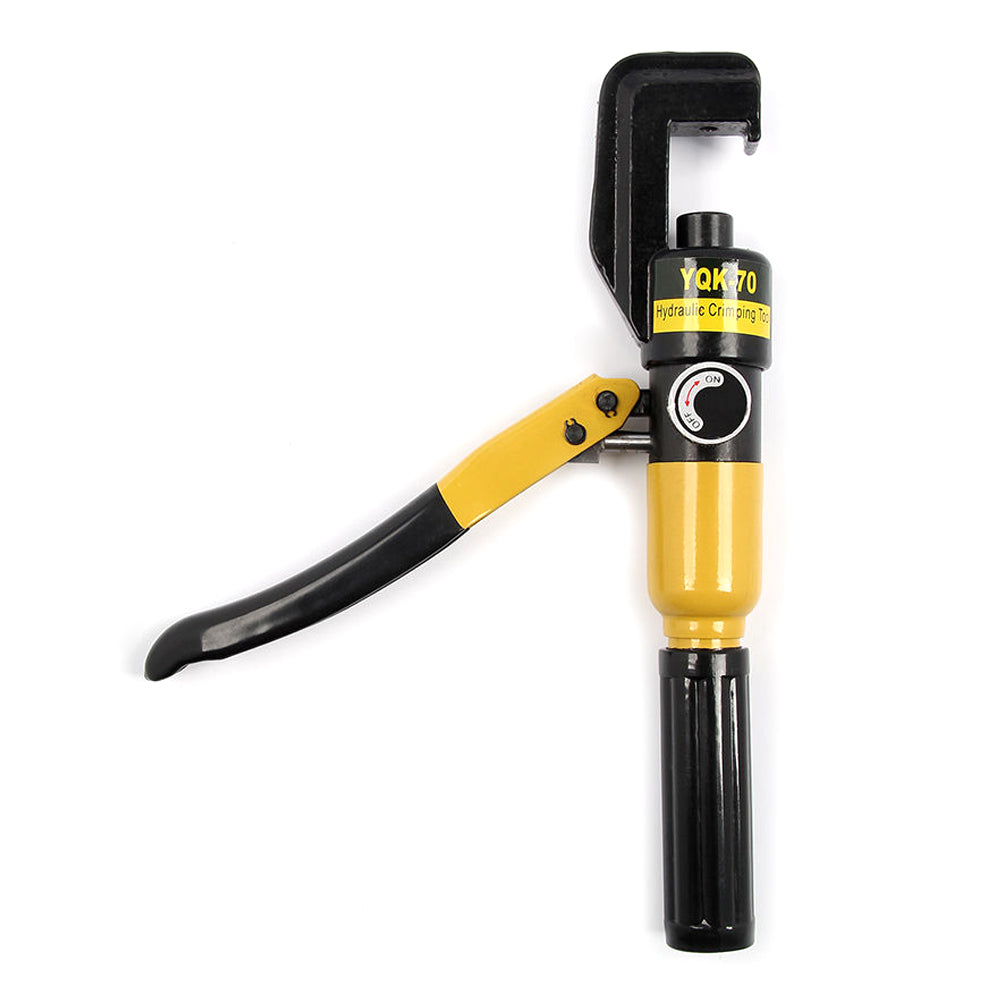

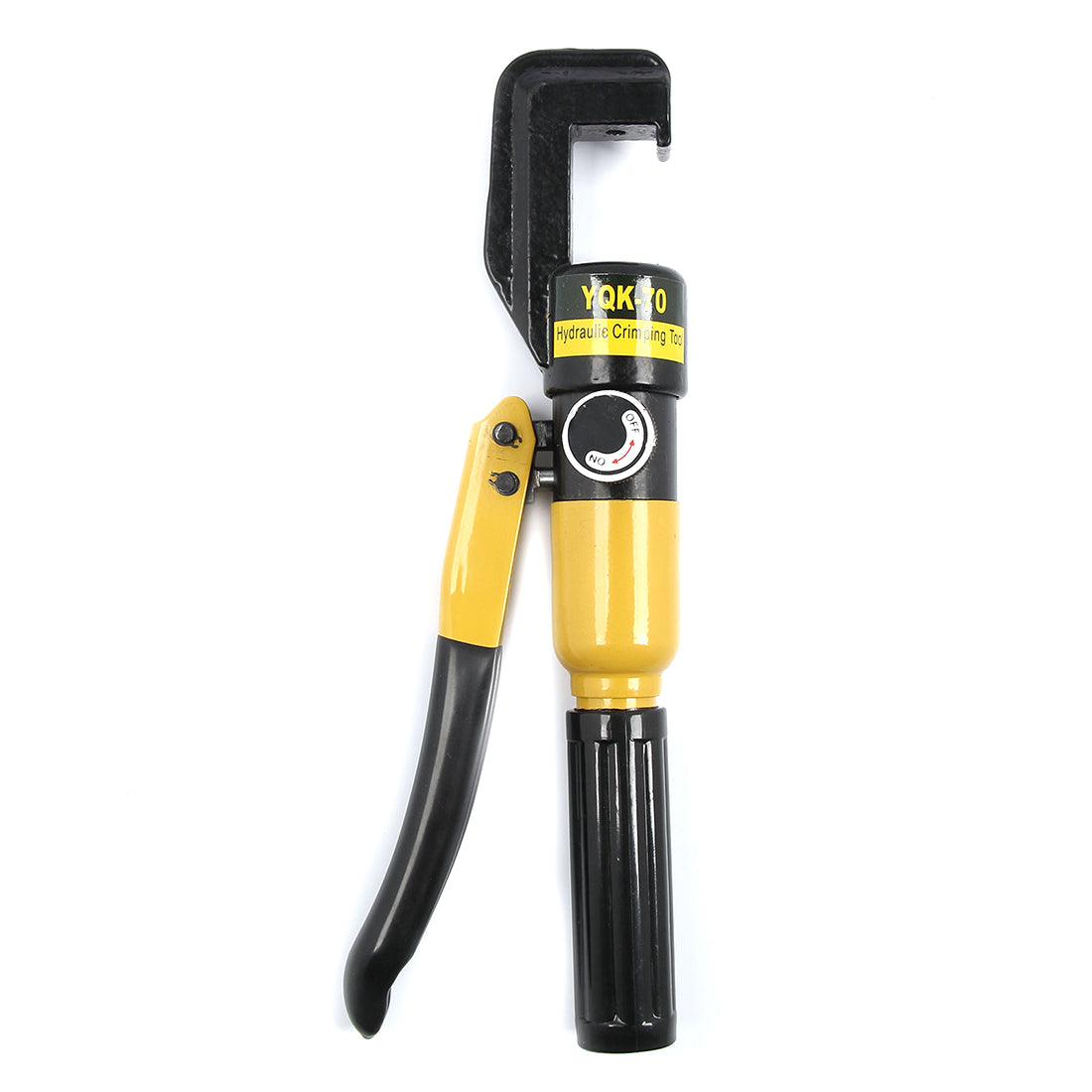

This 10 ton hydraulic crimper makes clean, consistent crimps on battery cable lugs and terminals from 12 AWG up to 2/0 AWG, in copper or aluminum. It comes with eight pairs of quick-change chrome-plated steel dies, and the C-shaped head can be used at multiple angles. Compared with hammer crimpers, hydraulic crimping takes far less effort and doesn't tear the wire.
Key Features
- Crimps 12, 10, 8, 6, 4, 2, 1/0 and 2/0 AWG copper and aluminum wire

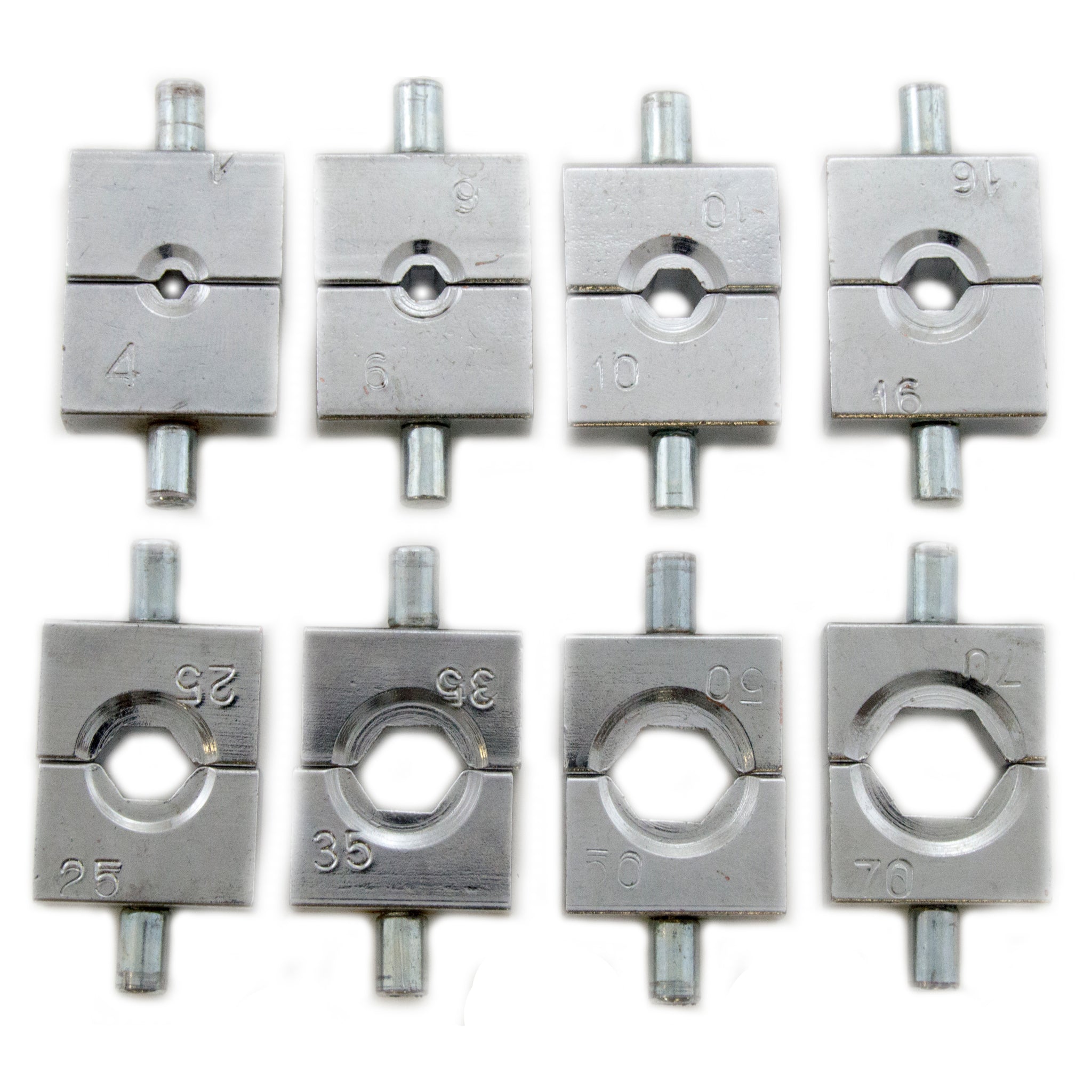

- 8 pairs of quick-change chrome-plated steel dies

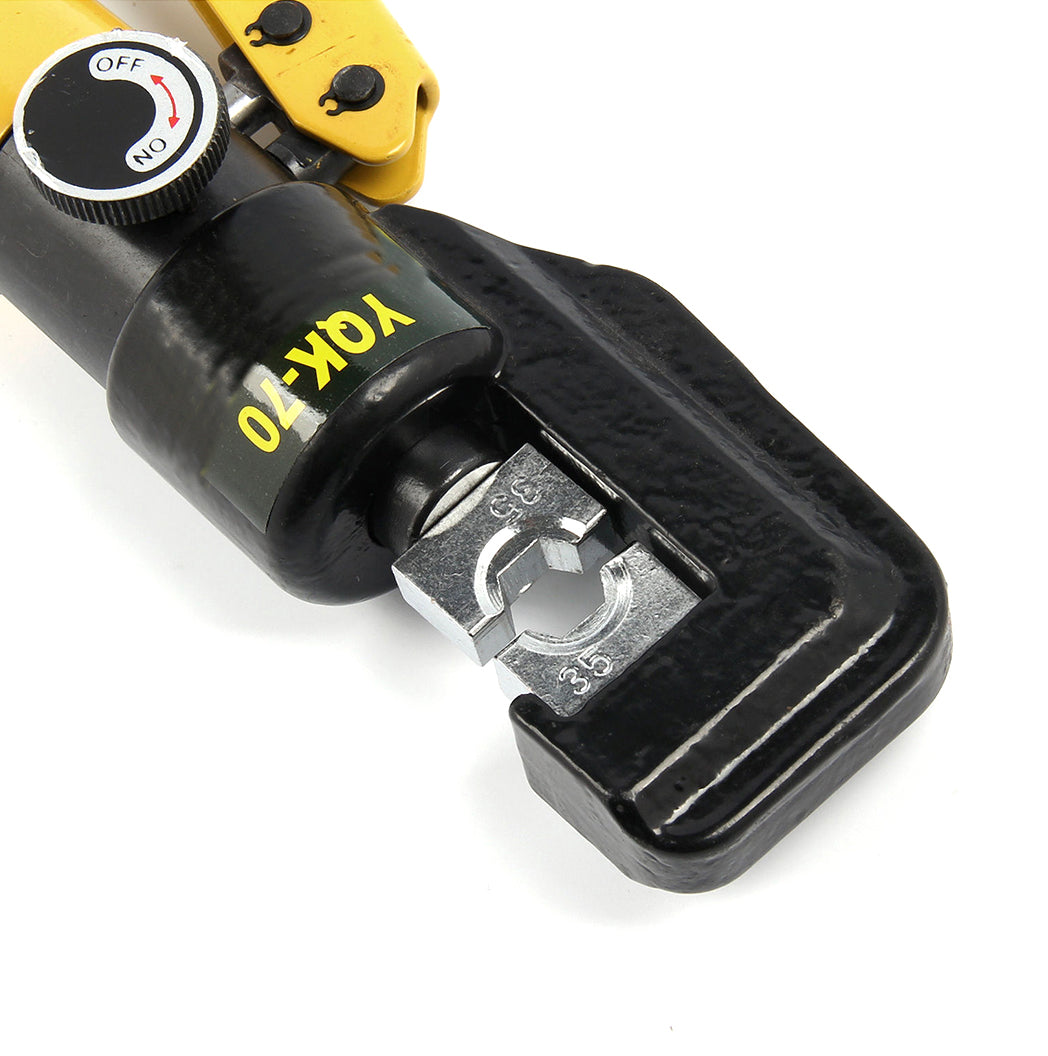

- C-shaped head works at multiple angles for crimping from any direction
- 10 tons of crimping force with a 12 mm max stroke
- Vinyl-dipped grip and an on/off release knob on the handle

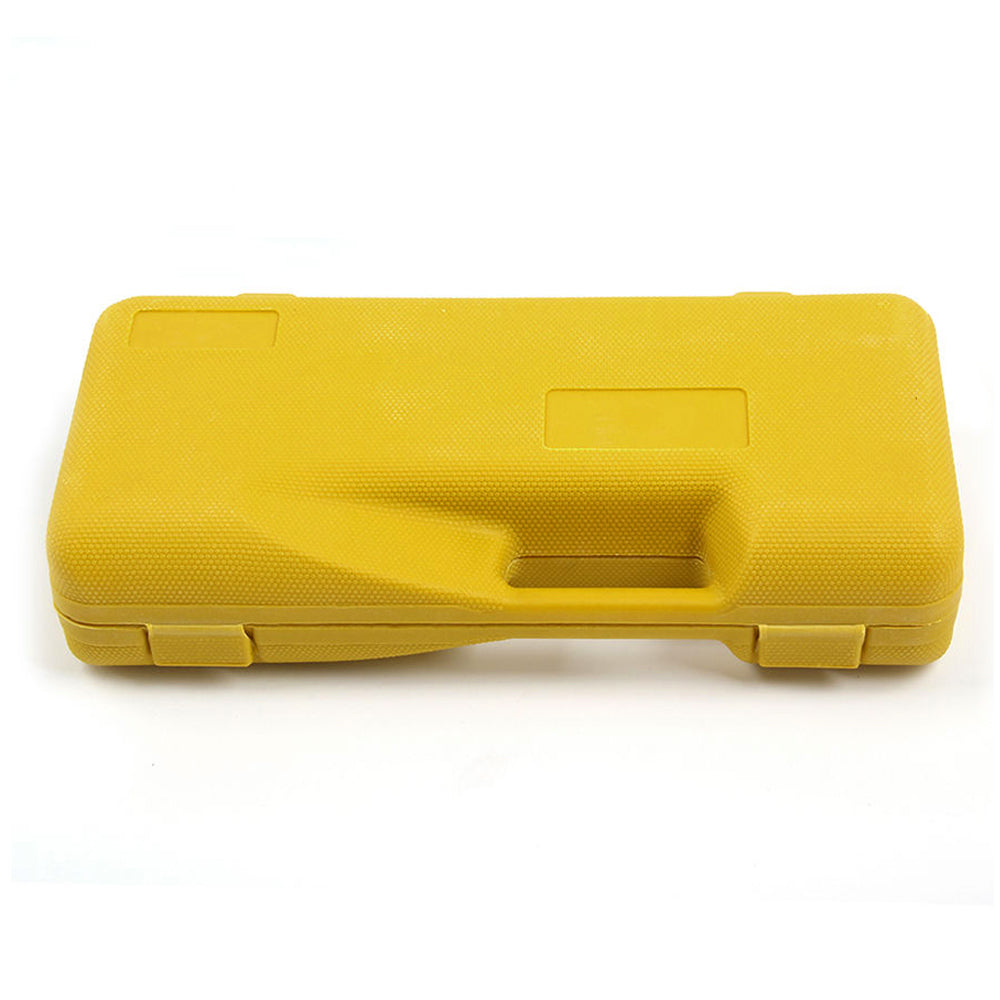

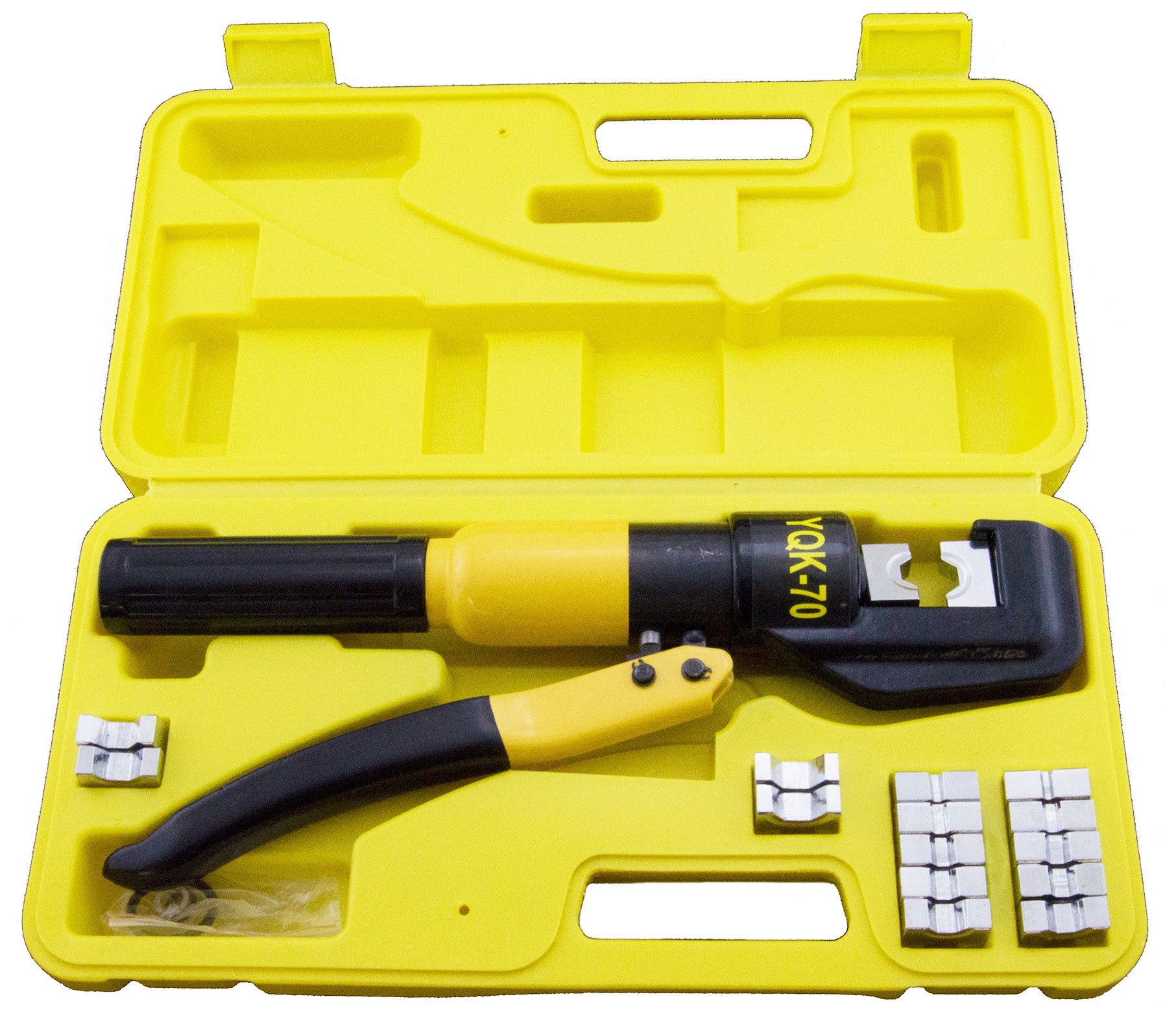

- Hard plastic storage case holds the crimper and all dies
Specifications
| Crimping force | 10 tons |
|---|---|
| Max stroke | 12 mm |
| Wire range | 12, 10, 8, 6, 4, 2, 1/0, 2/0 AWG |
| Wire types | Copper and aluminum |
| Dies | 8 pairs, chrome-plated steel |
| SKU | 78CRIMMPING |

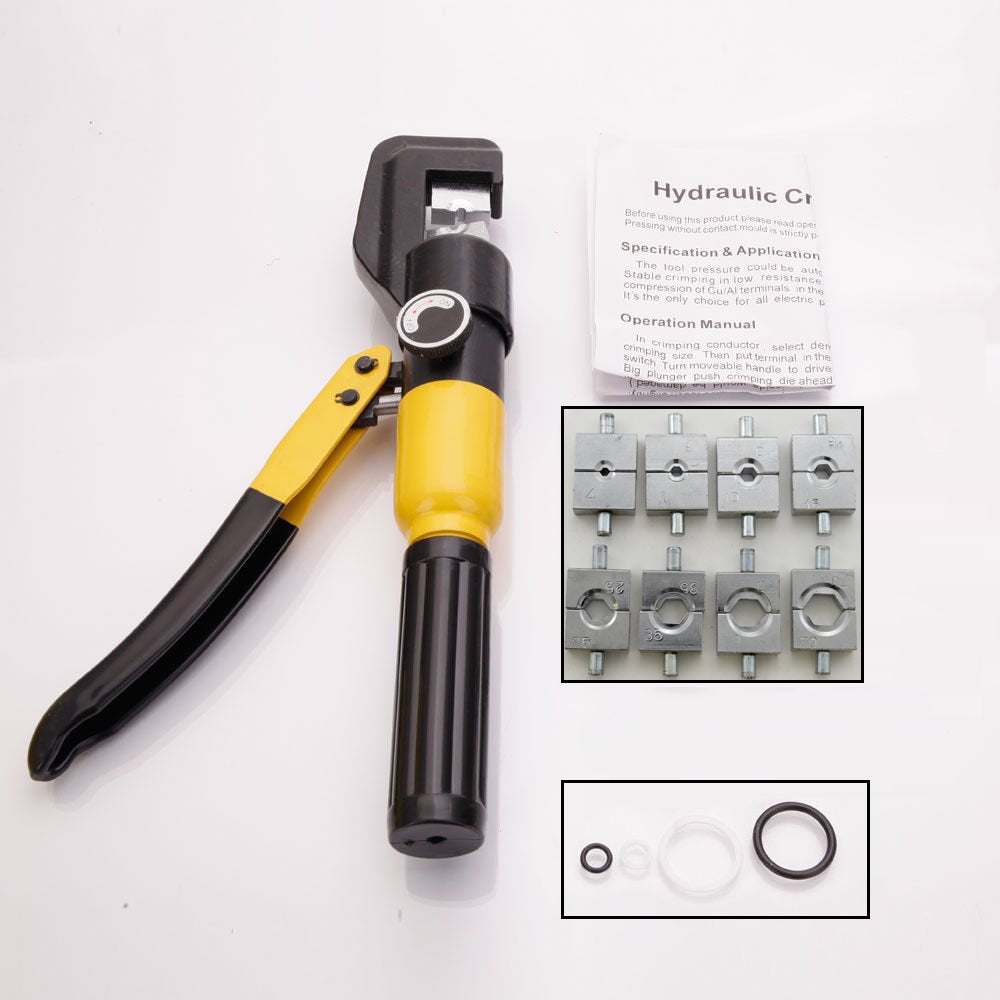

What's Included
- Hydraulic crimper
- 8 pairs of crimping dies
- Storage case
- Instruction manual
Ideal For
Automotive, marine, RV, solar and off-grid battery banks, welding cables and electricians.
Frequently Asked Questions
What size battery cables can it crimp?
12 AWG through 2/0 AWG copper or aluminum cable and lugs.
Need larger cable?
Our 16 ton hydraulic crimper (7816CRMP) handles 16–240 mm² lugs and sleeves.
