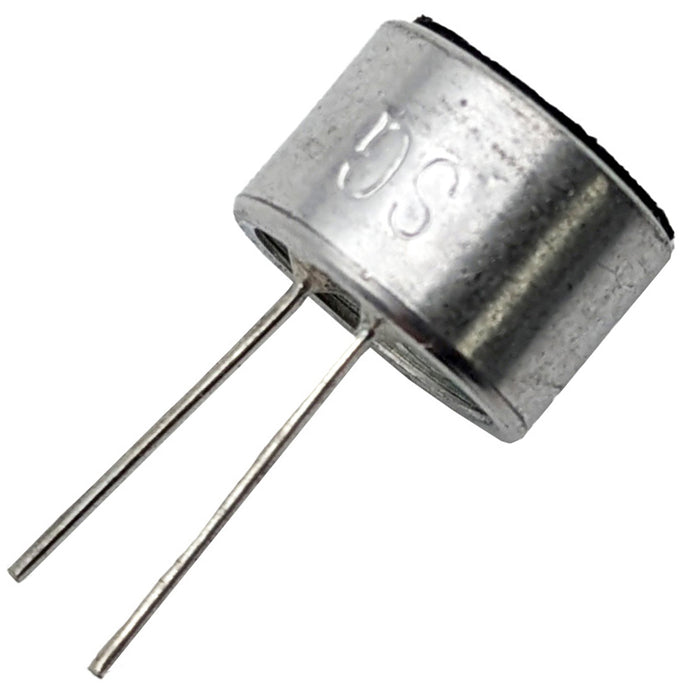

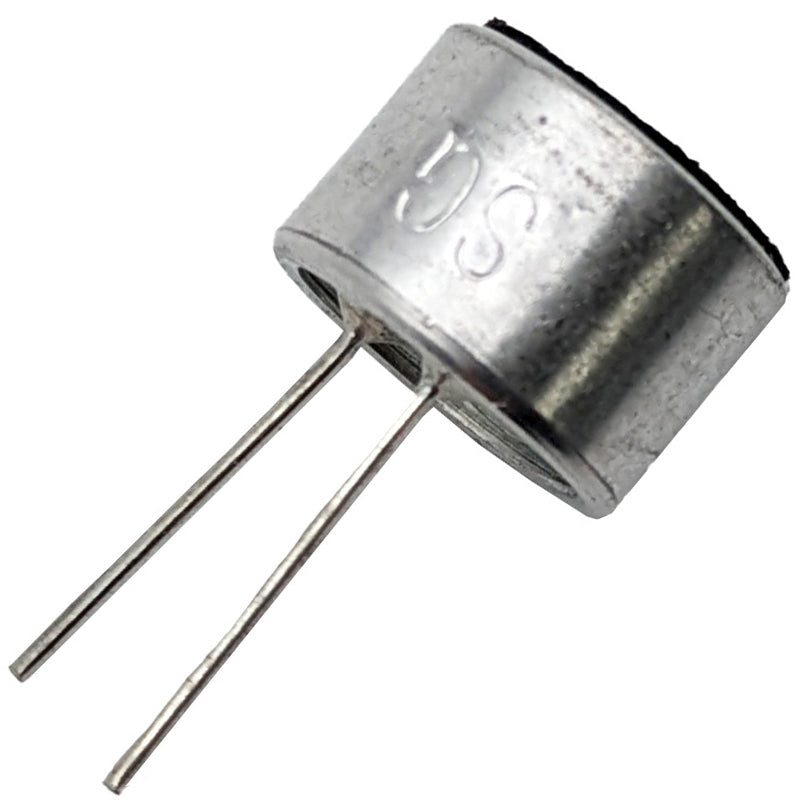

This is a 9.7 mm diameter omnidirectional electret condenser microphone with a built-in FET and PC pins for circuit board mounting. It operates on 2–10 V DC at 500 µA, covers 50 Hz to 8 kHz, and has -42 dB ±3 dB sensitivity with a 60 dB signal-to-noise ratio.
Key Features
- Omnidirectional electret condenser capsule with FET
- Frequency range 50 Hz to 8 kHz
- Sensitivity -42 dB ±3 dB; 60 dB S/N ratio
- Runs on 2–10 V DC at 500 µA

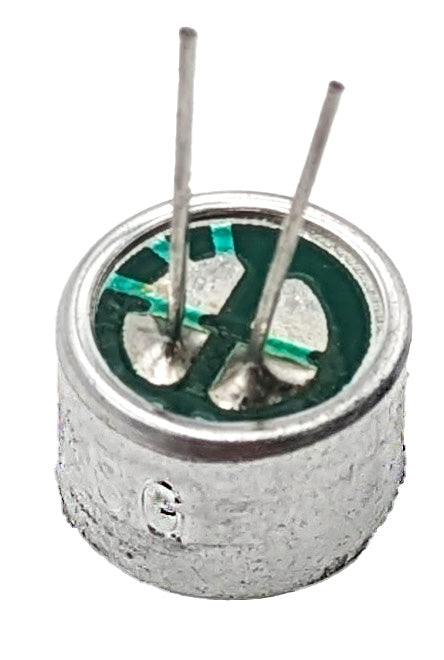

- PC pins for circuit board mounting
- 9.7 mm diameter, 6.7 mm high
Specifications
| Quantity | 1 |
|---|---|
| Type | Electret condenser microphone (FET) |
| Output | Analog |
| Pickup pattern | Omnidirectional |
| Frequency range | 50 Hz – 8 kHz |
| Sensitivity | -42 dB ±3 dB @ 94 dB SPL |
| S/N ratio | 60 dB |
| Impedance | 1 kΩ |
| Voltage | 2–10 V DC |
| Supply current | 500 µA |
| Port | Top |

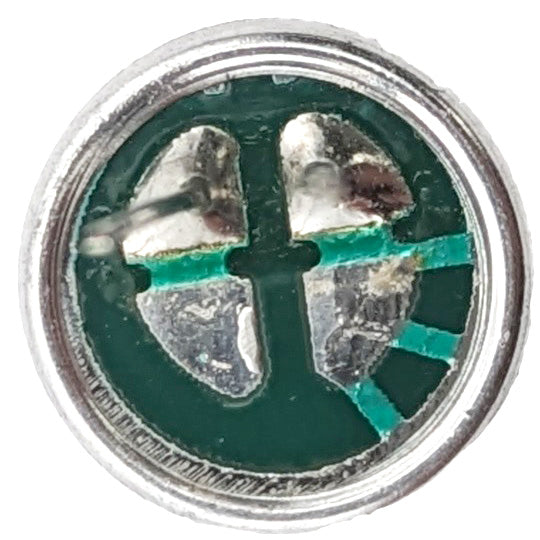

| Termination | PC pins |

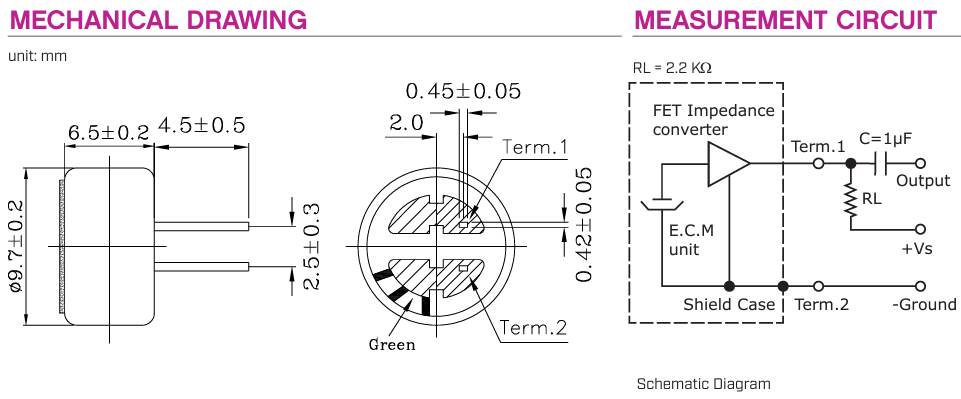

| Size | 9.70 mm (0.382 in) dia x 6.70 mm (0.264 in) max height |
| SKU | 26MPFET |
What's Included
- 1 x 9.7 mm electret condenser microphone
Ideal For
Voice pickup, sound-activated circuits and audio projects with a microcontroller or preamp.
Frequently Asked Questions
How do I power it?
Electret mics with a FET are typically biased through a resistor from a 2–10 V DC supply, and the audio is taken off through a coupling capacitor.
Is it good for music recording?
Its 50 Hz–8 kHz range suits voice and sound detection more than full-range music.
