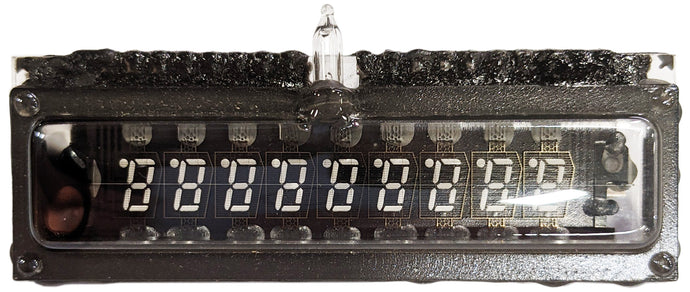

9-Digit Fluorescent Display, Glass Enclosed, Itron # FG95H1

9-Digit Fluorescent Display, Glass Enclosed, 19 Pins.

Itron # FG95H1

Manufactured in Japan. No specifications available - only for serious hobbyists who can determine how to operate and the purpose of each pin.

Measures 2.57" Long x 0.24" Wide x 0.9" Tall (width not including pins). Digit height: 0.2"

Possible information found online:

Pins

1. High, or ground (uncertain)
2. Top Left
3. Middle
4. Bottom Left
5. Period
6. Digit 1 activation
7. Digit 2 activation
8. Digit 3 activation
9. Digit 4 activation
10. Digit 5 activation
11. Digit 6 activation
12. Digit 7 activation
13. Digit 8 activation
14. Digit 9 activation
15. Bottom
16. Bottom Right
17. Top Right
18. Top
19. High, or ground (uncertain)

"Only 1 digit is lit up at a time, but you cycle through the digits so fast that it appears they are all lit up at the same time. So in this case, if you wanted to display 1 on digit 5, you would set pin 10 high to "select" digit 5, then set pins 16 and 17 high to "select" the two right segments."

"apply somewhere between 1.5v and 3v to the filament, then use from 14v to 24v for the actual digits and segments.

Hook 3.5v to a 240 ohm resistor to drop the voltage to 1.5v for the filament.
Hook 12v up to the segments and digits."

"requires at least 12v to power it, and it is fairly dim @ 12v"
