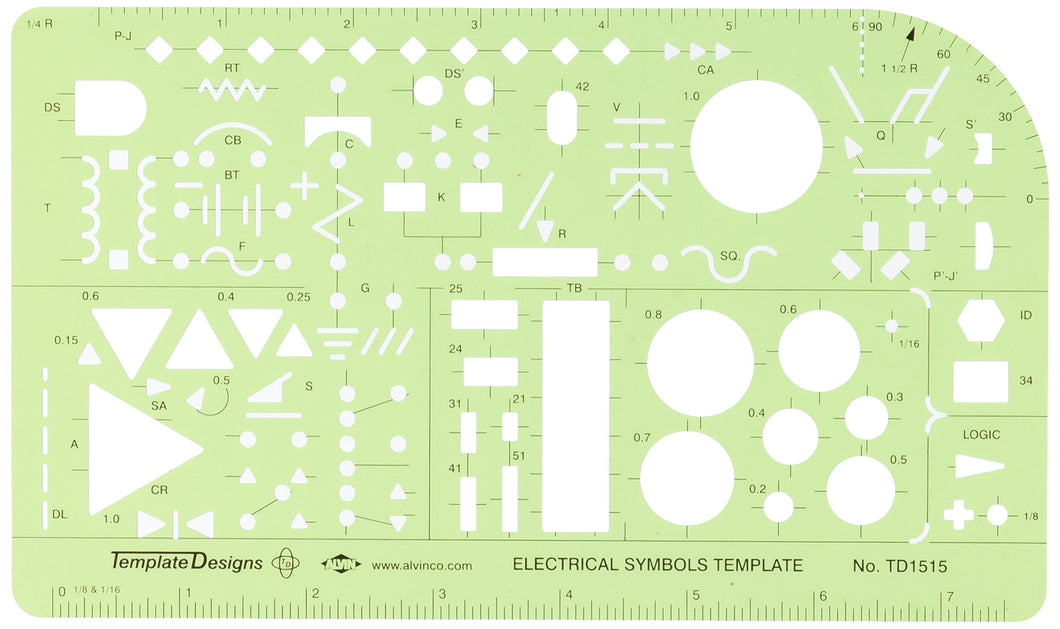

ALVIN Electric/Electronic Symbols Template, Size: 5.25" x 8.25" x .030" (TD1515)

ALVIN Electric/Electronic Symbols Template, Size: 5.25" x 8.25" x .030" (TD1515)

0302TD1515
Regular price
$19.99
Sale price
$19.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

This template is great for use by architects and electricians and contains standard symbols used for schematic diagrams.

Features:

  • Assorted cutouts and symbols for schematic diagrams
  • One edge scale graduated in 8ths and 16ths and one graduated in 10ths
  • Corner cut 1.5" radius, graduated in degrees
  • Pencil allowance on all openings for 0.5mm pencil lead
  • Non-glare, odor-free, flexible, and durable translucent plastic

Product Dimensions:

  • Outside Dimensions: 5¼" x 8¼" x .030"
  • Product Weight: ~1 ounce
