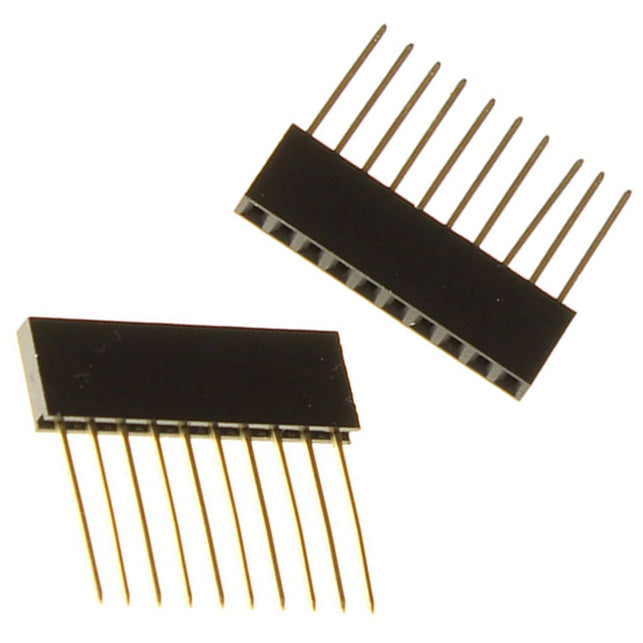

The Arduino A000086 is a pair of 10-pin female/male header strips with 2.54 mm pitch, used to extend boards and build stackable shields. Each strip has a square-receptacle 8.5 mm plastic body and 15 mm pins, for a total component height of 23.5 mm. Arduino uses them on its Proto Shield, and their height makes them useful on any shield.
Key Features
- Two 10-pin female/male header strips
- 2.54 mm (0.1") pin spacing
- Square receptacle style
- 8.5 mm plastic body with 15 mm pins (23.5 mm overall)
- Arduino part number A000086
Specifications
| Part number | Arduino A000086 |
|---|---|
| Pins per strip | 10 |
| Pitch | 2.54 mm |
| Receptacle style | Square |
| Component height | 23.5 mm (body 8.5 mm, pins 15 mm) |
| Quantity | 2 |
| SKU | 01ARDA000086 |
What's Included
- 2 × 10-pin female/male header strips
Ideal For
Making stackable Arduino shields and board extensions, such as on the Arduino Proto Shield.
Frequently Asked Questions
Which Arduino header uses 10 pins?
The Uno R3 has a 10-pin digital header (including SDA, SCL, AREF and GND), which these strips suit.
What is a female/male header?
It has a female socket on top and long male pins below, so it can pass through a shield and plug into the board beneath.
