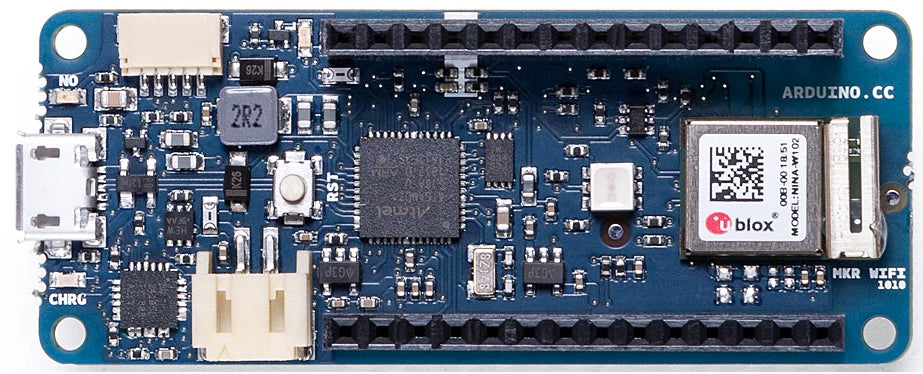

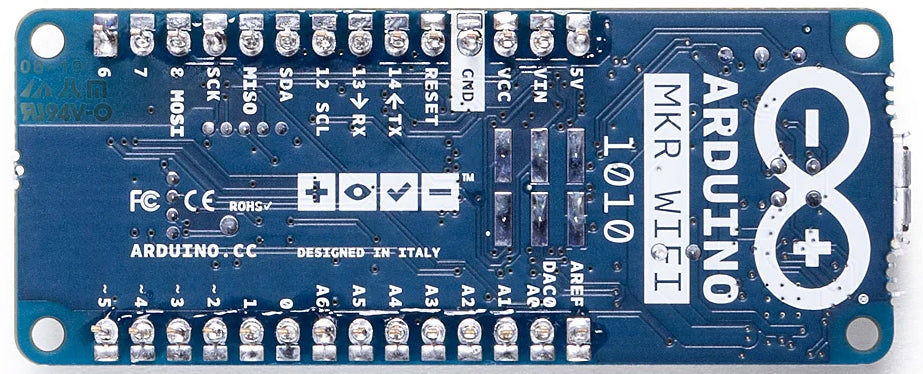

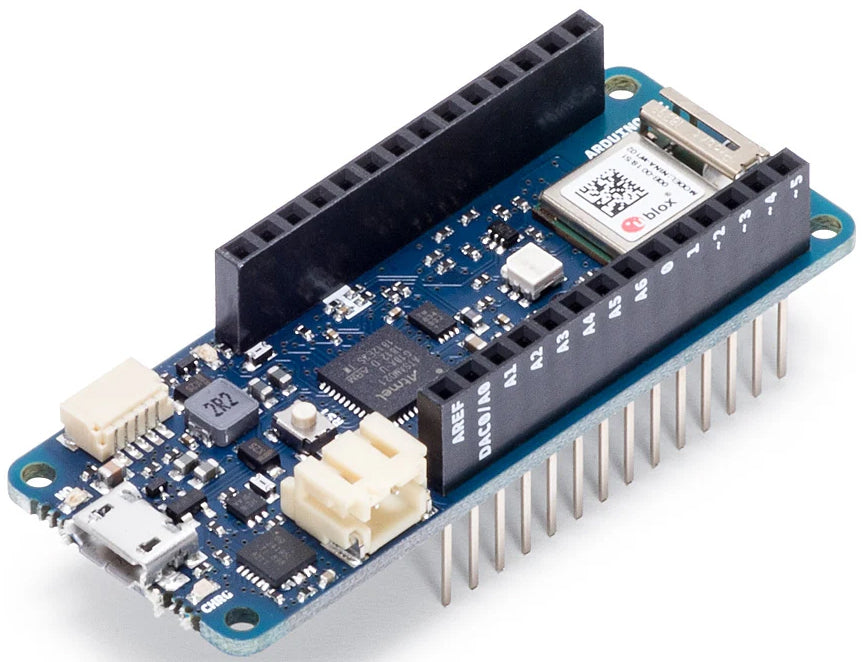

The Arduino MKR WiFi 1010 (ABX00023) is a compact IoT board built on the low-power SAMD21 Cortex-M0+ 32-bit microcontroller, with a u-blox NINA-W102 module for 2.4 GHz Wi-Fi and Bluetooth Low Energy. An ATECC508 crypto chip handles secure communication, and an on-board Li-Po charger lets it run from a battery that charges while external power is connected. It works with Arduino IoT Cloud and other cloud services.

Key Features

  • SAMD21 Cortex-M0+ 32-bit low-power MCU at 48 MHz
  • u-blox NINA-W102 module for 2.4 GHz Wi-Fi and Bluetooth/BLE
  • ATECC508 secure element for encrypted connections
  • Li-Po charging circuit with automatic switching between battery and external 5V
  • Arduino IoT Cloud compatible; WiFiNINA and ArduinoBLE libraries
  • On-board RGB LED
  • Compact 61.5 × 25 mm MKR form factor

Specifications

Model Arduino MKR WiFi 1010 (ABX00023)
Microcontroller SAMD21 Cortex-M0+ 32-bit
Radio module u-blox NINA-W102
Secure element ATECC508
Board power (USB/VIN) 5V
Operating voltage 3.3V
Supported battery Li-Po single cell, 3.7V, 1024mAh minimum
Digital I/O 8
PWM pins 13
UART / SPI / I2C 1 / 1 / 1
Analog inputs 7 (8/10/12-bit ADC)
Analog output 1 (10-bit DAC)
External interrupts 10
DC current per I/O pin 7 mA
Flash / SRAM 256 KB / 32 KB
EEPROM None
Clock 48 MHz; 32.768 kHz RTC
USB Full-speed USB device and embedded host
Size / weight 61.5 × 25 mm; 32 g
SKU 01ABX00023

What's Included

  • 1 × Arduino MKR WiFi 1010 board

Ideal For

Battery-powered sensors, home and office IoT nodes, and BLE devices that talk to a phone.

Frequently Asked Questions

Is the MKR WiFi 1010 5V tolerant?
Its circuits run at 3.3V. The board is powered with 5V over USB or VIN, but I/O operates at 3.3V.

What battery can I use?
A single-cell 3.7V Li-Po of at least 1024mAh. The board charges it while running on external power and switches automatically.

Can it use Wi-Fi and Bluetooth at the same time?
Not with the standard firmware; the listing notes simultaneous use requires modifying the NINA module firmware, which breaks its certification.

Modifying the WiFiNINA module firmware breaks its radio certification; do so at your own risk.
