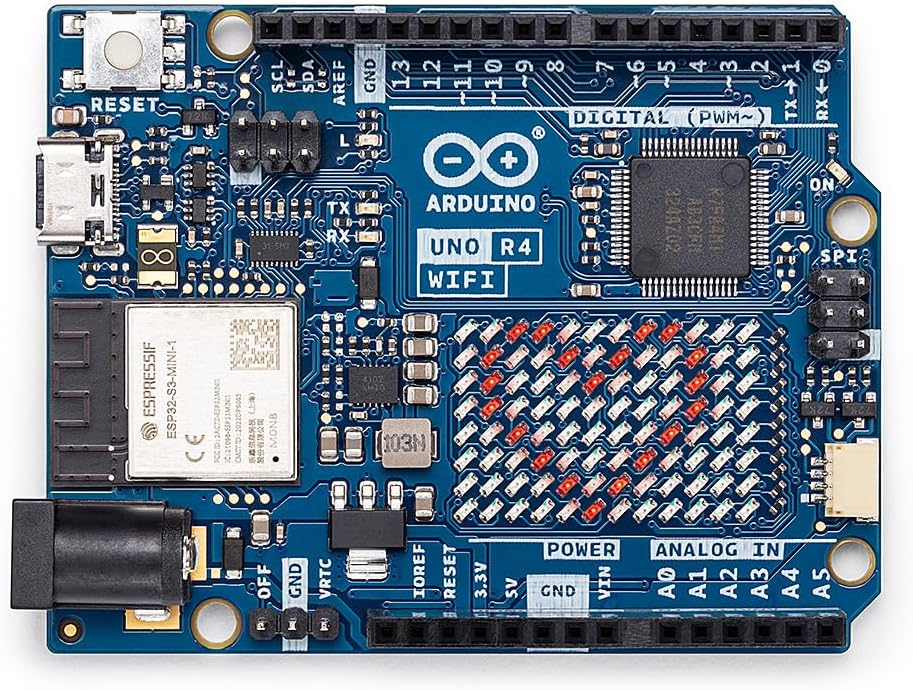

The Arduino UNO R4 WiFi (ABX00087) pairs a Renesas RA4M1 Arm Cortex-M4 microcontroller at 48 MHz with an Espressif ESP32-S3 module for Wi-Fi and Bluetooth, in the classic UNO form factor with 5 V logic. It adds a 12x8 red LED matrix, Qwiic I2C connector, 12-bit DAC, CAN bus, op amp and USB-C, plus OFF and VRTC pins for power control and a battery-backed real-time clock.

Key Features

  • Renesas RA4M1 (Cortex-M4, 48 MHz) with ESP32-S3 (up to 240 MHz) for Wi-Fi and Bluetooth
  • Built-in 12x8 red LED matrix for animations or data
  • Qwiic I2C connector
  • 12-bit DAC, CAN bus and op amp
  • UNO R3 form factor, pinout and 5 V operation; 6–24 V input
  • OFF and VRTC pins for power control and battery-backed RTC
  • HID support and runtime error diagnostics

Specifications

Model Arduino UNO R4 WiFi (ABX00087)
Main MCU Renesas RA4M1 (Arm Cortex-M4), 48 MHz
Wireless MCU ESP32-S3, up to 240 MHz
Memory (RA4M1) 256 kB flash, 32 kB RAM
Memory (ESP32-S3) 384 kB ROM, 512 kB SRAM
USB USB-C
Digital I/O 14
Analog inputs 6
DAC 1 (12-bit)
PWM pins 6
UART / I2C / SPI 1 / 1 / 1
CAN 1 CAN bus
Operating voltage 5 V (ESP32-S3 is 3.3 V)
Input voltage (VIN) 6–24 V
DC current per I/O pin 8 mA
Dimensions 68.85 × 53.34 mm
SKU 01ABX00087

What's Included

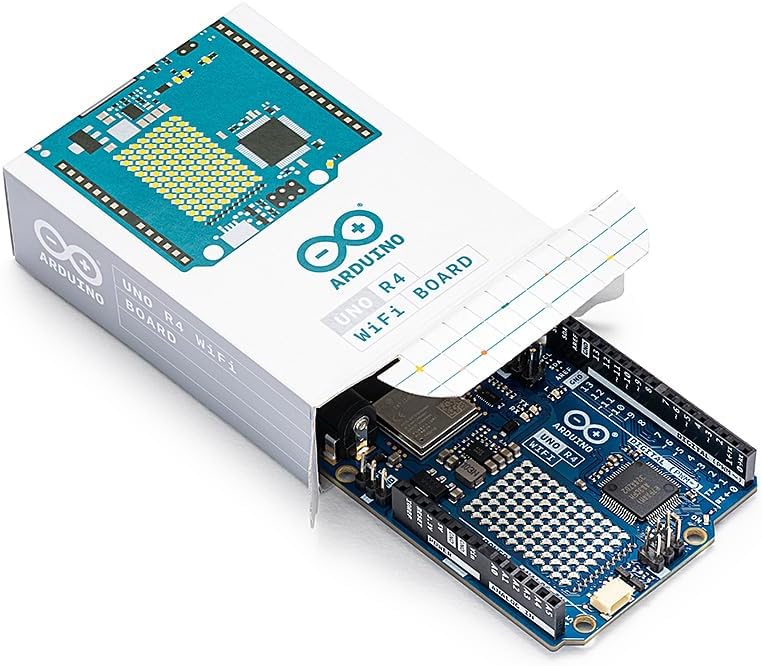

  • 1 × Arduino UNO R4 WiFi board

Ideal For

Connected UNO projects, Arduino IoT Cloud dashboards and beginners who want built-in display and wireless.

Frequently Asked Questions

What is the difference between the UNO R4 WiFi and Minima?
Both use the Renesas RA4M1. The WiFi version adds an ESP32-S3 for Wi-Fi and Bluetooth, a 12x8 LED matrix, a Qwiic connector and OFF/VRTC pins.

What is a Qwiic connector?
A small polarized 4-pin I2C connector that lets you chain compatible sensors and modules without soldering.
