The B&K Precision TLFG is a general-purpose test lead set for function generators, listed for DDS sweep function generators. It gathers BNC cables, BNC breakouts, IC clips and adapters in one kit so a new setup can be connected without hunting for parts. The two 120 cm BNC cables are rated DC to 1 GHz.
Key Features
- Two 120 cm BNC cable assemblies, DC–1 GHz, max VSWR 1.20:1 at 1 GHz
- BNC female breakouts to mini alligator clips and to Ø0.031" sockets
- Red and black MiniFlex and MicroFlex IC clips
- BNC tee (F-M-F) and BNC female to N male adapter, DC–4 GHz
Specifications
| Brand / model | B&K Precision TLFG |
|---|---|
| BNC cable assembly | 120 cm, DC–1 GHz, max VSWR 1.20:1 @ 1 GHz (qty 2) |
| BNC (f) breakouts | DC–1 GHz |
| BNC tee, F-M-F | DC–4 GHz |
| BNC female to N male | DC–4 GHz, max VSWR 1.30:1 @ 4 GHz |
| SKU | 05TLFG |

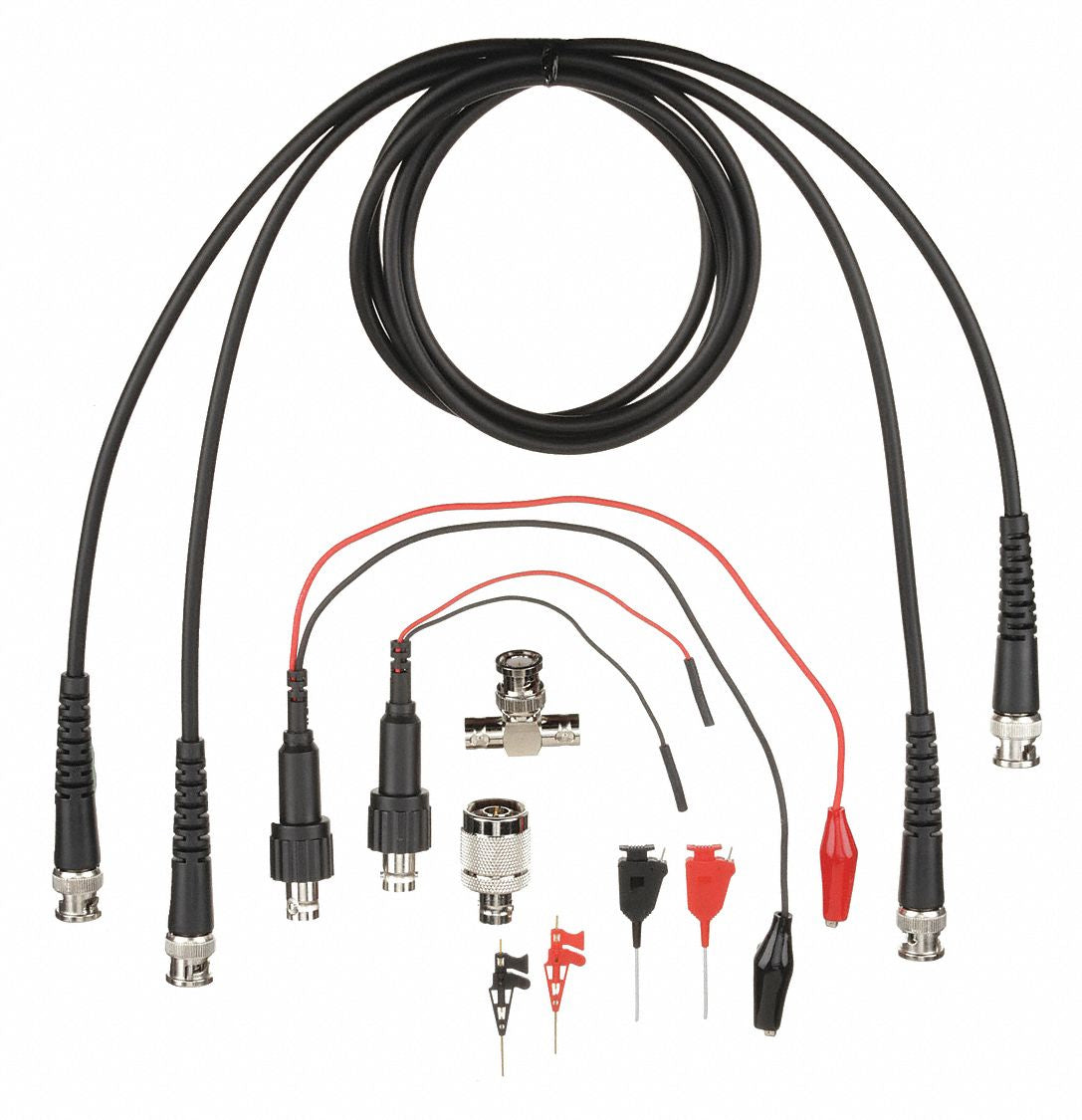

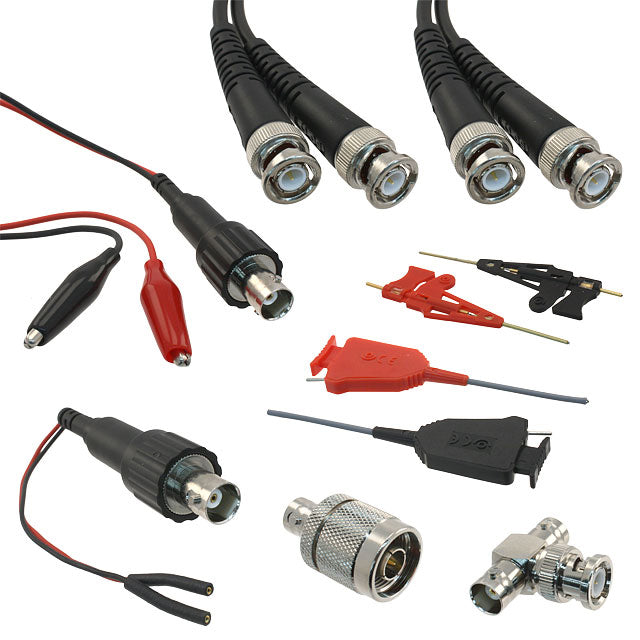

What's Included
- 2 x BNC cable assembly (120 cm)
- 1 x BNC (f) breakout with miniature alligator clips
- 1 x BNC (f) breakout with Ø0.031" sockets
- 1 x red and 1 x black MiniFlex IC clip
- 1 x red and 1 x black MicroFlex IC clip
- 1 x BNC tee, female-male-female
- 1 x BNC female to N type male adapter
Ideal For
Setting up a function generator in a lab or classroom with all common leads on hand.
Frequently Asked Questions
What is VSWR?
Voltage standing wave ratio measures how well a cable or adapter is impedance-matched; values closer to 1:1 mean less signal reflection.
What is the N-type adapter for?
It converts a BNC female connection to an N-type male, a larger threaded RF connector found on some generators and RF equipment.
