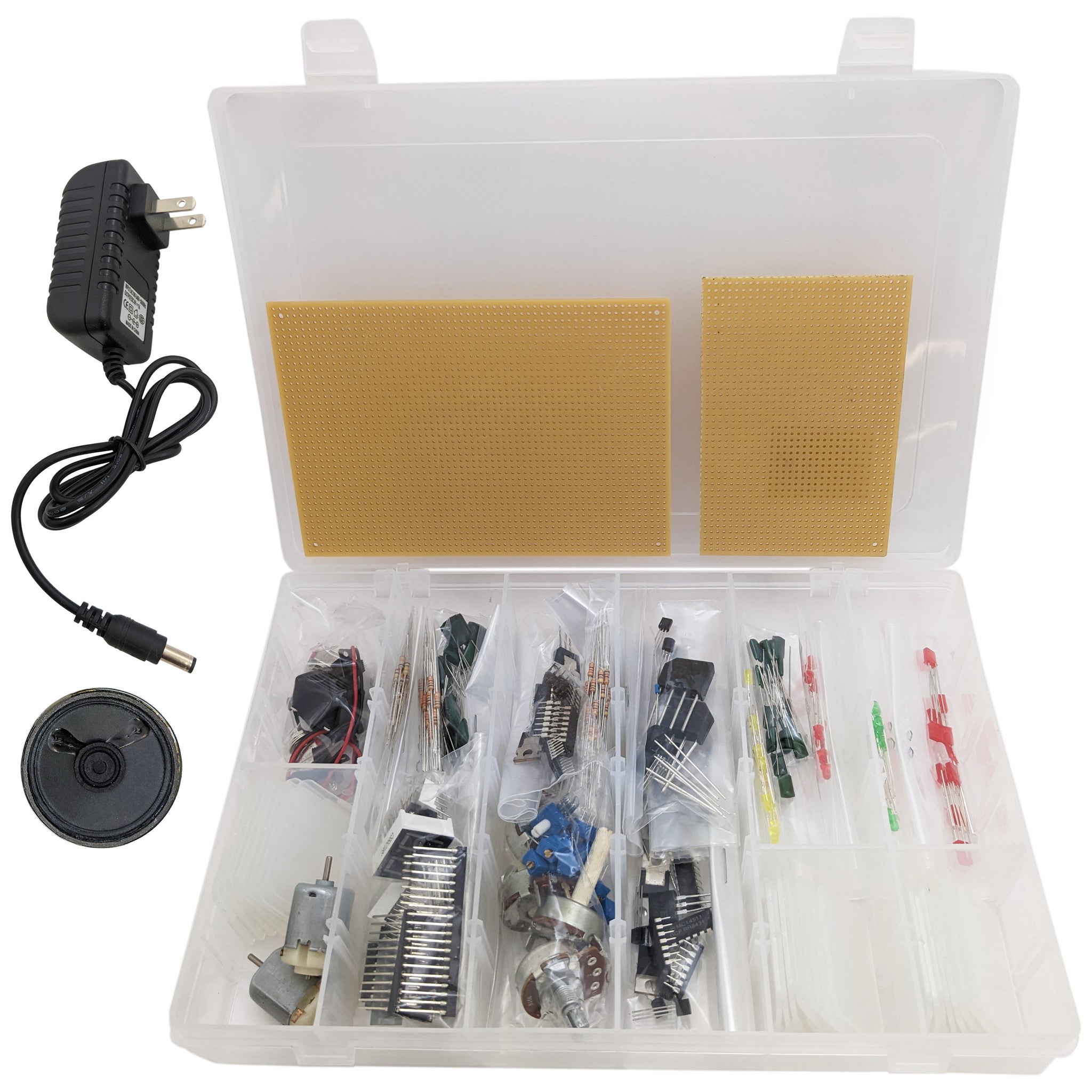

The Basic Prototyping Parts Kit II is an assortment of electronic components for prototyping and experimenting, packed in a 10½" x 6½" x 1½" plastic container with removable dividers. It covers resistors, electrolytic and Mylar capacitors, multi-turn trimpots, potentiometers, wire-wrap IC sockets, perf boards, regulators, op amps, timers, logic ICs, transistors, thyristors, LEDs and switches. A 9V 1A wall adapter, buzzer, speaker and DC motors are also included.
Key Features
- 1/4 W resistors, 5 each of 15 values from 220 Ω to 2.2 MΩ
- Radial electrolytic and 100V Mylar capacitors
- Multi-turn precision trimpots (Bourns 3006P style) from 100 Ω to 1 MΩ
- ICs: 7905, 7912, LM380, 556, 1458, LM324, 74LS and CD4000 logic
- Transistors, SCR, triac, diac and bridge rectifiers
- LEDs, 7-segment displays and bar graphs; toggle and slide switches
- 9V 1A wall adapter, buzzer, speaker, DC motors and 9V snap
Specifications
| Resistors (1/4 W, 5 each) | 220, 470, 680 Ω; 1.5k, 3.3k, 6.8k, 15k, 33k, 56k, 68k, 150k, 270k, 390k, 560k, 2.2M |
|---|---|
| Electrolytic caps (2 each) | 2.2, 22, 33, 220, 330, 2,200 µF |
| Mylar caps 100V (5 each) | 470 pF, .001, .0022, .0033, .0047, .0068 µF |
| Mylar caps 100V (2 each) | .01, .022, .033, .068, .22, .47 µF |
| Trimpots (1 each) | 100, 200 Ω; 2k, 10k, 20k, 1M (multi-turn) |
| Potentiometers (2 each) | 1.5k panel 1/2 W 3/8" shaft; 10k panel 1/2 W 1" shaft; 100k PC mount 1" shaft |
| IC sockets (wire wrap) | 8, 14, 16, 24, 40 pin |

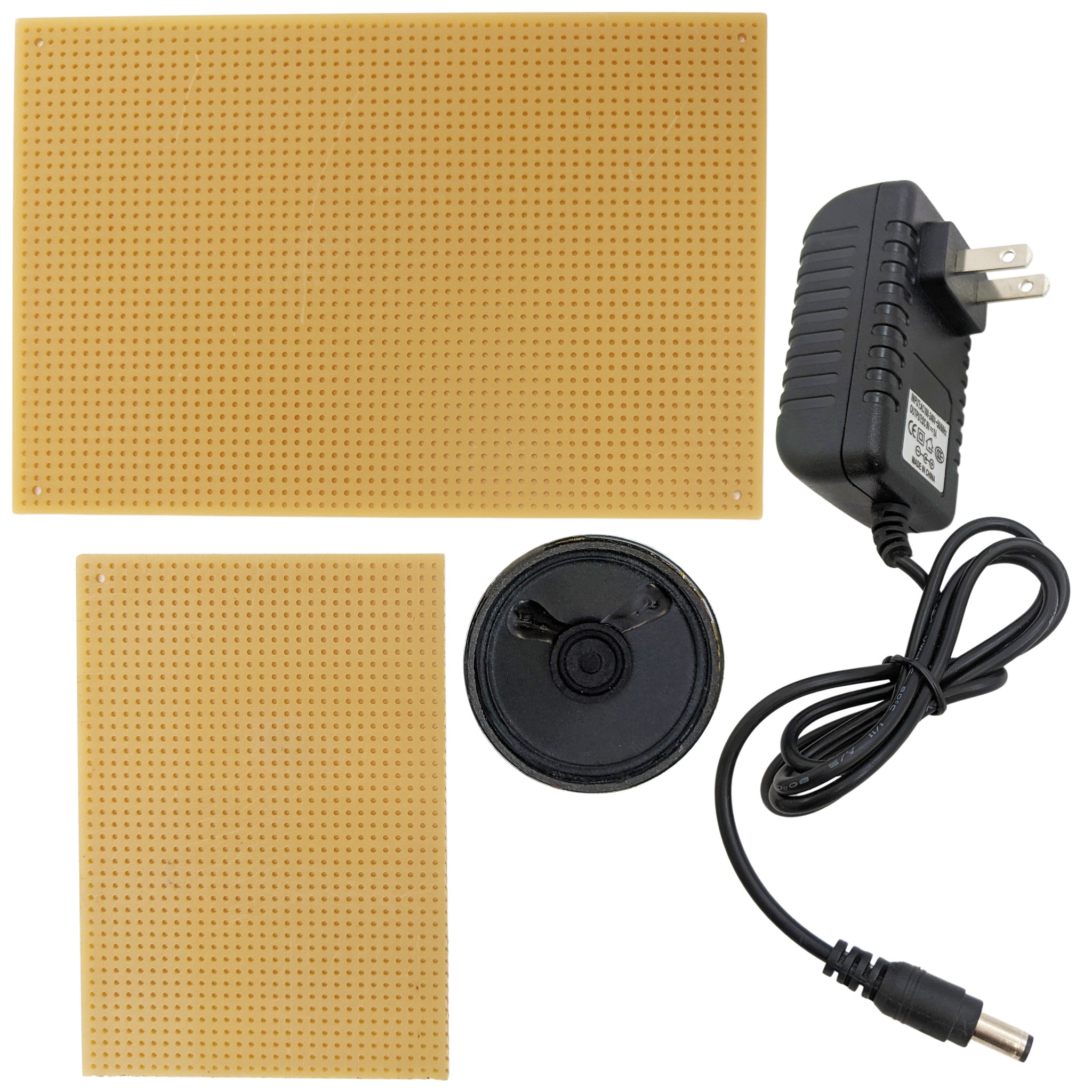

| Perf boards | 3 x 4.5 in (29 x 44 holes); 4.5 x 6.5 in (44 x 64 holes) |
| ICs (1 each) | 7905, 7912, LM380, 556, 1458, LM324, 74LS04, 74LS20, 74LS32, 74LS90, 74LS174, CD4001, CD4011, CD4071, CD4511 |
| Transistors (2 each) | MPSA20, PN3638, TIP31, TIP32, 2N4401, 2N4402 |
| Thyristors/bridges (2 each) | 2N5060 SCR, Q200E3 triac, ST2 diac, 1A 100V DIP bridge, 4A 100V bridge |
| Switches (2 each) | SPDT center-off toggle, DPDT slide |
| Wall adapter | 9 V, 1 A, 5.5 x 2.1 mm barrel, center positive |
| Container | 10½ x 6½ x 1½ in with removable dividers |
| SKU | 32BPK2 |

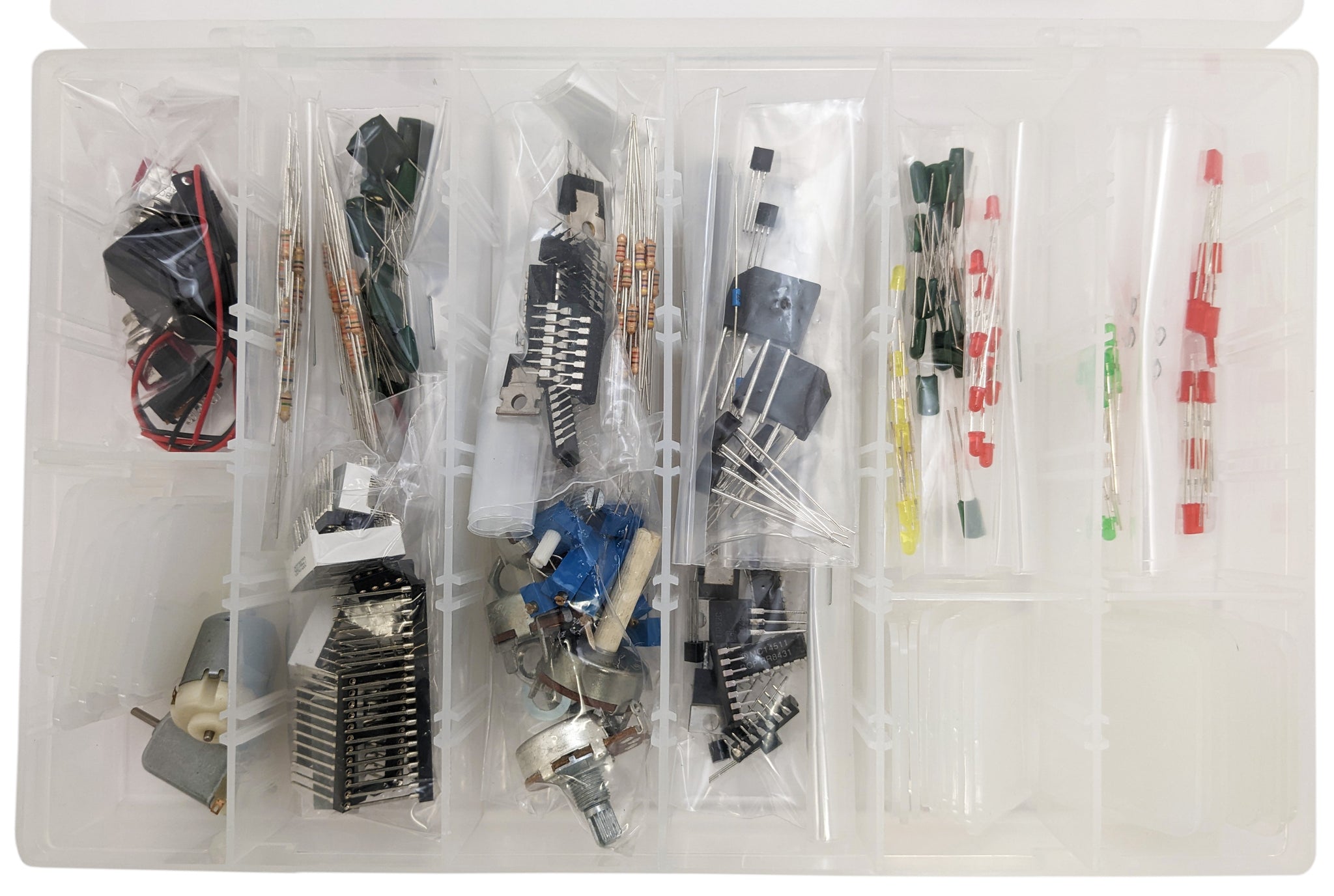

What's Included
- Resistors, capacitors, trimpots and potentiometers as listed
- Wire-wrap IC sockets (8, 14, 16, 24, 40 pin)
- 2 perf boards
- 15 ICs as listed
- Transistors, SCRs, triacs, diacs and bridge rectifiers as listed
- LEDs: bi-polar (2), rectangular red (10), 3 mm red/green/yellow (10 each), 2 seven-segment displays (08NSN584), red/green/yellow bar graphs (1 each)
- Switches as listed
- 9V 1A AC-to-DC wall adapter
- Buzzer
- Speaker
- 2 DC motors (different voltages)
- 9V battery snap
- Plastic storage container with dividers
Ideal For
Students, makers and labs that want a broad stock of through-hole parts for breadboard and perfboard projects.
Frequently Asked Questions
What power adapter is included?
A 9 V, 1 A AC-to-DC wall adapter with a 5.5 mm x 2.1 mm center-positive barrel plug.
What are multi-turn trimpots?
Small adjustable resistors that take many turns of the screw to cover their range, for fine, precise adjustment.
