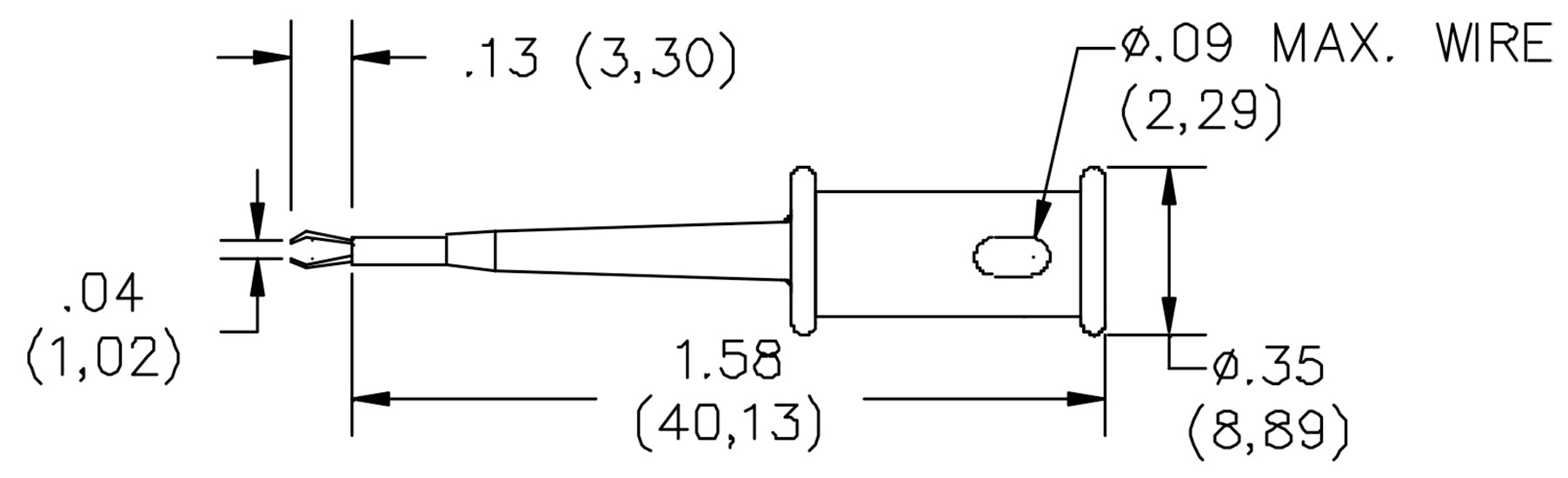

- Hook, Pincer Opening: 0.040" (1.02mm)
- Length: 1.580" (40.13mm)
- Termination: Solder, 0.090" (2.29mm) Wire Opening
- Color: Black

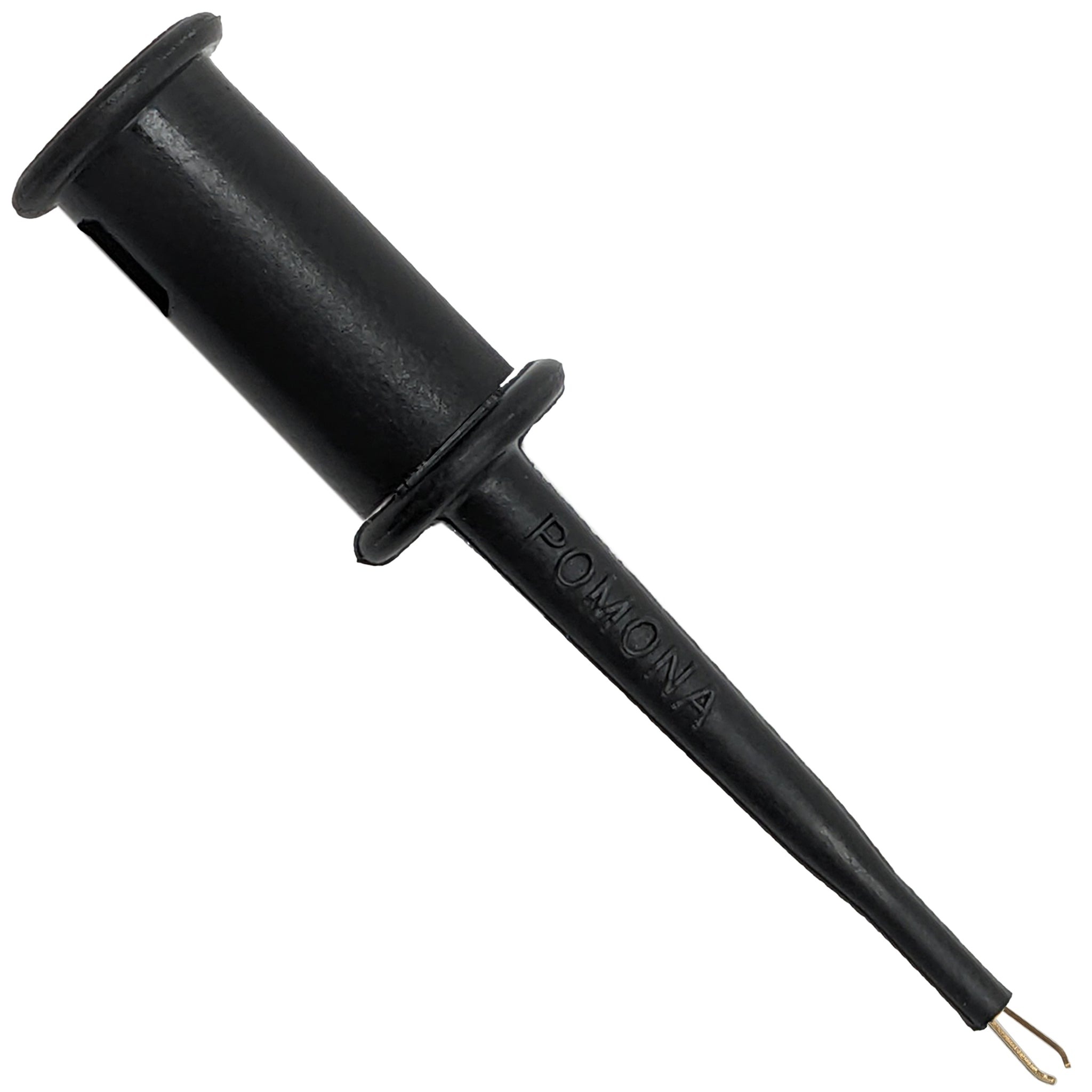

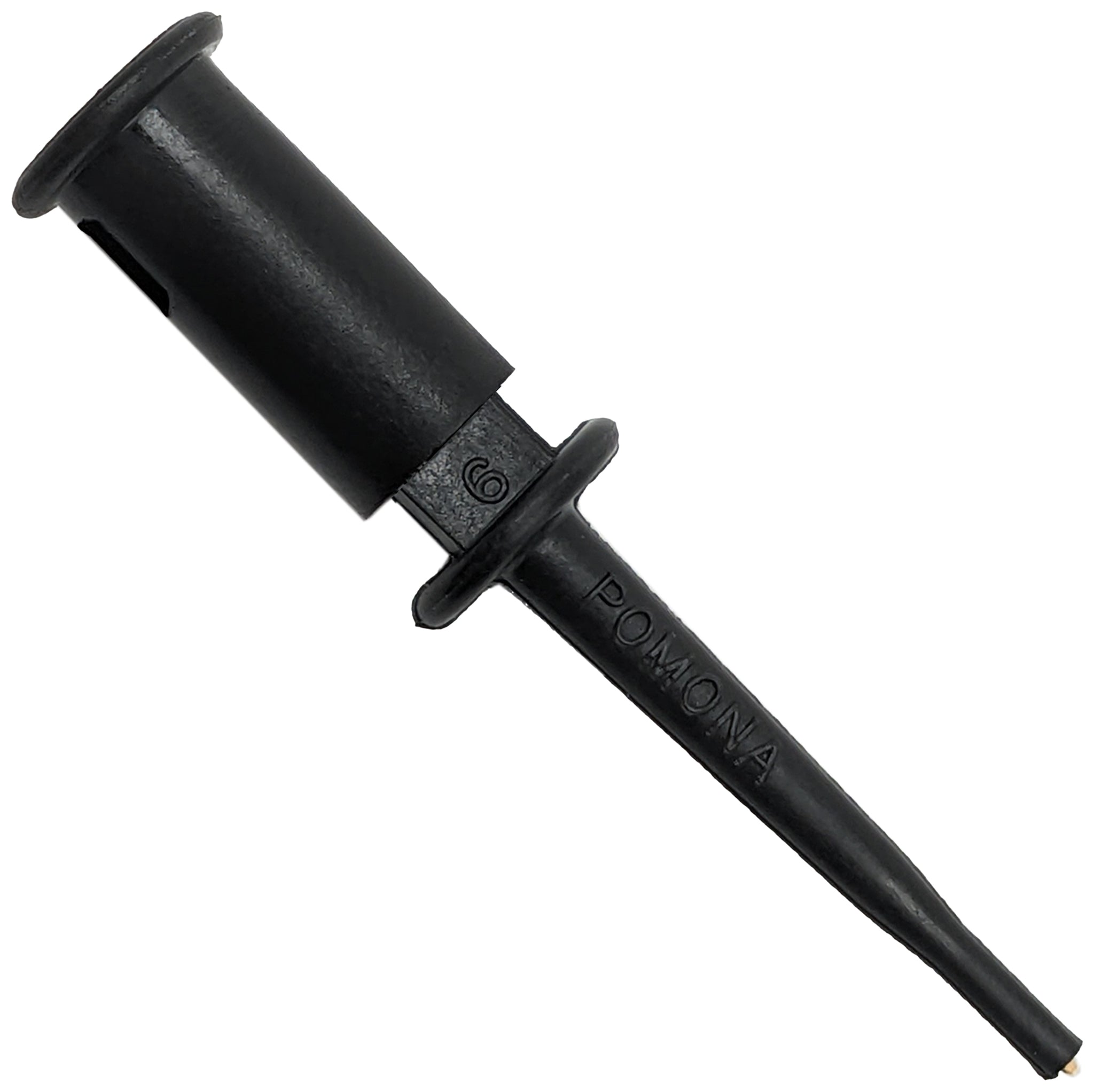

The SMD Grabber test clip is especially suited for testing surface mounted packages on centers as small as 0.76mm (0.030"). Pincer-like contact grasps individual legs of SMDs such as SOIC, SOJ, PCC, etc. Its circular design and small size have been developed for easy use and handling.
RATINGS:
Operating Temperature: +102° C. (+216° F) Max.
Operating Voltage: 30VAC / 60VDC Max.
Current: 0.5 Amperes
SIMPLIFIED ASSEMBLY PROCEDURE:
1. Pull off thumb cap to expose contact connection.
2. Thread wire through thumb cap and strip 3.18mm (1/8").
3. Insert stripped end through hole on contact and solder.
4. Slide thumb cap back onto contact.
