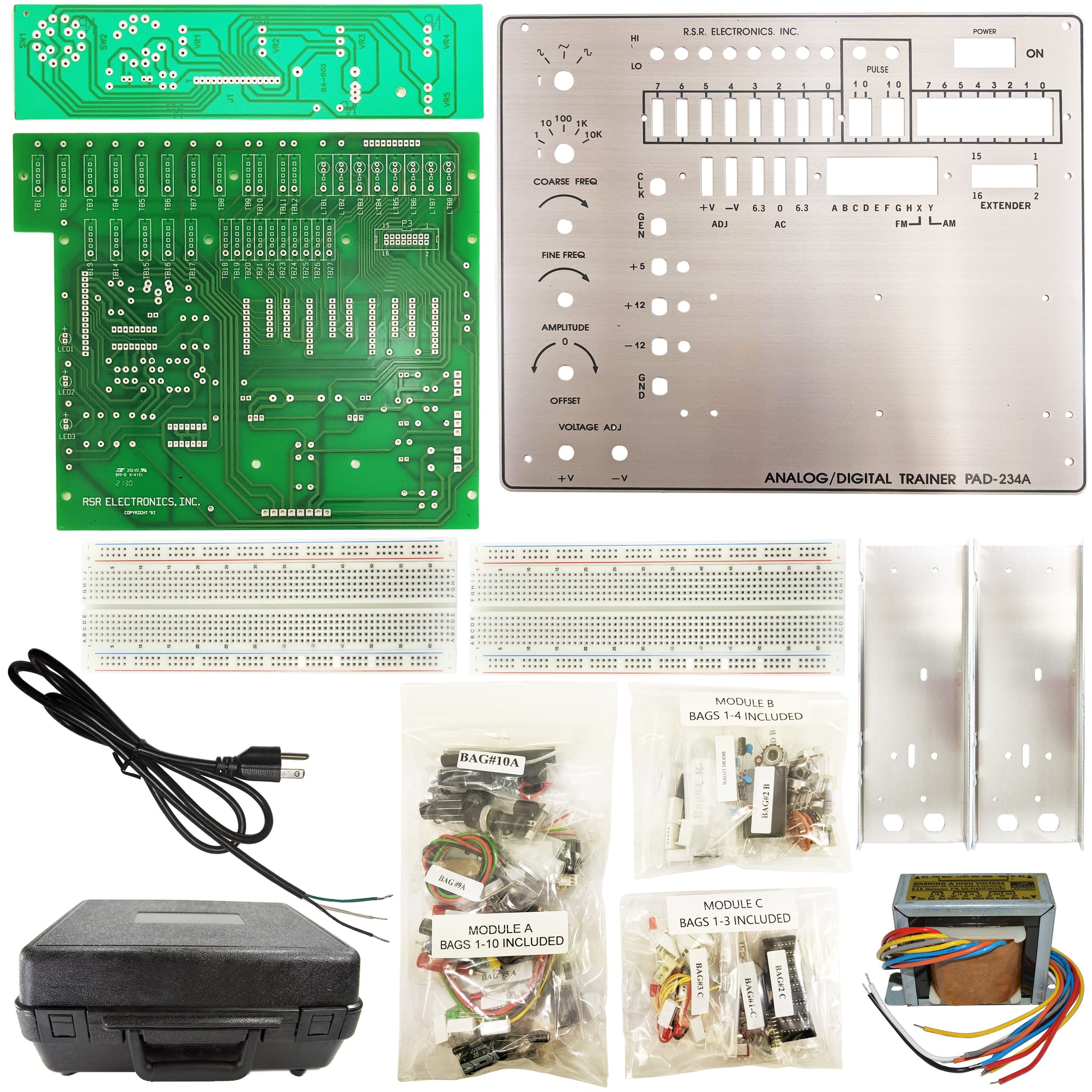

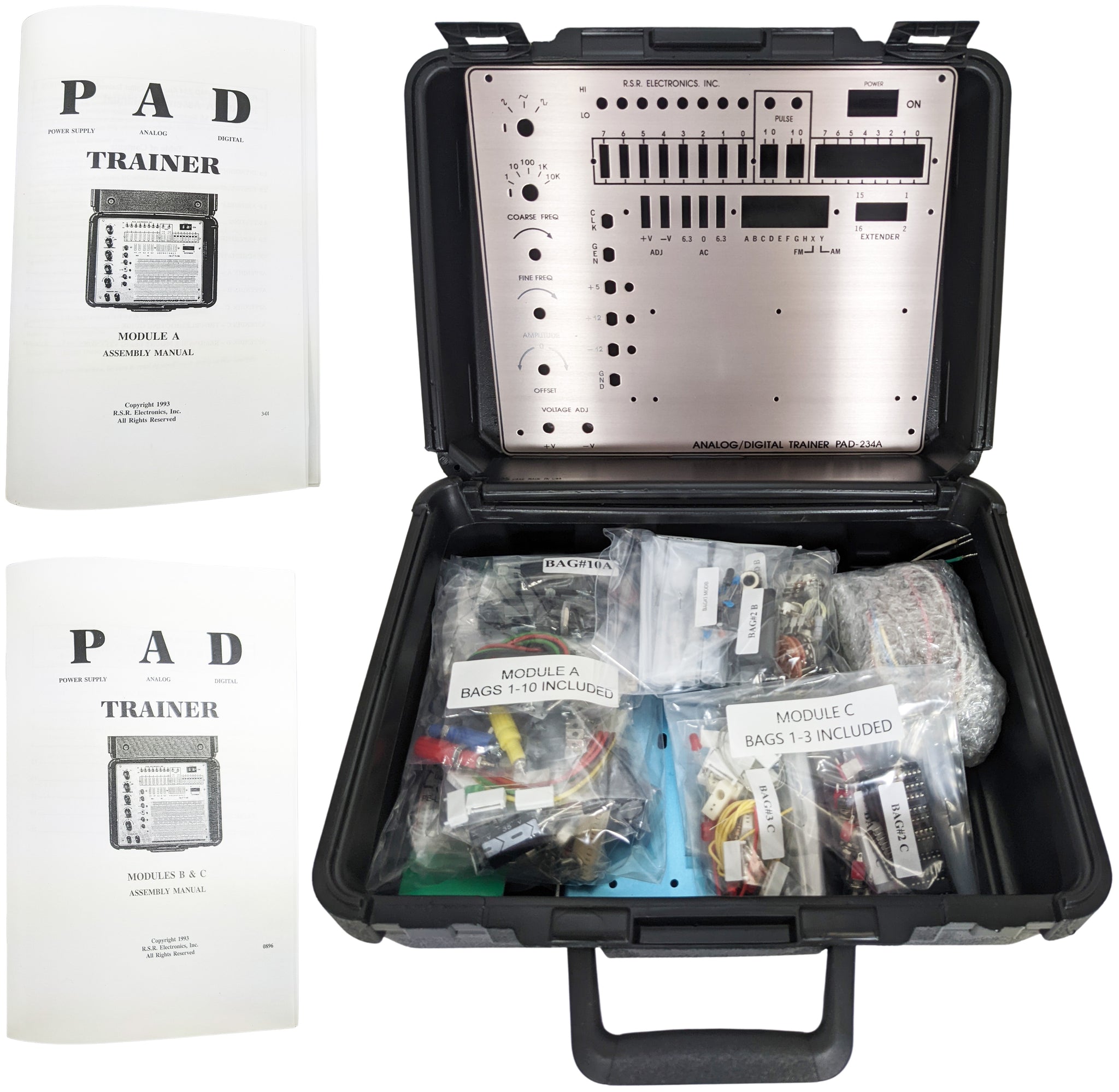

NOTE: This is a do-it-yourself kit version that requires assembly with a soldering iron. Please search for part number 01PAD234A if you would like the fully assembled version instead.

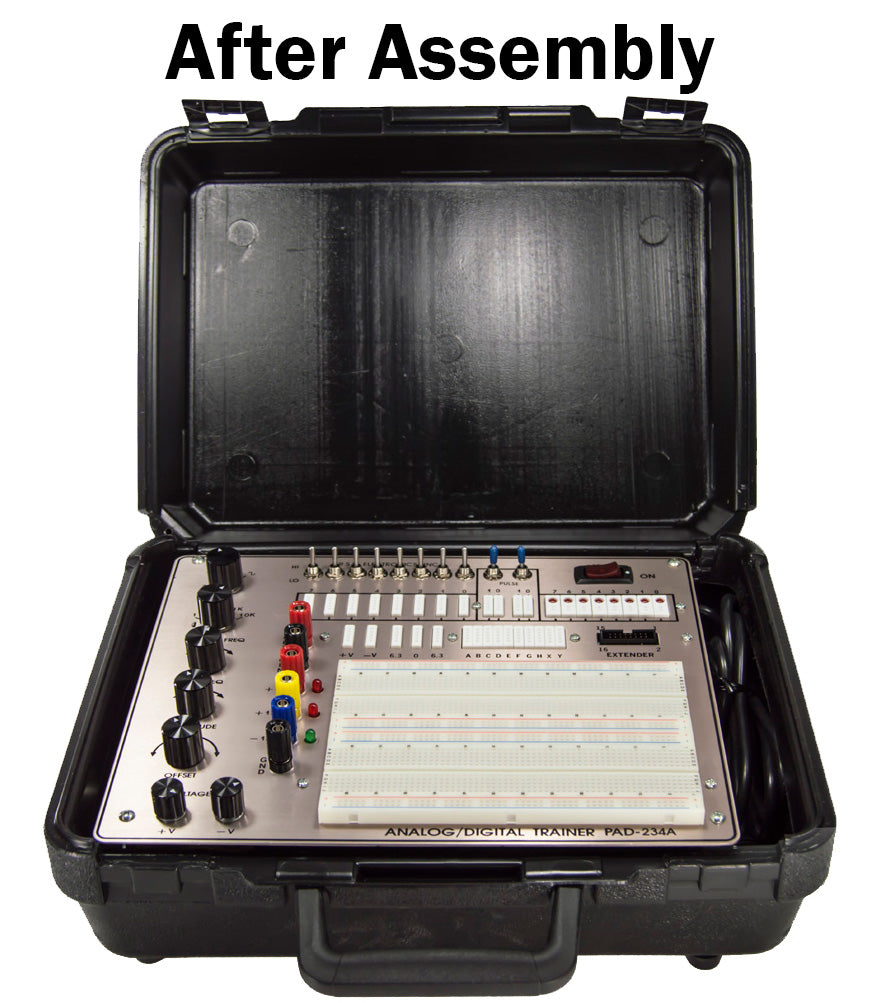

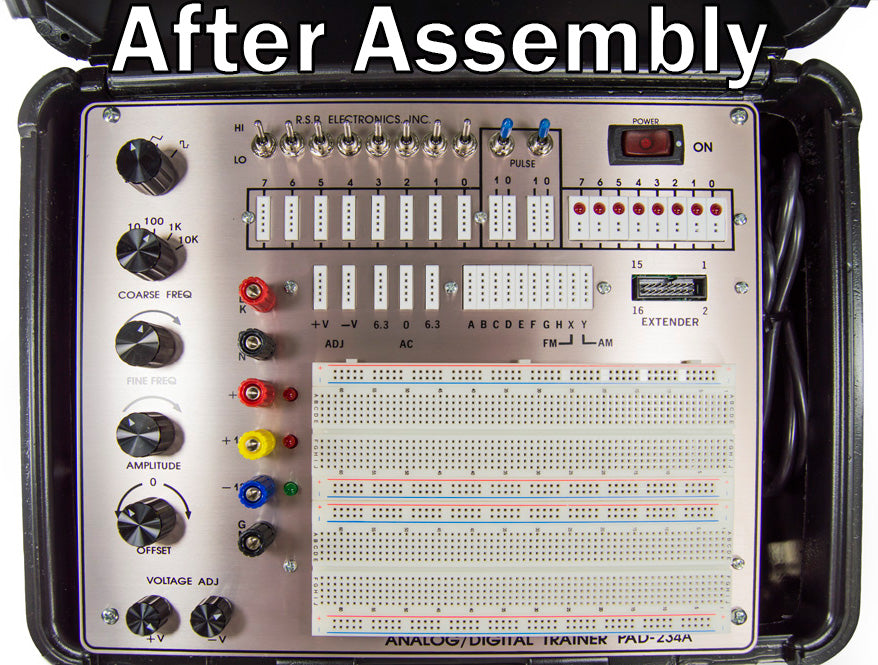

The PAD-234 Digital/Analog Trainer is a complete portable work-station. It is designed to allow you to quickly build, modify, and troubleshoot all sorts of analog and digital circuits. Its built-in power supplies, signal sources, and I/O features can save hundreds of dollars when compared to using separate pieces of lab equipment. For expanded capability the supplies, signals, and I/O, along with uncommitted lines, are available at a built-in IDC connector to allow ribbon cable connection to other boards, devices, or pieces of equipment.
The PAD-234 is a rugged, high-quality piece of equipment designed for years of use with minimal maintenance. It's functionality and low cost make the PAD-234 a cost-effective design tool for hobbyists and professionals. The same features make it the ideal educational tool for student use.
SPECIFICATIONS:
5V Fixed Power Supply
+/- 12V Fixed Power Supplies
+/- 15V Variable Power Supplies
Output current 1 AMP DC each
Short circuit protected
12.6V AC CT Power Supply
Input voltage 110VAC 50–60 cycles
Function Generator:
Sine, square and triangular buffered outputs
Amplitude 10V p-p output 5 frequency ranges 1-100KHz
DC offset adjust
Digital I/O:
8 buffered LED indicators
8 SPDT toggle switches 0-5V
2 debounced momentary switches 0-5V
Normally Hi and normally Lo levels both available
TTL level clock slaved to generator: 0-5V, risetime < 400nsec
Additional Features:
2 breadboards, each with 840 plug-in tie points
Option to make breadboard moveable
Power supplies, function generator, and digital I/O available at built-in IDC connector

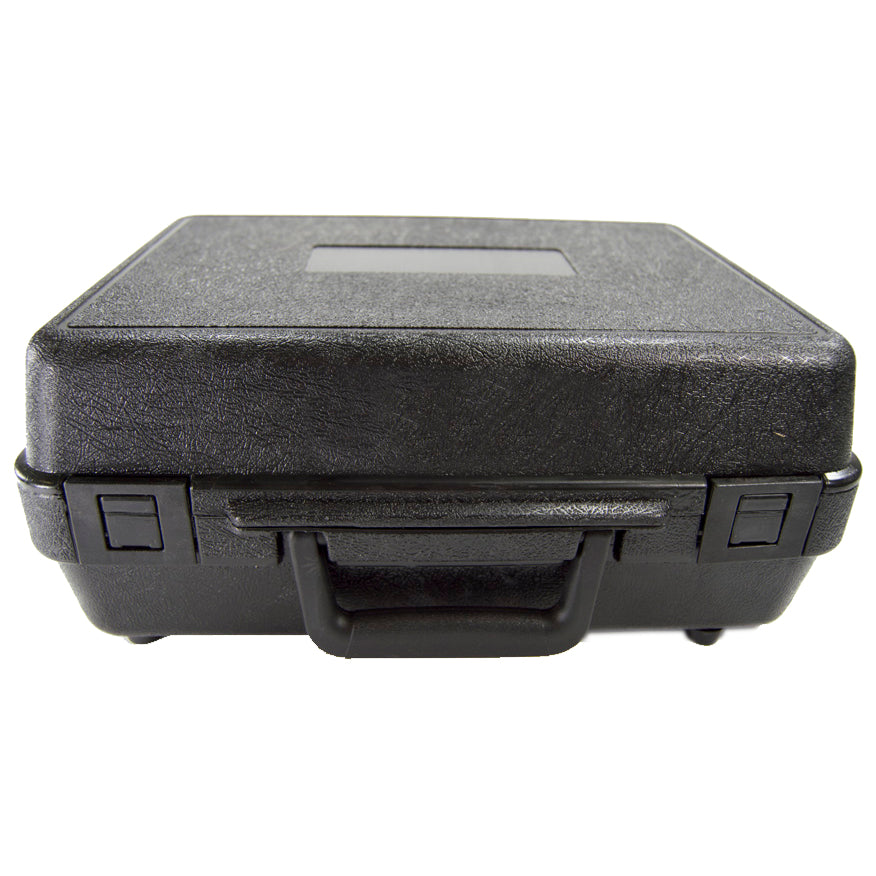

High-impact plastic carrying case
3-wire fuse-protected line cord
5-way binding posts for power supplies and generator
