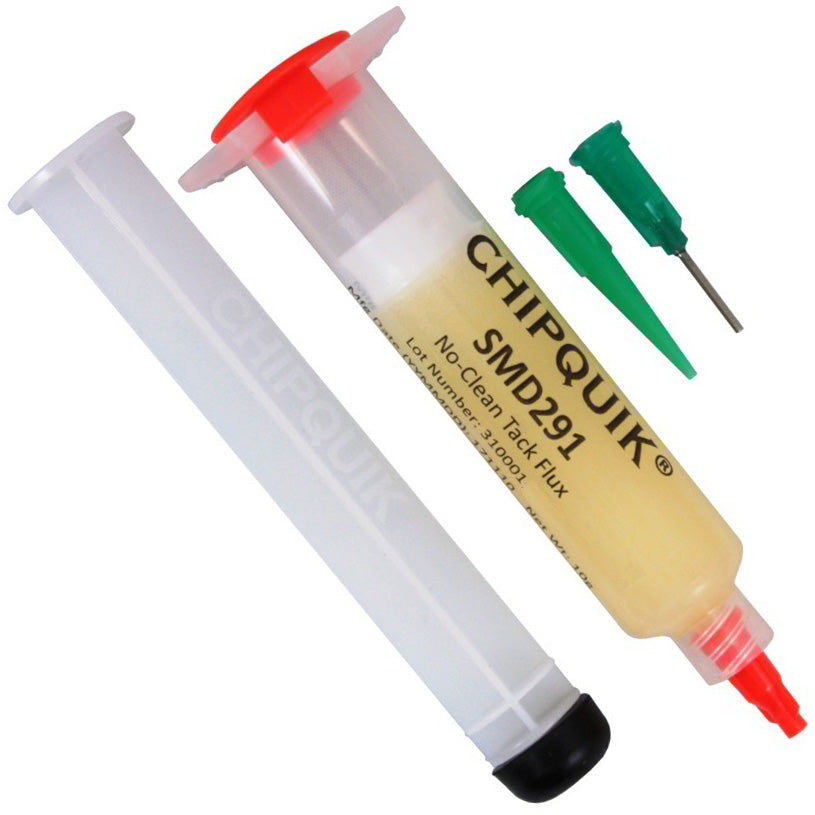

NoClean Paste Flux; 10cc syringe with tip
Lead-Free / RoHS 3 Compliant / REACH Compliant
Description
Used for touch up and rework, attachment of BGA spheres, soldering flip chip components. Low viscosity no-clean synthetic paste flux. Has a pleasant odor.
Remove QFDs, PLCCs, SOICs and chip components without costly and complex equipment. Use ChipQuik with your existing rework equipment or temperature controlled soldering irons. Special removal alloy has excellent wetting ability with a low melting temperature of 136F (58C). To use: apply paste flux to all leads with syringe; melt ChipQuik alloy on all pins of SMD; with wide iron tip; maintain alloy in a molten state long enough to release chip; lift chip from board with pick-up tool. Safe, affordable, easy and won't damage sensitive components.
Specifications
Flux Type: Synthetic No-Clean (for Leaded and Lead-Free applications)
Flux Classification: REL0
Packaging: 10cc/10g Syringe
Shelf Life
Refrigerated >24 months, unrefrigerated >24 months
Stencil Life
>8 hours @ 20-50% RH 22-28C (72-82F)
>4 hours @ 50-70% RH 22-28C (72-82F)
Stencil Cleaning
Automated stencil cleaning systems for both stencil and misprinted boards. Manual cleaning using isopropyl alcohol (IPA).
Storage and Handling
Store refrigerated or at room temperature 3-25C (37-77F). Do not freeze. Allow 4 hours for flux to reach an operating temperature of 20-25C (68-77F) before use.
Transportation
This product has no shipping restrictions. Shipping below 0C (32F) or above 25C (77F) for normal transit times by ground or air will not impact this product's stated shelf life.
