DAGU 6DOF Robotic Arm with 6 Degrees of Freedom, With 6 Servos + Microcontroller

01RA001
Regular price
$225.00
Sale price
$225.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

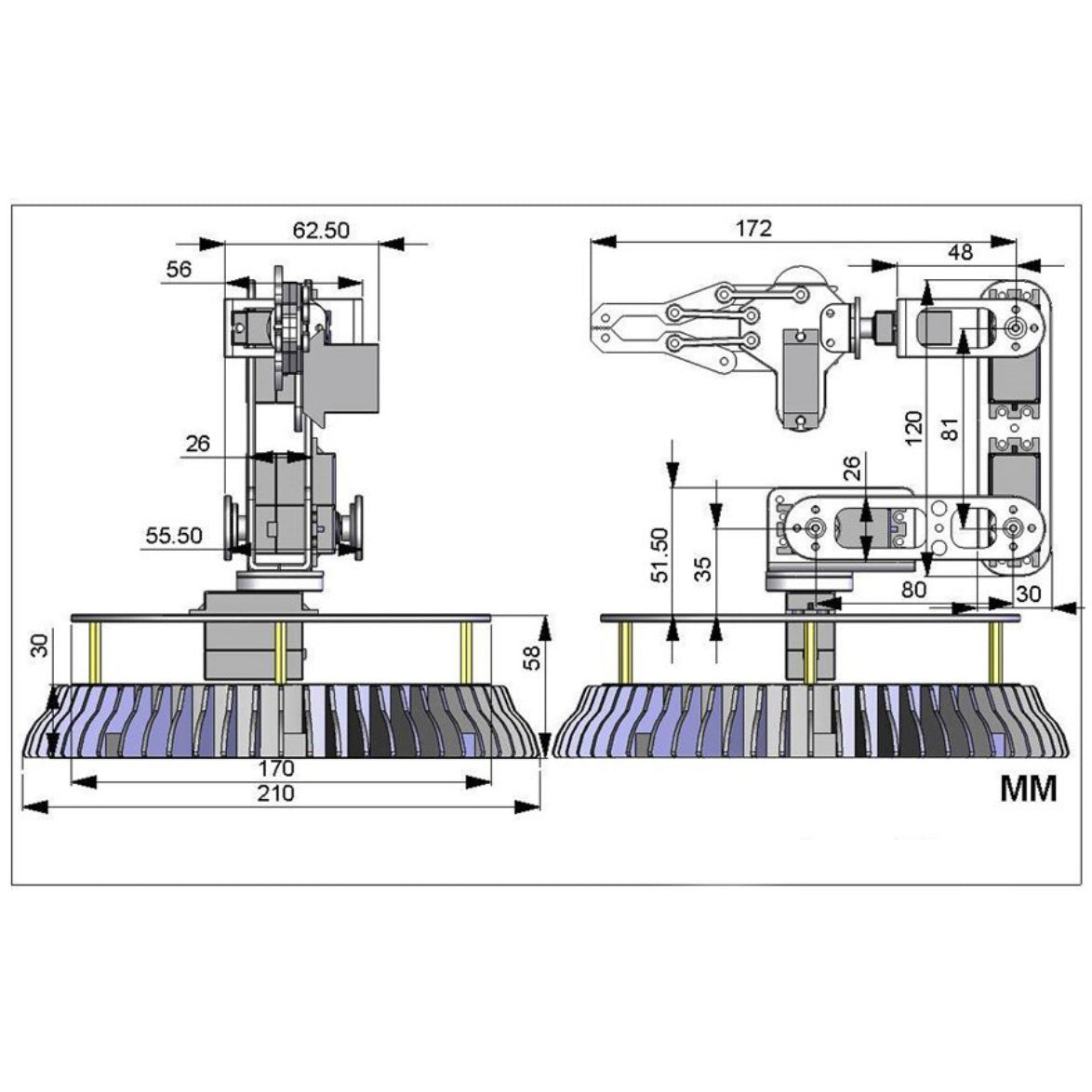

  • Length: 390mm
  • Made from 3mm thick aluminum sheet
  • Wonderful mechanical structure, and control system

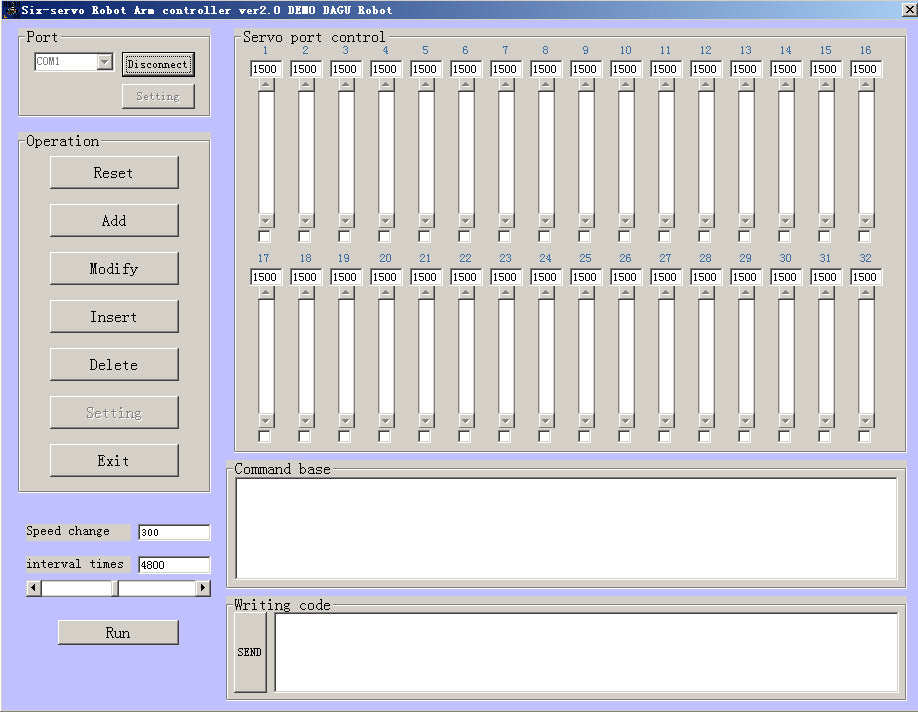

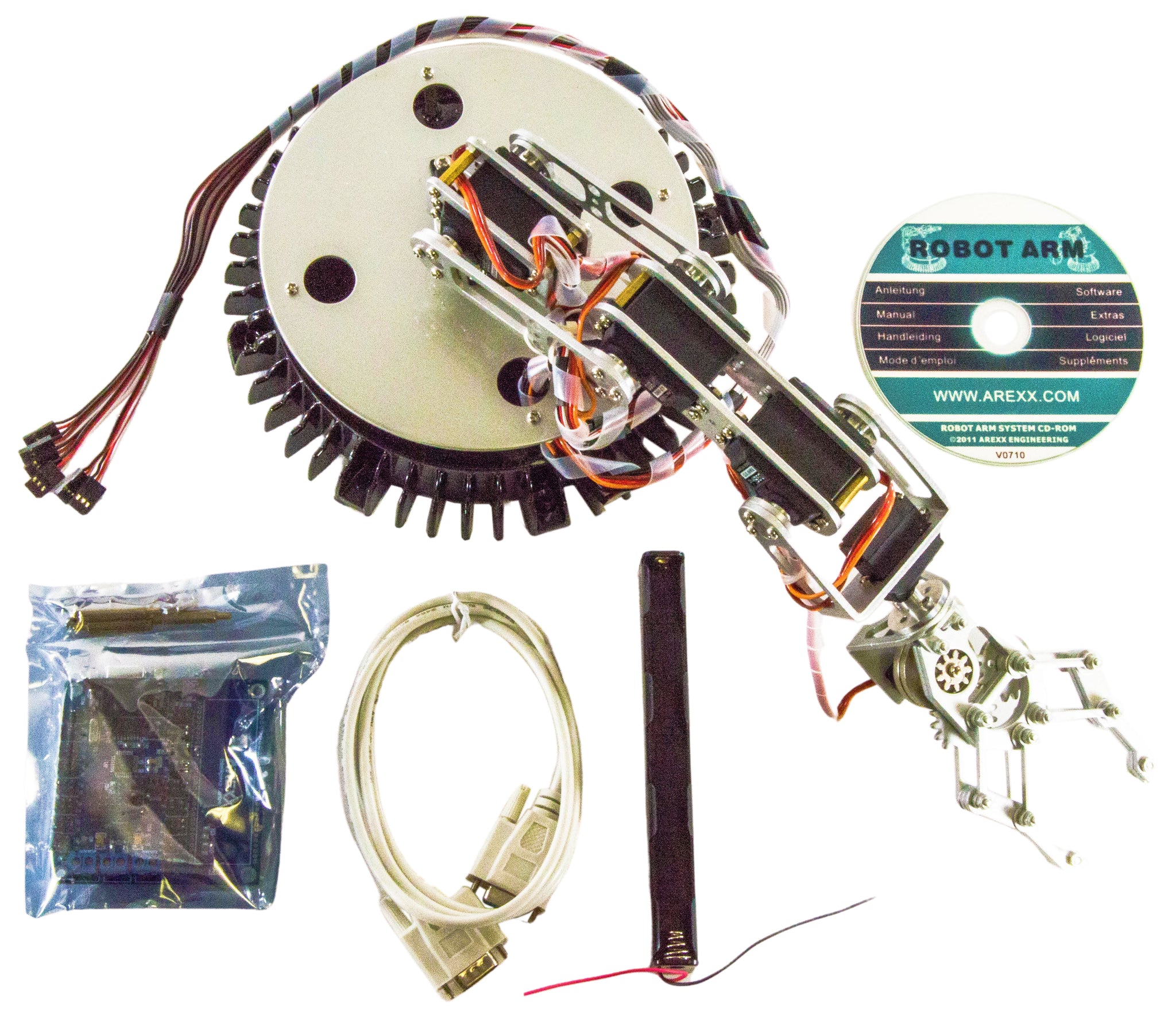

  • A serial interface and PC software included
  • Suitable for individual development and school competition
  • NOTE: Requires an external 4.5V to 6V power supply for the servomotors

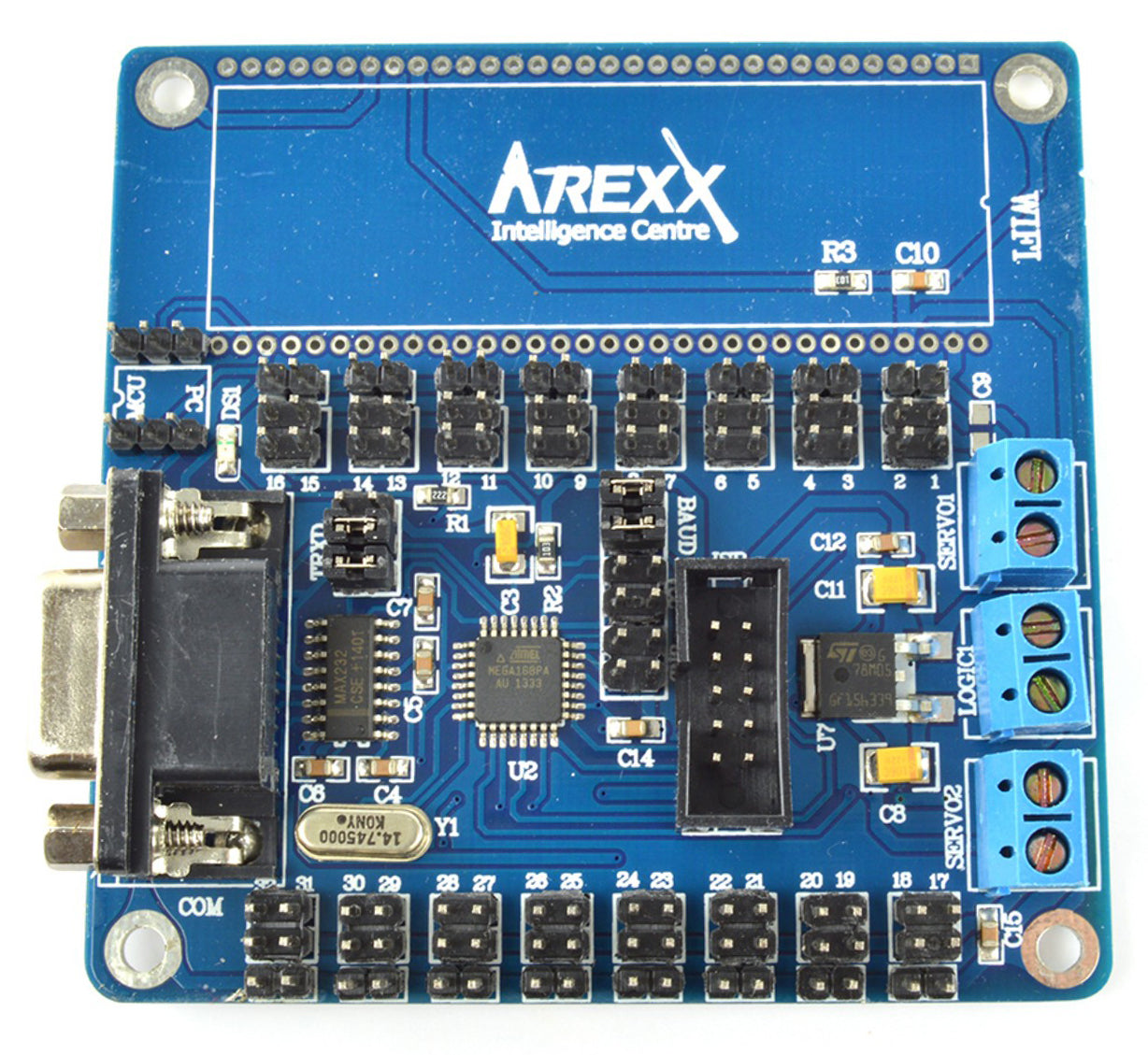

  • NOTE: Microcontroller is blank and must be programmed
  • NOTE: If you are unable to launch the included software, please right-click the icon and select Properties, click the Compatibility tab, then check the box under "Compatibility mode", select Windows XP from the dropdown box, then click Apply and run the program.

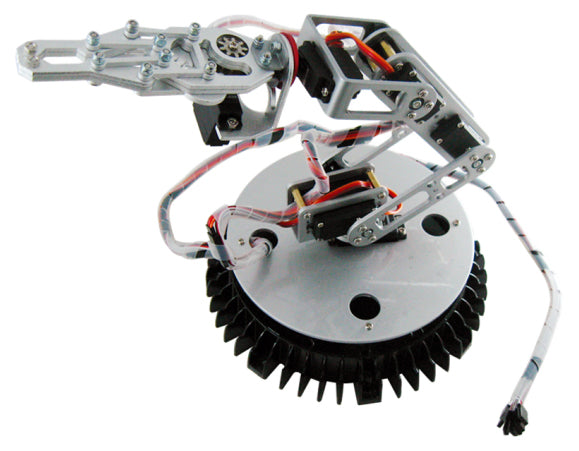

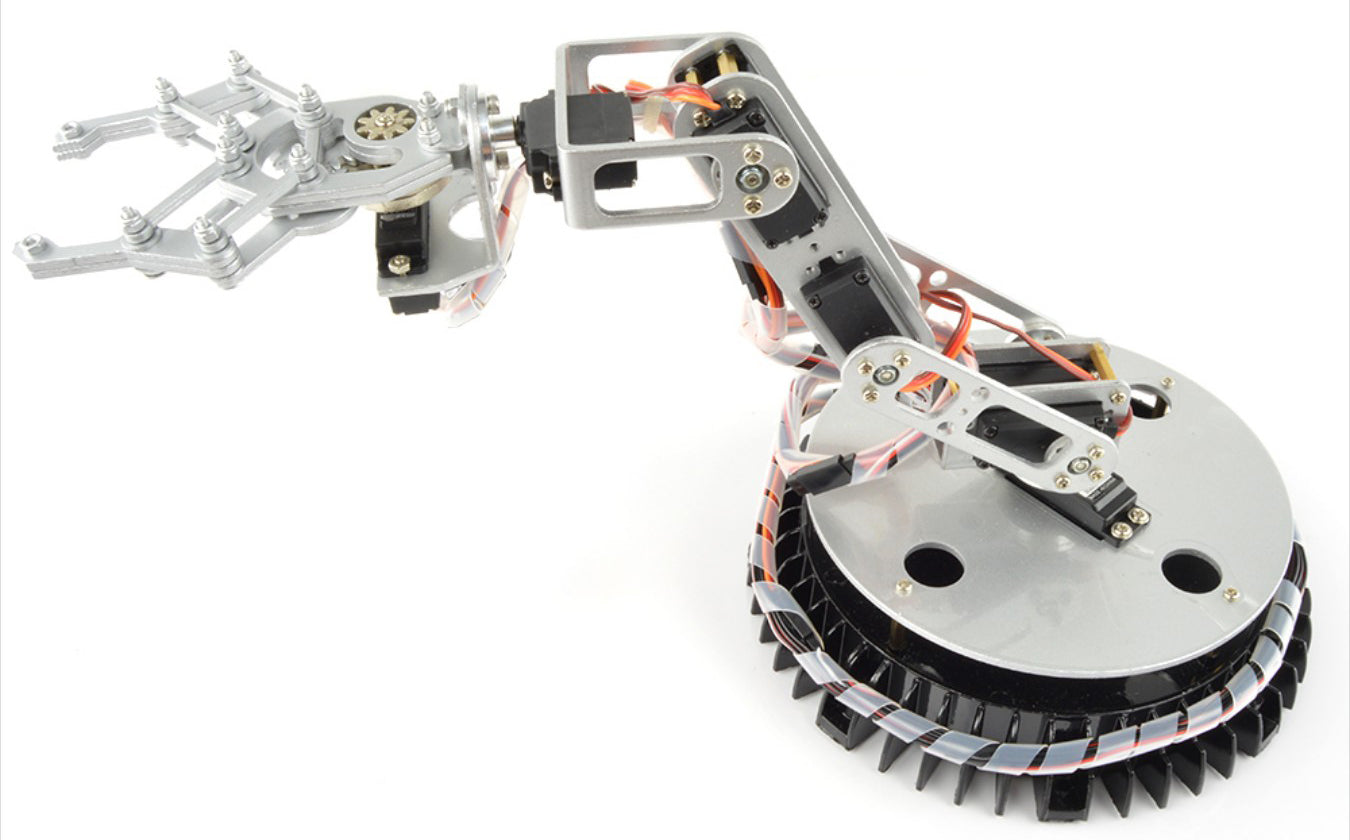

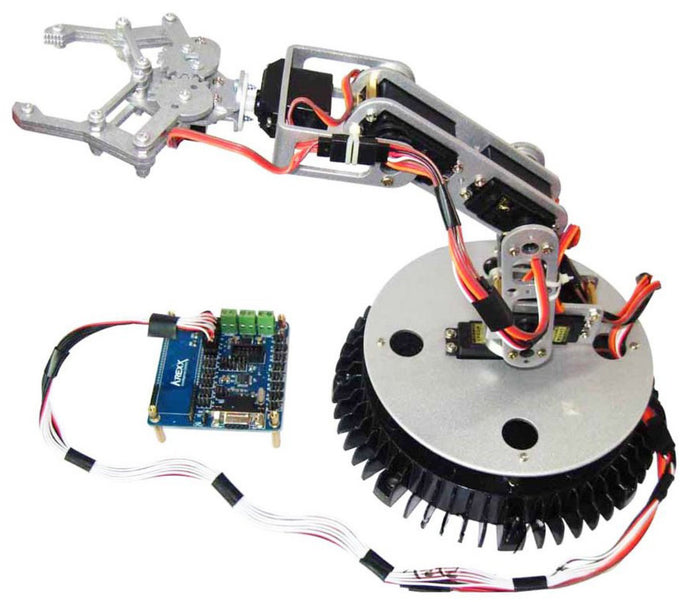

The Dagu 6DOF Robotic Arm offers 6 degrees of freedom — it uses 4x DGServo S06NF STD servos for the base and the arm along with 2x DGServo S05NF STD micro servos to operate the wrist and gripper. It is pre-assembled and made from 3mm thick aluminum sheet. A serial interface and PC software CD is included. Suitable for individual development and school competitions, this is a great entry level arm to studying servo and kinematic movements.
