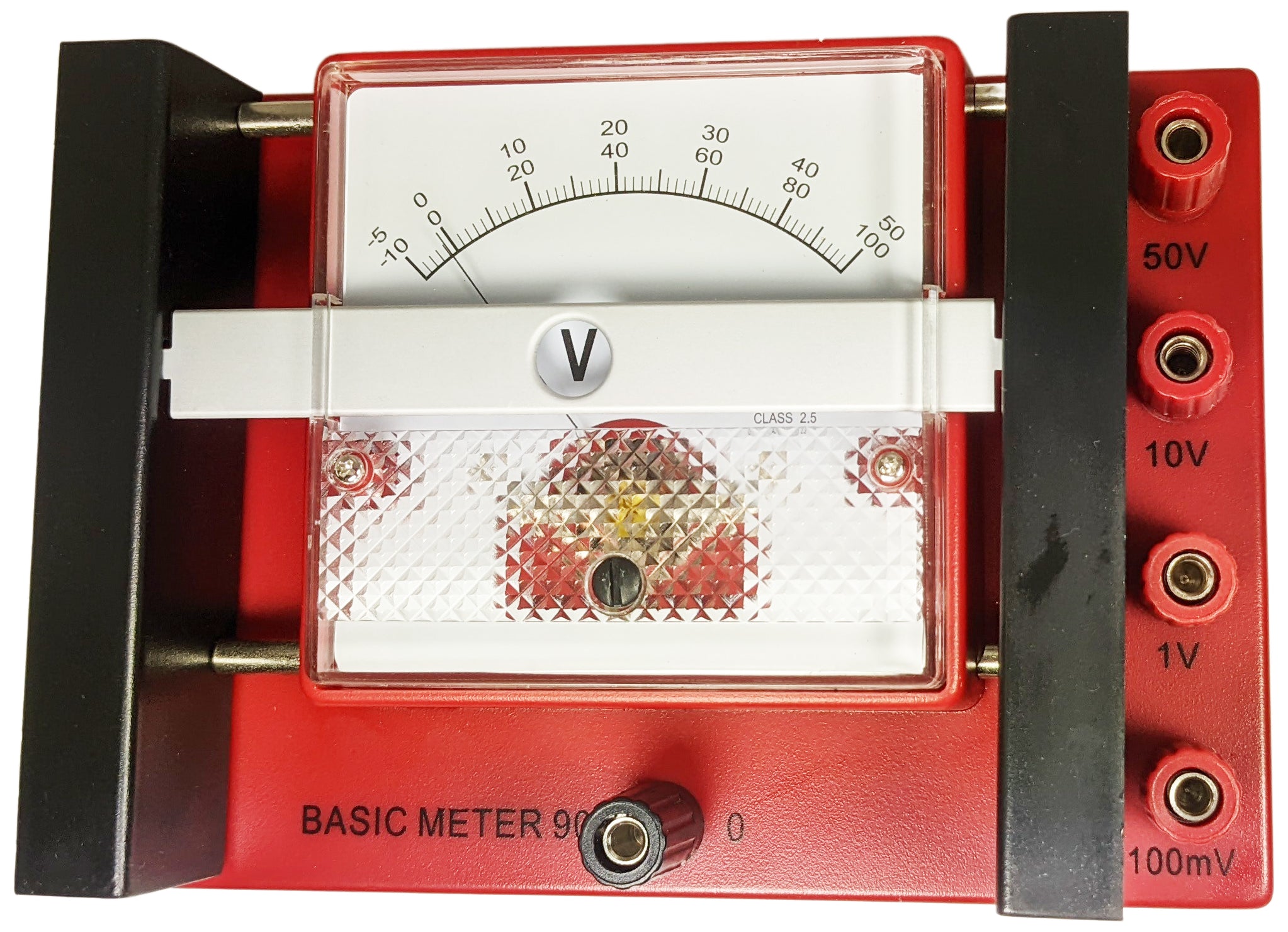

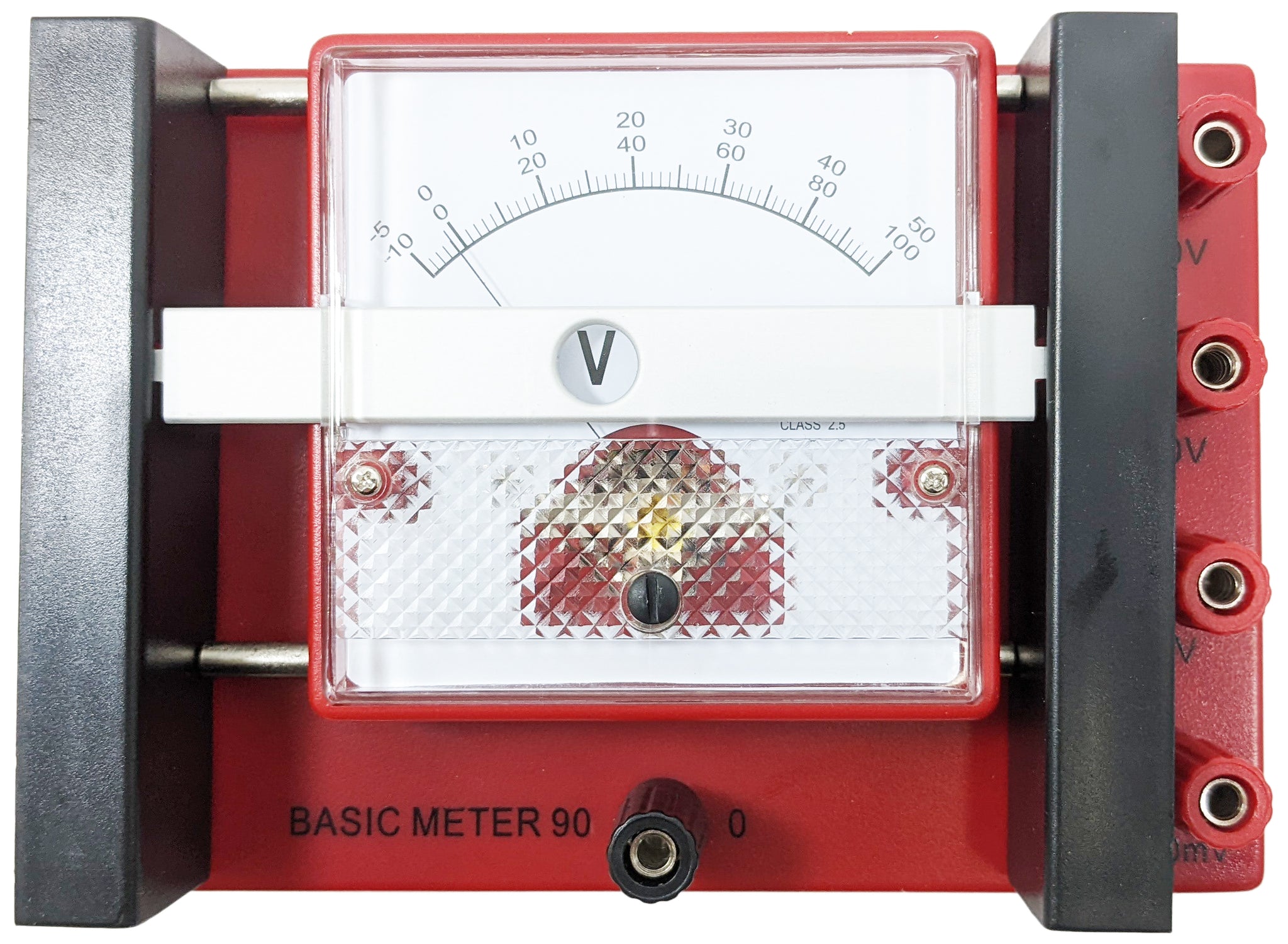

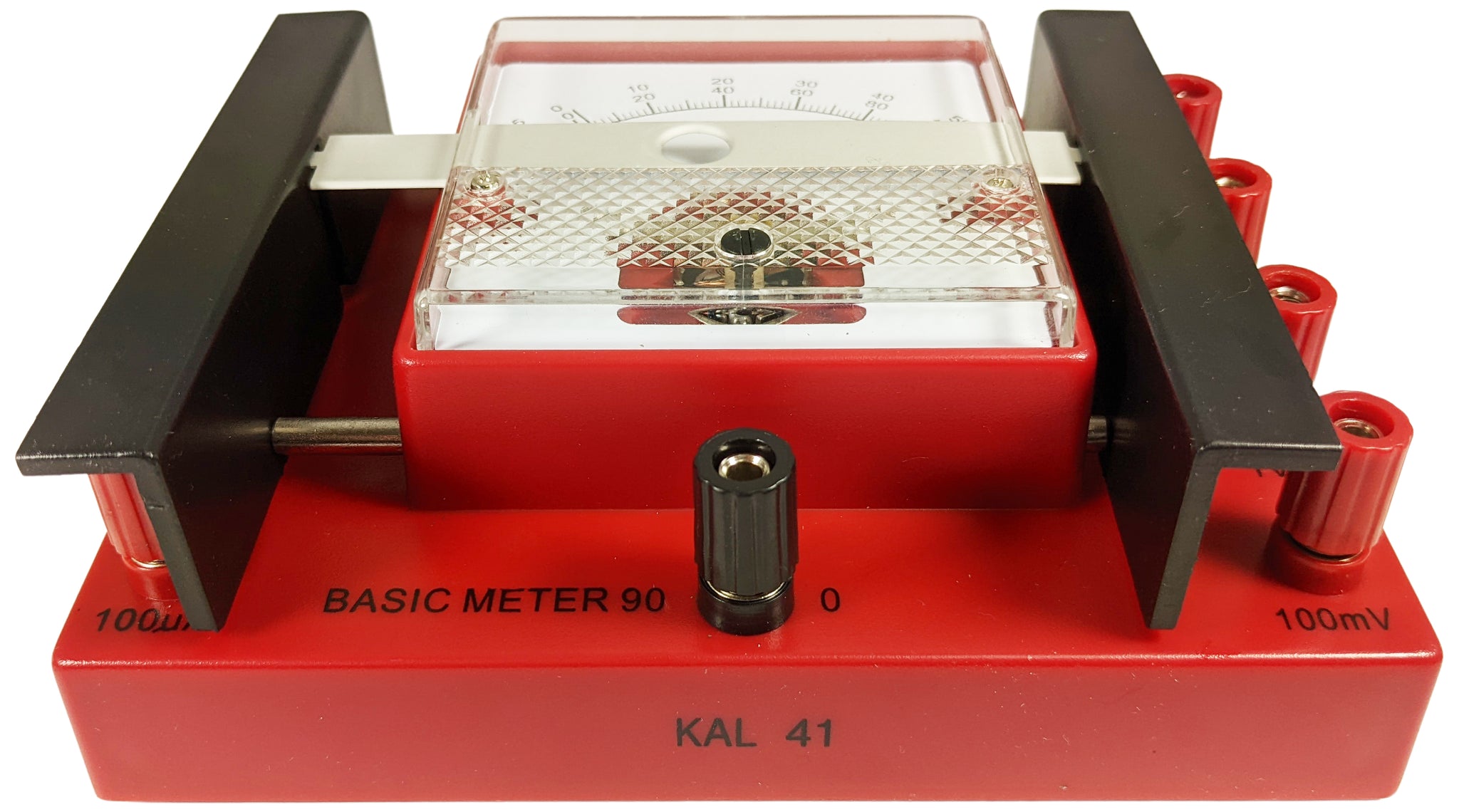

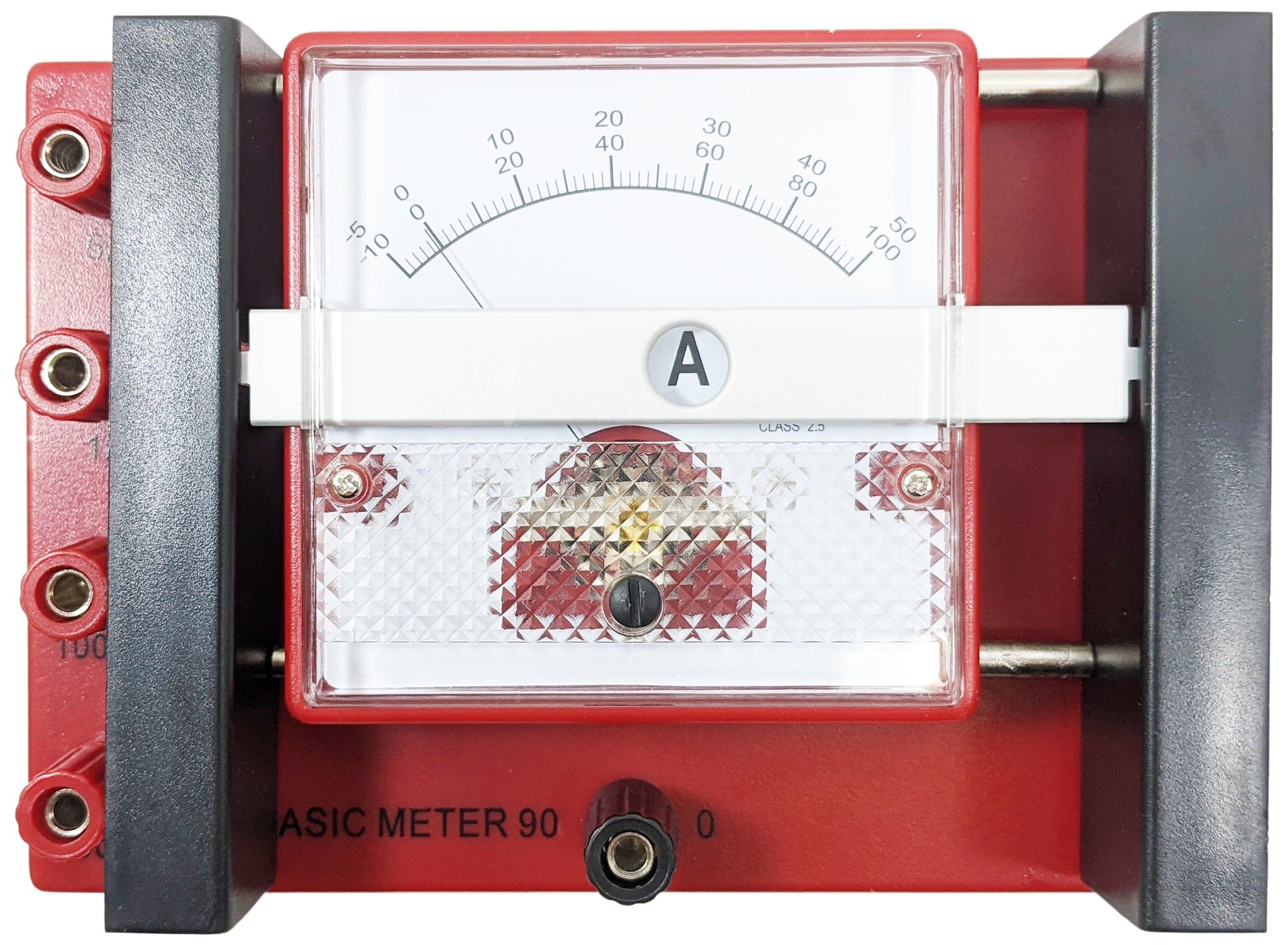

This bench meter measures DC voltage and DC current in a DC circuit. Voltage ranges are 0–100mV, 1V, 10V and 50V, and current ranges are 0–100µA, 100mA, 1A and 5A, each with ±2.5% of full-scale accuracy. Sensitivity is 10kΩ per volt.
Key Features
- DC voltage ranges: 100mV, 1V, 10V, 50V
- DC current ranges: 100µA, 100mA, 1A, 5A
- ±2.5% of full scale accuracy
- 10kΩ/V sensitivity
- Owner's manual included
Specifications
| DC voltage ranges | 0–100mV / 1V / 10V / 50V |
|---|---|
| DC current ranges | 0–100µA / 100mA / 1A / 5A |
| Accuracy | ±2.5% of full scale (V and A) |
| Sensitivity | 10kΩ/V DC |
| Dimensions | 6.5 x 4.5 x 2.5 in |
| Weight | 0.8 lb |
| SKU | 01KAL41 |
What's Included
- DC voltage/current meter
- Owner's manual
Ideal For
Physics and electronics classrooms measuring voltage and current in DC circuits.
Frequently Asked Questions
What does 10kΩ/V sensitivity mean?
The meter's input resistance is 10kΩ for every volt of range; on the 10V range it loads the circuit with about 100kΩ.
Can it measure AC?
No, it is for DC voltage and DC current only.
