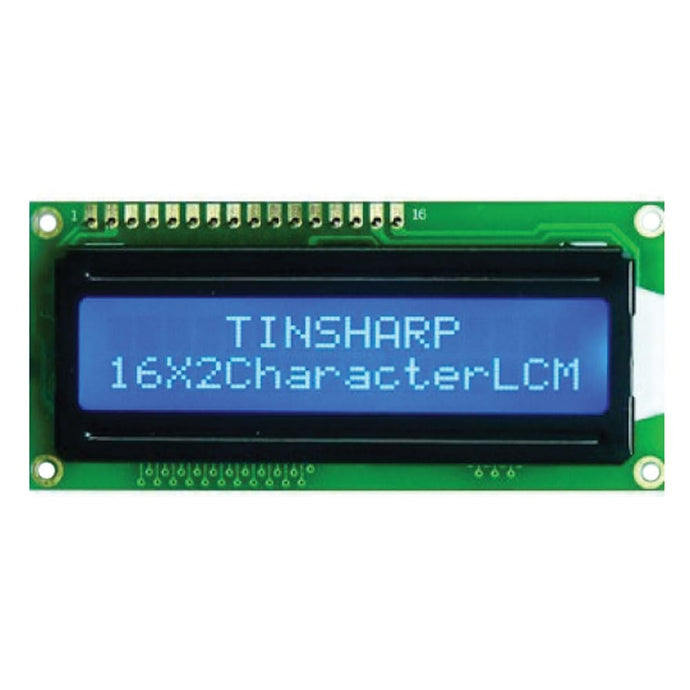

The DFRobot FIT0127 is a standard 16-character by 2-line LCD with white characters on a blue background. It runs from a 5V supply and has a built-in KS0066 (or equivalent) controller, using 5 x 8 dot characters with cursor. The module measures 3.15 x 1.42 x 0.47 inches.
Key Features
- 16 characters x 2 lines
- White characters on blue background
- 5 x 8 dot characters with cursor
- Built-in KS0066 or equivalent controller
- 5V supply

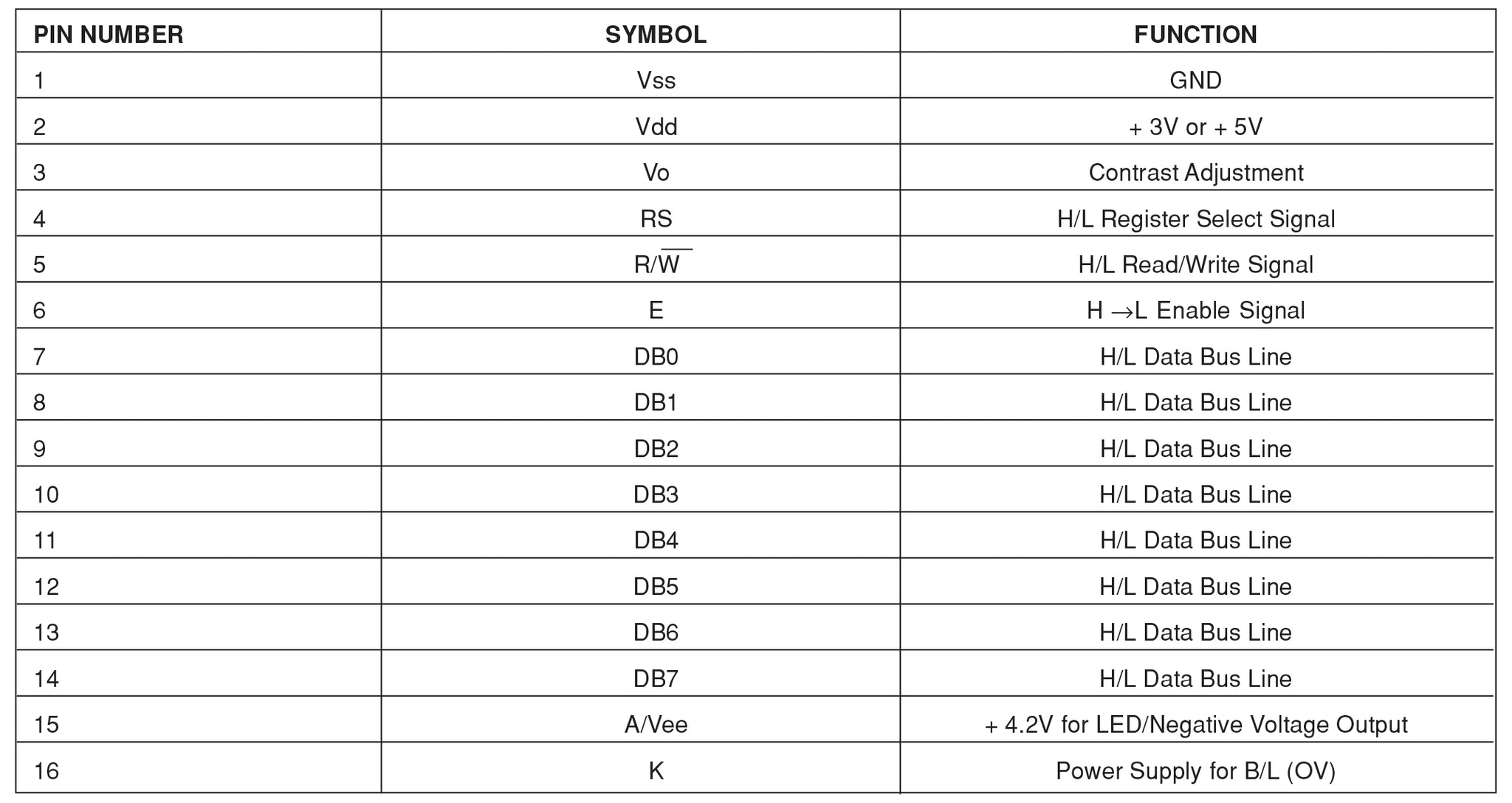

- LED backlight driven via pins 15/16 (A/K) or pins 1/2
Specifications
| Brand / model | DFRobot FIT0127 |
|---|---|
| Format | 16 x 2 characters |
| Character matrix | 5 x 8 dots with cursor |
| Colors | White on blue |
| Controller | KS0066 or equivalent |
| Supply voltage | +5V |
| Duty cycle | 1/16 |

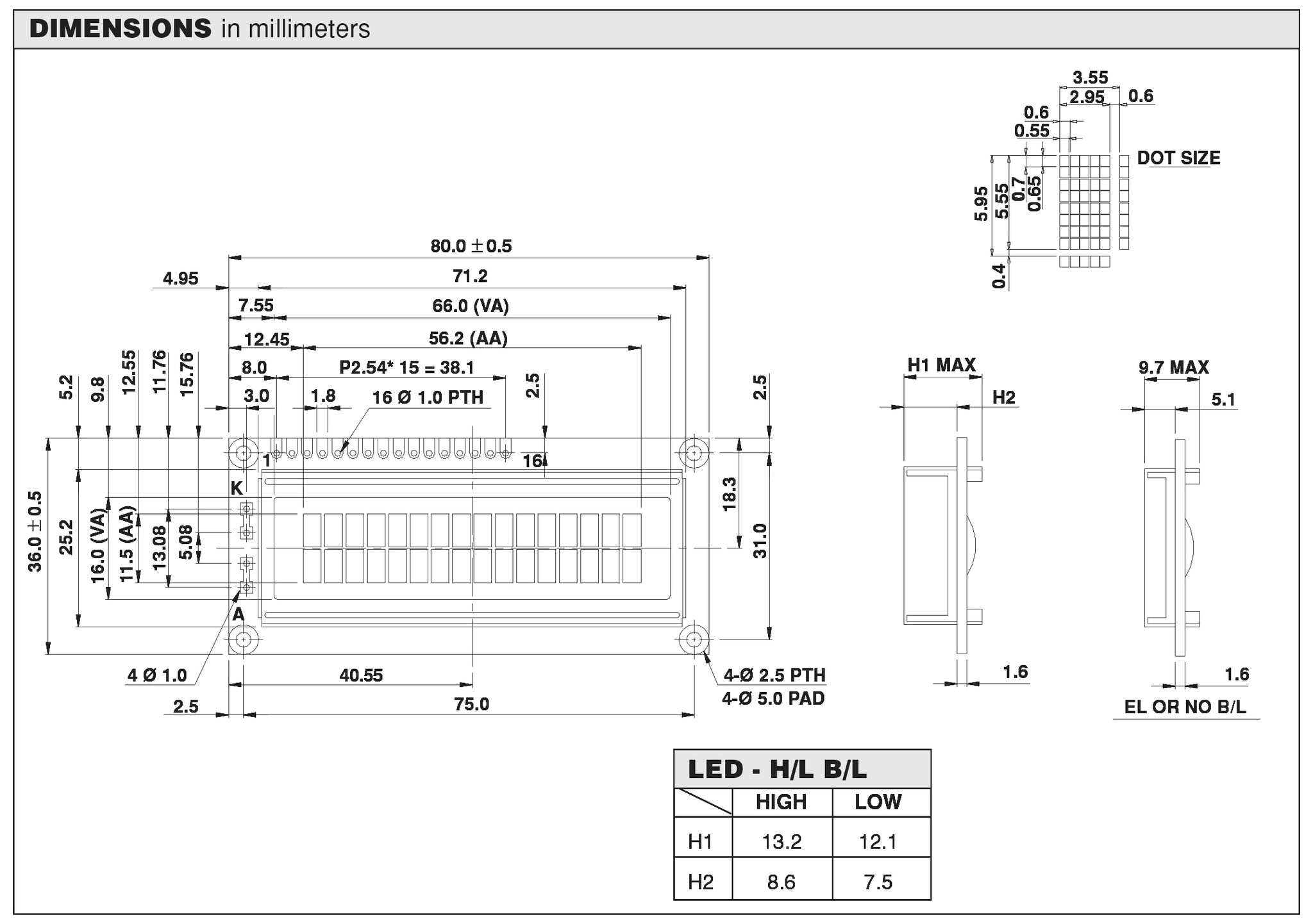

| Size | 3.15 x 1.42 x 0.47 in. |
| SKU | 08FIT0127 |
What's Included
- 1 × DFRobot FIT0127 16x2 character LCD
Ideal For
Arduino and microcontroller projects that need a readable two-line text display.
Frequently Asked Questions
Is it compatible with the Arduino LiquidCrystal library?
KS0066 controllers are generally compatible with the HD44780 command set that the LiquidCrystal library uses.
Does it work at 3.3V?
This listing is for the 5V version; it notes a +3V version exists, but this item is specified for +5V.
