Handheld 2-in-1 Oscilloscope Multimeter with Backlit Color Screen, Single Channel 10MHz Bandwidth, 9999 Counts True RMS DMM with Temperature Measurement, Rechargeable

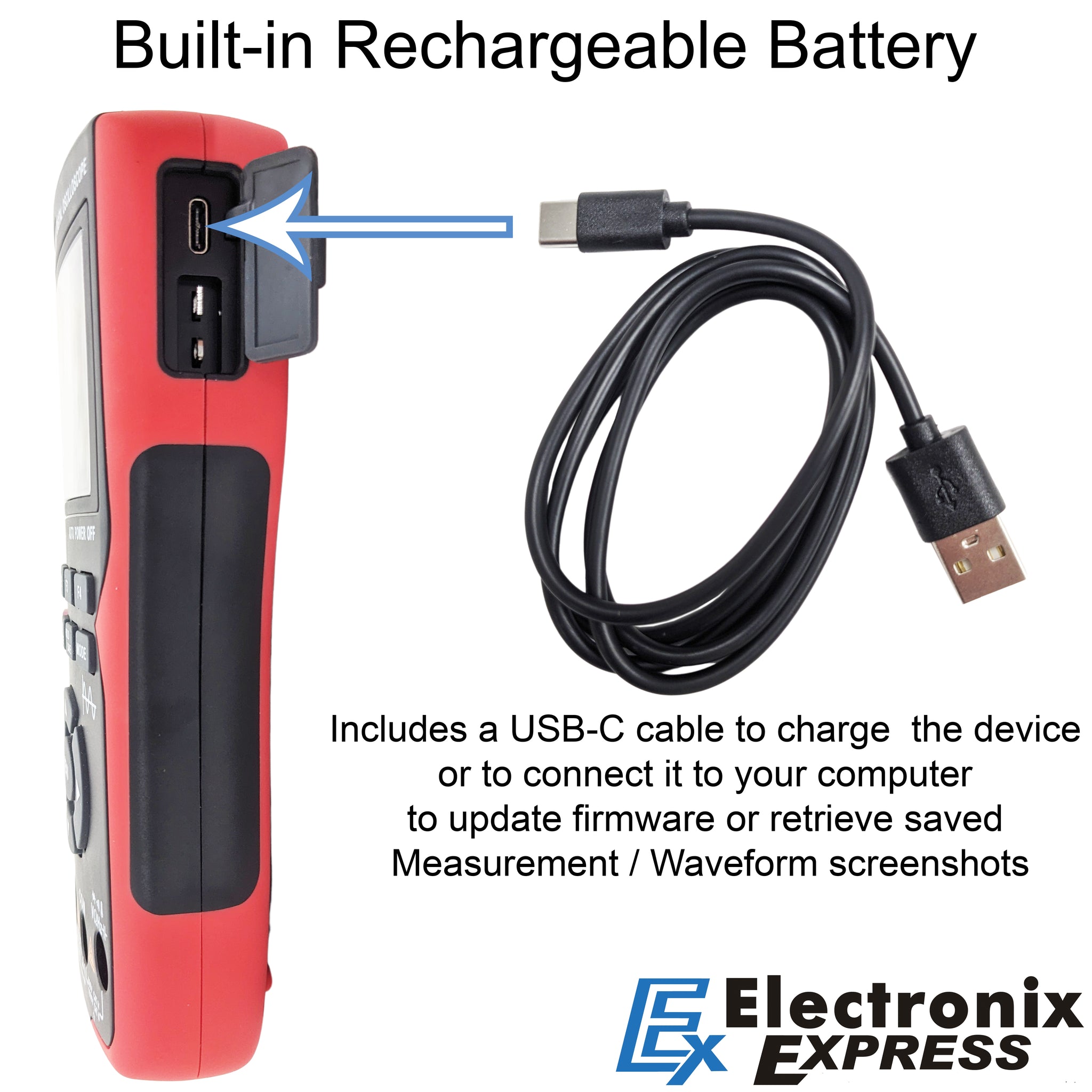

• 2-in-1: Oscilloscope and True RMS Digital Multimeter — instantly switch between the functions with the MODE button. Features a 2.8 inch backlit color screen with 4 brightness options. Includes a preinstalled rechargeable 18650 battery as well as a USB-C cable for charging and connection to your computer to retrieve saved measurement/waveform images.
• OSCILLOSCOPE SPECIFICATIONS: Bandwidth: 10MHz | Real-time sampling: 48MSa/s | Horizontal-record length: Max 64Kbyte | Channels: 1 | Input coupling: AC/DC | Input resistance: 1MΩ,@16pf | Input Probe attenuation X1, X10 | Max input voltage: 150V (DC+AC peak）| Horizontal-Sample rate range : 1.5Sa/s - 48MSa/s | Waveform interpolation: (sinx)x | Horizontal-Sweep speed range 50ns/div - 20s/div | Horizontal-Time Base Accuracy: 20ppm | Vertical-sensitivity: 20mV/div - 10V/div | Vertical-Displacement range: 4 cells (positive and negative) | Trigger method: auto, normal, single | Trigger edge: rising edge, falling edge
• MULTIMETER SPECIFICATIONS: 9999 counts | AC voltage: 0-750V | DC voltage: 0-999.9V | DC/AC current: 0-9.999A | Resistance: 0-99.99MΩ | Capacitance: 0-9.999mF | Frequency: 0-99.99kHZ | Temperature: -20°C-1000°C | Diode and Continuity measurement.
• FEATURES: One-button automatic measurement, time base calibration, measurement/waveform screenshot saving (retrievable on your computer via USB connection), automatic shutdown (15, 30, 60, 120 minutes, or unlimited), 3V-1kHZ square wave output, memory. Safety overload protection: conforms to CAT III 1000V, CAT II 600V safety level, meets CE certification requirements, and has a  200mA-10A double ceramic fuse.

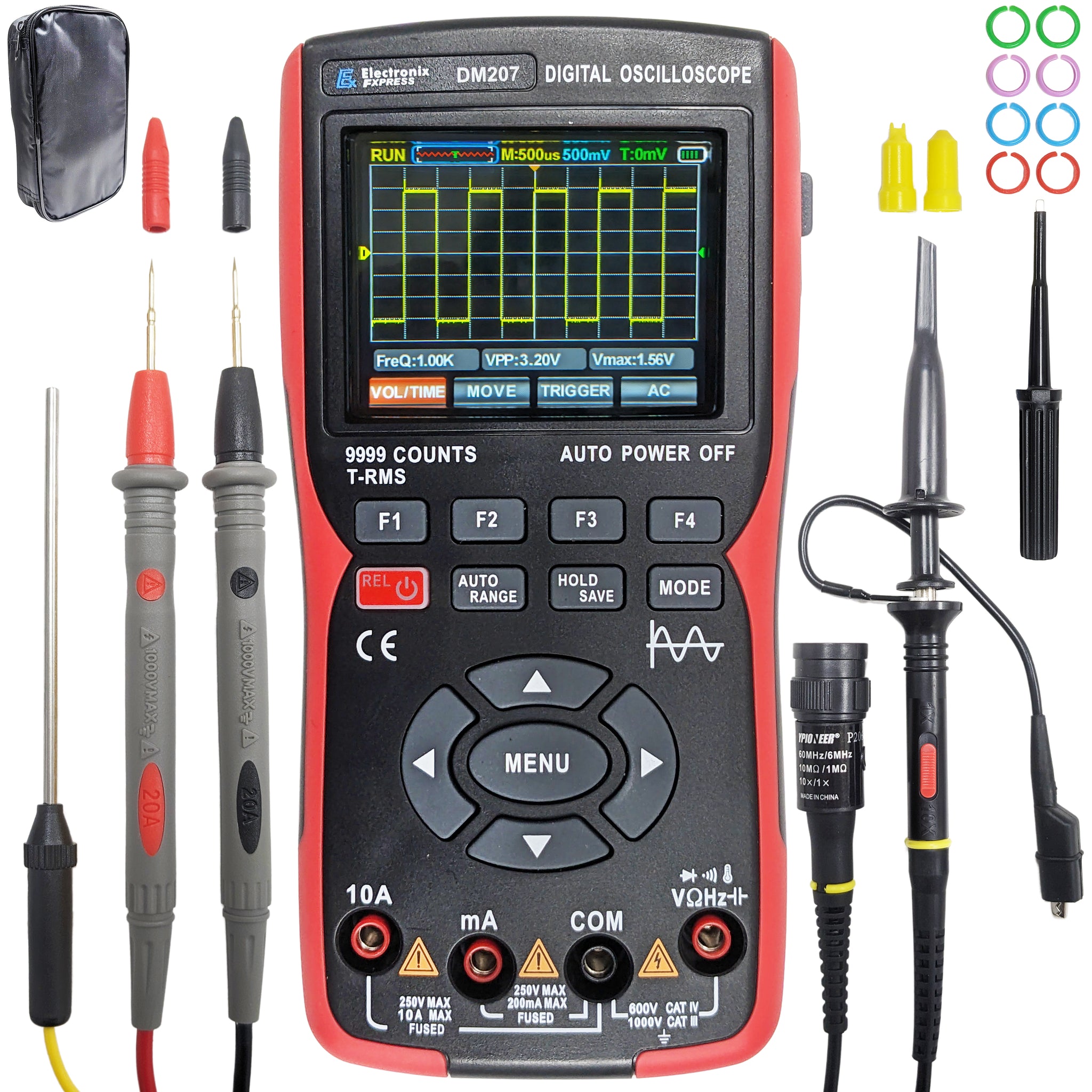

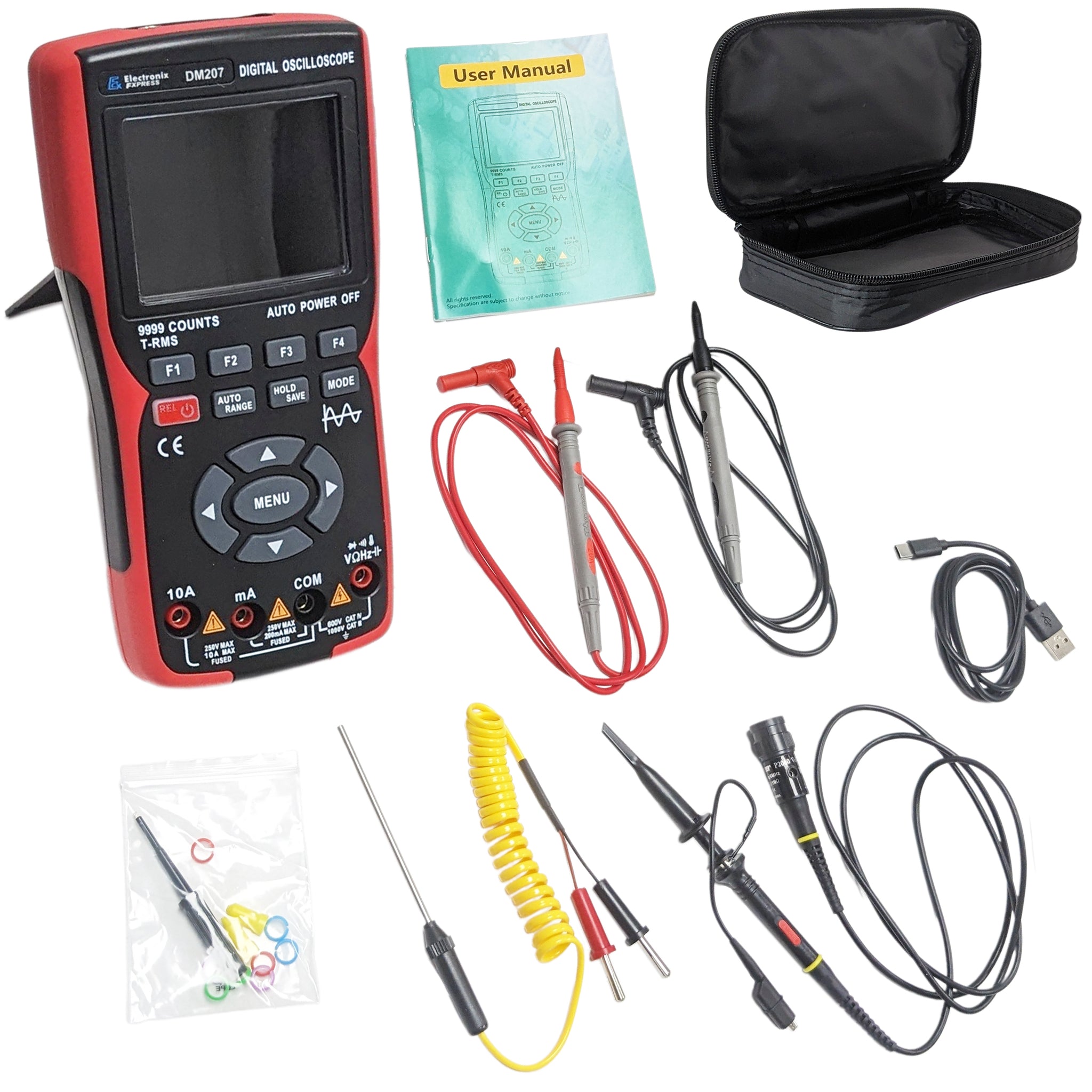

• INCLUDES: User manual, zippered storage case, USB-C charging / data cable, 60MHz Bandwidth x1/x10 Oscilloscope Probe (with retractable hook tip, adjustment tool, 2 locating sleeves, 8 marker rings, and ground lead), Multimeter Leads, and Temperature Probe.

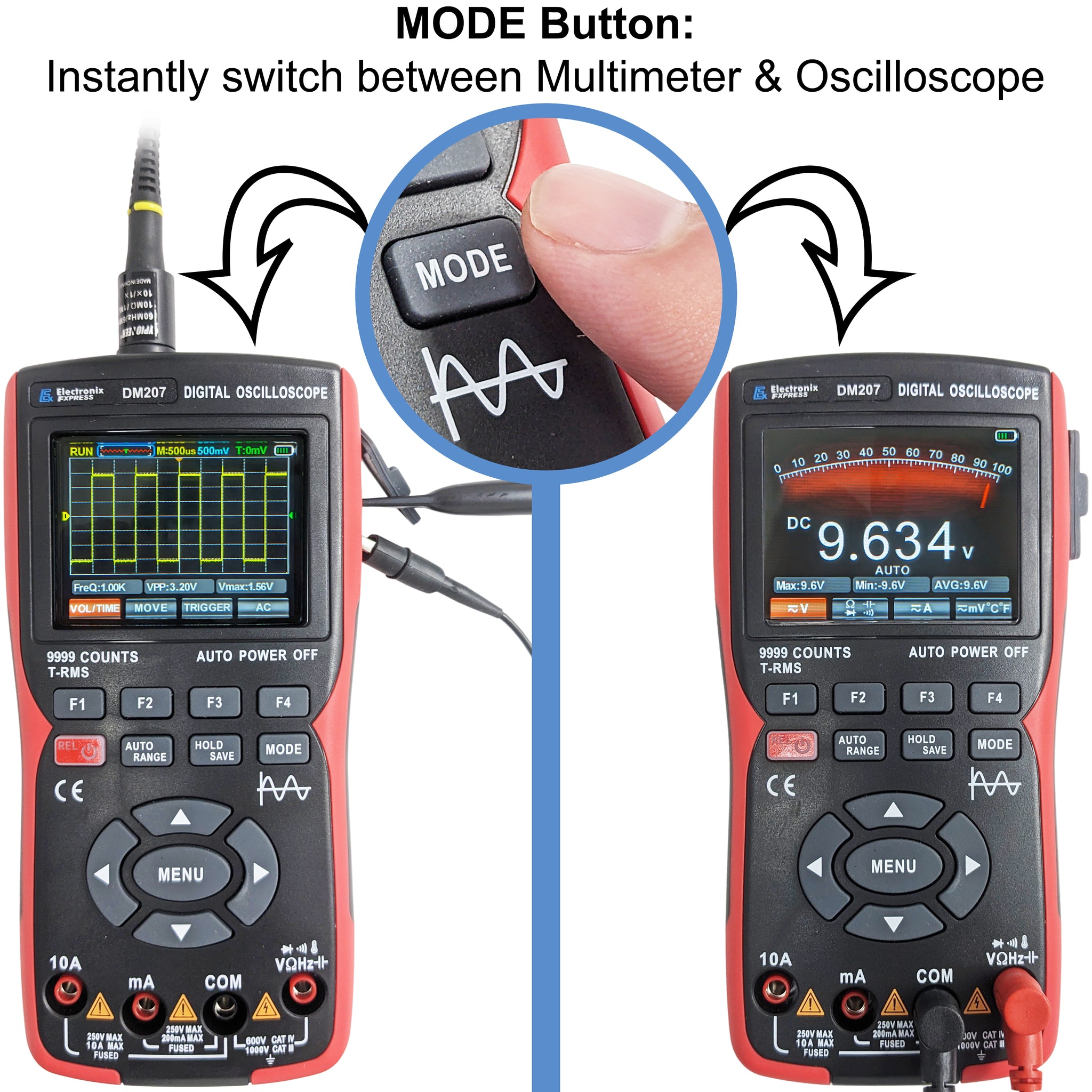

The Electronix Express DM207 is a handheld 2-in-1 Oscilloscope and True RMS multimeter that is rechargeable, easy to use, and reliable. It has a 2.8-inch IPS full-view color backlit screen with 4 brightness options and an automatic shutdown function (15, 30, 60, 120 minutes, or unlimited). It is easy to carry and has a durable slip-resistant ABS+TPE molded construction. The interface is clear and intuitive; the "MODE" button instantly switches between the multimeter and oscilloscope, the "AUTO RANGE" button automatically obtains the measured waveform without needing to adjust parameters, and the "HOLD SAVE" button saves the current measurements / waveforms as images that you can retrieve on any computer using the included USB-C cable. The device has safety overload protection: conforms to CAT III 1000V, CAT II 600V safety level, meets CE certification requirements, and has a 200mA-10A double ceramic fuse. Includes user manual, zippered storage case, USB-C charging / data cable, 60MHz Bandwidth x1/x10 Oscilloscope Probe (with retractable hook tip, adjustment tool, 2 locating sleeves, 8 marker rings, and ground lead), Multimeter Leads, and Temperature Probe.

General Specifications:
LCD Display: 9999 Counts
Ranging: Auto/Manual
Material: ABS+TPE
Update Rate: 3 Times/Second
True RMS
Data Hold
Backlight
Low Battery Indication
Auto Power Off (15, 30, 60, 120 minutes, or unlimited)

Dimensions: 6.97" x 3.5" x 1.57"
Weight: 12 ounces
Battery Type: 18650 Rechargeable Battery (included, preinstalled)

Oscilloscope Specifications:
Bandwidth: 10MHz
Channels: 1
Real-time sample rate: 48MSa/s
Horizontal-record length: Max 64Kbyte
Input coupling:  AC/DC
Input resistance: 1MΩ,@16pf
Input Probe attenuation: X1, X10
Max input voltage: 150V (DC+AC peak）
Horizontal-Sample rate range: 1.5Sa/s - 48MSa/s
Waveform interpolation:  (sinx)x
Horizontal-Sweep speed range:  50ns/div - 20s/div
Horizontal-Time Base Accuracy: 20ppm
Vertical-sensitivity: 20mV/div - 10V/div
Vertical-Displacement range: 4 cells (positive and negative)
Trigger method: auto, normal, single
Trigger edge: rising edge, falling edge

Multimeter Specifications:
DC Voltage:
Range: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V
Resolution: 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V
Accuracy: ±(0.5%+3)

AC Voltage:
Range: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V
Resolution: 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V
Accuracy: ±(1.0%+3)
Frequency response of ACV: 40Hz-1kHz

DC Current | Range | Resolution | Accuracy:
A/mA: 999.9mA/9.999A | 0.1mA/0.001A | ±(1.0%+3)
μA/mA: 9999μA/99.99mA | 1μA/0.01mA | ±(0.8%+3)

AC Current | Range | Resolution | Accuracy:
A/mA: 999.9mA/9.999A | 0.1mA/0.001A | ±(1.2%+3)
μA/mA: 9999μA/99.99mA | 1μA/0.01mA | ±(1.0%+3)
Frequency response of AC Current: 40Hz-1kHz

Resistance:
Range | Resolution | Accuracy
99.99Ω | 0.01Ω | ±(1.0%+3)
999.9Ω/9.999kΩ/99.99KΩ/999.9KΩ | 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ | ±(0.5%+3)
9.999MΩ | 0.001MΩ | ±(1.5%+3)
99.99MΩ | 0.01MΩ | ±(3.0%+5)

Capacitance:
Range | Resolution | Accuracy
9.999nF | 0.001nF | ±(5.0%+20)
99.99nF/999.9nF/9.999µF/99.99µF/999.9µF | 0.01nF/0.1nF/0.001µF/0.01µF/0.1µF | ±(2.0%+5)
9.999mF | 0.001mF | ±(5.0%+5)

Frequency:
(Measures only to 100kHz under the ACV setting)
Range | Resolution
99.99Hz | 0.01Hz
999.9Hz | 0.1Hz
9.999kHz | 0.001kHz
99.99kHz | 0.01kHz
999.9kHz | 0.1kHz
Accuracy: ±(0.1%+2)

Temperature:
-20℃ - 1000℃ / -4℉ - 1832℉
Accuracy: ±(2.5%+5）

Diode: Yes
Continuity: Yes

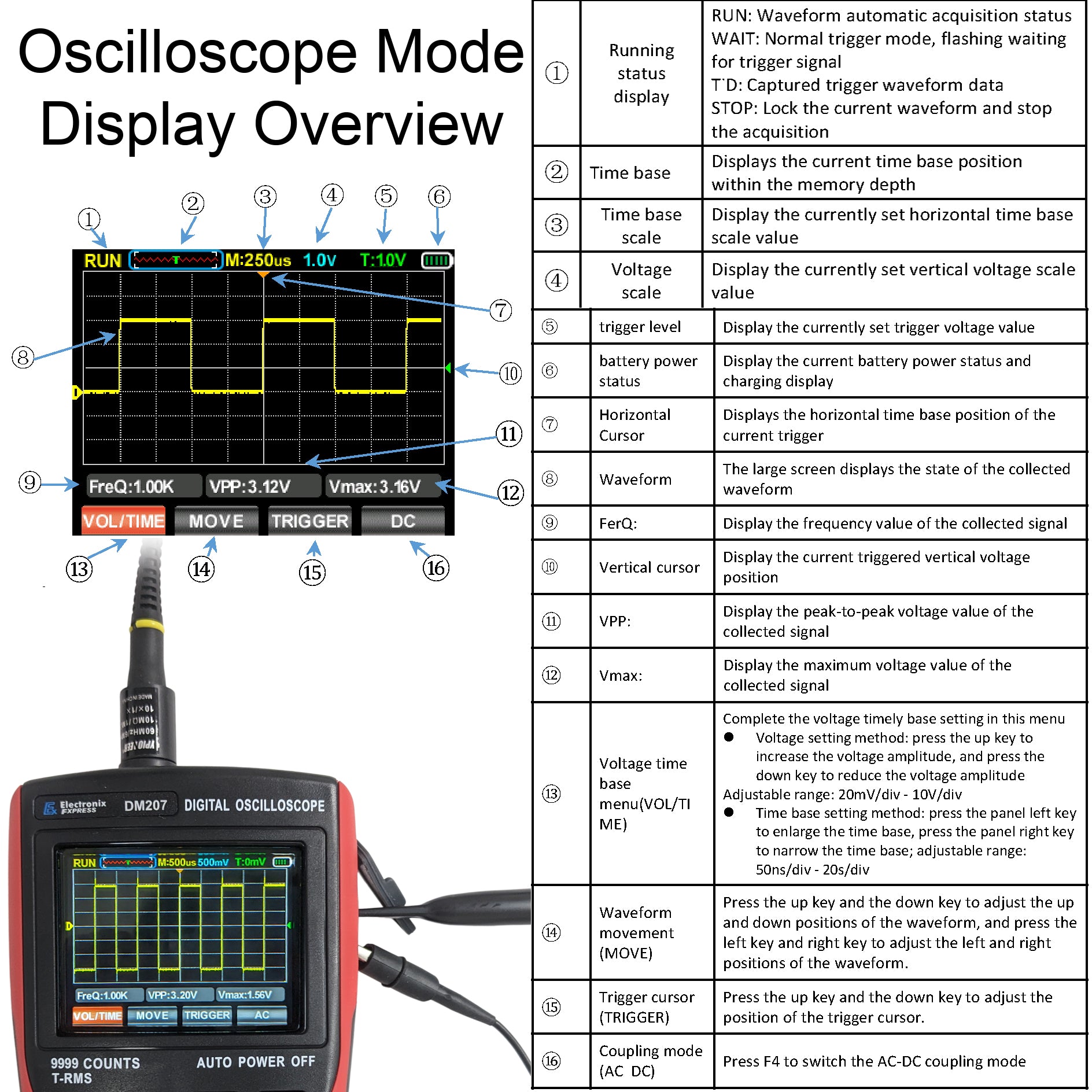

Oscilloscope Specifications, Table Form:
