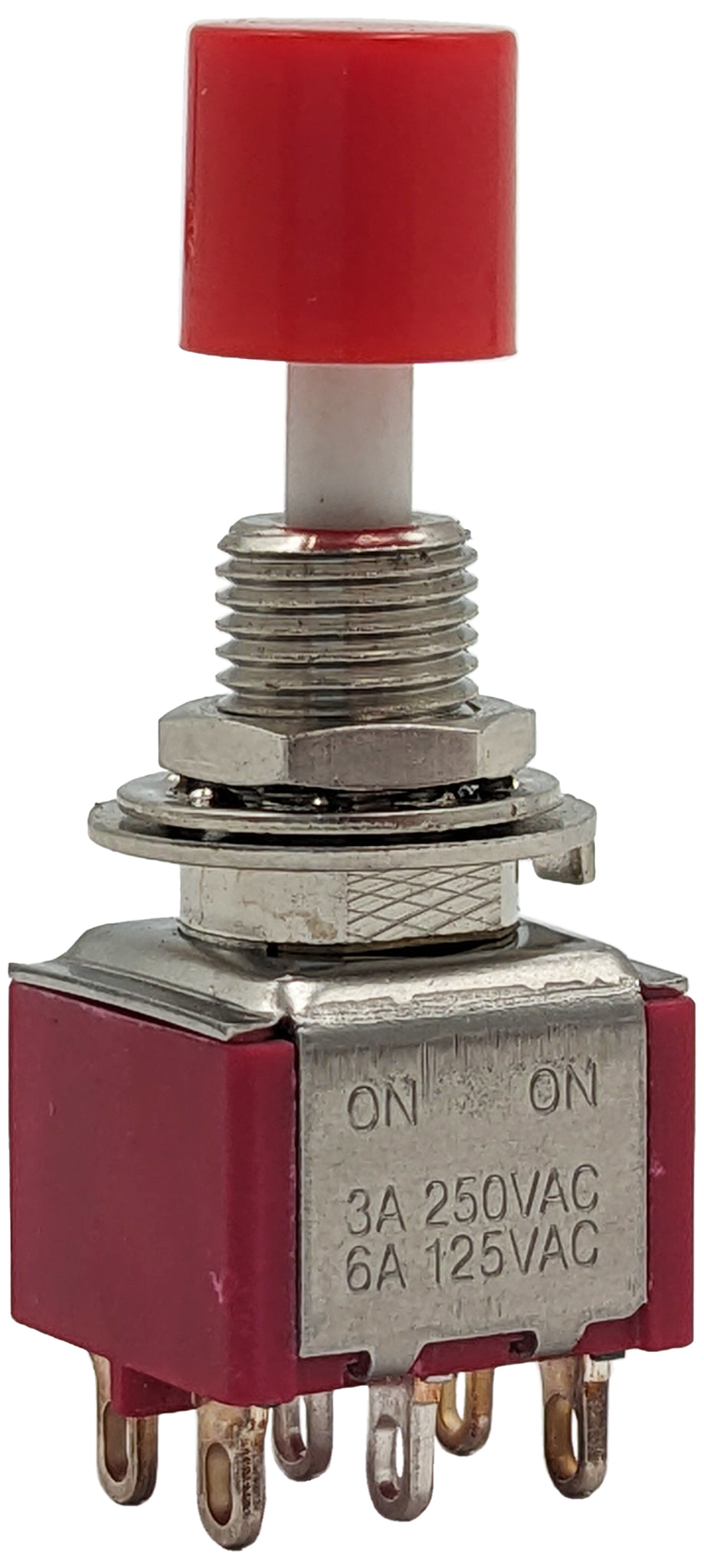

- Circuit: DPDT
- Function: On-On

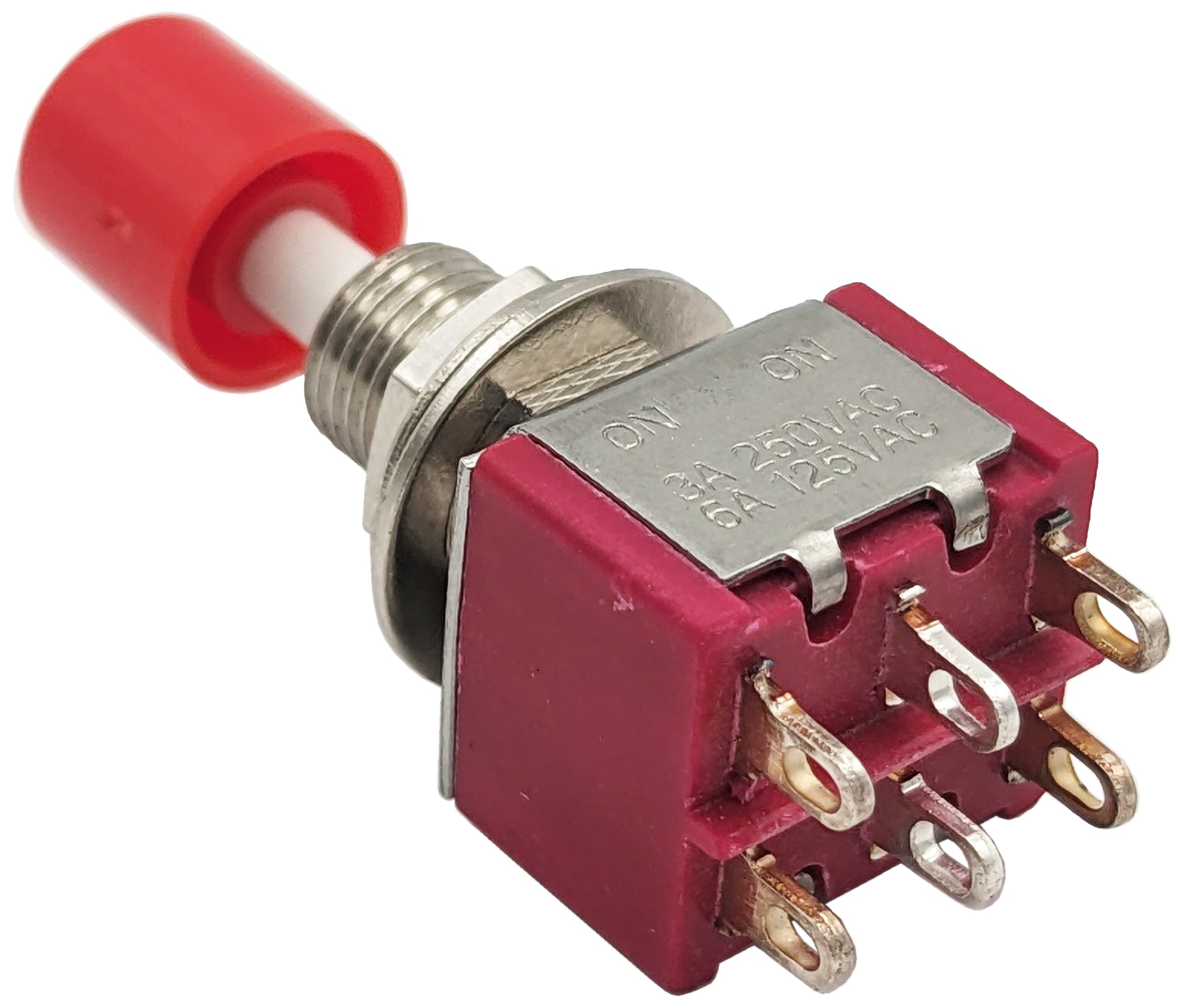

- Termination: Solder Lug (6 lugs)
- Fits 6mm diameter cutout
- Removable 7.5mm diameter red cap

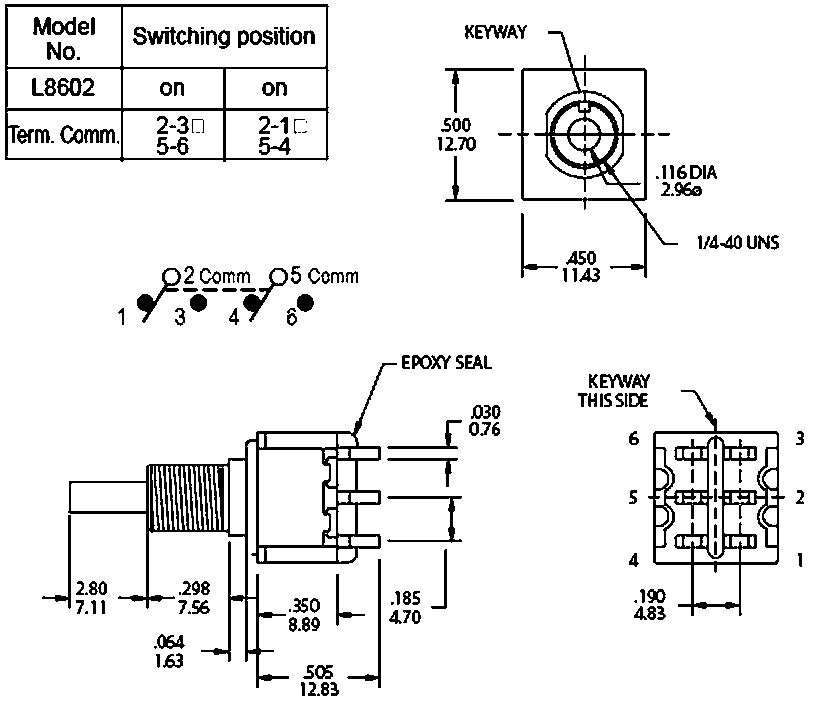

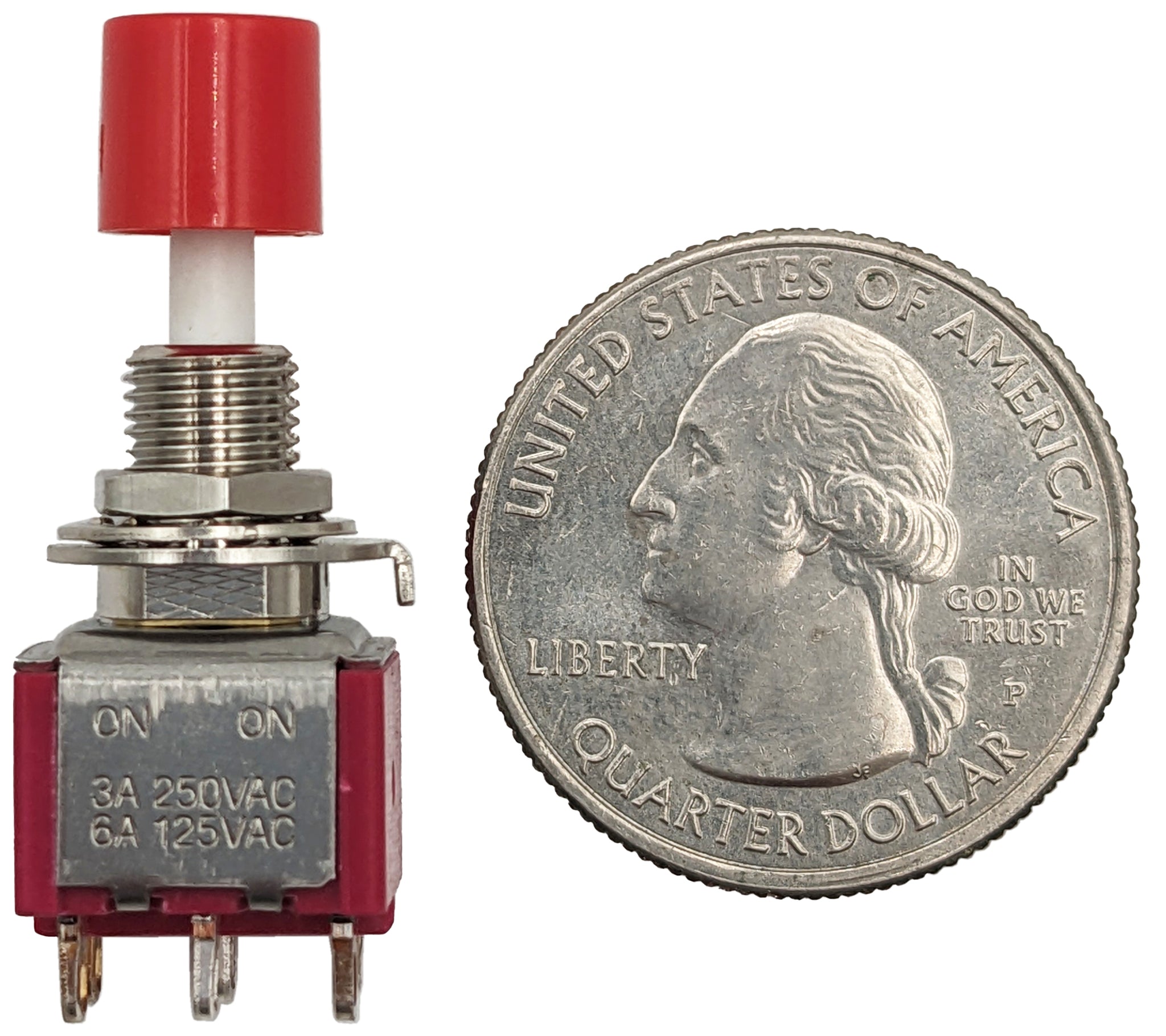

- Measures 12.8mm x 11.6mm x 31.9mm (height not including lugs)
- Perfect for instrumentation, telecommunications equipment, computer peripherals.
Specifications:
Contact Rating: 6A@125VAC; 3A@250VAC
Life Cycle: 50,000 cycles
Contact Resistance: 10mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000MΩ min.
Dielectric Strength: 1,500V RMS @sea level
