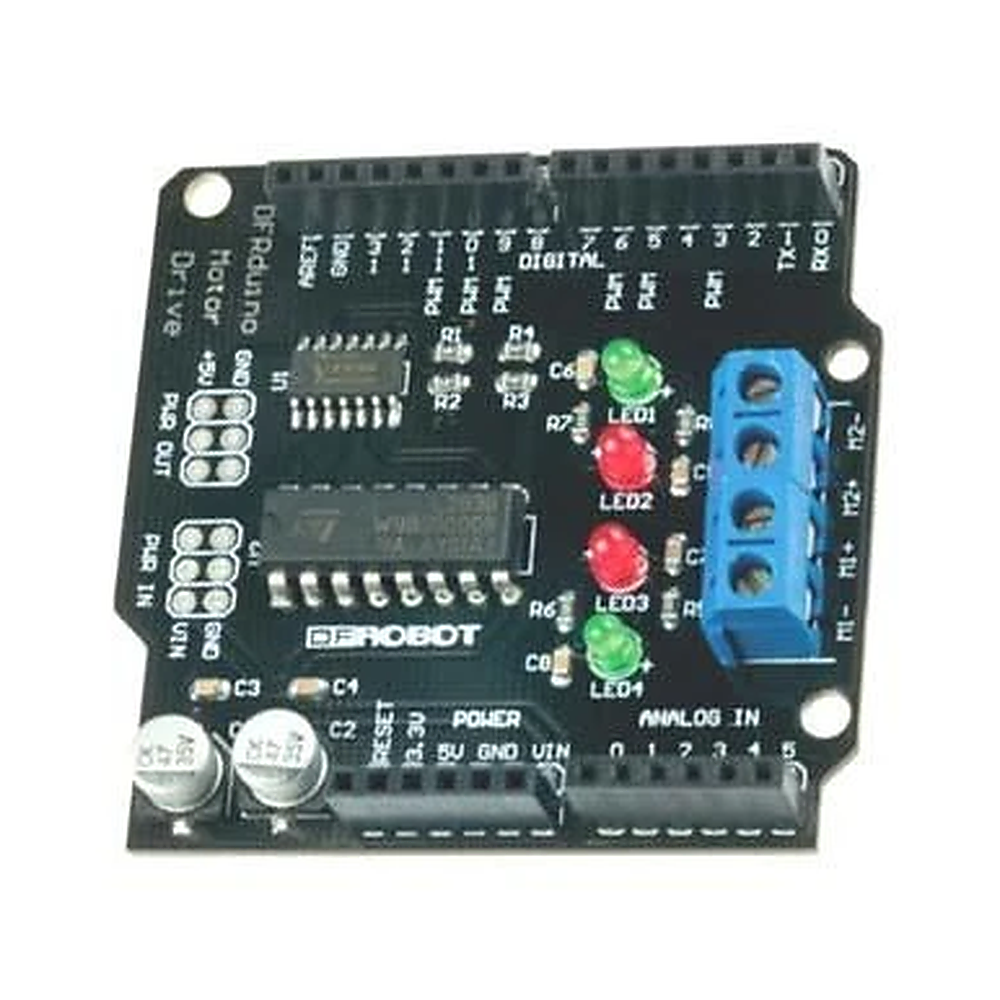

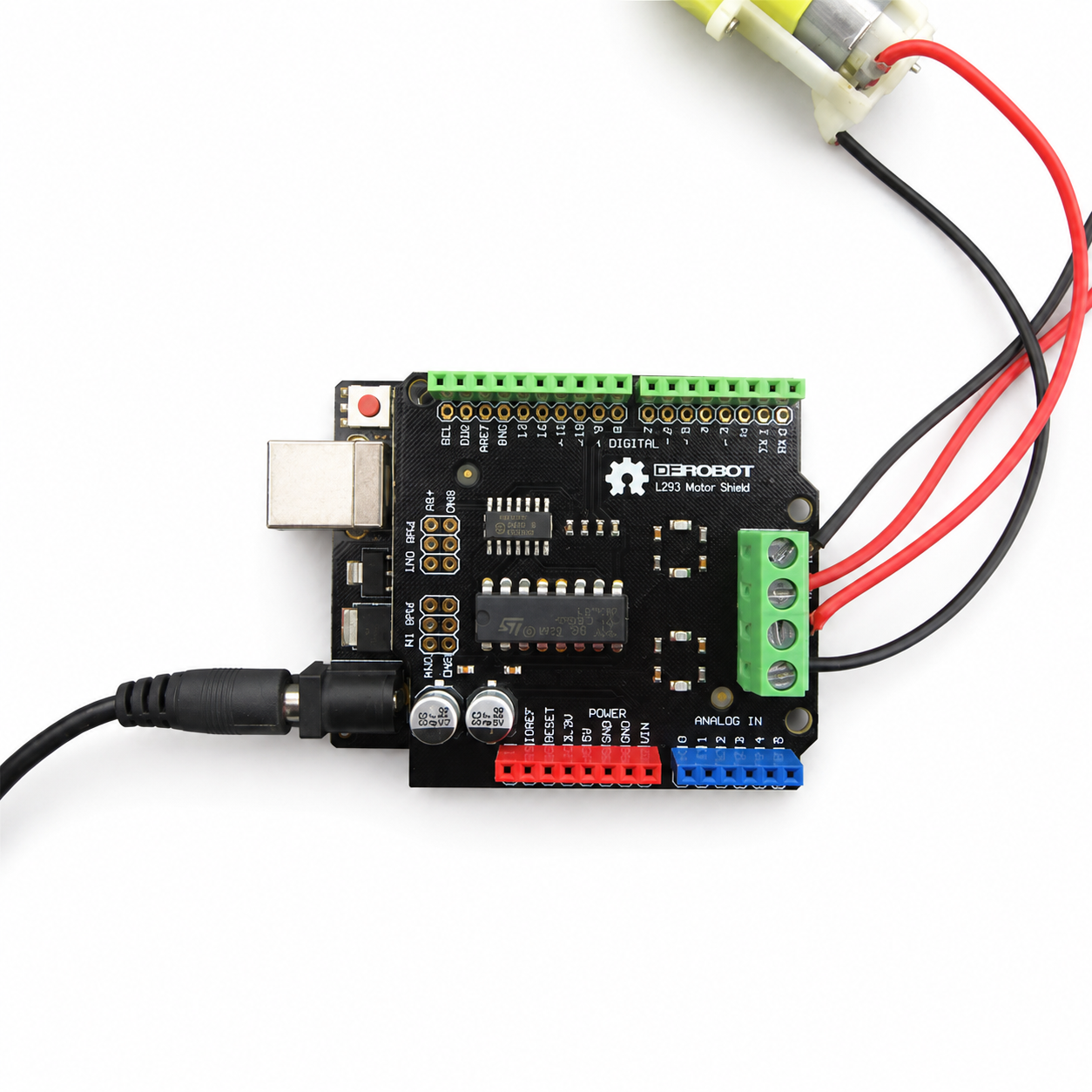

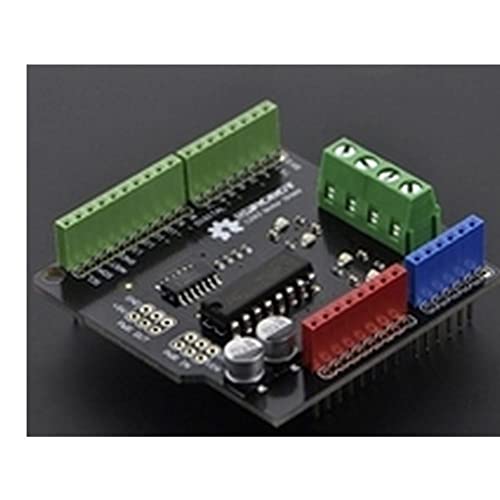

This Motor shield for Arduino uses L293 chip which allow to drive two 7-12V DC motors with maximum 1A current. This shield can be directly mounted onto standard Arduino Duemilanove and Arduino Mega.
SPECIFICATIONS:
- 2 way 7-12V motor drive
- Up to 1A current each way

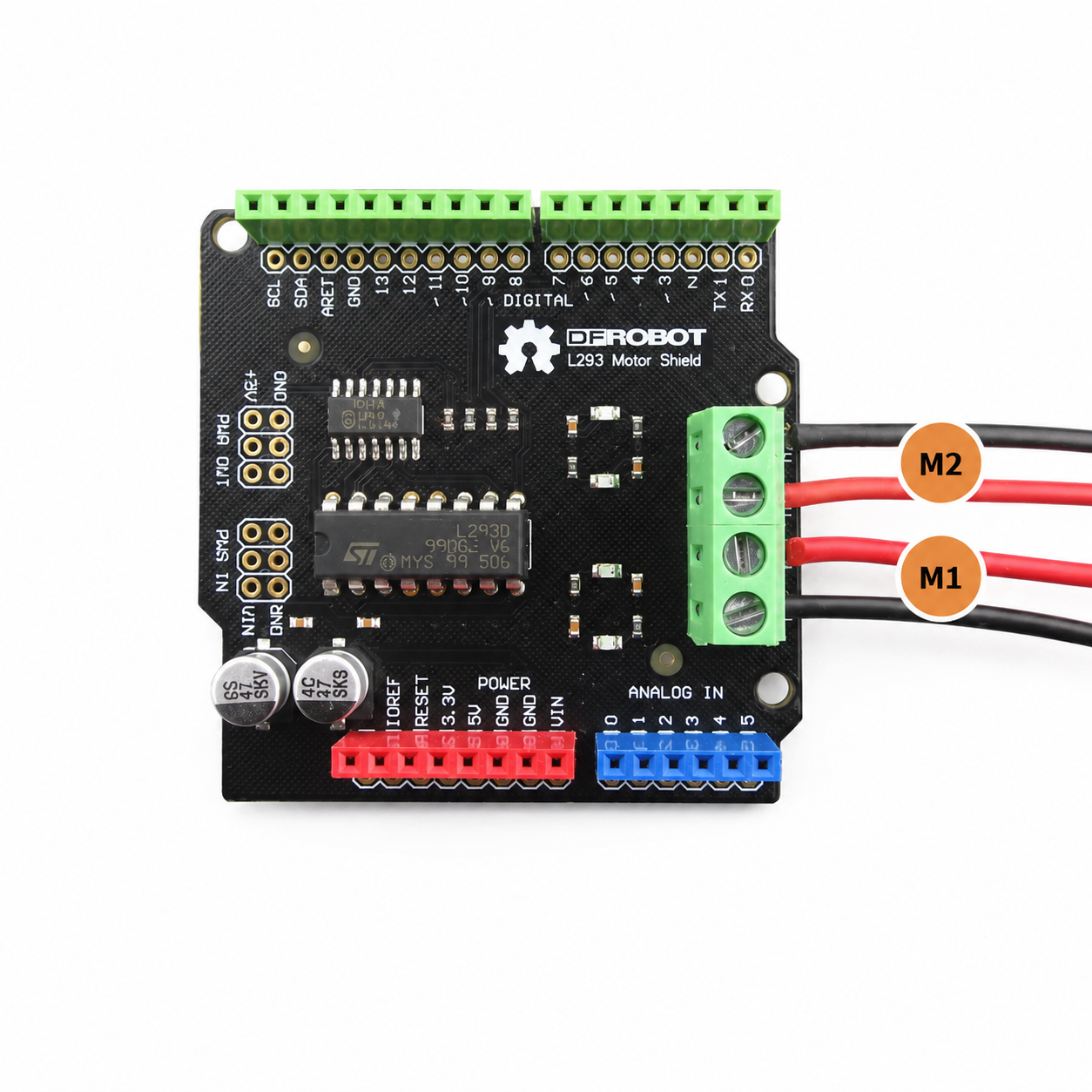

- PIN 4,5,6,7 are used to drive two DC motors
- Support PWM speed control
