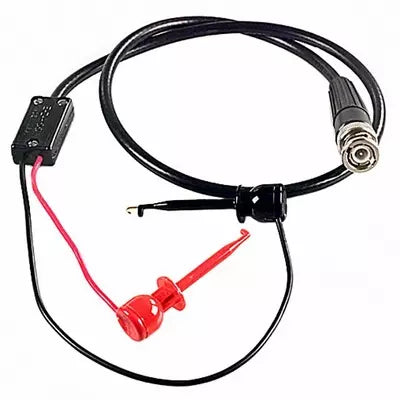

The E-Z Hook 1020 features a BNC (Male) connector on RG58 C/U cable, splitting to a red X100W and black X100W Mini Hook, acting as the Centre and Ground connections.
The BNC connection has a brass body and fittings, teflon insulators, silver or gold plated brass contact and a bright tarnish resistant metal alloy finish. it also has a strain relief boot on the cable for added pull strength.
The X100W Mini Hook Test Clips have a one piece gold plated BeCu conductor (hook) for durability and low contact resistance and meets MIL G45204 specifications. The hook fits over component leads up to 1.016mm (0.40") diameter and a stainless steel spring provides approx 454gms of pull pressure to ensure that he hook remains in good contact.
Cable length: 48"
