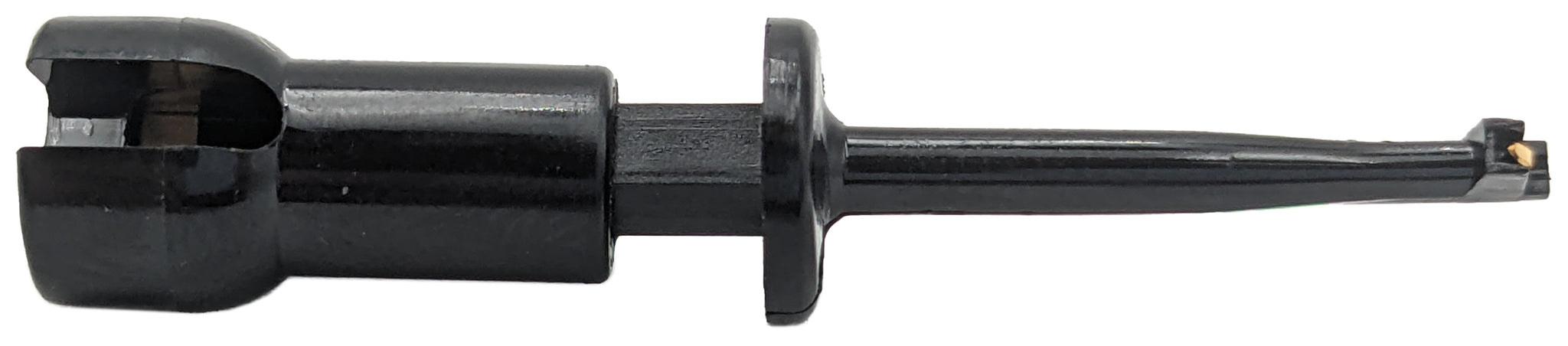

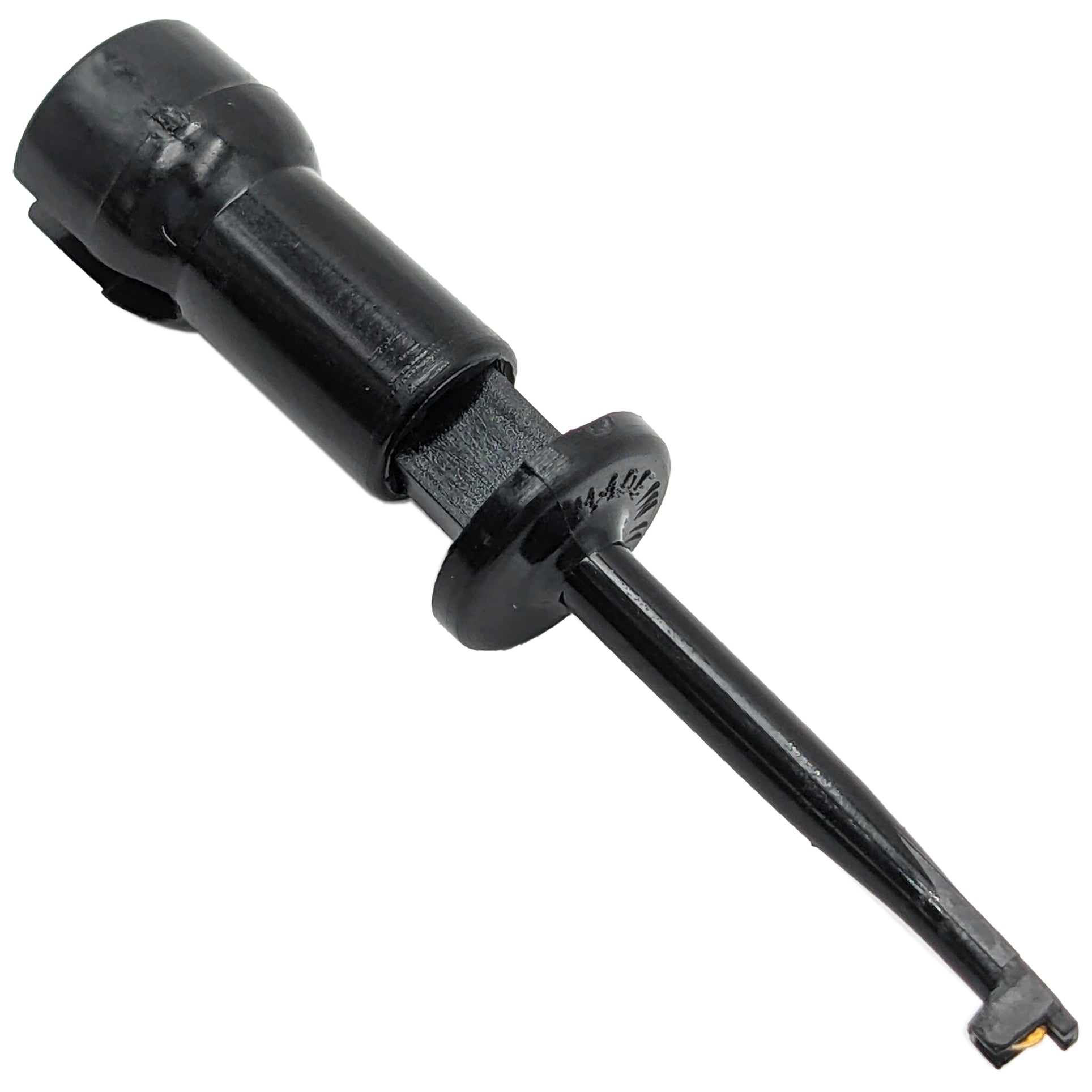

XM Micro-Hook
The XM hypo-action, micro-hook test connector, is the base model for the standard micro-hooks and is designed for use where weight and leverage may damage components. Its lightweight body and hypo-action hook easily allows for direct hook up to delicate wires and components. Insulation to a single contact point assures accurate readings and the barrier on the tip prevents shorting between components. The XM micro-hook test connector, is E-Z-Hook’s original micro-hook design model. Its lightweight body and hypo-action hook easily connect to delicate wires and components.
Applications:
The XM micro-hook is designed for use where weight and leverage may damage components.
Designed for use with surface mount devices or where connection point is small to test electronic components connections; popular as an oscilloscope probe.
These clips are great for testing miniature components, IC connectors, IC pins CIP and SMD, electrical test boards, and for use with Arduino products.
Use E-Z-Hook test connectors and hooks to create DIY (do it yourself) test leads, cables and patch cords.
Features:
The XM micro-hook is designed for use where weight and leverage may damage components.
Lightweight body (less than 1 gram) limits pull on wires and components.
Insulation to a single contact point assures accurate readings and the barrier on the tip prevents shorting between components.
Hook fits over components up to a max diameter of 0.045 in (1.14 mm).
Wire exit hole accepts 32-22 AWG wire or a max wire diameter of 0.11 in (2.79 mm). May be attached to a lead.
Tip design that permits hooks up vertically or horizontally.
Field Serviceable.
Technical specifications:
Part Length: 1.75 in (44.45 mm)
Current (max recommended): 4.4 AMPS
Material (Contact Blade): Gold-Plated Beryllium Copper
Temperature (max recommended): 200°F (93°C)
Material (Housing): Nylon
Voltage (max recommended): 2.4 kv
Material (Spring): Stainless Steel
Hook Style: Single Hook
Spring Pressure: 8 oz (227 g)
