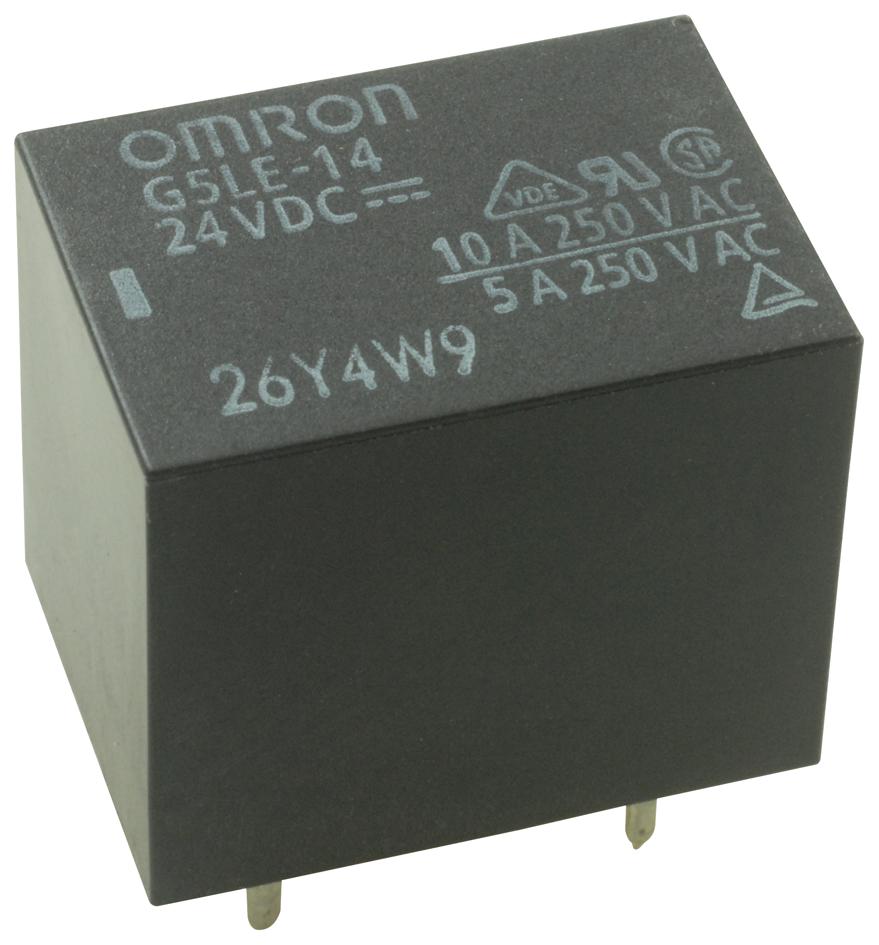

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole

22RZ1013
Regular price
$3.99
Sale price
$3.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Coil Voltage: 24VDC
  • Contact Form: SPDT (1 Form C)
  • Relay Type: General Purpose
  • Coil Type: Non Latching
  • Contact Rating (Current): 10 A
  • Switching Voltage: 250 VAC, 125 VDC - Max
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7 mA
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Seal Rating: Sealed - Fully
  • Operate Time: 10 ms
  • Release Time: 5 ms

Additional Specifications:

Relay Construction Non-Latching
Contact Form SPDT
Coil Voltage 24 VDC
Coil Resistance 1440 Ohm
Contact Current 10 A
Contact Voltage 250 VAC, 125 VDC

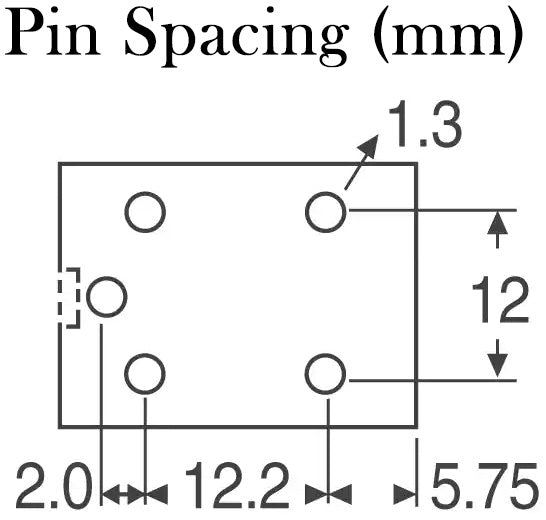

Pins 5

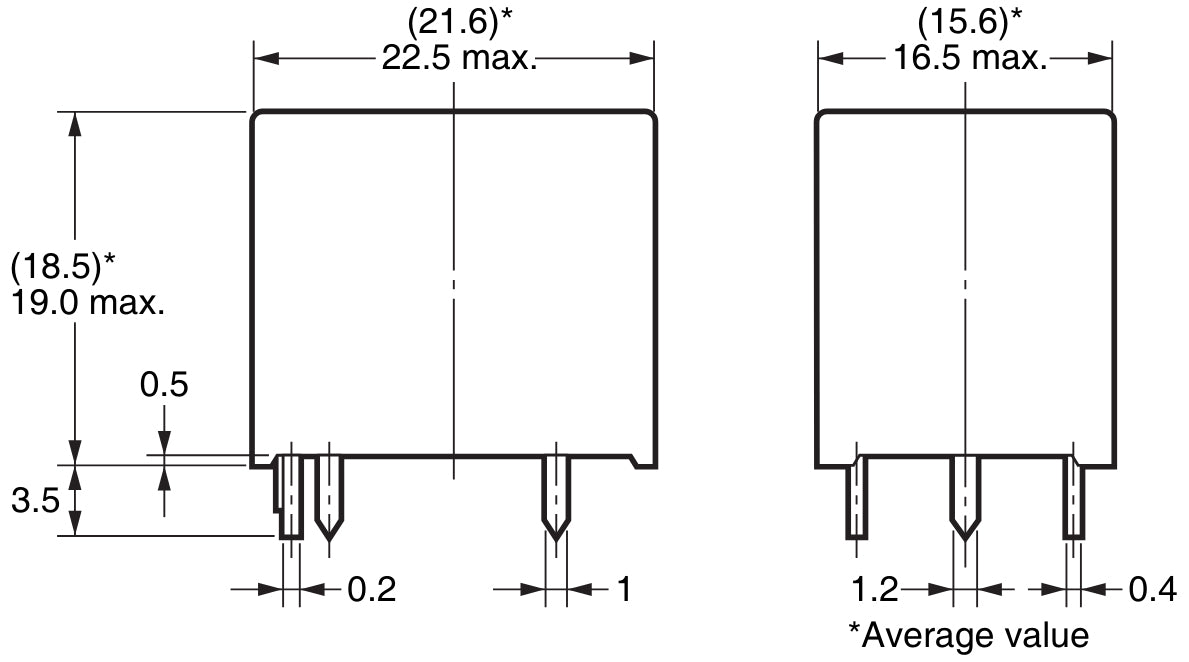

Length 21.6 mm
Width 15.6 mm
Height 18.5 mm
