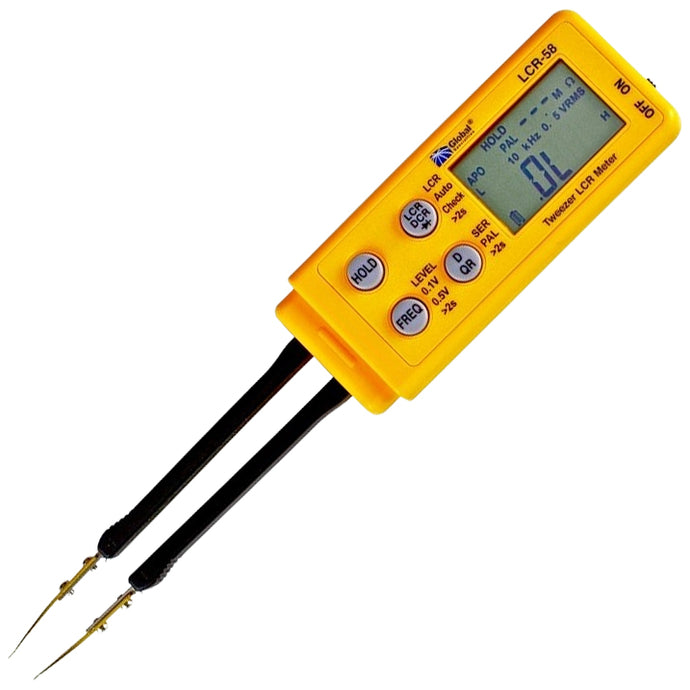

The LCR-58 Tweezer LCR Meter is a compact LCR (inductance, capacitance, and resistance) meter with a tweezer form factor. It is small enough for one-hand operation and ideally suited to testing Surface Mount Devices (SMD). Although the LCR-58 is much smaller and lighter than traditional LCR meters, it is a high quality, precise full-feature LCR meter with ESR and Diode Test. The Tweezer LCR Meter has Auto Select Mode, which automatically identifies and measures the correct component type. In addition you can manually select between Parallel or Series mode.
Features:
ā¢ Resistance
ā¢ Capacitance
ā¢ Inductance
ā¢ ESR
ā¢ DCR
ā¢ Diode Test
ā¢ Parallel or Series Mode
ā¢ Auto Select Mode
ā¢ Data Hold
ā¢ Manual or Auto Range
ā¢ Manually Selectable Frequency
Specifications:
Test frequency 100/120 Hz, 1 kHz, 10 kHz
Test signal level 0.5 Vrms
Basic accuracy 1 ā 3% + 5 dgts
Resistance range (resolution) 60 Ī© ā 20 M Ī© (0.01 Ī©)
Capacitance range (resolution) 600 pF ā 6 mF (0.1 pF)
Inductance range (resolution) 60 ĀµH ā 200 H (0.1 ĀµH)
Display 6000 count LED
Polarity Automatic, ( - )negative polarity indication
Over range āOLā mark indication
Low battery indication The āšā icon is displayed when the battery voltage drops below the operating level
Sampling rate 2 samples per second, nominal
Auto power off Approx. 30 minutes
Operating environment 0ĀŗC ā 40ĀŗC (32ĀŗF ā 104ĀŗF) at < 70% R.H.
Storage environment -20ĀŗC ā 60ĀŗC (-4ĀŗF ā 140ĀŗF) at < 80% R.H.
with battery removed from meter
Power 3.0 V button-type lithium battery Ć2, CR2032
Battery life 50 hours continuous operation
Size 205mm(H) Ć 40 mm(W) Ć24.5mm(D)
Weight Approx. 3.9 oz ( 110g ) including battery
