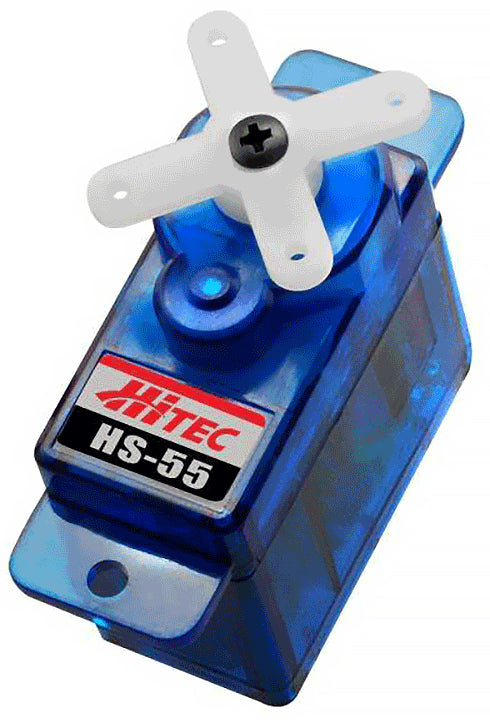

Hitec HS-55 Analog Micro Servo, 8g, Coreless Motor, Nylon Gears, 18 oz-in @6V, 0.14 sec/60°
Hitec HS-55 Analog Micro Servo, 8g, Coreless Motor, Nylon Gears, 18 oz-in @6V, 0.14 sec/60°
  • Load image into Gallery viewer, Hitec HS-55 Analog Micro Servo, 8g, Coreless Motor, Nylon Gears, 18 oz-in @6V, 0.14 sec/60°
  • Load image into Gallery viewer, Hitec HS-55 Analog Micro Servo, 8g, Coreless Motor, Nylon Gears, 18 oz-in @6V, 0.14 sec/60°

Hitec HS-55 Analog Micro Servo, 8g, Coreless Motor, Nylon Gears, 18 oz-in @6V, 0.14 sec/60°

29SV12
Regular price
$18.00
Sale price
$18.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

The Hitec HS-55 is an 8 gram analog micro servo with a coreless metal-brush motor and nylon gears. At 4.8-6V it delivers 15-18 oz-in (1.1-1.3 kg-cm) of torque and moves 60 degrees in 0.17-0.14 seconds. It is sized for park flyers, small electric planes, foamies and 200mm helicopters.

Key Features

  • 8 g micro servo, 22.8 x 11.6 x 24.0 mm
  • Coreless metal brush motor
  • Nylon gear train
  • 15-18 oz-in torque at 4.8-6V
  • 0.17-0.14 sec/60° speed
  • HT7003 analog SMT circuit

Specifications

Brand / model Hitec HS-55
Voltage 4.8-6.0V DC
Speed (60°) 0.17-0.14 s
Torque 15-18 oz-in (1.1-1.3 kg-cm)
Idle current 5.5 mA
No-load current 150 mA
Stall current 450 mA
Dead band 8 µs

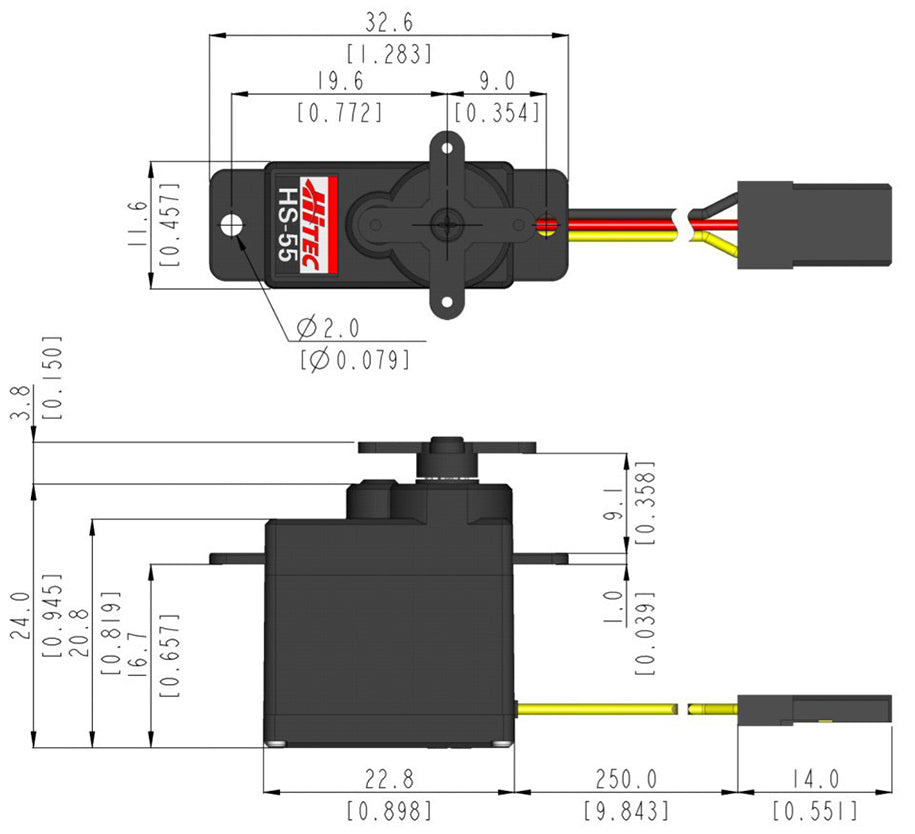

Dimensions 22.8 x 11.6 x 24.0 mm (0.89 x 0.45 x 0.94 in)
Weight 8.0 g (0.28 oz)
Circuit HT7003 analog SMT
Motor Coreless metal brush
Gears Nylon
Bearing None
Output shaft Feather 15
Case Plastic
Wire 28 AWG / 20 strand
Suggested uses Parkflyer <36 oz; sport plane 20-35 oz; sailplane <2 m/DLG; 3D foamie; 200mm electric heli
SKU 29SV12

What's Included

  • 1 x Hitec HS-55 servo

Ideal For

RC pilots fitting control surfaces on park flyers, foamies and other light electric models.

Frequently Asked Questions

What models is it suited for?
Hitec lists park flyers under 36 oz, sport planes of 20-35 oz, sailplanes under 2 m, 3D foamies and 200mm electric helicopters.

Does it have bearings?
No. The bearing type is listed as none.
