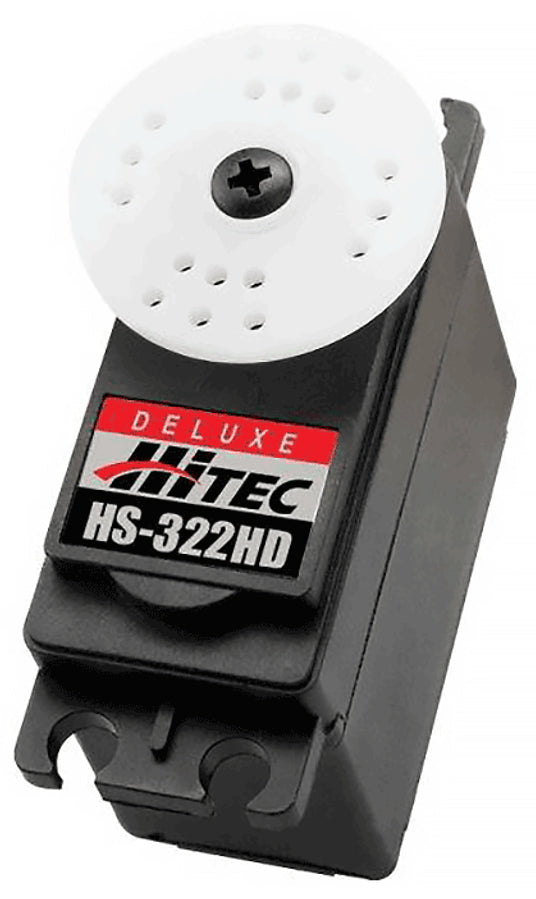

Hitec HS-322HD Heavy Duty Analog Sport Servo, Karbonite Resin Gears, 24T Spline, 51 oz-in @6V, 0.15 sec/60°
Hitec HS-322HD Heavy Duty Analog Sport Servo, Karbonite Resin Gears, 24T Spline, 51 oz-in @6V, 0.15 sec/60°
  • Load image into Gallery viewer, Hitec HS-322HD Heavy Duty Analog Sport Servo, Karbonite Resin Gears, 24T Spline, 51 oz-in @6V, 0.15 sec/60°
  • Load image into Gallery viewer, Hitec HS-322HD Heavy Duty Analog Sport Servo, Karbonite Resin Gears, 24T Spline, 51 oz-in @6V, 0.15 sec/60°

Hitec HS-322HD Heavy Duty Analog Sport Servo, Karbonite Resin Gears, 24T Spline, 51 oz-in @6V, 0.15 sec/60°

29SV21
Regular price
$15.99
Sale price
$15.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

The Hitec HS-322HD is a standard-size heavy duty analog sport servo with Karbonite resin gears, a three-pole ferrite motor and a nylon-bushed 24-tooth output shaft. At 4.8-6V it produces 42-51 oz-in (3.0-3.7 kg-cm) of torque and transits 60 degrees in 0.19-0.15 seconds. Hitec rates it for helicopters and aircraft up to 72 inches or 12 lb using one servo per control surface.

Key Features

  • Karbonite gears, rated by Hitec as four times stronger than its standard nylon gears
  • Three-pole ferrite motor
  • Nylon bushing-supported 24T output shaft
  • 42-51 oz-in torque at 4.8-6V
  • Standard size: 40 x 20 x 36.5 mm, 43 g

Specifications

Brand / model Hitec HS-322HD
Voltage 4.8-6.0V DC
Speed (60°) 0.19-0.15 s
Torque 42-51 oz-in (3.0-3.7 kg-cm)
Idle current 7.7 mA
No-load current 180 mA
Stall current 800 mA
Dead band 5 µs
Dimensions 40.0 x 20.0 x 36.5 mm (1.57 x 0.78 x 1.43 in)
Weight 43.0 g (1.51 oz)
Circuit HT7003 analog SMT
Motor 3 pole metal brush ferrite
Gears Karbonite
Bearing Nylon bushing
Output shaft Standard 24
Case Plastic
Wire 25 AWG / 40 strand
Suggested uses Sport plane 50-64 oz; scale >40%; sailboat <1 m; 1/10 power boat
SKU 29SV21

What's Included

  • 1 x Hitec HS-322HD servo

Ideal For

RC modelers who want a dependable standard servo for sport planes and helicopters up to about 12 lb.

Frequently Asked Questions

Can I use thread locker on it?
No. Hitec warns that thread lockers on Karbonite-geared servos will cause the output shaft to fail.

Is it good for gas-powered 3D planes?
Hitec cautions that high-vibration gas engines with large control surfaces and big throws can strain the gears, and recommends metal-gear servos there.

Do not use thread lockers on this Karbonite-geared servo; it will cause the output shaft to fail.

High-vibration gas engines with large control surfaces and large throws (3D) can strain the gears; metal-gear servos are recommended for those uses, even under 12 lb.
