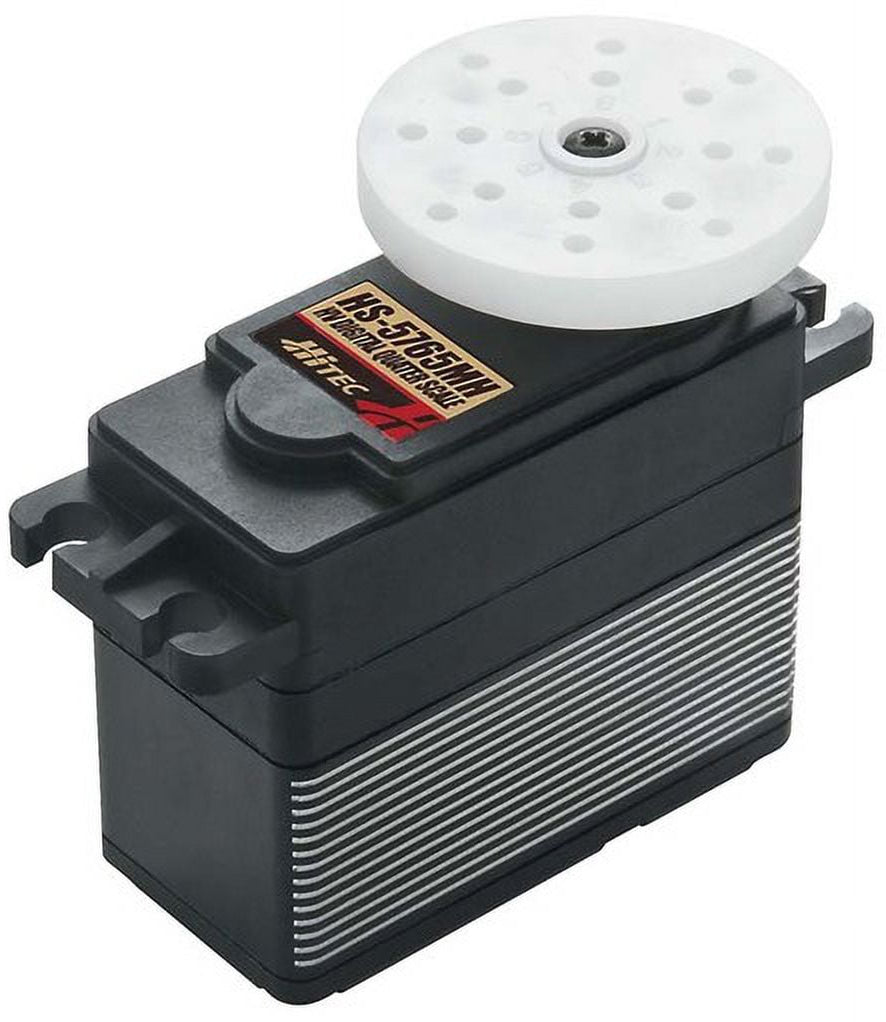

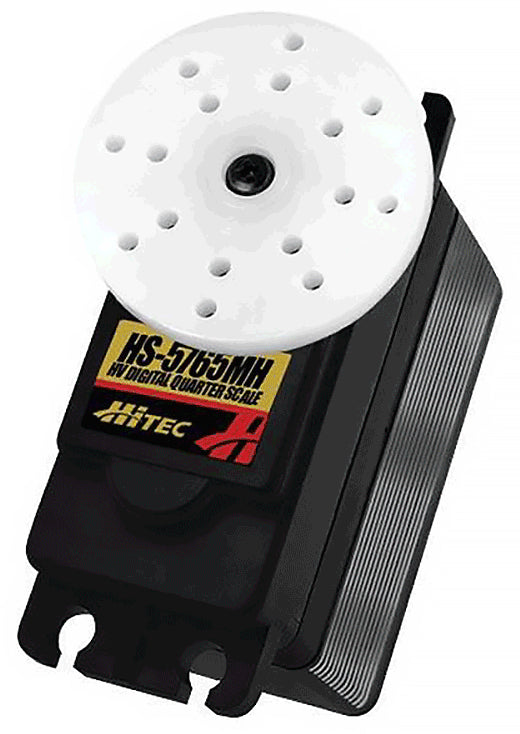

The Hitec HS-5765MH is a giant-scale programmable digital servo that runs directly on 6-7.4V, including 2-cell LiPo. It has heavy duty metal gears, triple ball bearings and a 10mm output shaft, producing 278-347 oz-in (20-25 kg-cm) of torque at 0.16-0.13 seconds per 60 degrees. It is built for 1/4 and 1/5 scale vehicles, large boats and giant scale aircraft.

Key Features

  • High voltage: 6.0-7.4V (2S LiPo capable)
  • 278-347 oz-in torque
  • Heavy duty metal gear train
  • Triple ball bearings and large 10mm output shaft
  • Splash-proof plastic/aluminum case
  • G1 programmable digital circuit

Specifications

Brand / model Hitec HS-5765MH
Voltage 6.0-7.4V DC
Speed (60°) 0.16-0.13 s
Torque 278-347 oz-in (20.0-25.0 kg-cm)
Idle current 3 mA
No-load current 1,100 mA
Stall current 5,800 mA
Dead band 5 µs

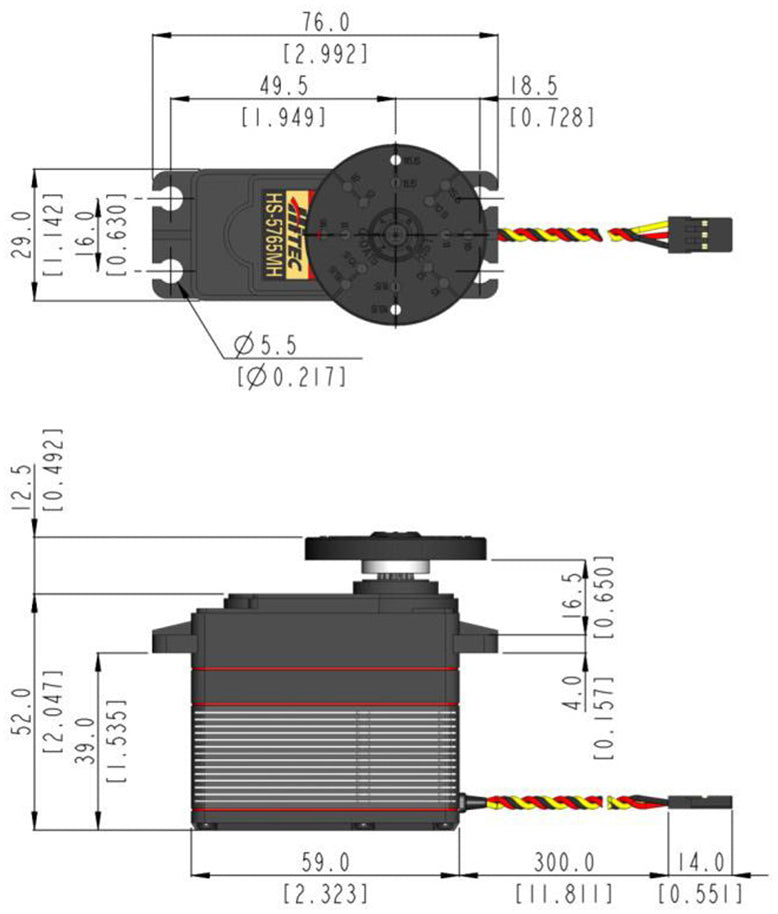

Dimensions 59.0 x 29.0 x 52.0 mm (2.32 x 1.14 x 2.04 in)
Weight 172.3 g (6.07 oz)
Circuit G1 programmable digital
Motor 3 pole metal brush ferrite
Gears Metal
Bearing Triple ball bearing
Output shaft Mega 15 (10mm)
Case Plastic / aluminum
Dust / water resistance Splash proof
Wire 22 AWG / 60 strand
Programmable functions End points, direction, fail safe, dead band, speed (slower), data save/load, program reset
Suggested uses 1/4 and 1/5 on-road, monster truck, buggy, truggy and short course; scale >40%; sailboat 1 m+; 1/5+ power boat
SKU 29SV65

What's Included

  • 1 x Hitec HS-5765MH servo

Ideal For

Owners of 1/5 scale cars and trucks, large boats and giant scale planes who need very high torque.

Frequently Asked Questions

Can I power it from a 2S LiPo?
Yes. It is rated for 6.0-7.4V, which covers a 2-cell LiPo.

Is it waterproof?
Hitec rates it splash proof, not waterproof.

Will it fit standard servo horns?
No. It uses a 10mm Mega 15 output shaft that needs matching large-scale horns.
