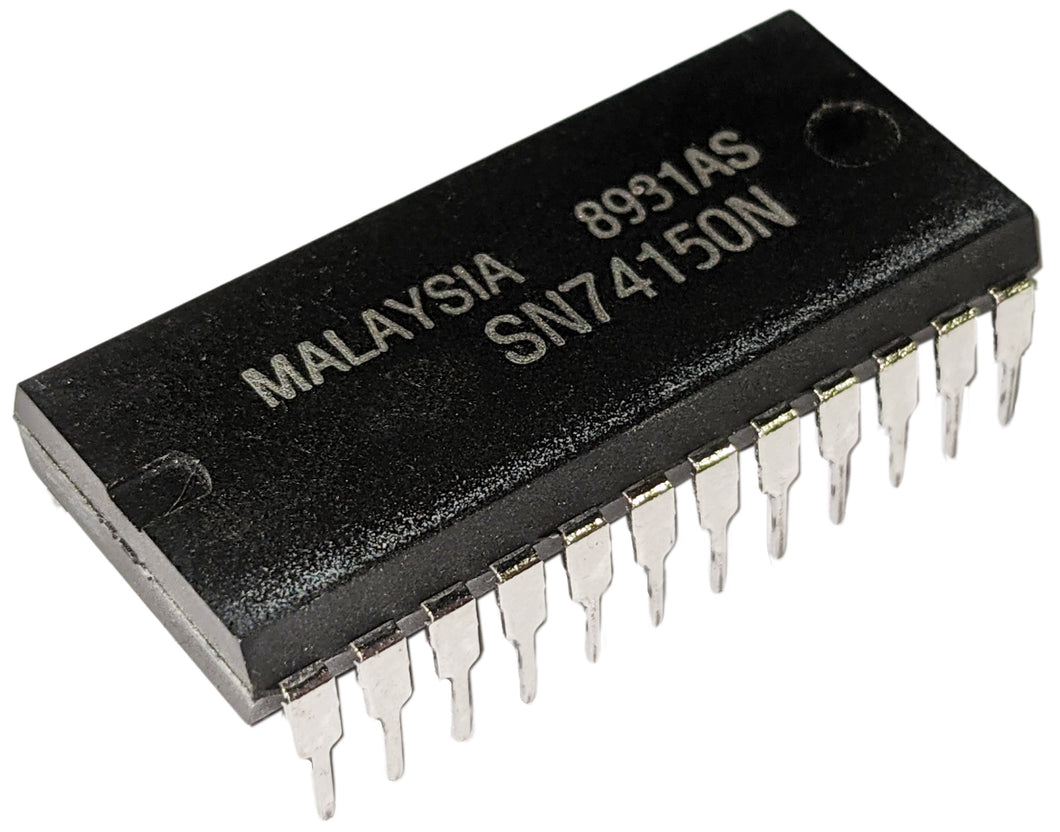

IC Logic - 74150 24 Pin 16-to-1 Multiplexer

IC Logic - 74150 24 Pin 16-to-1 Multiplexer

1074150
Regular price
$9.99
Sale price
$9.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • 150 selects one-of-sixteen data lines
  • Performs parallel-to-serial conversion
  • Permits multiplexing from N lines to one line
  • Also for use as Boolean function generator
  • Typical average propagation delay time, data input to W output: 11 ns

These data selectors/multiplexers contain full on-chip decoding to select the desired data source. The DM74150 selects one-of-sixteen data sources. The DM74150 has a strobe input which must be at a LOW logic level to enable these devices. A HIGH level at the strobe forces the W output HIGH and the Y output (as applicable) LOW.
