74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack
74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack
74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack
74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack
74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack
  • Load image into Gallery viewer, 74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack
  • Load image into Gallery viewer, 74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack
  • Load image into Gallery viewer, 74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack
  • Load image into Gallery viewer, 74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack
  • Load image into Gallery viewer, 74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack

74LS47 BCD-to-7-Segment Decoder/Driver IC, 16-Pin, 15V Open-Collector Outputs – 10 Pack

1074LS47PK10
Regular price
$15.00
Sale price
$15.00
Regular price
$11.50
Sold out
Unit price
per
Shipping calculated at checkout.

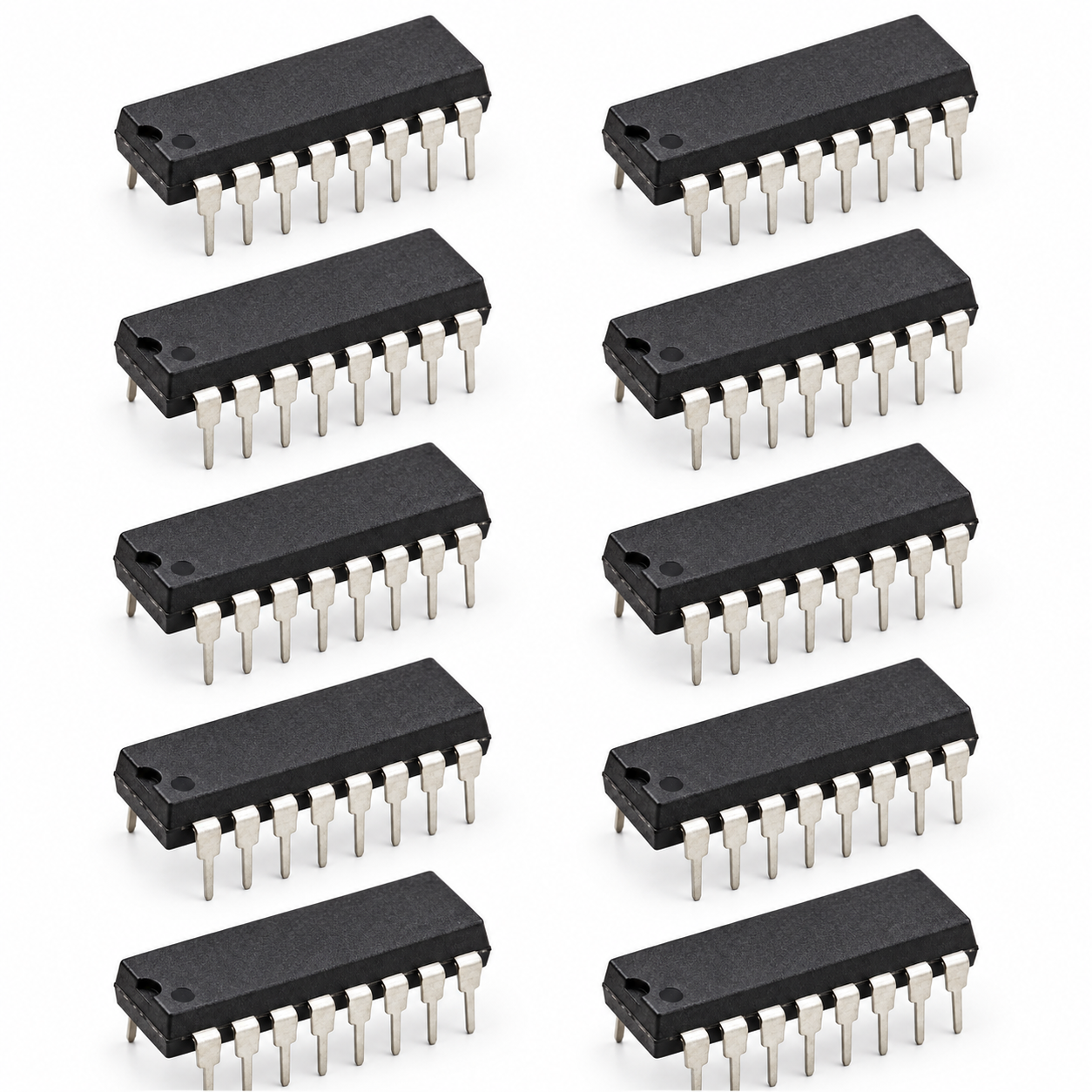

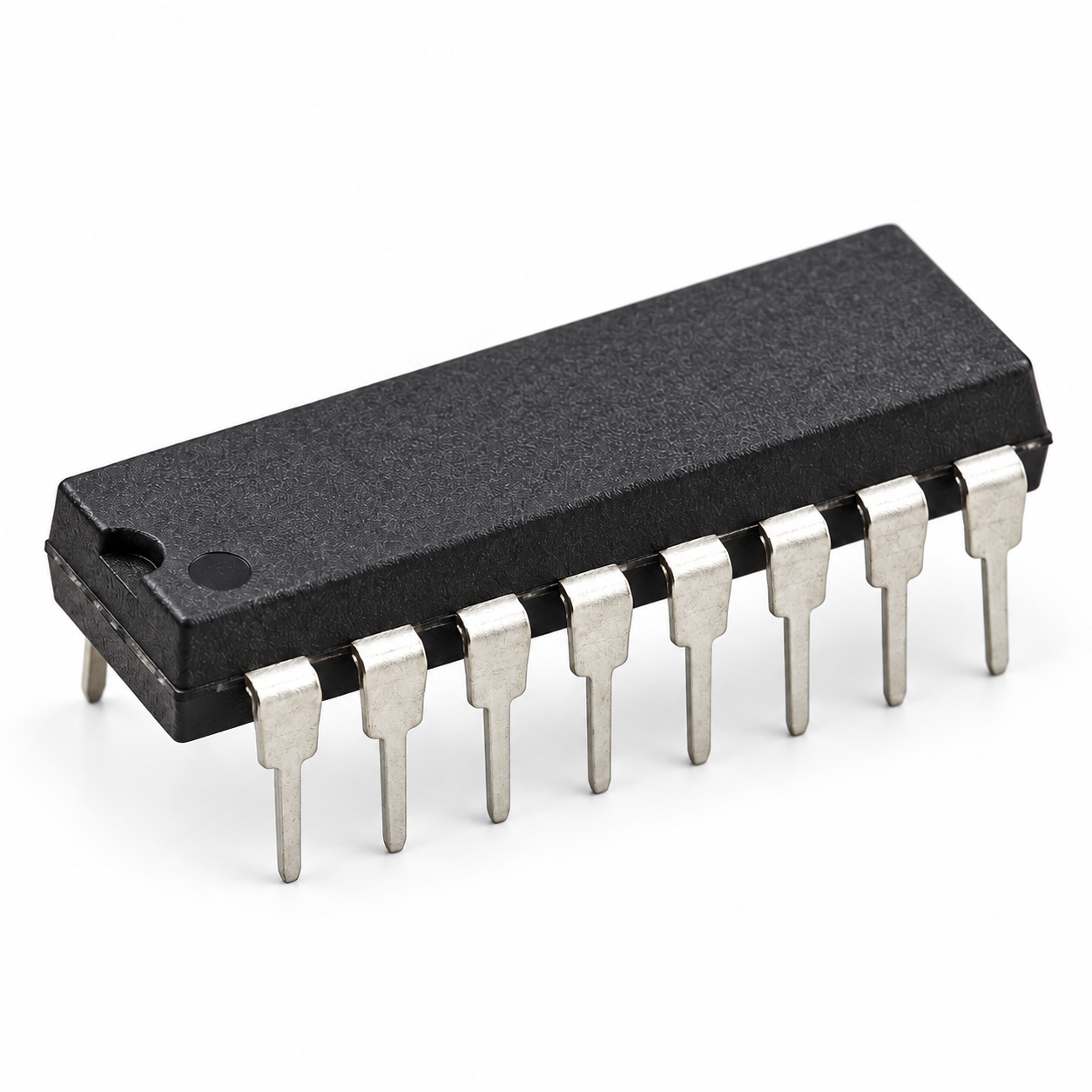

This is a pack of 10 74LS47 BCD-to-7-segment decoder/driver ICs. Each 16-pin chip converts a 4-bit BCD input into segment signals for a common-anode 7-segment LED display, using active-low open-collector outputs with lamp-test, blanking and zero-suppression functions. They run from 5 V (4.75–5.25 V) and need external current-limiting resistors for the segments.

Key Features

  • Converts 4-bit BCD input to 7-segment drive signals
  • Drives common-anode 7-segment LED displays
  • Active-low, open-collector outputs (15 V out per title)
  • Lamp-test, blanking and zero-suppression functions
  • Runs from a 5 V supply (4.75–5.25 V)
  • Pack of 10

Specifications

Part number 74LS47
Function BCD-to-7-Segment Decoder/Driver
Pins 16
Supply voltage 5 V (4.75–5.25 V)
Display type Common-anode 7-segment LED
Outputs Active-low, open-collector (15 V per title)
Control functions Lamp test, blanking, zero suppression
Quantity 10 ICs
SKU 1074LS47PK10

What's Included

  • 10 × 74LS47 BCD-to-7-Segment Decoder/Driver IC

What You'll Need (Sold Separately)

  • Current-limiting resistors for LED segments
  • Common-anode 7-segment display

Ideal For

Building counters, clocks and numeric displays with common-anode 7-segment LEDs.

Frequently Asked Questions

Will it work with a common-cathode display?
The listing specifies it for common-anode 7-segment LED displays, since its outputs pull the segments low.

Do I need resistors?
Yes. External current-limiting resistors are required for the LED segments.

What is BCD?
Binary-coded decimal uses 4 bits to represent each decimal digit 0–9; the 74LS47 turns that code into the segments needed to show the digit.
