74LS90 Decade Counter IC, 14-Pin, BCD Output, Divide-by-2 and Divide-by-5, 5V TTL

1074LS90
Regular price
$1.80
Sale price
$1.80
Regular price
$1.70
Sold out
Unit price
per
Shipping calculated at checkout.

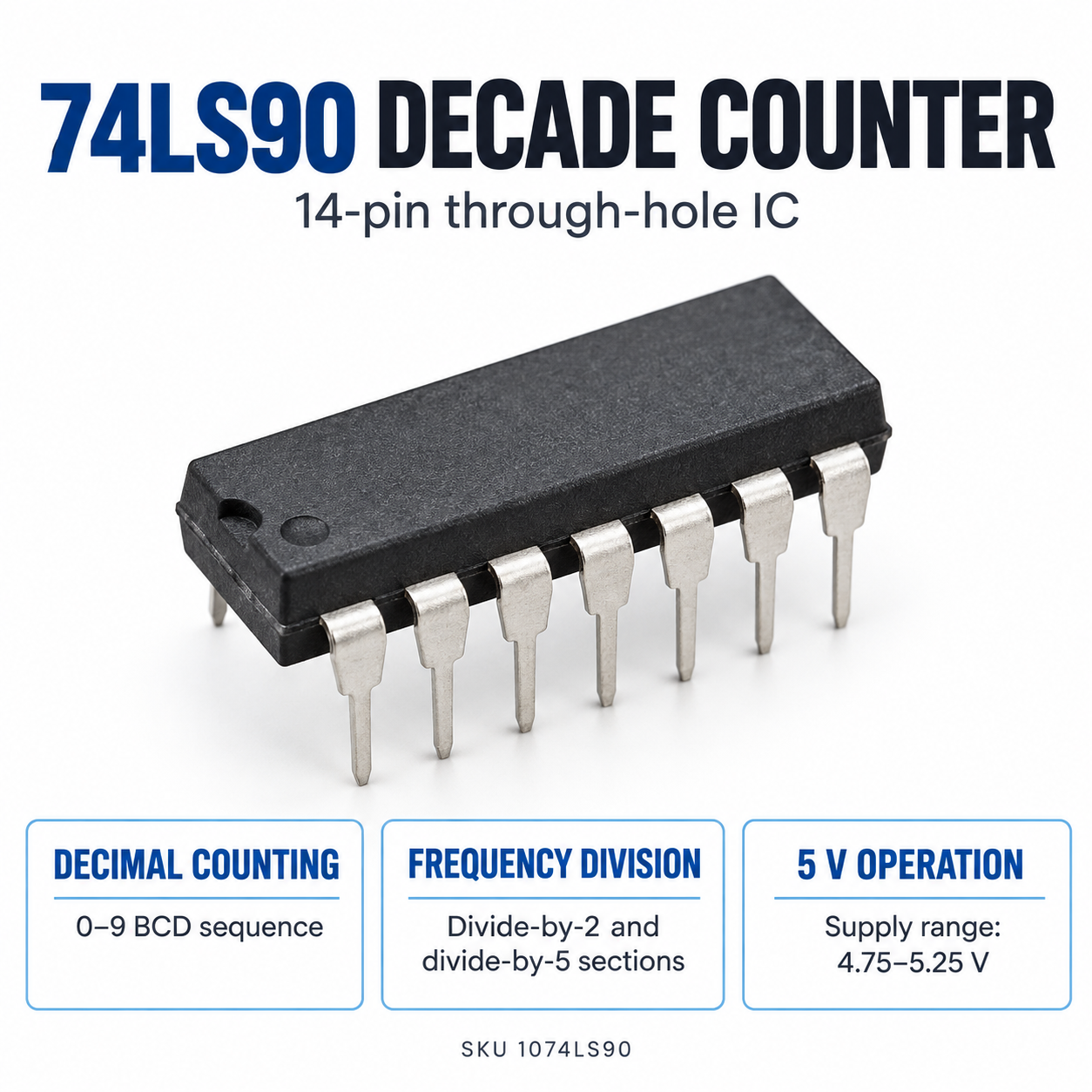

The 74LS90 is a 14-pin decade counter IC that can be wired to count from 0 to 9 with binary-coded decimal (BCD) outputs. Separate divide-by-2 and divide-by-5 sections allow flexible counting, and reset-to-zero and set-to-nine inputs simplify control. It runs from 5 V (4.75–5.25 V).

Key Features

  • Counts 0–9 with BCD outputs
  • Separate divide-by-2 and divide-by-5 sections
  • Reset-to-zero and set-to-nine inputs
  • Runs from a 5 V supply (4.75–5.25 V)
  • For pulse counters, frequency dividers and clock circuits

Specifications

Part number 74LS90
Function Decade Counter
Pins 14
Supply voltage 5 V (4.75–5.25 V)
Count range 0–9 (BCD outputs)
Sections Divide-by-2 and divide-by-5
Control inputs Reset to zero, set to nine
Quantity 1 IC
SKU 1074LS90

What's Included

  • 1 × 74LS90 Decade Counter IC

Ideal For

Students and hobbyists building pulse counters, digital clocks and frequency dividers.

Frequently Asked Questions

How do I get a 0–9 count?
The divide-by-2 and divide-by-5 sections are separate; they are connected together to form a full divide-by-10 (decade) counter with BCD outputs.

Can I use it as a frequency divider?
Yes. Its divide-by-2, divide-by-5 and divide-by-10 configurations are commonly used to divide down a clock or pulse frequency.
