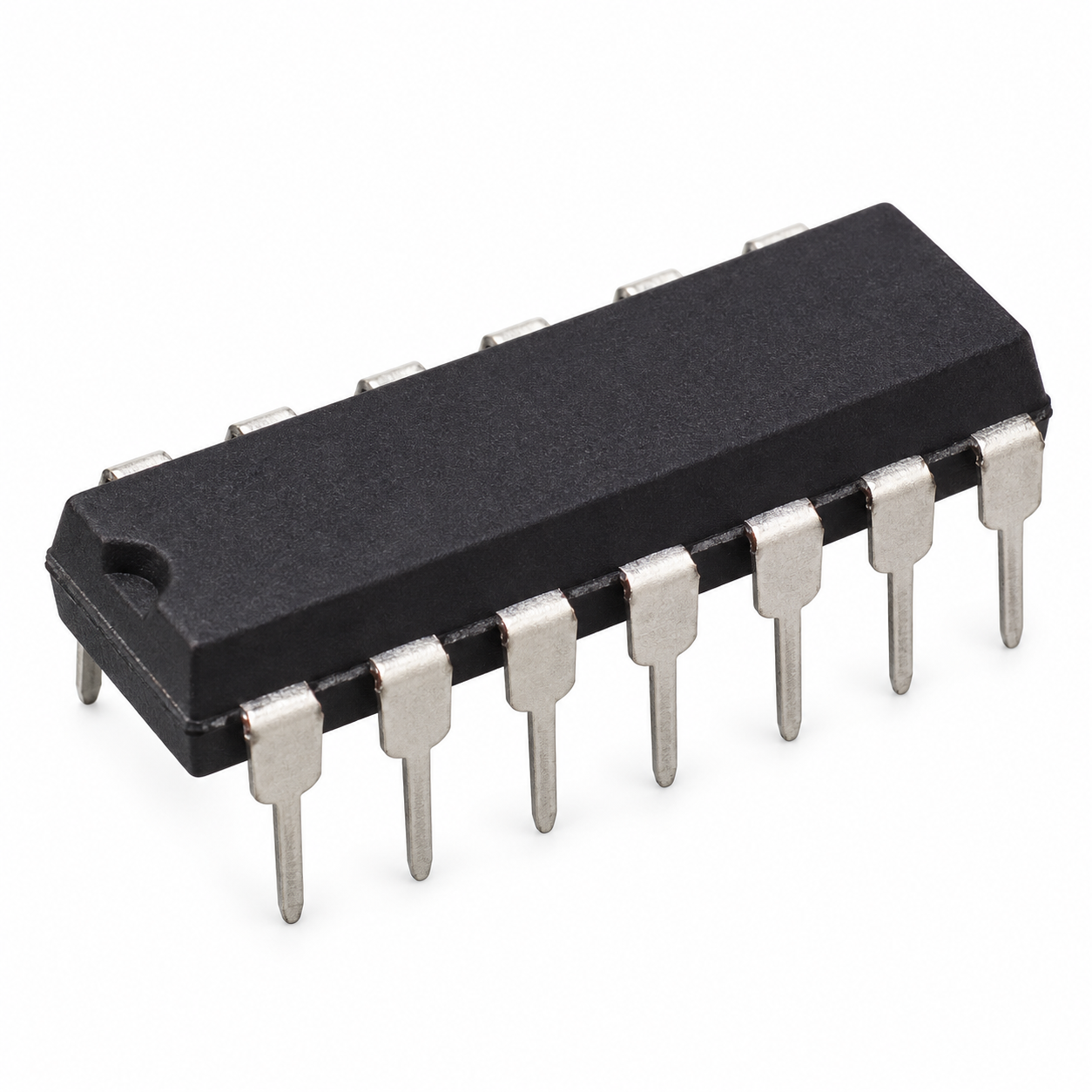

The 74LS08 is a quad 2-input AND gate IC. The 14-pin chip contains four independent AND gates, and each outputs HIGH only when both of its inputs are HIGH. It runs from a 5V supply (4.75V to 5.25V).
Key Features
- Four independent 2-input AND gates
- Output HIGH only when both inputs are HIGH
- 5V supply (4.75V to 5.25V)
- 14-pin package
Specifications
| Part number | 74LS08 |
|---|---|
| Function | Quad 2-input AND gate |
| Gates | 4 |
| Pins | 14 |
| Supply voltage | 5V (4.75V to 5.25V) |
| SKU | 1074LS08 |
What's Included
- 1 x 74LS08 IC
Ideal For
Signal gating, logic control and digital electronics lessons.
Frequently Asked Questions
What does an AND gate do?
Its output is HIGH only when every input is HIGH.
What does LS mean?
Low-power Schottky, a 5V TTL logic family.
