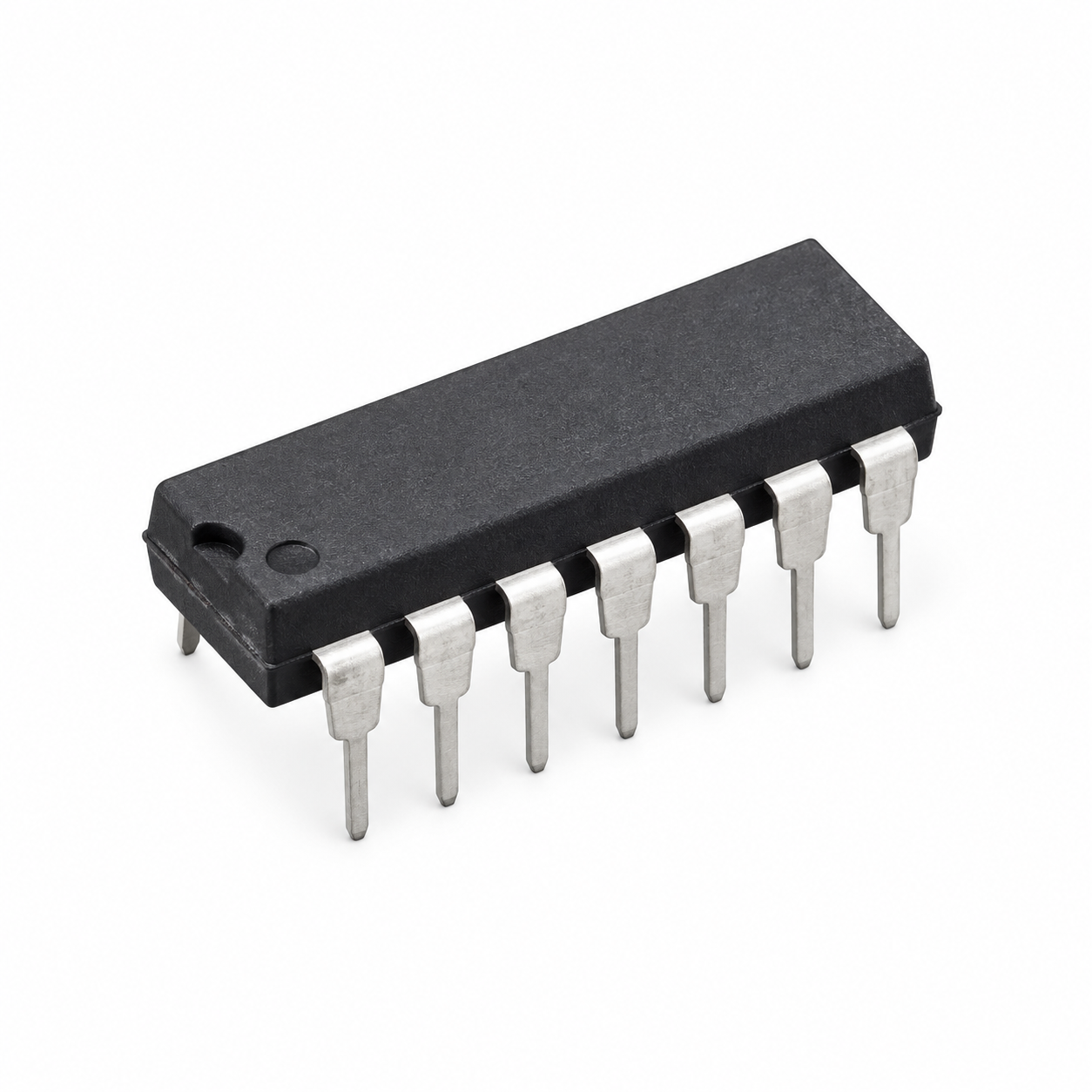

The 74LS02 is a quad 2-input NOR gate IC. Each 14-pin chip contains four independent NOR gates, and each gate outputs HIGH only when both of its inputs are LOW. It runs from a 5V supply (4.75V to 5.25V).
Key Features
- Four independent 2-input NOR gates
- Output HIGH only when both inputs are LOW
- 5V supply (4.75V to 5.25V)
- 14-pin package
Specifications
| Part number | 74LS02 |
|---|---|
| Function | Quad 2-input NOR gate |
| Gates | 4 |
| Pins | 14 |
| Supply voltage | 5V (4.75V to 5.25V) |
| SKU | 1074LS02 |
What's Included
- 1 x 74LS02 IC
Ideal For
Digital logic classes, prototyping and simple control circuits.
Frequently Asked Questions
Why is NOR called a universal gate?
Any other logic function, including AND, OR and NOT, can be built from NOR gates alone.
Can I run it on 3.3V?
No. The listing specifies 4.75V to 5.25V.
