10 Pack 74LS02 Quad 2-Input NOR Gate Logic IC, 14-Pin, 5V

1074LS02PK10
Regular price
$5.50
Sale price
$5.50
Regular price
$4.50
Sold out
Unit price
per
Shipping calculated at checkout.

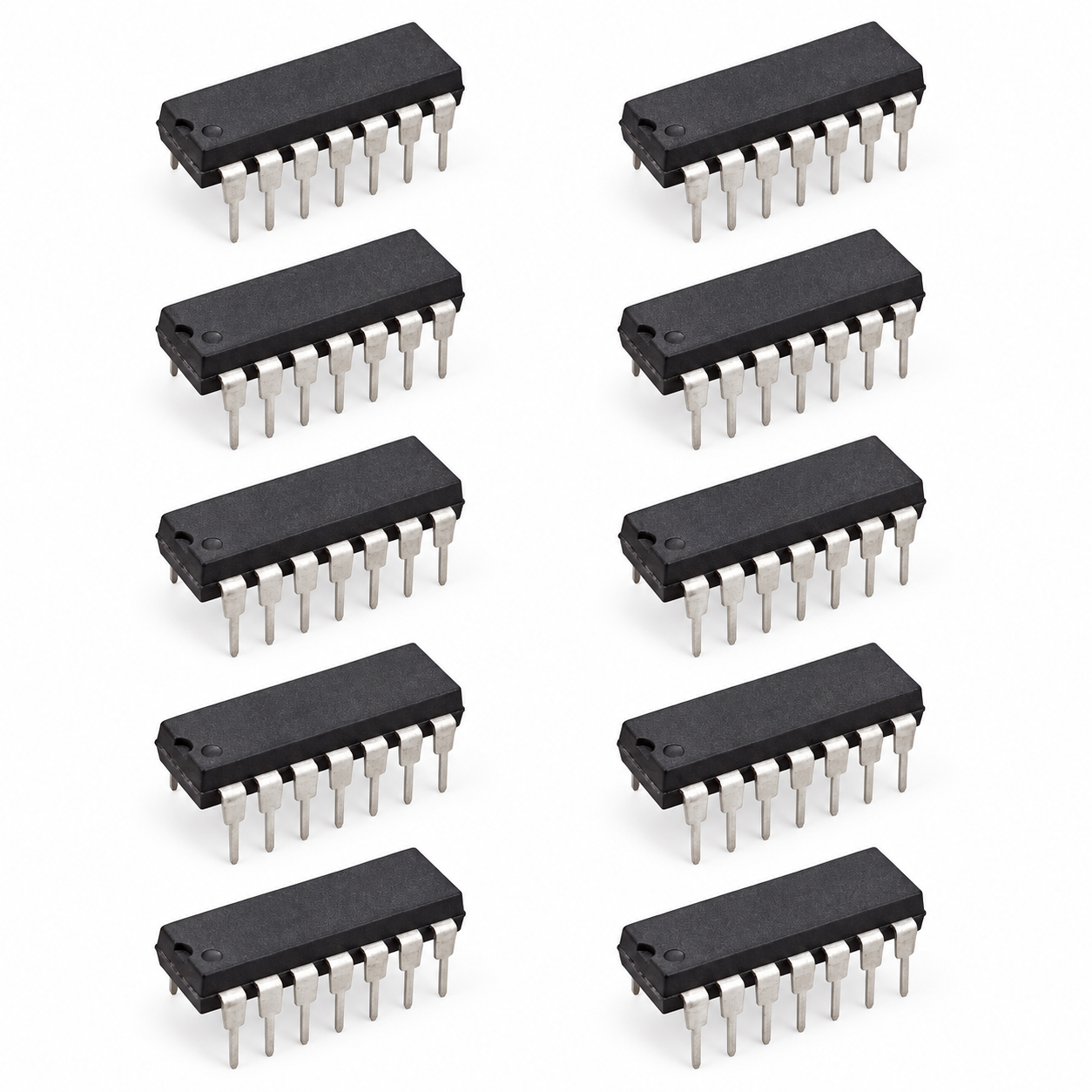

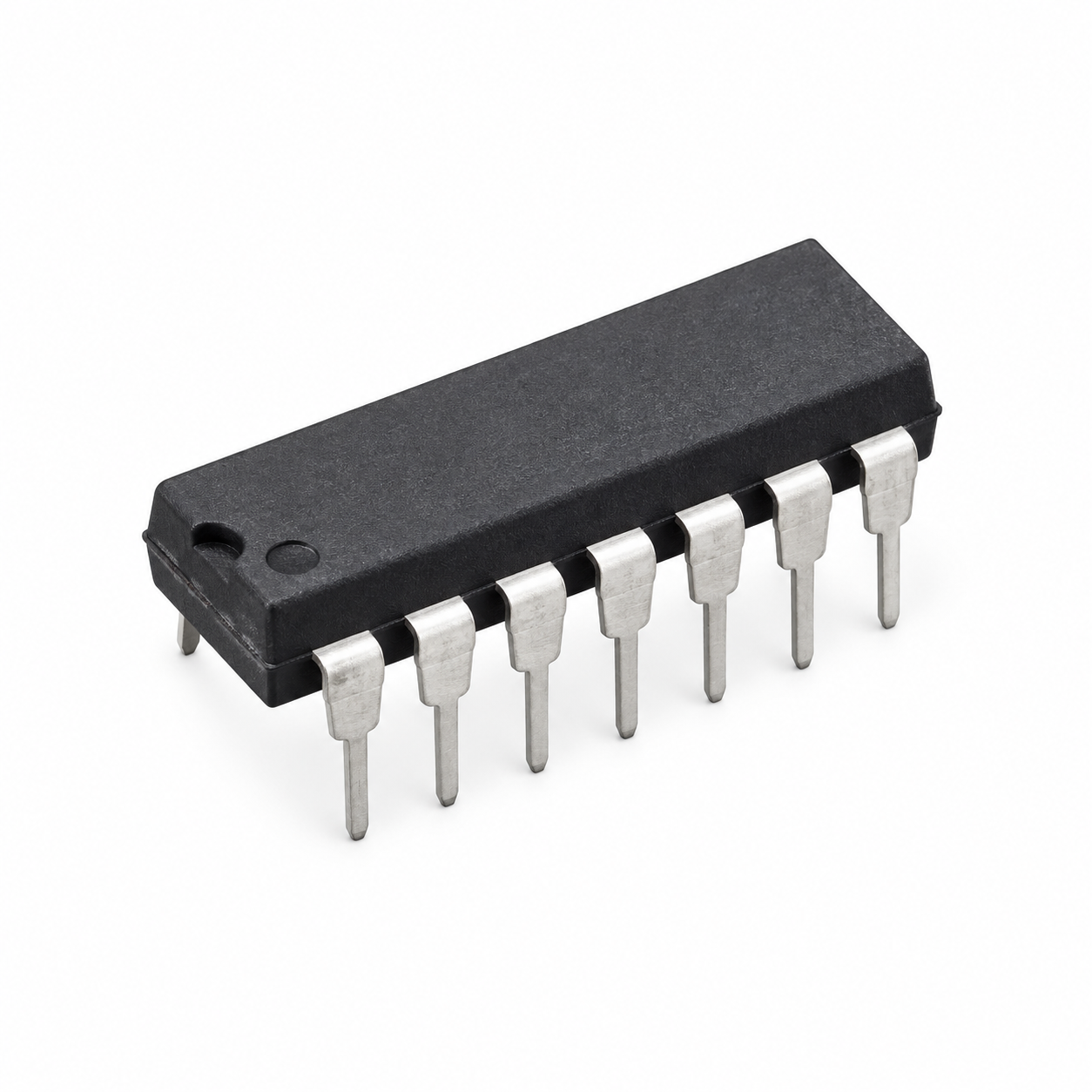

This is a pack of ten 74LS02 quad 2-input NOR gate ICs. Each 14-pin chip contains four independent NOR gates, and each gate outputs HIGH only when both of its inputs are LOW. It runs from a 5V supply (4.75V to 5.25V).

Key Features

  • Four independent 2-input NOR gates
  • Output HIGH only when both inputs are LOW
  • 5V supply (4.75V to 5.25V)

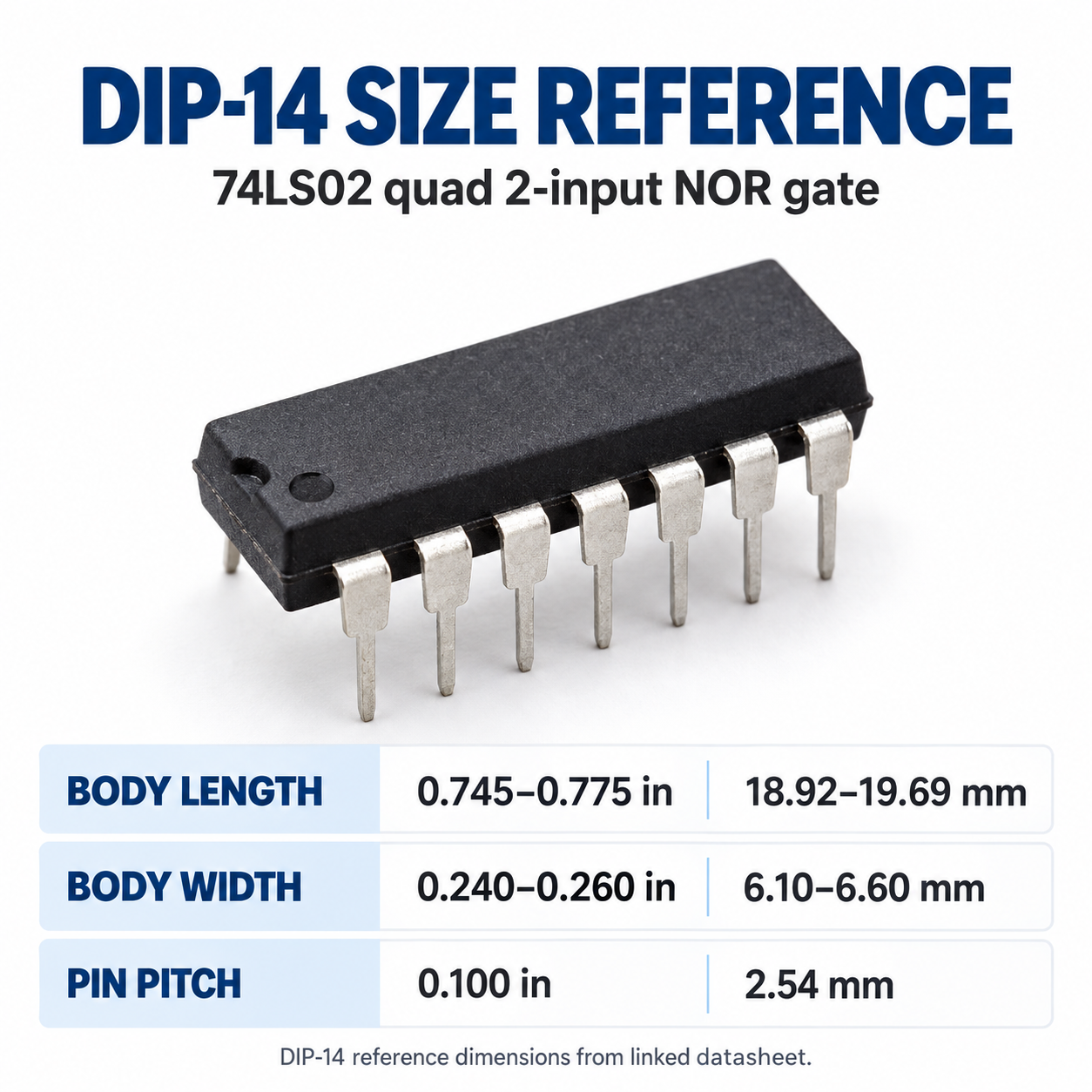

  • 14-pin package
  • Pack of 10

Specifications

Part number 74LS02
Function Quad 2-input NOR gate
Gates 4
Pins 14
Supply voltage 5V (4.75V to 5.25V)
Quantity 10
SKU 1074LS02PK10

What's Included

  • 10 x 74LS02 ICs

Ideal For

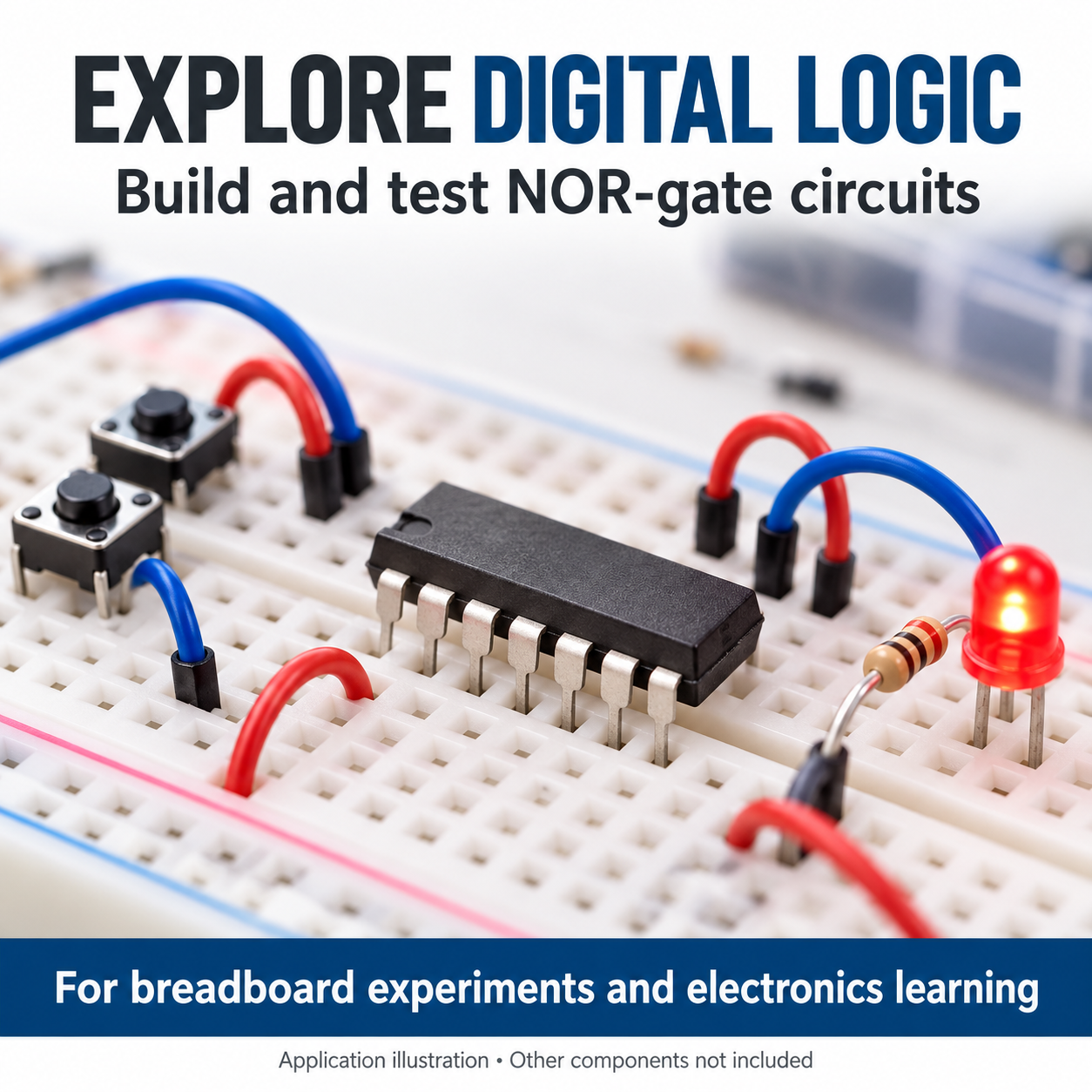

Digital logic classes, prototyping and simple control circuits.

Frequently Asked Questions

Why is NOR called a universal gate?
Any other logic function, including AND, OR and NOT, can be built from NOR gates alone.

Can I run it on 3.3V?
No. The listing specifies 4.75V to 5.25V.
