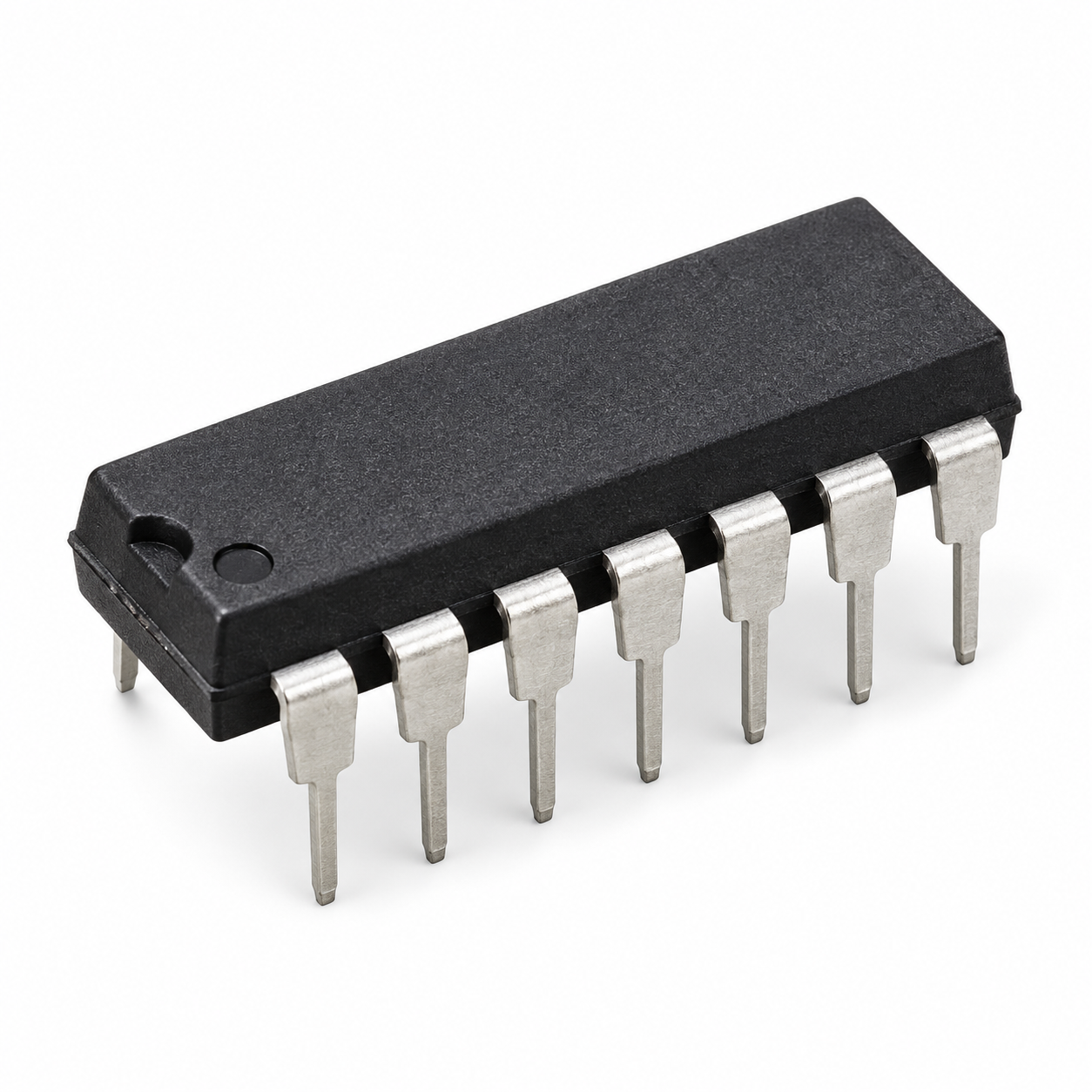

The 74LS32 is a 14-pin quad 2-input OR gate IC containing four independent OR gates. Each output goes HIGH when either or both inputs are HIGH. It runs from a 5 V supply (4.75–5.25 V) and is a common choice for prototyping, teaching and DIY electronics.

Key Features

  • Four independent 2-input OR gates in one 14-pin package
  • Output is HIGH when either or both inputs are HIGH
  • Runs from a 5 V supply (4.75–5.25 V)
  • Combines digital signals with a single component

Specifications

Part number 74LS32
Function Quad 2-Input OR Gate
Pins 14
Supply voltage 5 V (4.75–5.25 V)
Gates per chip 4
Quantity 1 IC
SKU 1074LS32

What's Included

  • 1 × 74LS32 Quad 2-Input OR Gate IC

Ideal For

Students, hobbyists and makers building digital logic circuits on a breadboard or PCB.

Frequently Asked Questions

What does an OR gate do?
Its output is HIGH when at least one input is HIGH, and LOW only when both inputs are LOW. The 74LS32 has four of these gates.

What does "positive OR" mean?
It means the gate performs the OR function when HIGH is treated as logic 1 (positive logic), the usual convention.
