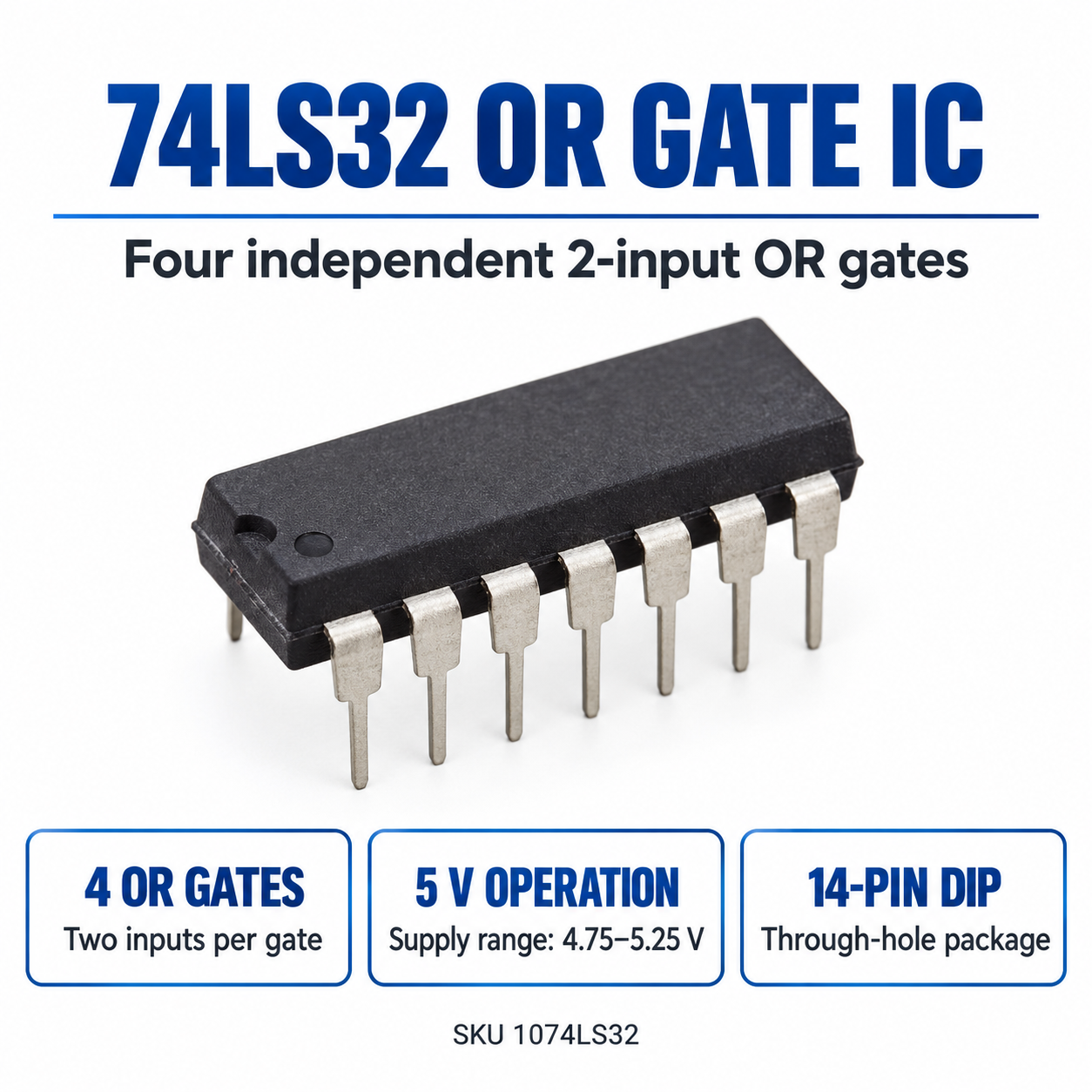

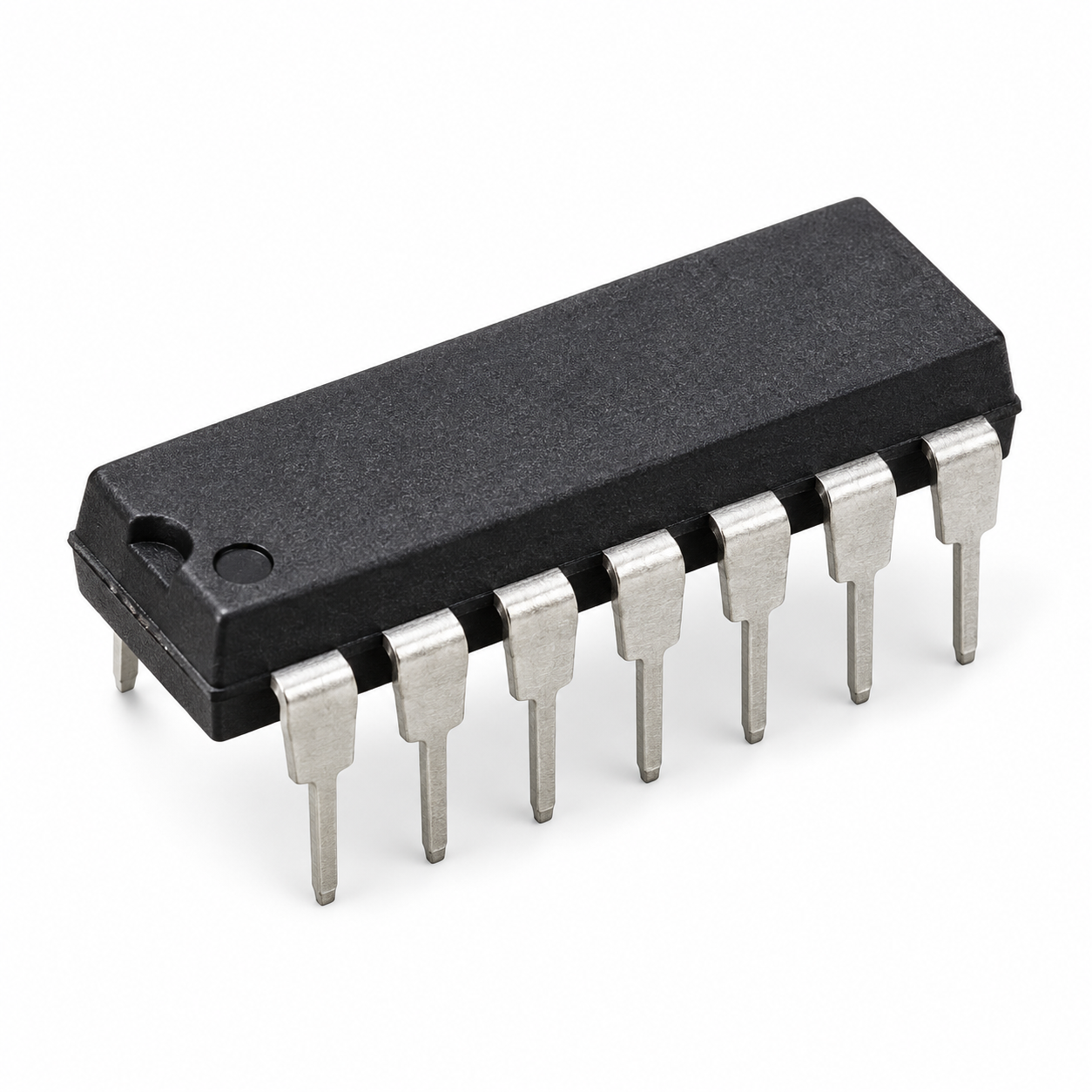

This is a pack of 10 74LS32 quad 2-input OR gate ICs. Each 14-pin chip holds four independent OR gates whose output goes HIGH when either or both inputs are HIGH. They run from 5 V (4.75–5.25 V) and suit prototyping, classroom labs and DIY projects.
Key Features
- Four independent 2-input OR gates in one 14-pin package
- Output is HIGH when either or both inputs are HIGH
- Runs from a 5 V supply (4.75–5.25 V)
- Combines digital signals with a single component
- Pack of 10
Specifications
| Part number | 74LS32 |
|---|---|
| Function | Quad 2-Input OR Gate |

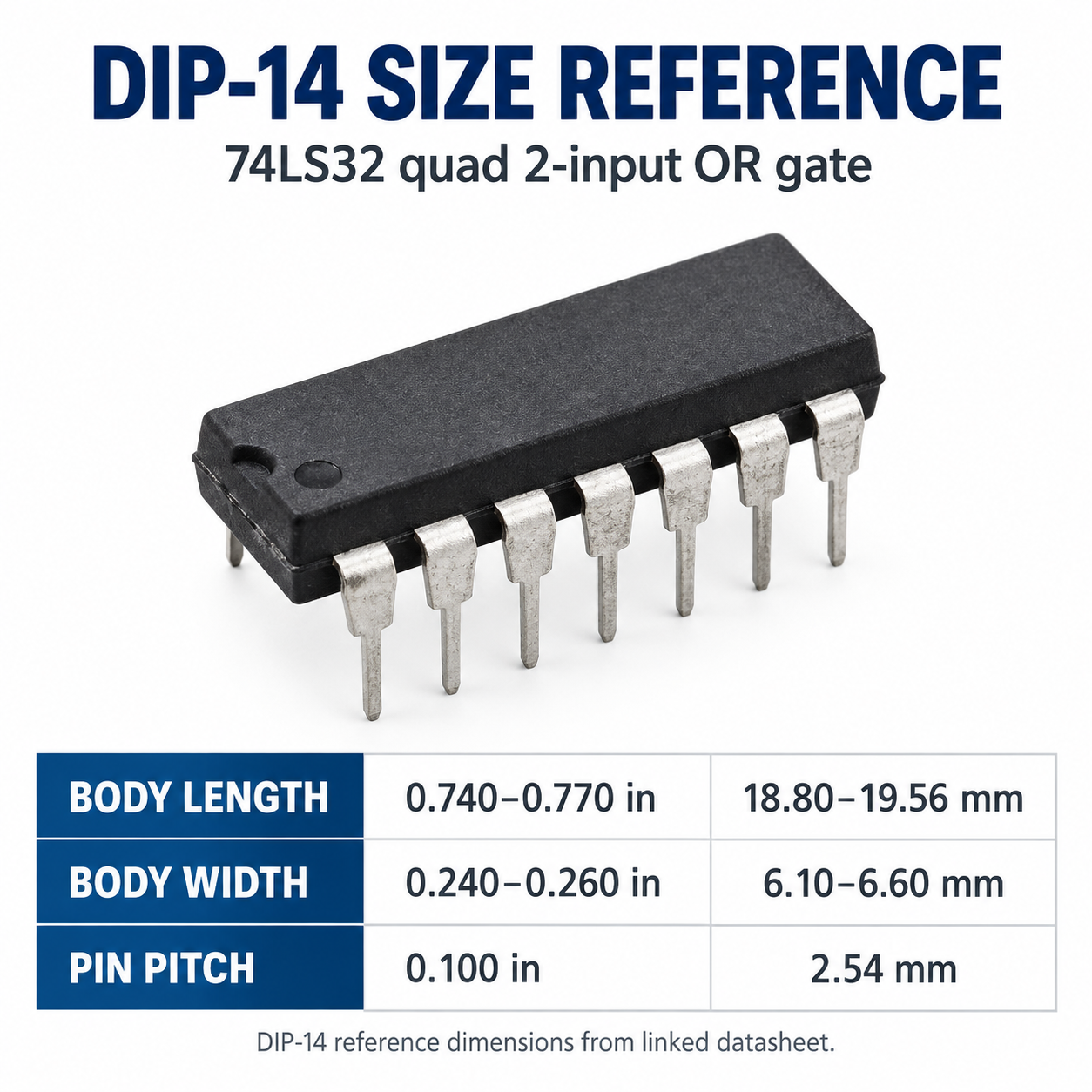

| Pins | 14 |
| Supply voltage | 5 V (4.75–5.25 V) |
| Gates per chip | 4 |
| Quantity | 10 ICs |
| SKU | 1074LS32PK10 |
What's Included

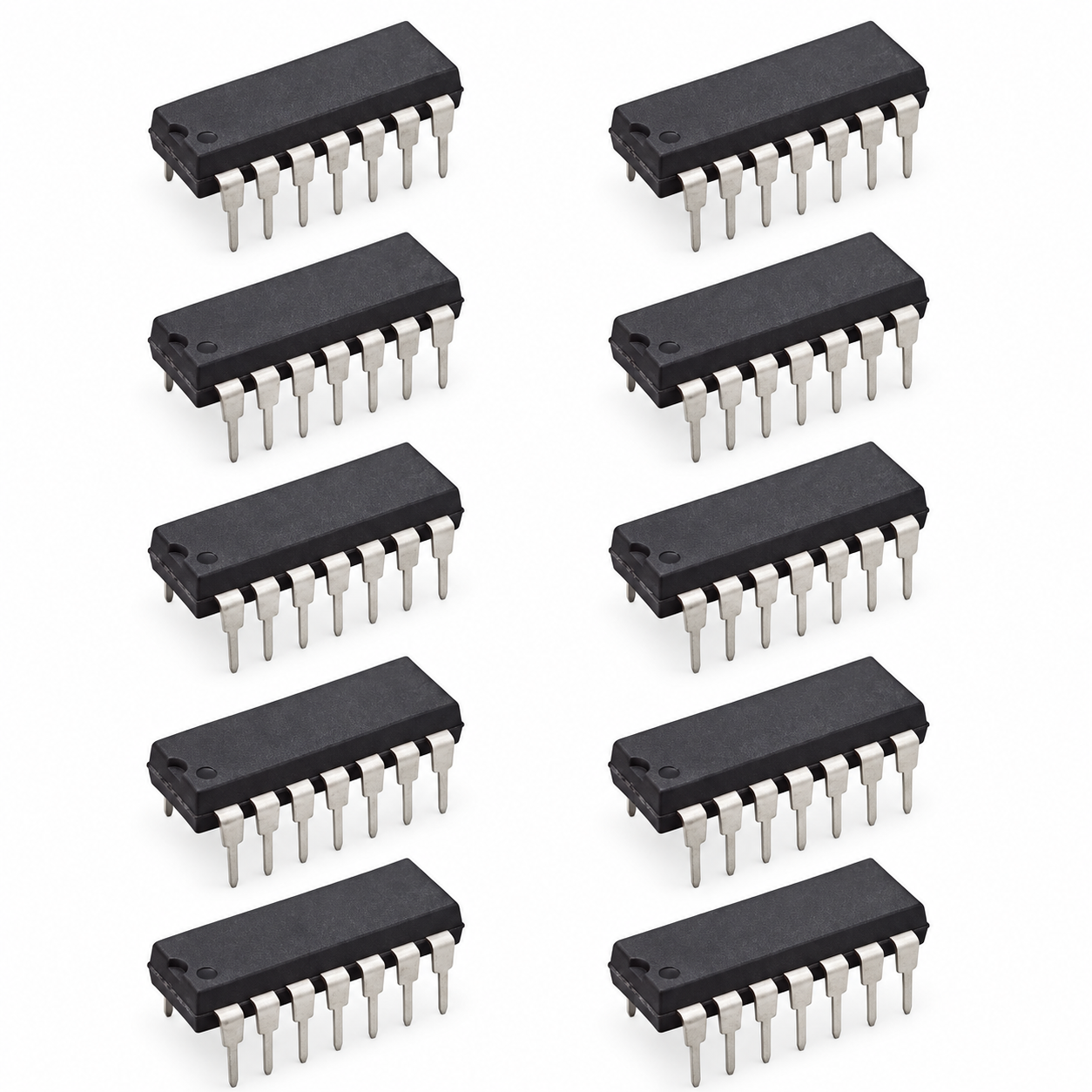

- 10 × 74LS32 Quad 2-Input OR Gate IC
Ideal For

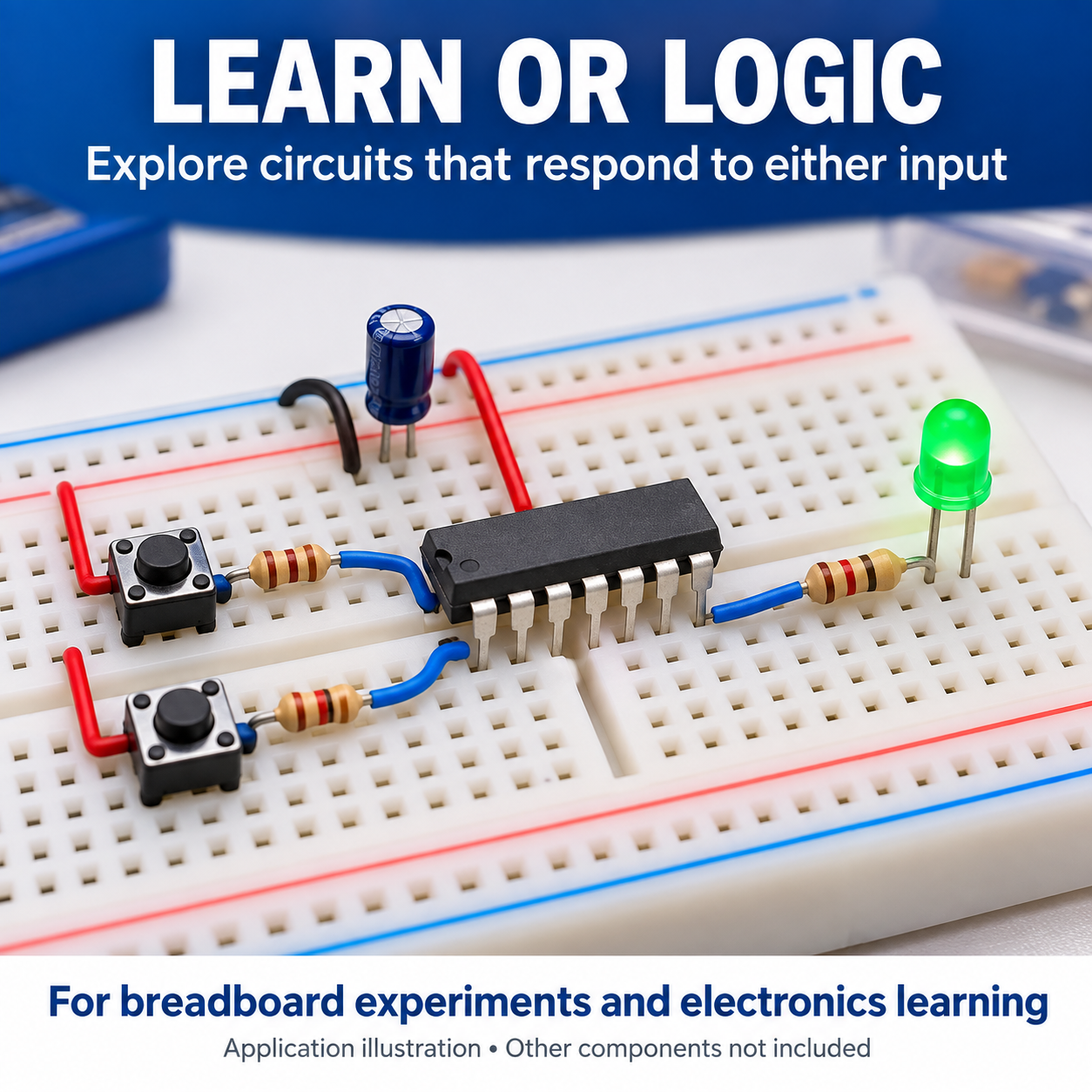

Students, hobbyists and makers building digital logic circuits on a breadboard or PCB.
Frequently Asked Questions
What does an OR gate do?
Its output is HIGH when at least one input is HIGH, and LOW only when both inputs are LOW. The 74LS32 has four of these gates.
What does "positive OR" mean?
It means the gate performs the OR function when HIGH is treated as logic 1 (positive logic), the usual convention.
