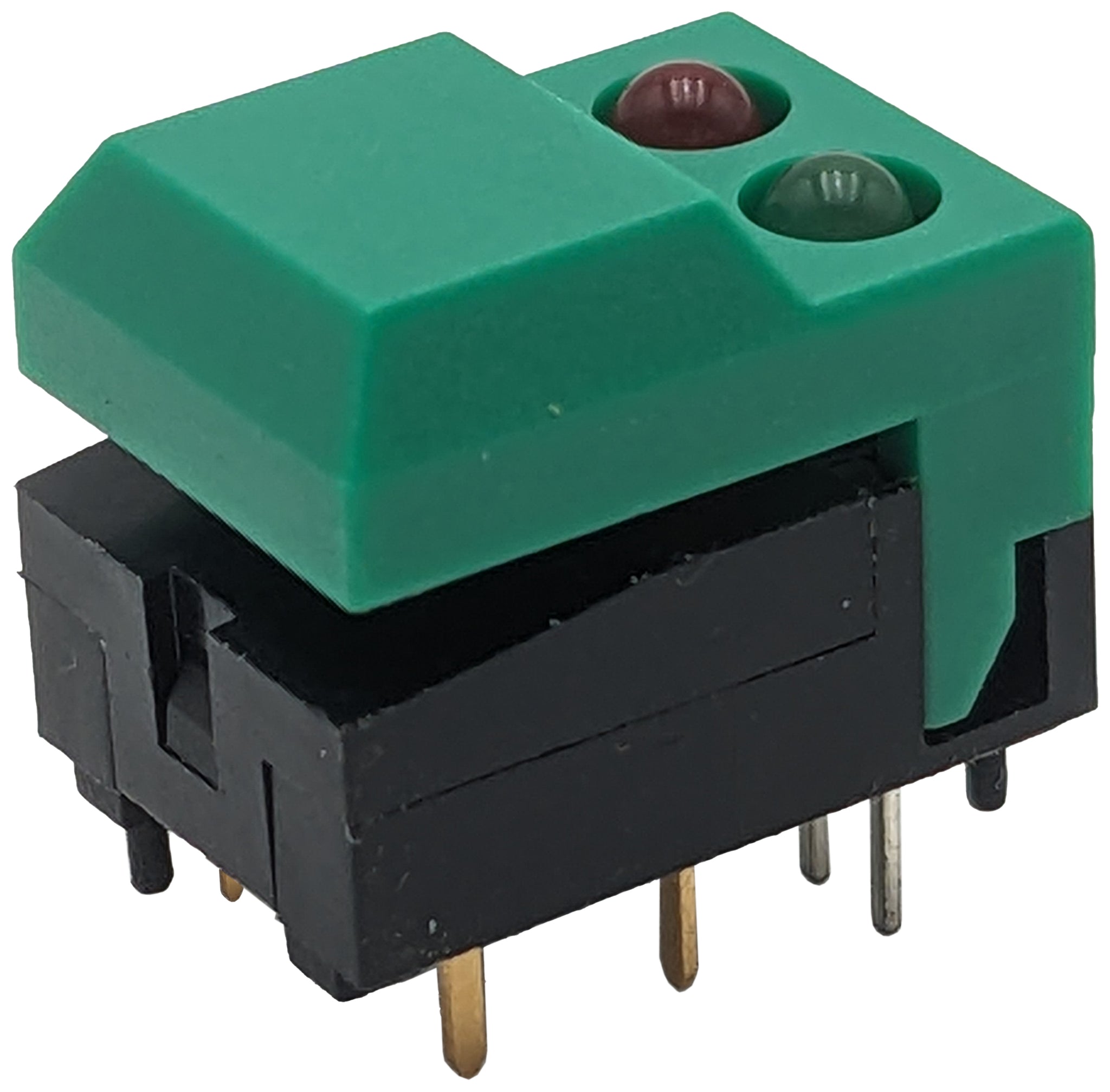

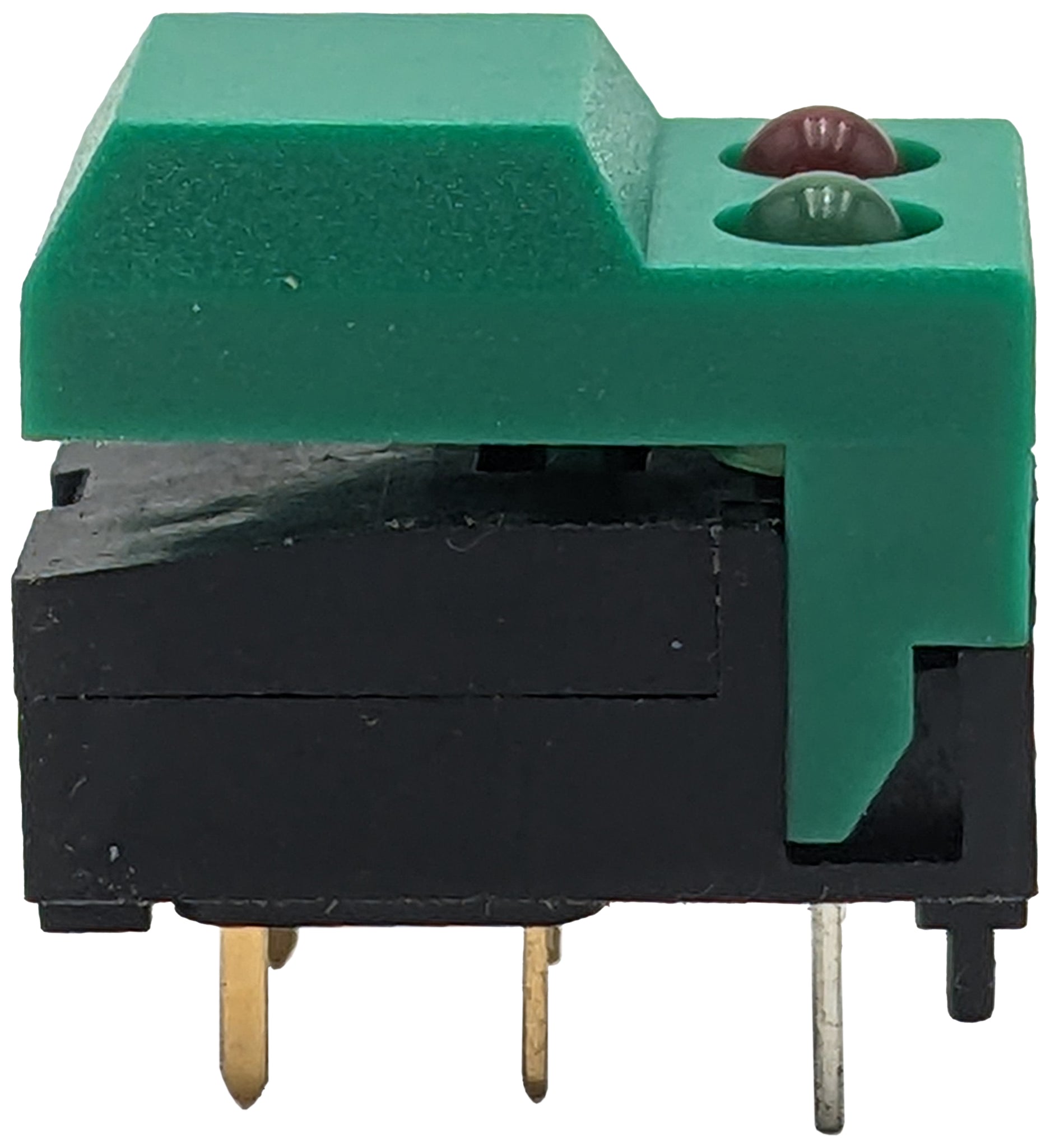

Illuminated Push Button - Green Cover - Red and Green LED
Illuminated Push Button - Green Cover - Red and Green LED
Illuminated Push Button - Green Cover - Red and Green LED
  • Load image into Gallery viewer, Illuminated Push Button - Green Cover - Red and Green LED
  • Load image into Gallery viewer, Illuminated Push Button - Green Cover - Red and Green LED
  • Load image into Gallery viewer, Illuminated Push Button - Green Cover - Red and Green LED

Illuminated Push Button - Green Cover - Red and Green LED

17PBA313
$2.15
$2.15
Sold out
Shipping calculated at checkout.
  • DIP package, SPDT switch, Miniature
  • Smooth travel with distinct click
  • Number of LED: 2
  • LED color: Red and Green
  • Cover: Green
  • Body Dimensions: 0.5" x 0.29" x 0.4" (not including pins)
  • 24VDC 50 mA (min. 1µA current acceptable)
  • Initial contact resistance: 20mΩ max (AC 200V, 5mA)
  • Static capacity 1.5 pt max (1 MHz)
