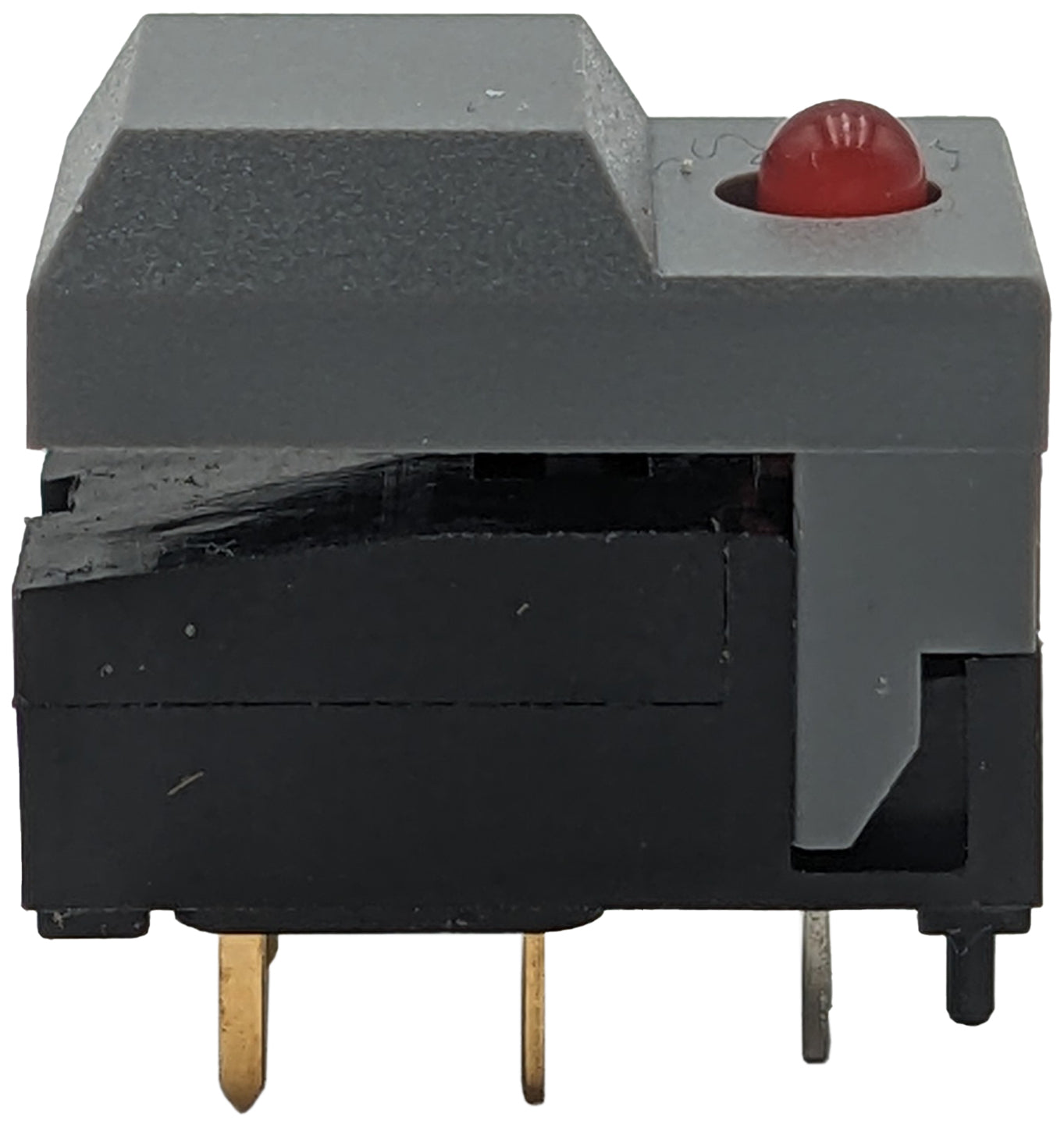

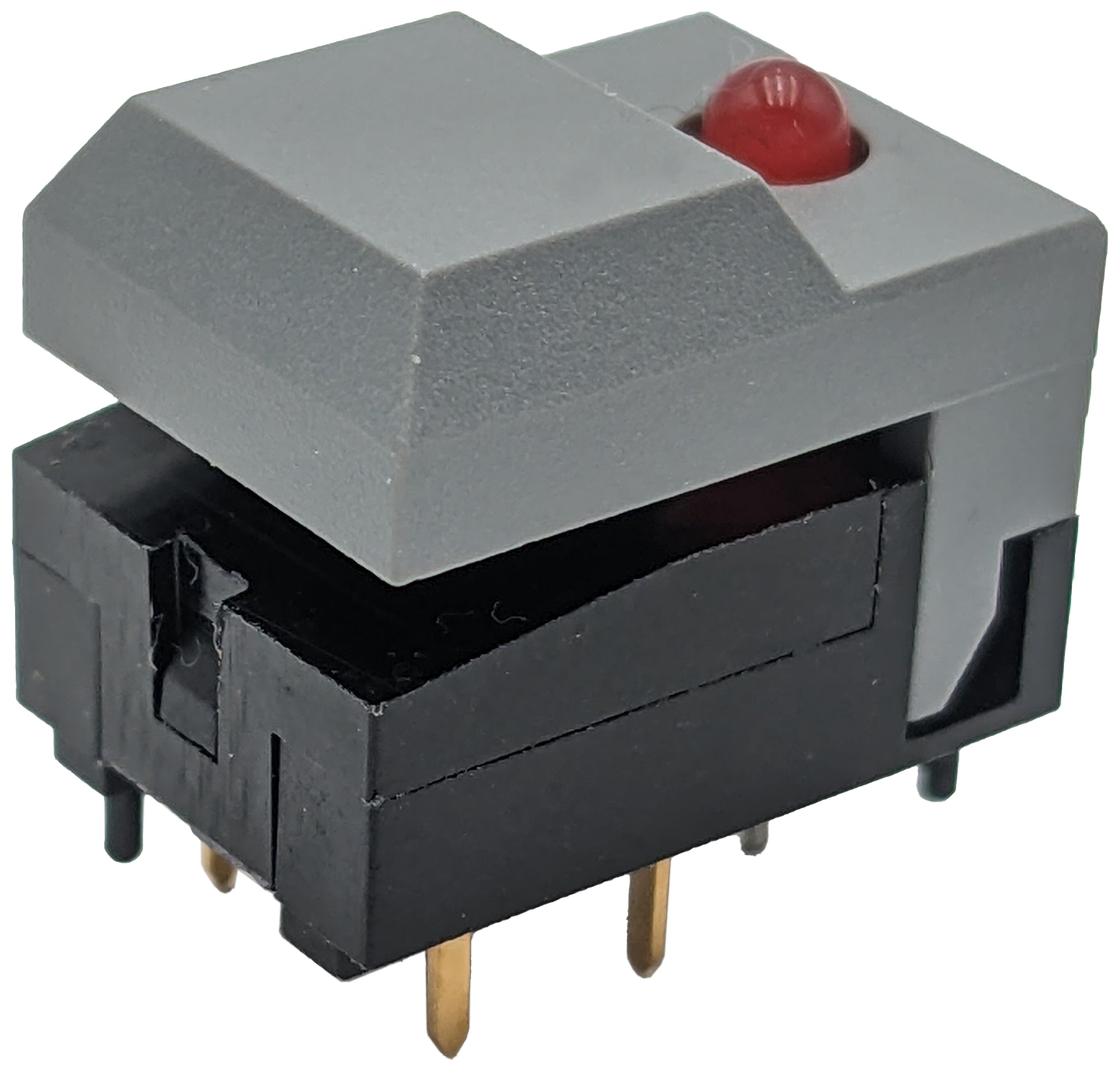

Illuminated Push Button - Grey Cover - Red LED
Illuminated Push Button - Grey Cover - Red LED
Illuminated Push Button - Grey Cover - Red LED
  • Load image into Gallery viewer, Illuminated Push Button - Grey Cover - Red LED
  • Load image into Gallery viewer, Illuminated Push Button - Grey Cover - Red LED
  • Load image into Gallery viewer, Illuminated Push Button - Grey Cover - Red LED

Illuminated Push Button - Grey Cover - Red LED

17PBA291
$1.95
$1.95
Sold out
Shipping calculated at checkout.
  • DIP package, SPDT switch, Miniature
  • Smooth travel with distinct click
  • Number of LED: 1
  • LED Color: Red
  • Cover: Grey
  • Body Dimensions: 0.5" x 0.29" x 0.4" (not including pins)
  • 24VDC 50 mA (min. 1µA current acceptable)
  • Initial contact resistance: 20mΩ max (AC 200V, 5mA)
  • Static capacity 1.5 pt max (1 MHz)
