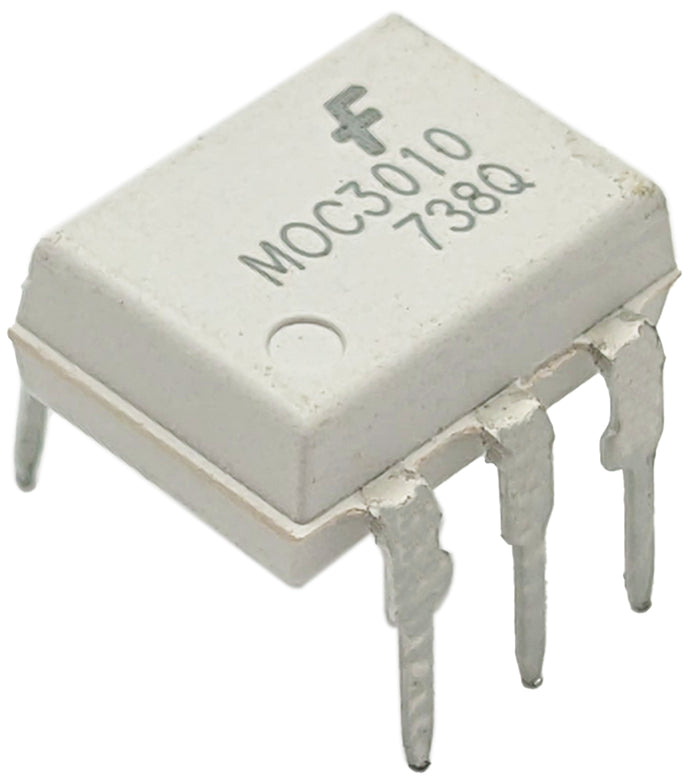

The MOC3010 Series consists of gallium arsenide infrared emitting diodes, optically coupled to silicon bilateral switch and are designed for applications requiring isolated triac triggering, low±current isolated ac switching, high electrical isolation (to 7500 Vac peak), high detector standoff voltage, small size, and low cost.
- Number of Channels: 1
- Voltage - Isolation: 5300Vrms
- Voltage - Off State: 250 V
- Current - LED Trigger (Ift) (Max): 15mA
- Current - Hold (Ih): 100µA
- Current - DC Forward (If) (Max) 50 mA
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.300", 7.62mm)
- Supplier Device Package: 6-DIP
