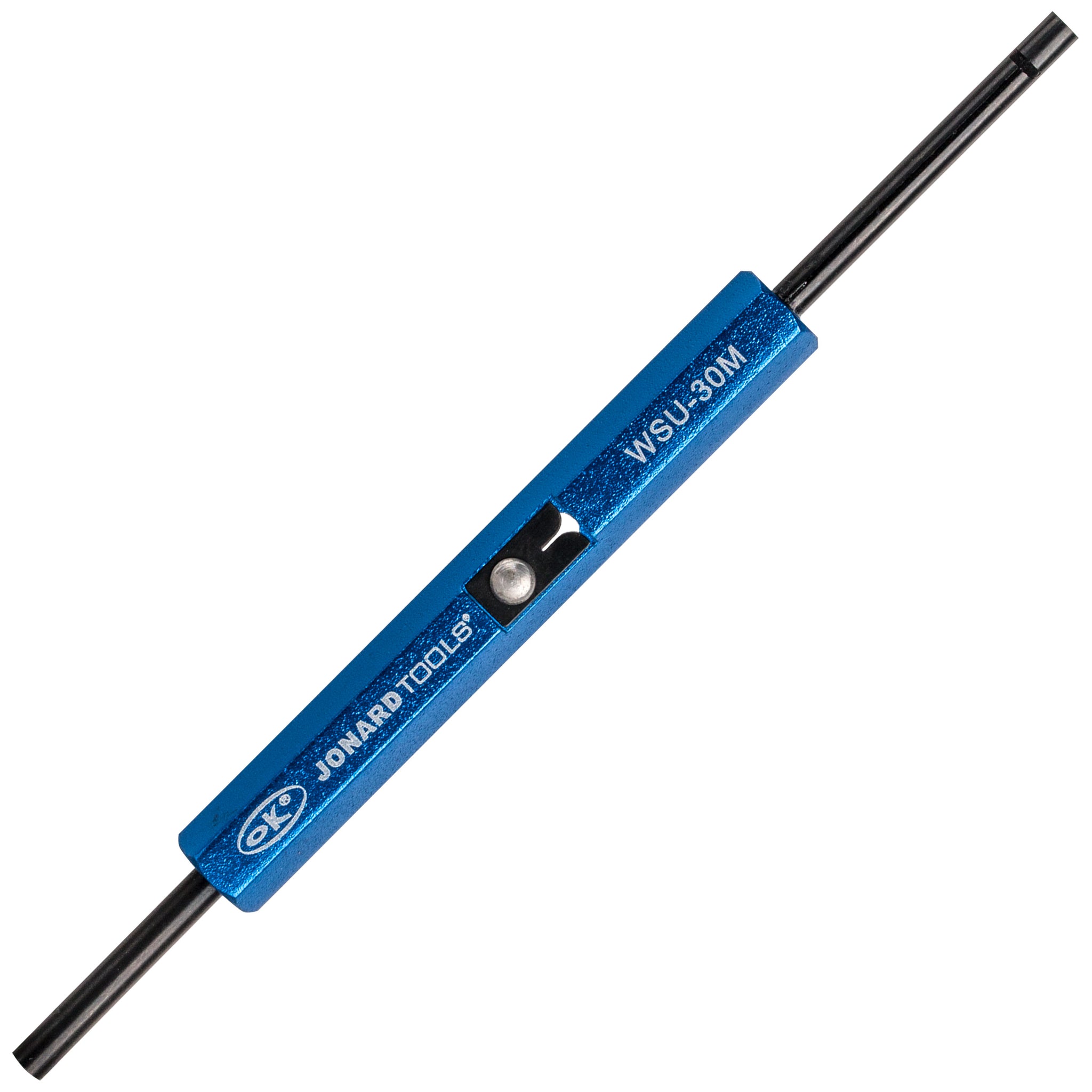

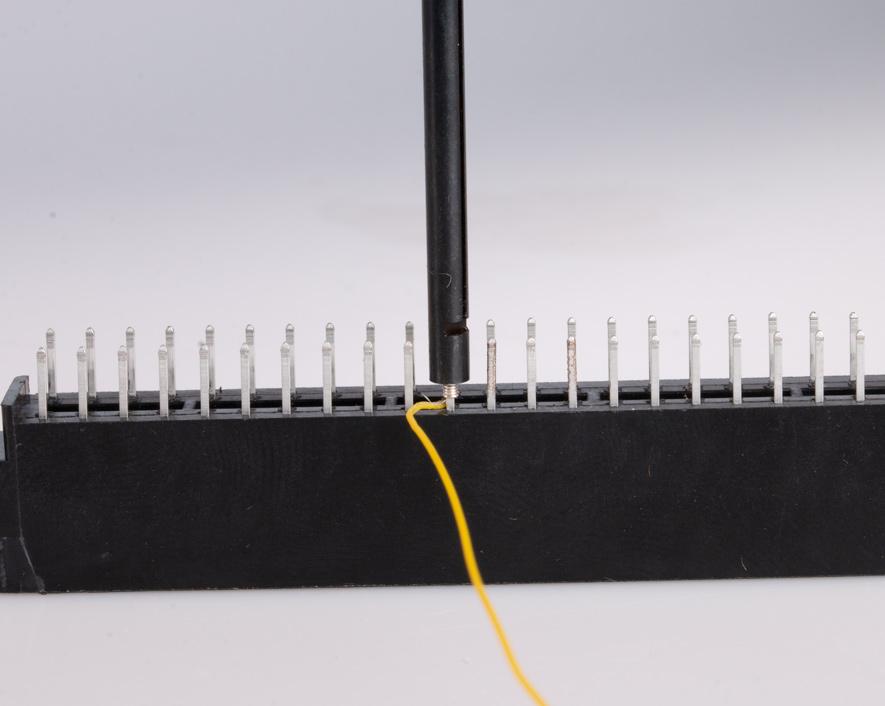

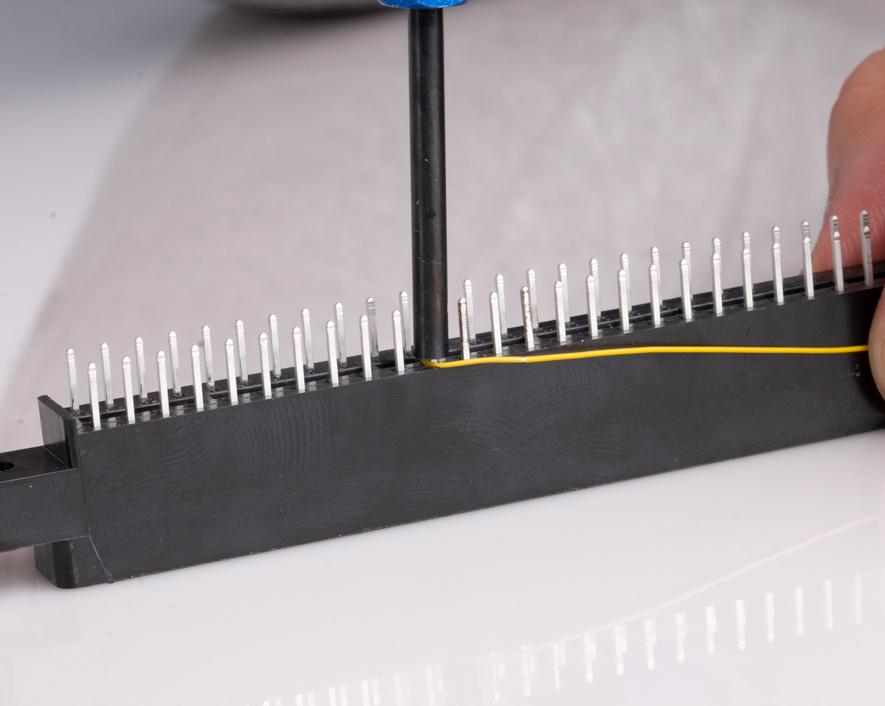

Designed to wrap, strip, and/or unwrap 30 AWG (0.25 mm) wire, this tool is perfect for quick wire service and repair applications. This tool features the following:
- For use on 0.025" (0.63 mm) square terminals on 0.100" (2.54 mm) center to center of the pins

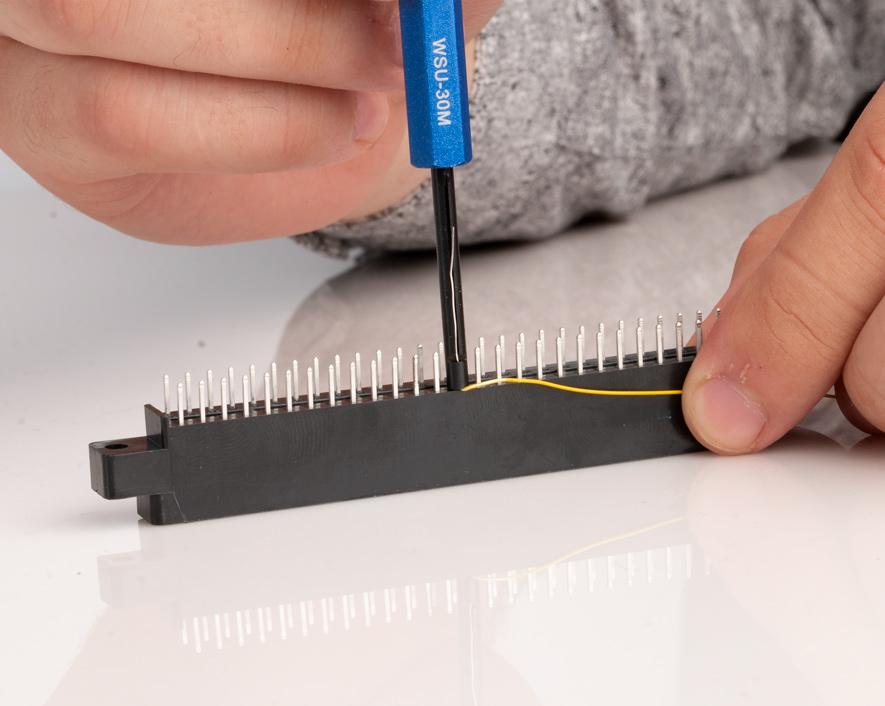

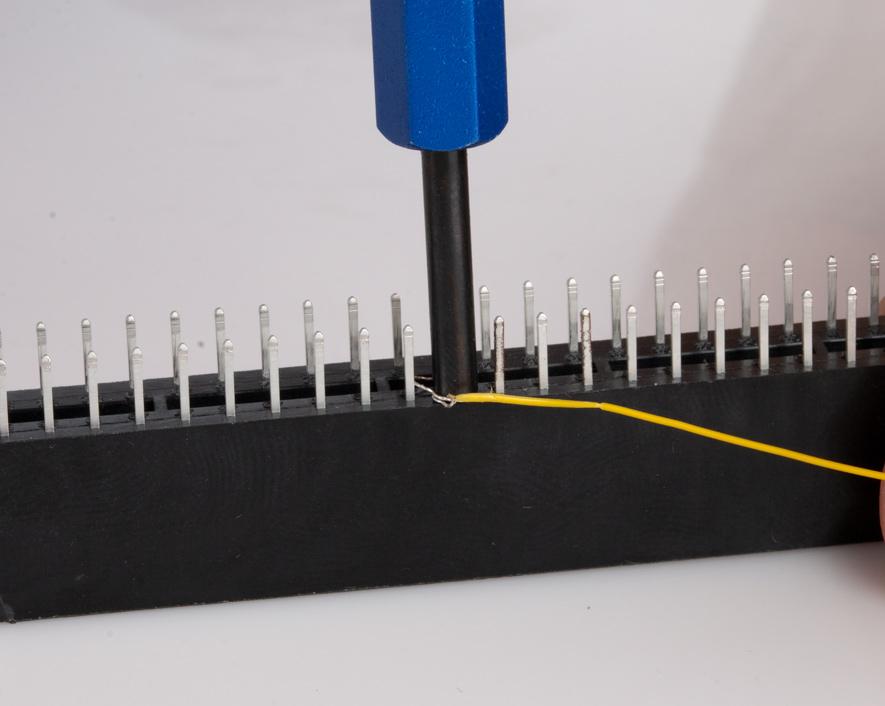

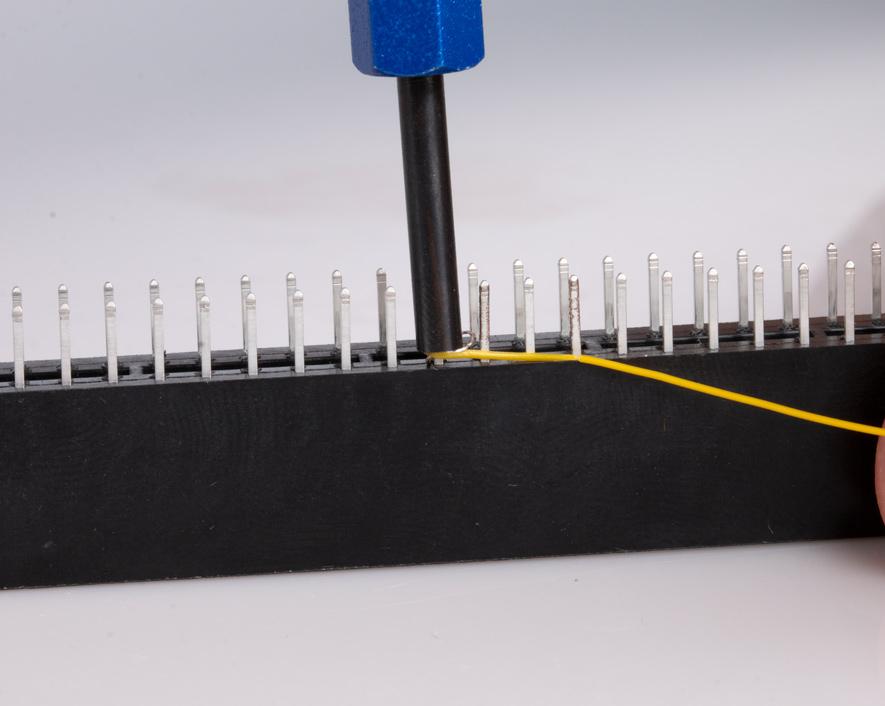

- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical

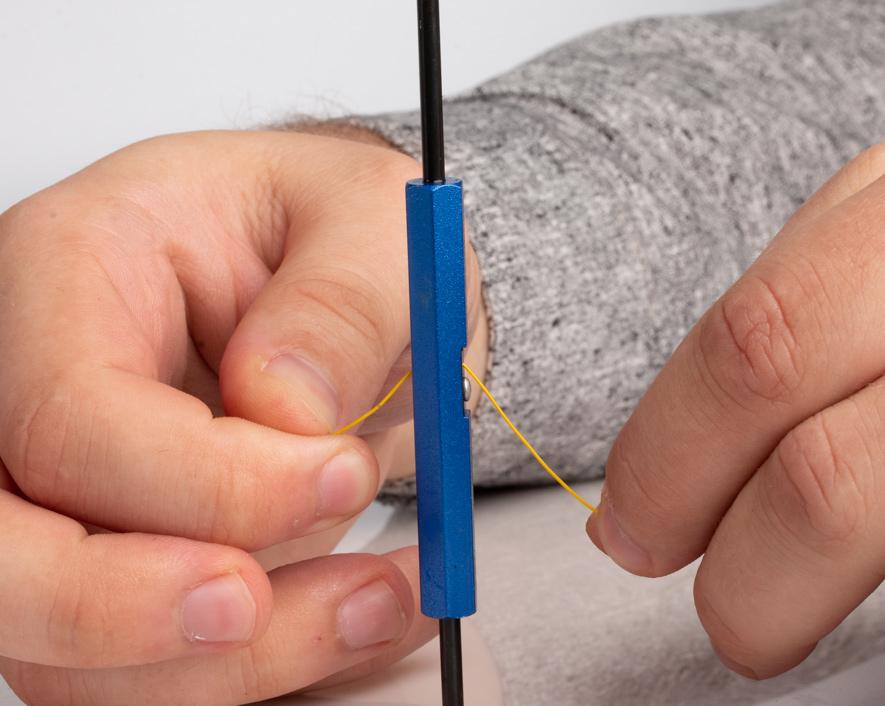

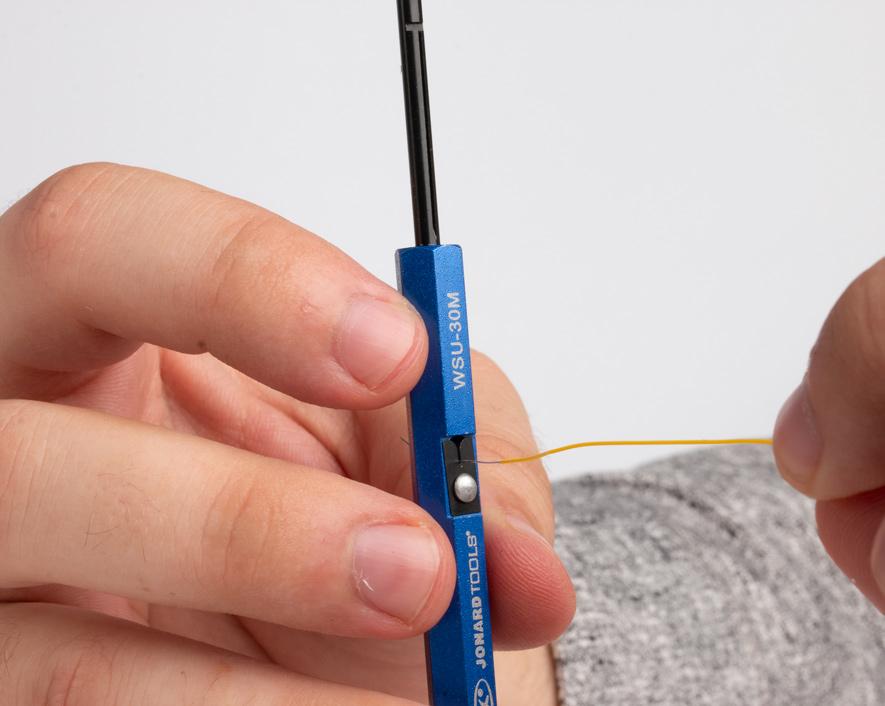

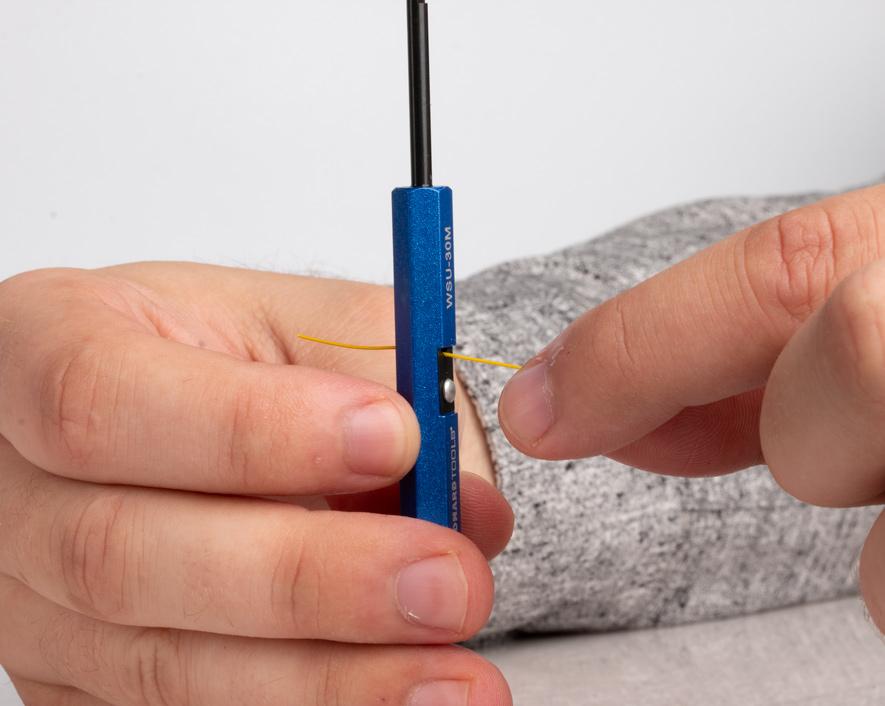

- Patented built-in wire stripping blades make wire stripping quick and easy in such a compact tool

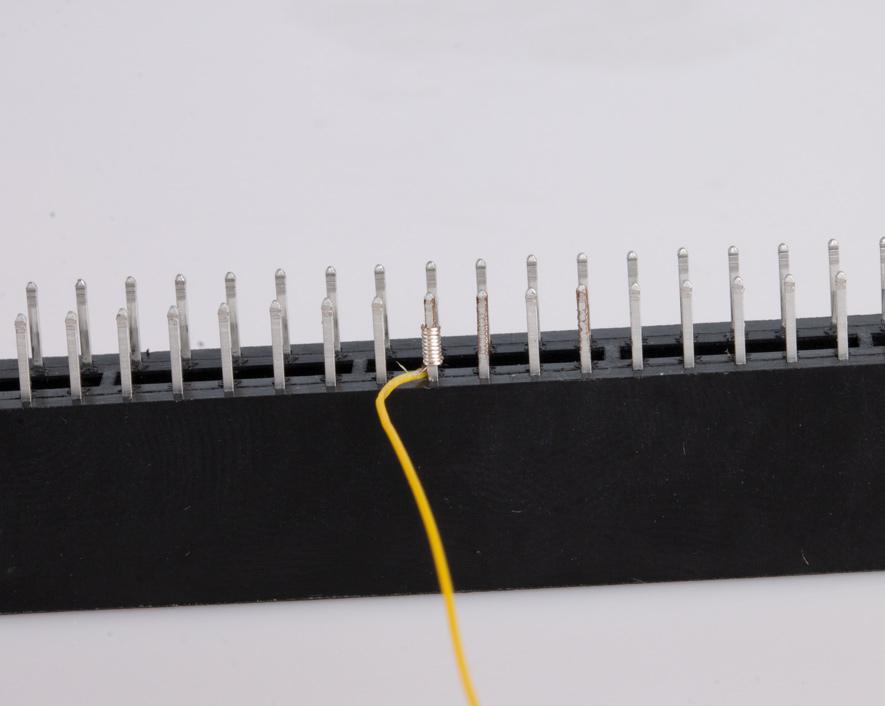

- Modified wrap provides 1.5 to 2 turns of insulation when wire wrapping
- Plastic handle for reduced weight and comfortable to carry
Specifications
| Wrap Type |
Modified |
|---|---|
| Wire Gauge |
30 AWG (0.25 mm) |
| Maximum Insulation Diameter |
0.021" (0.53 mm) |
| Terminal Hole Diameter |
0.036" (0.91 mm) |
| Terminal Hole Depth |
1.50" (38.1 mm) |
| Outside Diameter |
0.125" (3.2 mm) |
| Wrap Post Size |
0.025" (0.63 mm) |
| Length | 4(11.43508cm) |
| Weight | 0.03 lb (11.804 g) |
| UPC # | 811490011335 |
