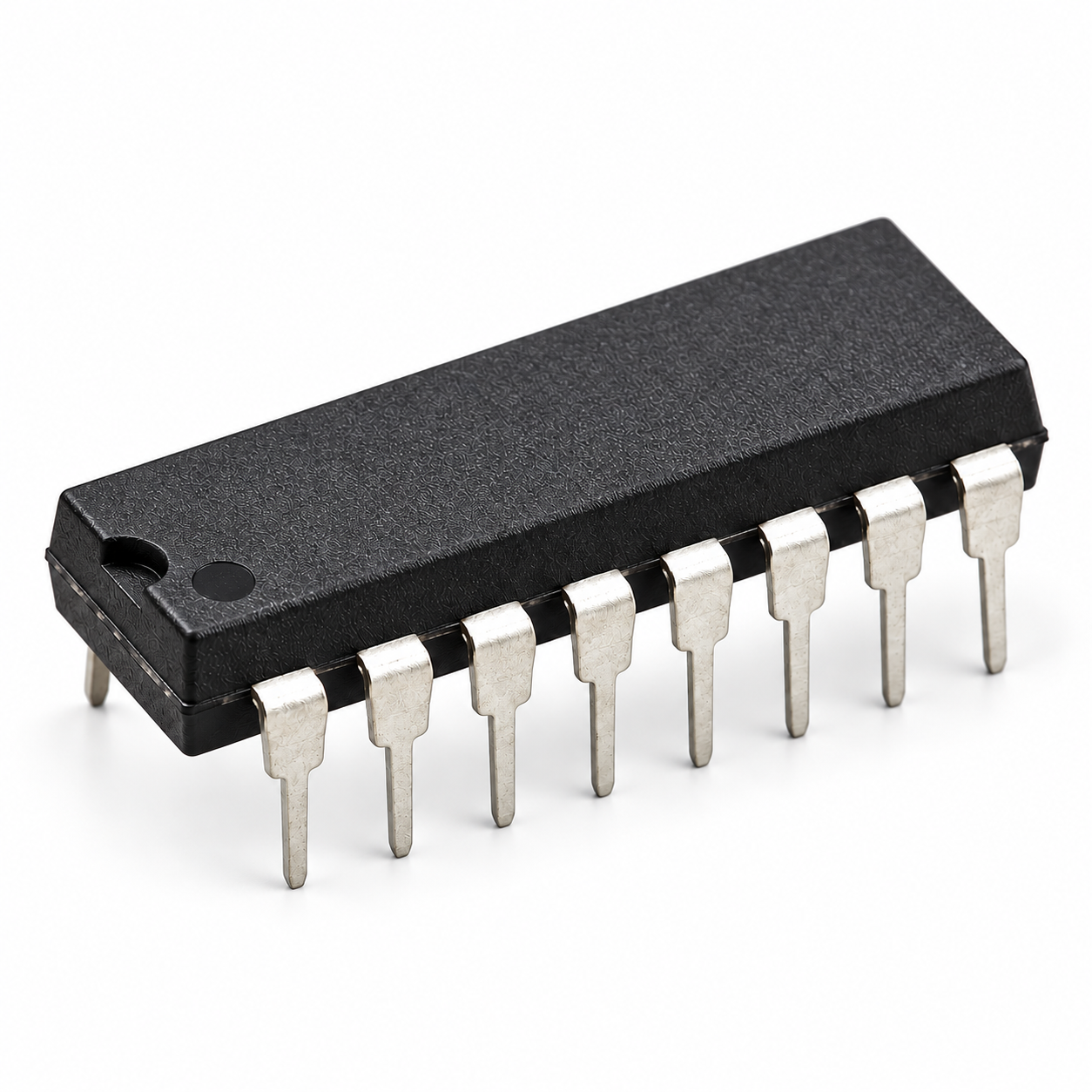

The 74HC4543 is a BCD-to-7-segment latch/decoder/driver IC. It is a 16-pin CMOS chip, made mainly for segmented LCDs, that turns 4-bit BCD data into seven segment outputs. Built-in latches hold the digit, and blanking and phase inputs give flexible display control from a 2V to 6V supply.

Key Features

  • Converts 4-bit BCD to seven-segment outputs
  • Designed mainly for segmented LCDs
  • Input latches store the BCD code
  • Blanking input
  • Phase input complements outputs for LCD drive
  • 2V to 6V supply, 16-pin CMOS

Specifications

Part number 74HC4543
Function BCD-to-7-segment latch/decoder/driver
Display type Segmented LCD
Technology CMOS

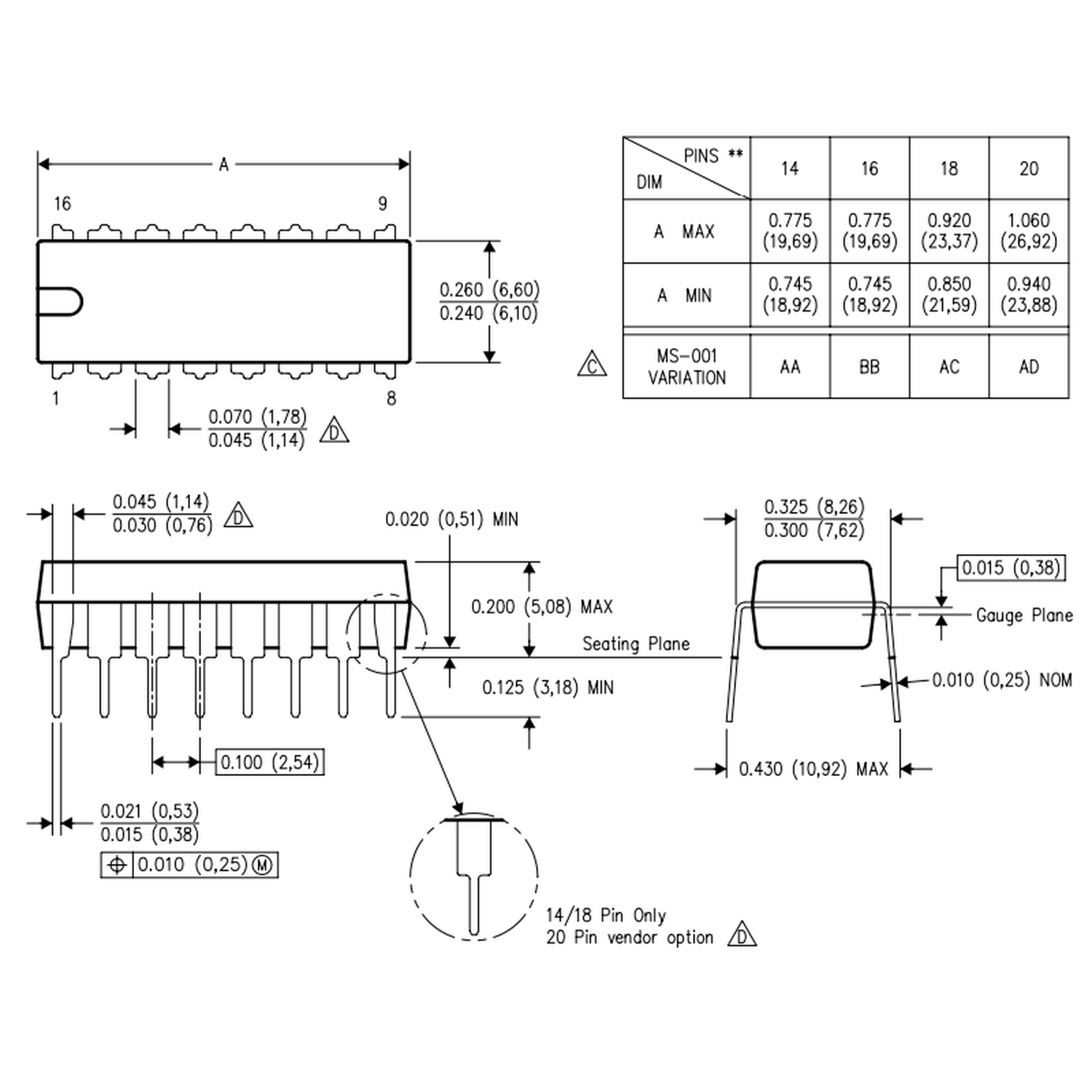

Pins 16
Supply voltage 2V to 6V
SKU 1074HC4543

What's Included

  • 1 x 74HC4543 IC

Ideal For

Numeric LCD readouts, counters and educational display projects.

Frequently Asked Questions

Why does an LCD need a phase input?
LCD segments must be driven with alternating signals. A square wave on the phase input flips the outputs so the display gets AC drive.

What is BCD?
Binary-coded decimal uses four bits to represent each digit 0 to 9.
